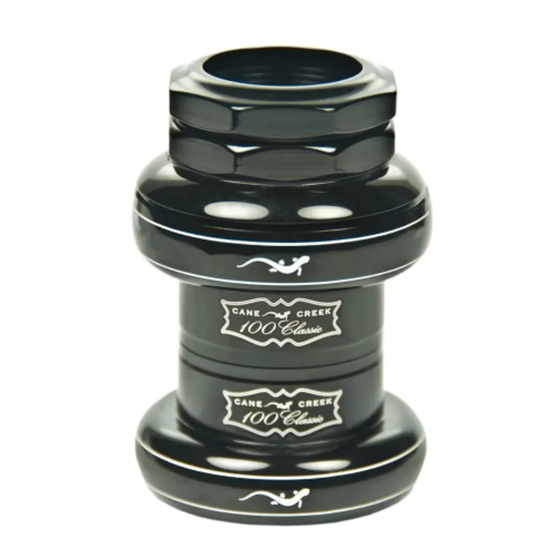

Cane Creek 100 Classic Instruction Manual

2

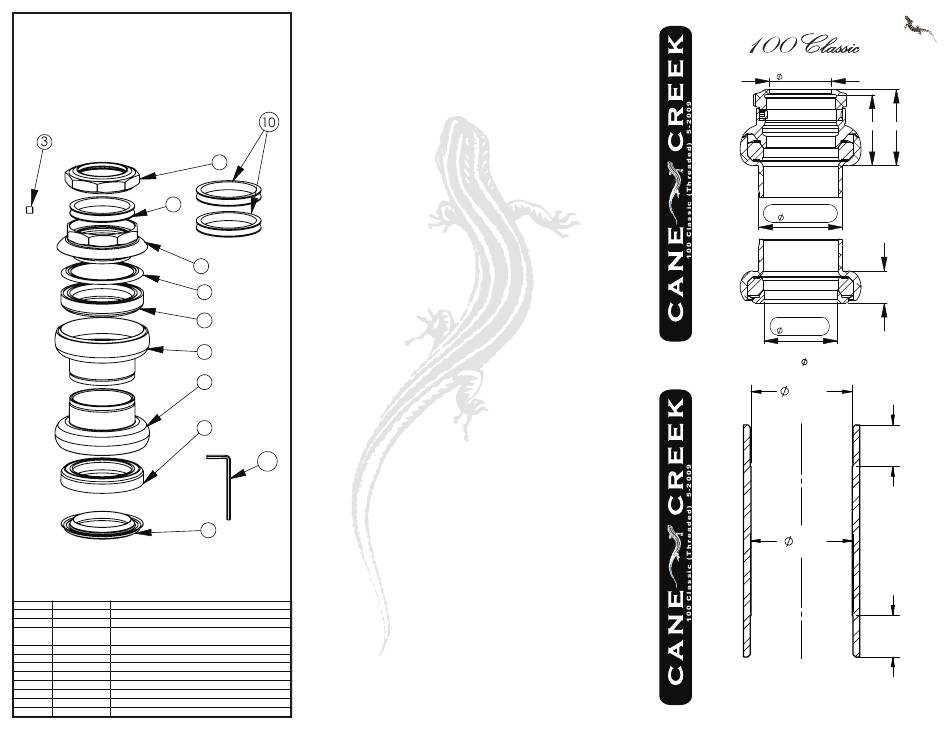

ITEM NO. PART NUMBER DESCRIPTION
1 .HD01313x 100 Classic - Threaded Lock-Nut
2 .HD01314x 100 Classic Key Washer
M3 x0.5 x 3mm Cup-Point, 18-8 Stainless Steel
3 .HD01315
Set Screw
4 .HD01312x 100 Classic - Threaded Top Cover
5 .HD1320K 1" Angular Contact Bearing
6 .HD01300x 100 Classic - Upper Bearing Cup
7 .HD01301x 100 Classic - Lower Bearing Cup
8 .HD1305B 1" Crown Race with Molded Seal
9 .HD01304 100 Classic - Compression Ring Seal
10 .HD01316x 100 Classic - Threaded Spacer
11 .HF11890 1.5mm Hex Key

WARRANTY

Cane Creek Cycling Components warrants
its bicycle products for a period of 2
years from the original date of purchase.
Any product that is found to be defective
in materials or workmanship will be
repaired or replaced at the discretion of
Cane Creek. This warranty applies to the
original owner only. This warranty does
not cover damage or failure resulting
from misuse, abuse, alteration, neglect,
wear and tear, crash or impact, lack of
1
maintenance or other conditions judged
by Cane Creek to be abnormal, excessive,
or improper. It is mandatory that a Return
Authorization Number (RA#) be obtained
by calling Cane Creek before any product
is returned. Additionally, a dated Proof of
Purchase must accompany the product
when returned.
4
9
5
6
7
5
11
8
+0.1
22.30 0.0
25.50
+0.10
30.20 0.00
11.65 ±0.30
0.00
26.40 - 0.05
(fork crown OD 26.43 +0.050)
30.10
30.05
12.50 MIN
28.5
MIN
12.50 MIN
1" Traditional

Head Tube Specifications

27.5
