Rotronic HygroClip2 ADVANCED User Manual

Humidity temperature probes
Hide thumbs Also See for HygroClip2 ADVANCED:
Table of Contents

Advertisement

Quick Links

Download this manual

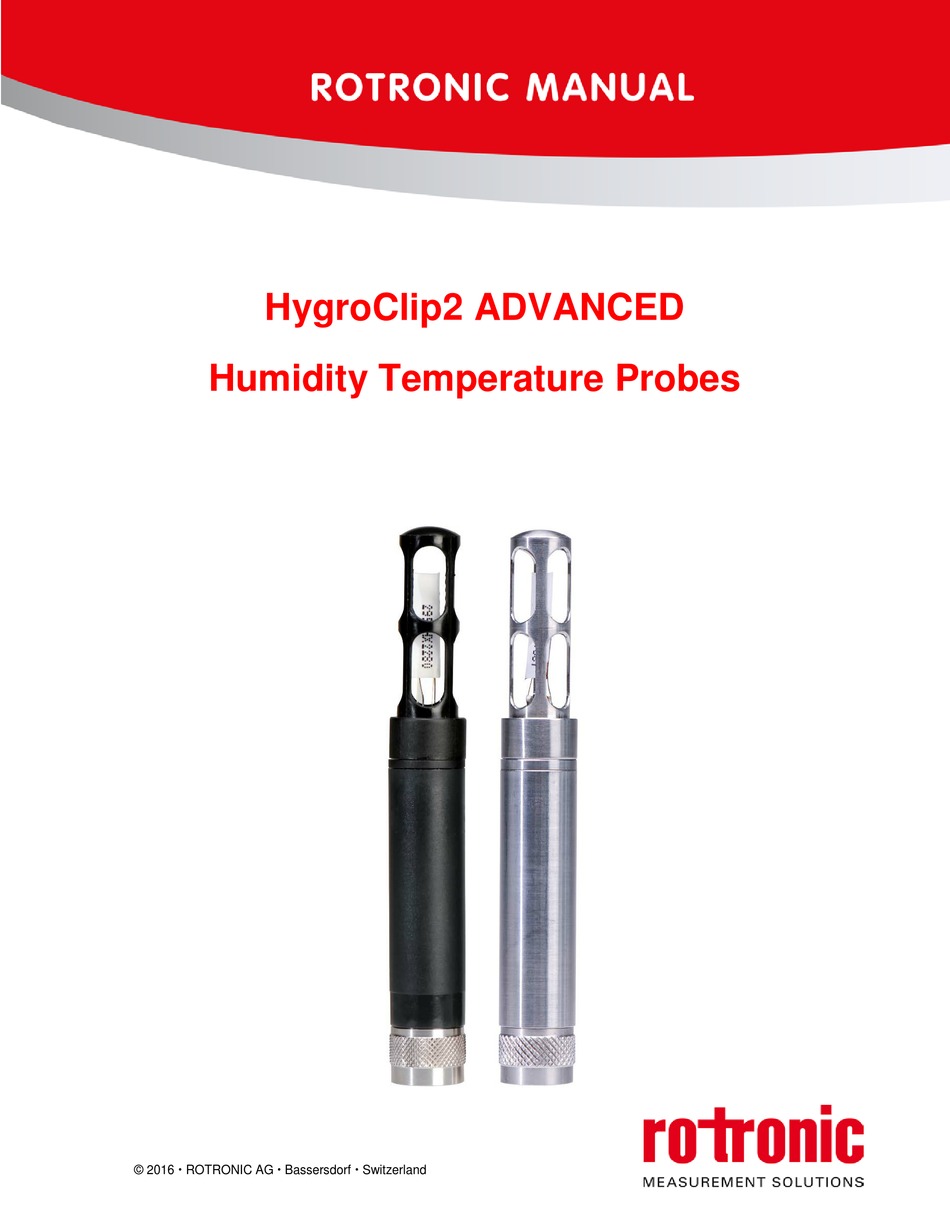

HygroClip2 ADVANCED
Humidity Temperature Probes
© 2016  ROTRONIC AG  Bassersdorf  Switzerland

Advertisement

Table of Contents
loading

Related Manuals for Rotronic HygroClip2 ADVANCED

Summary of Contents for Rotronic HygroClip2 ADVANCED

  • Page 1 HygroClip2 ADVANCED Humidity Temperature Probes © 2016  ROTRONIC AG  Bassersdorf  Switzerland...

  • Page 2: Table Of Contents

    Validation of the output signals transmission ..................33 Firmware updates ..........................34 Technical data ............................35 Accessories and parts ........................38 Supporting documents ........................39 Document releases ..........................40 © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 2 of 40...

  • Page 3: Overview

    The HC2A probes are compatible only with the AirChip3000 generation of ROTRONIC humidity-temperature instruments. Configuration of the HC2A probes and access to the probe functions requires a PC with the ROTRONIC HW4 software version 3.7 or higher or connection to a compatible instrument from ROTRONIC.

  • Page 4: Models

    (0…1 V = 0…100 %RH and 0…1 V = -40…60 °C). The user is responsible for reconfiguring the probe analog outputs (requires the ROTRONIC HW4 software) and for providing power to the probe. © 2016  ROTRONIC AG  Bassersdorf  Switzerland...
  • Page 5 -50…100 °C (-58…212 °F) Diameter: 15 mm (0.6”) HC2A-S-HH Length: 108 mm (3.3”) Housing material: Polycarbonate, black Standard dust filter: None ® Sensor: HYGROMER HH-1 Weight: 10 g (0.35 oz) © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 5 of 40...
  • Page 6 108 mm (3.3”) Housing material: Stainless steel, DIN 1.4301 Standard dust filter: Wiremesh filter, 10 µm, DIN 1.4401 ® Sensor: HYGROMER HT-1 Weight: 50 g (1.76 oz) © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 6 of 40...
  • Page 7 500 g / 17.6 oz, 5 m cable The peak load at 200 °C is 100 h. See the sensor data sheet for detailed information on the pollution loads for the sensor. © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 7 of 40...
  • Page 8 560 g / 19.8 oz, 5 m cable The peak load at 200 °C is 100 h. See the sensor data sheet for detailed information on the pollution loads for the sensor. © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 8 of 40...
  • Page 9 590 g / 20.8 oz, 5 m cable The peak load at 200 °C is 100 h. See the sensor data sheet for detailed information on the pollution loads for the sensor. © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 9 of 40...
  • Page 10 None, must be ordered separately ® Sensor: HYGROMER HH -1 Weight: 260 g / 9.2 oz, 2 m cable 500 g / 17.6 oz, 5 m cable © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 10 of 40...
  • Page 11 None, must be ordered separately ® Sensor: HYGROMER HH -1 Weight: 320 g / 11.3 oz, 2 m cable 560 g / 19.8 oz, 5 m cable © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 11 of 40...
  • Page 12 Standard filter: None, must be ordered separately ® Sensor: HYGROMER HH-1 Weight: 350 g / 12.3 oz, 2 m cable 590 g / 20.8 oz, 5 m cable © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 12 of 40...
  • Page 13 560 g / 19.8 oz, 5 m cable The peak load at 200 °C is 100 h. See the sensor data sheet for detailed information on the pollution loads for the sensor. © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 13 of 40...
  • Page 14 770 g / 27.1 oz, 5 m cable The peak load at 200 °C is 100 h. See the sensor data sheet for detailed information on the pollution loads for the sensor. © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 14 of 40...
  • Page 15 To avoid measurement errors, temperature should be the same on both sides of the mounting wall. The peak load at 200 °C is 100 h. See the sensor data sheet for detailed information on the pollution loads for the sensor. © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 15 of 40...
  • Page 16 970 g / 34.2oz, 5 m cable The peak load at 200 °C is 100 h. See the sensor data sheet for detailed information on the pollution loads for the sensor. © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 16 of 40...
  • Page 17 The peak load at 200 °C is 100 h. See the sensor data sheet for detailed information on the pollution loads for the sensor. The sealing ring withstands only -40…85°C © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 17 of 40...

  • Page 18: General Description

    HT-1 capacitive sensor and temperature with a Pt100 RTD. Calculated parameters Using the ROTRONIC HW4 software, the HC2A probe can be configured by the user to calculate either the dew point or the frost point. Analog output signals The HC2A probe features two 0…1 V linear analog output signals. The default factory settings are as follows: Output 1: 0…1 V (humidity)

  • Page 19: Digital Interface

    Firmware update of HygroClip2 probes Communication protocol The probe measurement data can be read without having to use the ROTRONIC HW4 software. The HC2A probe offers the following communication protocol options (ASCII) which can be selected by connecting the...

  • Page 20: Connector

    The probe connector is secured to the matching female connector with a threaded collar. Pin-out diagram (7-pin male – looking at probe) © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 20 of 40...

  • Page 21: Sensor Protection (Dust Filter)

    Picture Drawing Material Temperature range -50…100 °C SPA-PCB Polycarbonate, black (-58…212 °F) -50…100 °C SPA-PCW Polycarbonate, white (-58…212 °F) -100…200 °C SPA-SS Stainless steel, 1.4301 (-148…392 °F) © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 21 of 40...
  • Page 22 T63: 100 %RH  30 %RH PC carrier: 70 °C  23 °C Stainless steel carrier: 70 °C  23 °C © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 22 of 40...

  • Page 23: User Configurable Settings And Functions

    Most such users will never have to use the probe configurable settings and functions. o Users who purchased a probe for use with another ROTRONIC instrument can also use the probe right away and do not necessarily have to use the probe configurable settings and functions...

  • Page 24: Function Overview

    AirChip3000 Functions Description Used to make the probe generate fixed values for the ► Simulator mode humidity, temperature and calculated parameter. Can be configured, enabled or disabled. © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 24 of 40...
  • Page 25 Used to specify a "safe" fixed value for humidity and for ► Fail safe mode temperature in the event of a sensor failure. Can be configured, enabled or disabled © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 25 of 40...

  • Page 26: Factory Default Settings

    Instructions regarding the configuration of the probe and access to its functions are provided in the following manuals: • E-M-HW4v3-Main • E-M-HW4v3-F2-001 • E-M-HW4v3-DR-001 • E-M-HW4v3-A2-001 • E-M-AC3000-CP © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 26 of 40...

  • Page 27: Mechanical Installation

    (calibrator).The calibration access orifice should have the same size as the orifice used to install the probe and can be equipped with a probe holder. © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 27 of 40...

  • Page 28: Electrical Installation

    (unshielded) direct and alternate current > 400 V (unshielded) in separated bundles or channels / Telephone lines conduits, without minimum distance lines leading into EX-rated areas © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 28 of 40...

  • Page 29: Analog Signal Wiring

    (35 %RH or less). The power supply and digital ground (GND) and the analog ground (AGND) should be tied separately to a proper ground so as to avoid spikes in the analog signals. © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 29 of 40...

  • Page 30: Operation

    The HC2A probes are compatible with a large number of indicators, data loggers and transmitters from ROTRONIC. Operating instructions are provided in each device manual. The HC2A probes can also be used as a conventional analog probe. See Accessories, supply voltage adapters, connectors and cables. Use the HW4 software to configure the probe as desired, complete the mechanical and electrical installation and power up the probe.

  • Page 31: Connectivity Examples For Stand-Alone Probes

    (see Accessories). Probe configuration and full access to all probe functions requires a PC with the ROTRONIC HW4 software installed. When using the standard RO-ASCII protocol, access to some of the probe functions is also possible without HW4. For details, see document E-M-AC3000-CP.

  • Page 32: Hand-Held Probes Used With An Indicator

    Non-moving air is an excellent insulator. When there is no air movement, surprising differences in temperature and humidity can noted over short distances. Air movement at the probe generally results in measurements that are both faster and more accurate. © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 32 of 40...

  • Page 33: Maintenance

    For connecting the HC2A probe to a PC, use a digital adapter cable AC3001 (see document E-M- HC2-accessories). Procedure for adjusting the HC2A probe with the ROTRONIC HW4 software: o Connect the HC2A probe to the HW4 PC as explained in the HW4 manual E-M-HW4v3-Main o Start HW4 software on the PC and search for the HC2A probe.

  • Page 34: Firmware Updates

    Manual E-M-HC2A-V1_0.docx Firmware updates Firmware updates will be available on the ROTRONIC website for downloading. For connecting the HC2A probe to a PC, use a digital adapter cable AC3001 (see document E-M-HC2-accessories). Procedure for updating the firmware: o Connect the HC2A probe to the HW4 PC as explained in the HW4 manual E-M-HW4v3-Main o Copy the firmware update file from the ROTRONIC website to the PC.

  • Page 35: Technical Data

    Typical 4 sec, 63 %RH of a step change (1 m/sec air flow at sensor) The peak load at 200 °C is 100 h. See the sensor data sheet for detailed information on the pollution loads for the sensor. © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 35 of 40...
  • Page 36 Baud rate configuration: Logical 0: ≤ 0.3V * VDD Logical levels Logical 1: ≥ 0.8V * VDD Maximum cable length 5 m (16.4 ft) w/o signal booster © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 36 of 40...
  • Page 37 17 %RH at 150 °C (302 °F) Maximum air velocity at probe 20 m/s (3,935 ft /min) Critical environments Humidity sensor: as per DV04-14.0803.02 - Critical chemicals © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 37 of 40...

  • Page 38: Accessories And Parts

    Accessories and parts For accessories and parts such as the HW4 configuration software, extension cables, adapter cables, calibration accessories and spare dust filters, please see document E-M-HC2-accessories © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 38 of 40...

  • Page 39: Supporting Documents

    HW4 software version 3: Data Recording Function AirChip3000 Devices E-M-AC3000-CP AirChip3000 Communication Protocol Temperature and humidity adjustment basics E-M-CalBasics Instructions for using the ROTRONIC humidity standards E-T-HumiDefs Humidity Definitions © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 39 of 40...

  • Page 40: Document Releases

    HygroClip2 ADVANCED Manual E-M-HC2A-V1_0.docx Document releases Doc. Release Date Notes V1_0 August 2016 Original release © 2016  ROTRONIC AG  Bassersdorf  Switzerland Page 40 of 40...
