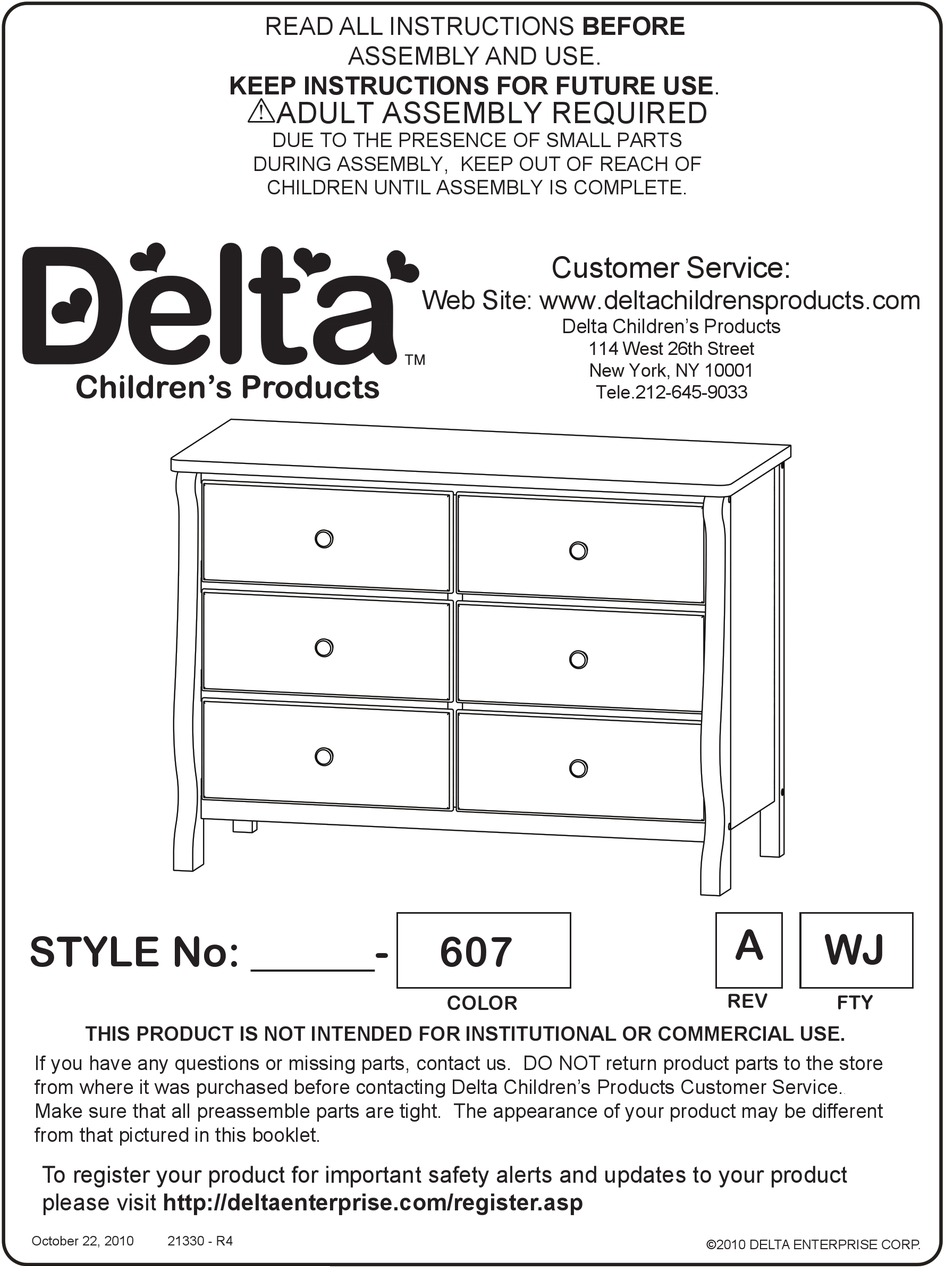

STYLE No: ______-
THIS PRODUCT IS NOT INTENDED FOR INSTITUTIONAL OR COMMERCIAL USE.
If you have any questions or missing parts, contact us. DO NOT return product parts to the store
from where it was purchased before contacting Delta Children's Products Customer Service.
Make sure that all preassemble parts are tight. The appearance of your product may be different
from that pictured in this booklet.
To register your product for important safety alerts and updates to your product
please visit http://deltaenterprise.com/register.asp
21330 - R4
October 22, 2010
READ ALL INSTRUCTIONS BEFORE
ASSEMBLY AND USE.
KEEP INSTRUCTIONS FOR FUTURE USE.
ADULT ASSEMBLY REQUIRED
DUE TO THE PRESENCE OF SMALL PARTS
DURING ASSEMBLY, KEEP OUT OF REACH OF
CHILDREN UNTIL ASSEMBLY IS COMPLETE.

Customer Service:

Web Site: www.deltachildrensproducts.com
Delta Children's Products
114 West 26th Street
New York, NY 10001
Tele.212-645-9033
607
COLOR
A
WJ
REV
FTY
.
©2010 DELTA ENTERPRISE CORP.

Advertisement

loading

Related Manuals for Delta Childrens Products 70816-607

Summary of Contents for Delta Childrens Products 70816-607

  • Page 1: Customer Service

    READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE. KEEP INSTRUCTIONS FOR FUTURE USE. ADULT ASSEMBLY REQUIRED DUE TO THE PRESENCE OF SMALL PARTS DURING ASSEMBLY, KEEP OUT OF REACH OF CHILDREN UNTIL ASSEMBLY IS COMPLETE. Customer Service: Web Site: www.deltachildrensproducts.com Delta Children’s Products 114 West 26th Street New York, NY 10001 Tele.212-645-9033...
  • Page 2 WARNING: Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip-over: . Place heaviest items in the lowest drawers. . Unless specifically designed to accommodate, do not set TV’s or other heavy objects on the top of this product. .
  • Page 3 PARTS-CONTINUED: L. LEFT SIDE PANEL (x1) M. CENTER FRAME (x1) N. RIGHT SIDE PANEL (x1) R1. FRONTBOTTOM SUPPORT RAIL - FINISHED (x1) R2. BACK BOTTOM SUPPORT RAIL - UNFINISHED (x1) P. TOP (x1) S. UPPER SUPPORT RAIL (x4) V. BACK PANEL SCREW (x28) W.

  • Page 4: Section 1: Drawer Assembly

    SECTION 1: DRAWER ASSEMBLY STEP 1 FIG. 1 A or B 1. ATTACH THE LEFT DRAWER SIDE (PART C) TO THE DRAWER FRONT (PART A OR B) USING (2) DRAWER ASSEMBLY SCREWS (PART J), TIGHTEN WITH THE PHILLIPS SCREWDRIVER. BE SURE THE GROOVE IN THE BOTTOM OF THE PARTS LINE UP. SEE FIGURE 1.
  • Page 5 SECTION 1: DRAWER ASSEMBLY STEP 2 1. ATTACH THE DRAWER BACK (PART E) TO THE DRAWER ASSEMBLY USING (5) DRAWER ASSEMBLY SCREWS (PART J), TIGHTEN WITH THE PHILLIPS SCREWDRIVER. BE SURE THE DRAWER BOTTOM IS IN THE GROOVE ON THE DRAWER BACK BEFORE ATTACHING ANY SCREWS.
  • Page 6 SECTION 2: CASE ASSEMBLY STEP 1 FOR CASE ASSEMBLY PLACE THE TOP (PART P) ON A STABLE, NON-ABRASIVE SURFACE, SUCH AS A BLANKET ON THE FLOOR. 1. ATTACH THE LEFT SIDE PANEL (PART L) TO THE TOP (PART P) USING (2) LONG BOLTS (PART X), TIGHTEN WITH THE M4 ALLEN WRENCH.
  • Page 7 SECTION 2: CASE ASSEMBLY STEP 2 1. INSERT (2) UPPER SUPPORT RAILS (PART S) INTO THE SLOTS IN THE FRONT POST OF THE SIDE PANEL. FINISHED PANEL MUST FACE FRONT. FIG 2 FINISHED SIDE MUST FACE FRONT. FIG 3 2a. INSERT THE TABS ON THE END OF THE CENTER FRAME (PART M) INTO THE SLOTS IN THE RAILS ON THE TOP.
  • Page 8 SECTION 2: CASE ASSEMBLY STEP 3 1. INSERT (2) UPPER SUPPORT RAILS (PART S) INTO THE SLOTS IN THE FRONT POST OF THE CENTER FRAME. FINISHED SIDE MUST FACE FRONT. FINISHED SIDE MUST FACE FRONT. 2a. INSTALL THE RIGHT SIDE PANEL (PART N) BY ALIGNING THE TABS ON ALL OF THE INSTALLED PIECES WITH THE SLOTS IN THE SIDE PANEL.

  • Page 9: Instructions On Use

    SECTION 2: CASE ASSEMBLY STEP 4 INSTALL THE BACK PANELS (PART T) USING (14) BACK PANEL SCREWS (PART V) FOR EACH. TIGHTEN WITH THE PHILLIPS SCREWDRIVER. ABOVE ONE BACK PANEL IS SHOWN INSTALLED. THE SMALL NOTCH IN THE BACK PANEL MUST BE INSTALLED AS SHOWN AS CAN BE SEEN IN FIGURE 3, THE NOTCH LINES UP WITH A NOTCH IN THE RAIL PRE-ASSEMBLED TO THE TOP.
  • Page 10 SECTION 2: CASE ASSEMBLY STEP 5 SET THE CASE UPRIGHT (FEET ON THE GROUND) THE CASE IS HEAVY, THIS MAY REQUIRE (2) PEOPLE. INSTALL THE DRAWERS BY PLACING THE WHEELS ON THE DRAWER BEHIND THE WHEELS ON THE CABINET. PUSH THE DRAWER IN. BE SURE THAT THE ASSEMBLED LEFT DRAWERS GO ON THE LEFT SIDE AND THE ASSEMBLED RIGHT DRAWERS GO ON THE RIGHT SIDE.

  • Page 11: Final Assembly

    FINAL ASSEMBLY THE SLOT FOR ATTACHING THE WALL STRAP IS LOCATED BEHIND THIS DRAWER TO SECURE THE DRESSER TO THE WALL, PLEASE REFER TO THE INSTRUCTIONS IN THE PROVIDED WALL STRAP KIT.
  • Page 12 Customer Service: Web Site: www.deltachildrensproducts.com Delta Children’s Products 114 West 26th Street New York, NY 10001 Tele.212-645-9033 Warranty: This Delta product is warranted to be free from defects for a period of 90 days from the date of purchase under normal use. This warranty extends only to the original retail purchaser and is valid only when supplied with proof of purchase, or if received as a gift, when the registration is on file with Delta.
