TDK V513 User Manual

TDK V513 User Manual

Wireless sound cube

Advertisement

Quick Links

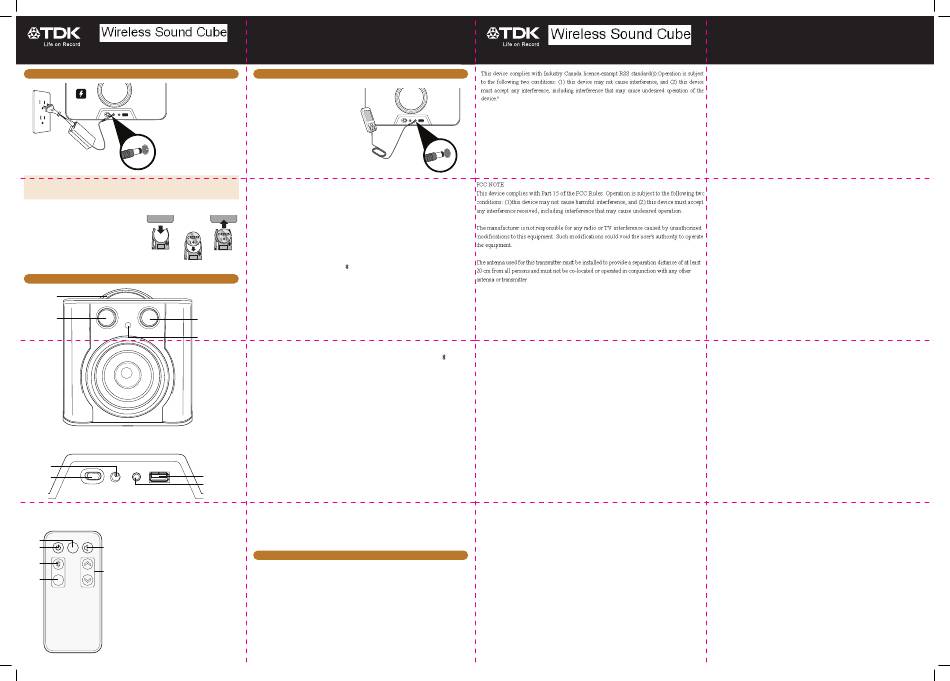

Soundcube
AC CONNECTION
1. Select the appropriate
plug for your country
and connect it to the
US AC
AC power adapter.
Plug
Shown
2. Connect the AC power
adapter jack to the DC
IN jack
y
of the unit and then
connect the plug to a
100V-240V wall outlet.
Notes:
• Only use the supplied AC adapter.
• Remove both the DC plug and AC-IN plug to disconnect AC adapter when not in use.
Replacing the Remote Control Battery:
1. Remove the Battery Compartment by
pressing in on the tab and then sliding the
compartment out.
2. Install a CR2025 battery, paying attention
to the polarity diagram in the compartment
(positive side up).
3. Replace the Battery Compartment.
LOCATION OF CONTROLS
1
2
3
4
1. Carrying Handle
3. Source/Select Control
2. Power/Volume Control
4. Remote Sensor
5
6
5. DC IN Jack
7. AUX Jack
6. Main Power (OFF/ON) Switch
8. USB CHARGE Jack
9.
OFF Button
9
10. Power Button
10
13
OFF
X
11. Bluetooth Button
11
12. AUX Button
14
13. Mute Button
12
14. Volume Buttons
AUX
Press one of the Mode buttons (Bluetooth,
AUX) to access the respective mode.
OPERATION
AUX Jack (Rear of Unit)
Insert one end of an audio cable (not
included) into the LINE OUT jack on your
external audio unit and the other end into
the AUX jack
on the rear of this unit.
y
To listen to the external audio unit, turn
this unit on and turn on the external unit
on the rear
as well. Press the Source/Select control
once so all the modes light. Rotate
w
the Source/Select control
to the AUX
w
position to select the Line In mode. Start
playback of the external unit and the
external audio unit's output sound will be
heard through this unit's speakers.
Turning the Unit On and Off:
1. The main power switch is on the rear of the unit. Slide to the ON position to turn the
unit on and activate the Power/Volume control on the main unit and the Power button
on the remote.
2. Once the main power switch is turned on, you can turn the unit on or off by pressing
the Power/Volume control
on the main unit. If using the remote, press the Power
v
button
to turn the unit on. Press the OFF button
at
X
Pairing a Bluetooth Device
1. Turn the unit on; the previously listened to source and volume will be selected.
2. Press the Source/Select control
once so all the modes light. Rotate the Source/
w
Select control
to the Bluetooth ( ) position to select the Bluetooth mode.
w
3. Press and hold the Source/Select control
until the Bluetooth indicator blinks to
w
make the speaker "discoverable".
4. On the bluetooth device, enable bluetooth and select "V513" from the Device List. If
the bluetooth device asks for a passkey, use "0000". Some bluetooth devices will ask
you to accept the connection. If the units are paired properly, the speaker will beep
and the Bluetooth indicator will light solid. If it failed, the Bluetooth indicator will blink
slowly.
Note: After you pair a device, this unit will remember it for future use.
Using a Bluetooth Device
1. Turn the unit on; the previously listened to source and volume will be selected.
2. With a unit paired (see previous section), press the Source/Select control
all the modes light. Rotate the Source/Select control
to select the Bluetooth mode.
3. Operate your Bluetooth device and its sound will be heard through this unit's speakers.
4. Adjust the volume using the Power/Volume control
control on the Bluetooth device, and adjust the Bass and Treble as described later in
this guide.
5. To mute the sound, press the Mute button
on the remote control.
am
IMPORTANT: After step 2, you have two minutes to pair the units.
Charging a Bluetooth Device with this Unit
On the rear of this unit is a USB jack that can be connected to a USB device, which will
charge if the unit is connected to AC power.
Setting the EQ and Bass
1. TREBLE: Press the Source/Select control
once so all the modes light. Rotate the
w
Source/Select control
to the TRE (Treble) position. Adjust the setting using the
w
Power/Volume control v.
3. BASS: Press the Source/Select control
once so all the modes light. Rotate the
w
7
Source/Select control
to 2x for double bass, or 4x for quadruple bass.
w
8
Note: If no setting has taken place for five seconds, the unit will exit the Bass/Treble
setting mode and will revert to the previous mode.
Auto Power Off
If the unit has no audio signal, and/or a USB device is not charging, for 20 minutes, the
unit will turn itself off. To "wake" the unit up, simply press the Power/Volume control
the main unit or the Power button
on the remote control.
at
SPECIFICATIONS AND COMPATIBILITY
GENERAL:
Power Source (AC) .. DC 18V Adapter (Center Positive)
Dimensions ....................9 (W) x 9 (H) x 9 (D) inches.
Speakers. ...........4 x 2 inch full-range drivers, 1 x 5.25
Wireless Audio. ..... Bluetooth version 2.1-A2DP profile
.......... inch subwoofer, 2 x 5.25 inch passive radiators
Line-input Audio. .... 3.5mm stereo jack up to 2.5Vrms
Output Power ................... 3W x 4 + 15W (subwoofer)
...............................................................input signal
Weight. ..............................................................[tbd]
USB Port. ............................. .5 V @ 2.1 A charge only
Specifications are subject to change without notice.
The TDK Life on Record Logo is a trademark of TDK Corporation and is used under license.
All other trademarks and logos are property of their respective owners.
Soundcube
User Guide
Please read these instructions completely
before operating this product
TDKperformance.eu
V513
to turn the unit off.
once so
w
to the Bluetooth ( )position
w
on this unit, or the Volume
v
on
v
63952719-A
User Guide
Please read these instructions completely
before operating this product
TDKperformance.eu
V513
