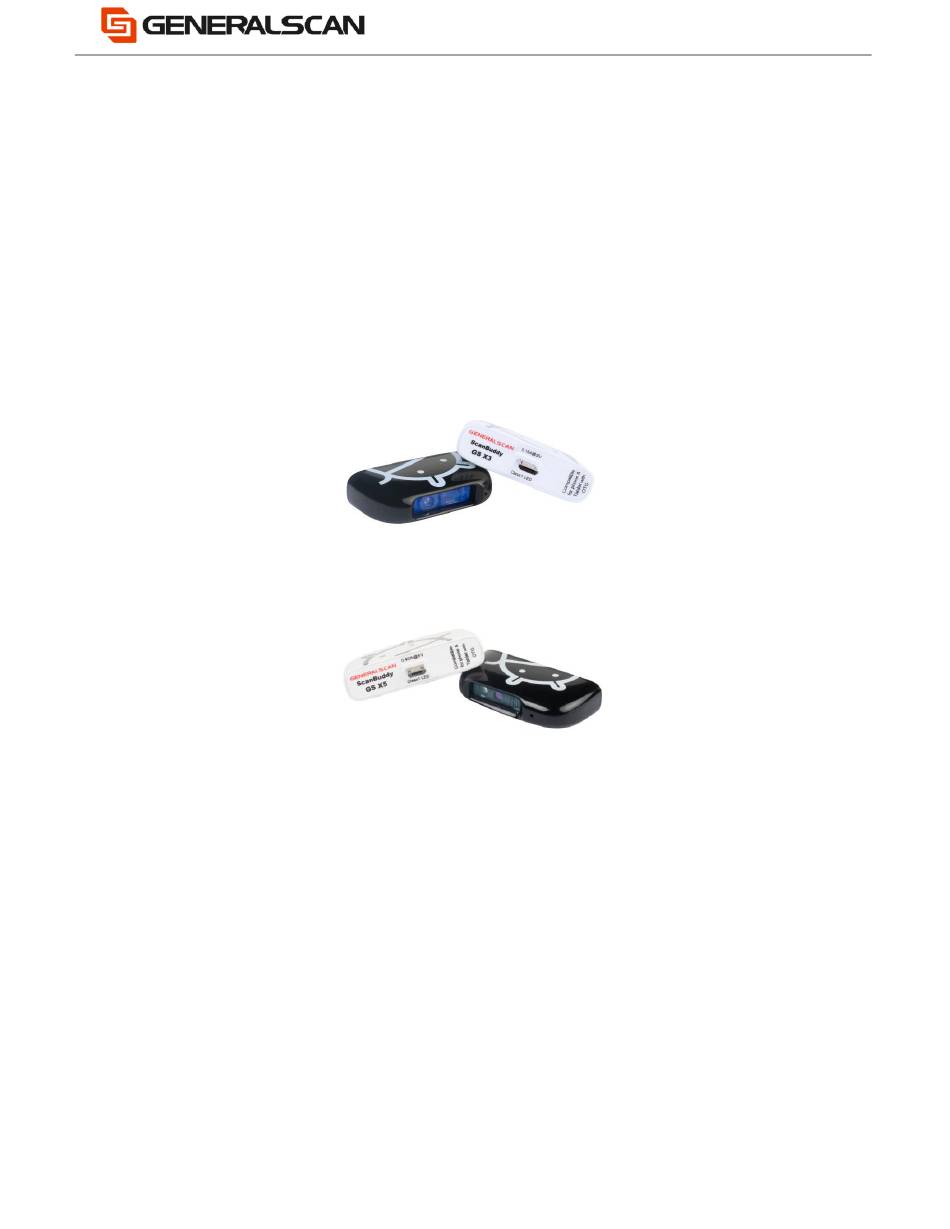

- Page 1 Quick Start Guide X Series X Series Barcode Scanner Quick Start Guide...
-
Page 2: Product Outlook
Screw Hole fix screw for scanbuddy 2. GS-X Series Usage Introduction Confirm your Android device or Windows Tablet support OTG function first. Please note your device should provide at least 300maH current from MicroUSB port to external device. If you cannot... - Page 3 Generalscan ScanBuddy app is developed by Generalscan for easy to use GS-X series product. Due to there is no hardware trigger button on the GS-X series product, so you have to use software trigger button on the Android screen. ScanBuddy app has on screen floatable software trigger button.
- Page 4 Quick Start Guide X Series 3.2 When you first time to run ,it is the basic interface.
- Page 5 Quick Start Guide X Series 3.3 When you click top right corner “Setting” button, you will find the above interface. You can find many setting. 1. ”Show Trigger Button”: Click the button to show on-screen trigger button . 2. ”Hide Trigger Button”: Click the button to hide on-screen trigger button.
- Page 6 Quick Start Guide X Series 3.4 When you enable display on-screen trigger option, the floating trigger will display on the screen, you can move it to anywhere for you easy to touch the trigger button. You can also touch the...
- Page 7 Please download Generalscan USB Broadcasting Test Sample to read barcode with ScanBuddy app from the following link: http://www.generalscan.com/pdf/FinalSDK-Public.zip Please import this project with Eclipse and run on your Android device.
- Page 8 X Series 4. Windows 8.1 Tablet Installation 4.1 GS-X series Scanbuddy USB barcode accessory support Windows 8.1 Tablet with MicroUSB port. You can plug the Scanbuddy into the Windows 8.1 Tablet and Windows will find the hardware, it will prompt you install the drivers.
- Page 9 Quick Start Guide X Series...
- Page 10 4.3 After you successful install the driver, there is a virtual serial port in the system, please reference the following interface to confirm the scanbuddy was detected. 4.4 When you successful install the driver for Scanbuddy, please install the Generalscan ScanWedge for ScanBuddy apps. This application can trigger the ScanBuddy with onscreen button and scan the barcode into any application with text box.
- Page 11 Quick Start Guide X Series Port Selection Box: Select the right virtual serial port. Open Port: After you select the port, please click “Open Port” button to open. Refresh Port: When you unplug the Scanbuddy, the virtual serial port will disappear, After you plug it again, please click refresh port to make the virtual serial port to visible.
- Page 12 Quick Start Guide X Series 4.5 When you click the “Enable Trigger Button”, the green on screen trigger button will visible. You can touch it and move it to anywhere on the screen which you can touch for easy. You can press the “Manual Trigger” button to test the barcode, if you can see the red light from the scanner, it indicate the scanner is triggered.
- Page 13 4.6.5 Press the blue on screen trigger to scan a barcode. 4.6.6 You will find the barcode was scanned into Notepad. 4.6.7 Please Click the Generalscan ScanWedge for ScanBuddy apps to the top of screen again. 4.6.8 And then please click the WordPad and make it as active form.
- Page 14 4.6.10 Press the blue on screen trigger to scan a barcode. 4.6.11 You will find the barcode was scanned into WordPad. 4.7 When you use Generalscan USB Barcode accessory, you cannot connect PC and copy file to smart phone with the Micro-USB port.
- Page 15 Quick Start Guide X Series When you connect your smartphone with WIFI, you can click “SDCard” to copy the file you need.
- Page 16 Quick Start Guide X Series Generalscan Scanbuddy x3 work with Samsung Android Smartphone S4： https://www.youtube.com/watch?v=lYMZQvTMJOo...
- Page 17 Quick Start Guide X Series 5.Configure barcode 5.1 Buzzer Volume Setting Mute Buzzer Volume Mute Buzzer Volume Low Buzzer Volume Low Buzzer Volume Medium Buzzer Volume Medium Buzzer Volume High Buzzer Volume(*) High Buzzer Volume 5.2 On-Board Build-in Suffix for CR&LF Enable CR&LF suffix(*)
-
Page 18: Hid Keyboard Layout
Quick Start Guide X Series 5.3 HID Keyboard Layout English Keyboard Layout(*) English Keyboard Layout France Keyboard Layout France Keyboard Layout German Keyboard Layout German Keyboard Layout Spanish Keyboard Layout Spanish Keyboard Layout Italian Keyboard Layout Italian Keyboard Layout Japanese Keyboard Layout Japanese Keyboard Layout 5.4 Hardware Information... -
Page 19: Default Factory Setting
Quick Start Guide X Series Read firmware Version Read Device ID Read Device ID Read Battery Volume Read Battery Volume 5.5 Default Factory Setting Default Factory Setting Default Factory Setting http://www.generalscan.com/en-us/index-en.php...
