Air-Conditioners For Building Application
INDOOR UNIT
PEFY-P-VML-E
INSTALLATION MANUAL
For safe and correct use, please read this installation manual thoroughly before installing the air-conditioner unit.
INSTALLATIONSHANDBUCH
Zum sicheren und ordnungsgemäßen Gebrauch der Klimageräte das Installationshandbuch gründlich durchlesen.
MANUEL D'INSTALLATION
Veuillez lire le manuel d'installation en entier avant d'installer ce climatiseur pour éviter tout accident et vous assurer d'une utilisation correcte.
MANUAL DE INSTALACIÓN
Para un uso seguro y correcto, lea detalladamente este manual de instalación antes de montar la unidad de aire acondicionado.
MANUALE DI INSTALLAZIONE
Per un uso sicuro e corretto, leggere attentamente questo manuale di installazione prima di installare il condizionatore d'aria.
INSTALLATIEHANDLEIDING
Voor een veilig en juist gebruik moet u deze installatiehandleiding grondig doorlezen voordat u de airconditioner installeert.
MANUAL DE INSTALAÇÃO
Para segurança e utilização correctas, leia atentamente este manual de instalação antes de instalar a unidade de ar condicionado.
E°XEIPI¢IO O¢H°IøN E°KATA™TA™H™
°È· ·ÛÊ¿ÏÂÈ· Î·È ÛˆÛÙ‹ ¯Ú‹ÛË, ·Ú·Î·Ï›ÛÙ ‰È·‚¿ÛÂÙ ÚÔÛ¯ÙÈο ·˘Ùfi ÙÔ ÂÁ¯ÂÈÚ›‰ÈÔ ÂÁηٿÛÙ·Û˘ ÚÈÓ ·Ú¯›ÛÂÙ ÙËÓ
ÂÁηٿÛÙ·ÛË Ù˘ ÌÔÓ¿‰·˜ ÎÏÈÌ·ÙÈÛÌÔ‡.
РУКОВОДСТВО ПО УСТАНОВКЕ
Для осторожного и правильного использования прибора необходимо тщательно ознакомиться с данным руководством по
установке до выполнения установки кондиционера.
MONTAJ ELK‹TABI
Emniyetli ve do¤ru biçimde nas›l kullan›laca¤›n› ö¤renmek için lütfen klima cihaz›n› monte etmeden önce bu elkitab›n› dikkatle okuyunuz.
Advertisement
Table of Contents
Related Manuals for Mitsubishi PEFY-P20VML-E
Summary of Contents for Mitsubishi PEFY-P20VML-E

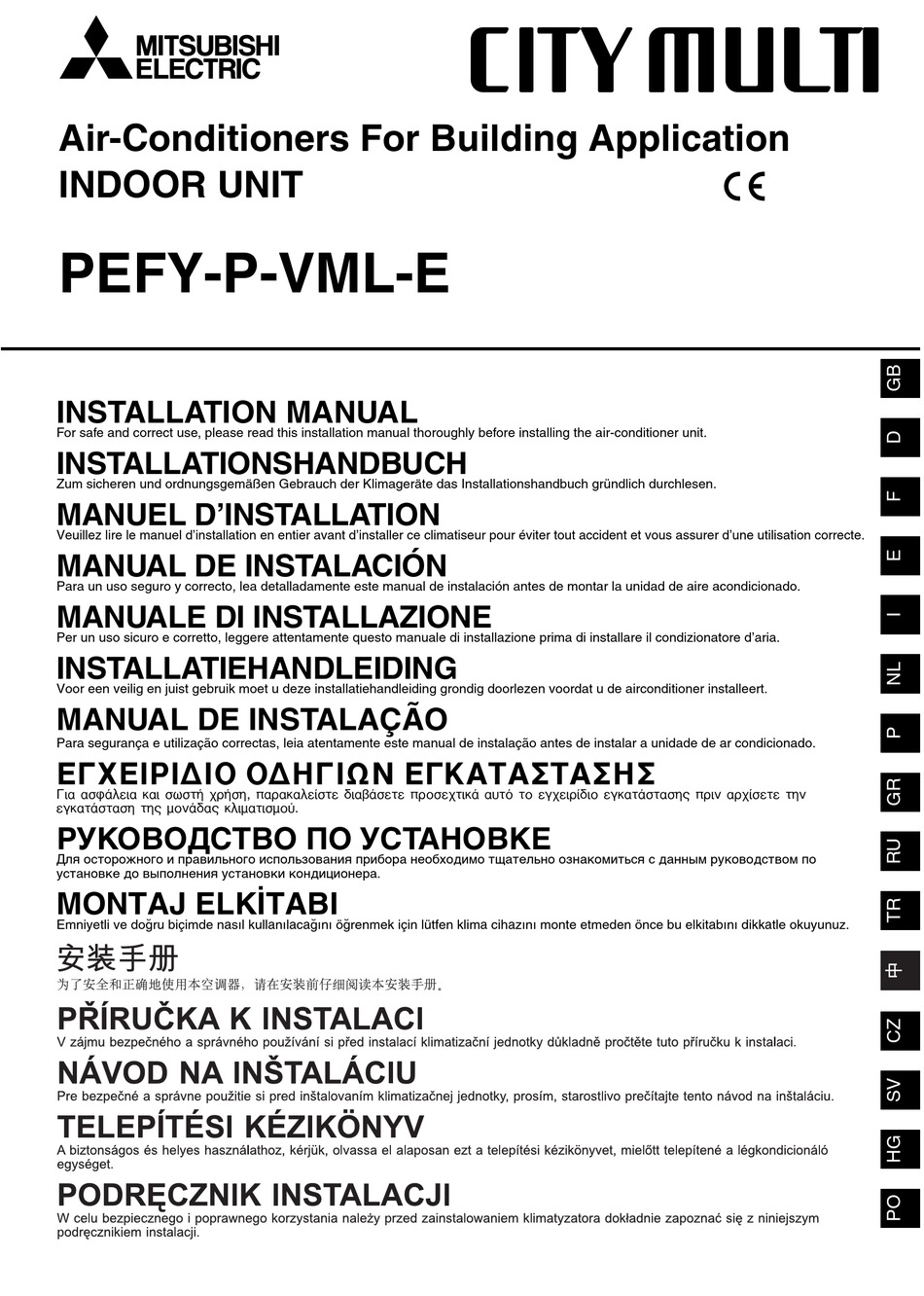

- Page 1 Air-Conditioners For Building Application INDOOR UNIT PEFY-P-VML-E INSTALLATION MANUAL For safe and correct use, please read this installation manual thoroughly before installing the air-conditioner unit. INSTALLATIONSHANDBUCH Zum sicheren und ordnungsgemäßen Gebrauch der Klimageräte das Installationshandbuch gründlich durchlesen. MANUEL D’INSTALLATION Veuillez lire le manuel d’installation en entier avant d’installer ce climatiseur pour éviter tout accident et vous assurer d’une utilisation correcte. MANUAL DE INSTALACIÓN Para un uso seguro y correcto, lea detalladamente este manual de instalación antes de montar la unidad de aire acondicionado.
- Page 2 [Fig. 3.2.1] 50~150 A Access door 1 500 or more B Electrical parts box 2 100 or more C Air inlet 3 20 or more D Air outlet 4 300 or more E Ceiling surface F Service space * If the optional long-life filter is installed, the dimensions of the air conditioner increase.
- Page 3 [Fig. 8.1.1] [Fig. 8.2.1] A Cut here B Remove brazed cap [Fig. 8.1.2] A Thermal insulation B Pull out insulation A Downward slope 1/100 or more C Wrap with damp cloth B Connection dia. R1 external thread D Return to original position C Indoor unit E Ensure that there is no gap here D Collective piping...
- Page 4 10.3 [Fig. 10.3.1] [Fig. 10.3.2] A Terminal bed box B Knockout hole A Screw holding cover (2pcs) C Remove B Cover D Knockout hole [Fig. 10.3.3] [Fig. 10.3.4] E To prevent external tensile force from applying to the wiring connection section of J Power source terminal bed power source terminal bed use buffer bushing like PG connection or the like.
-
Page 5: Table Of Contents
Do not reconstruct or change the settings of the protection devices. - If the pressure switch, thermal switch, or other protection device is shorted Warning: and operated forcibly, or parts other than those specified by Mitsubishi Elec- • Ask the dealer or an authorized technician to install the air conditioner. -
Page 6: Before Getting Installed
• Use ester oil, ether oil or alkylbenzene (small amount) as the refrigerator • Install the power cable so that tension is not applied to the cable. oil to coat flares and flange connections. - Tension may cause the cable to break and generate heat and cause a fire. - The refrigerator oil will degrade if it is mixed with a large amount of mineral oil. -
Page 7: Install The Indoor Unit On A Ceiling Strong Enough To Sustain Its Weight
Ceiling: The ceiling structure varies from building to one another. For detailed information, consult your construction company. Center of gravity and Product Weight Model name Product Weight (kg) PEFY-P20VML-E PEFY-P25VML-E PEFY-P32VML-E 5. Changing Bottom Inlet Specifications 1. Remove filter A (6 screws). -
Page 8: Refrigerant Pipe And Drain Pipe Specifications
2 If the unit is used on the highest story of a building and under conditions of 7.2. Refrigerant pipe, drain pipe and filling high temperature and humidity, it is necessary to use pipe size and insulating port material’s thickness more than those given in the table above. 3 If there are customer’s specifications, simply follow them. -
Page 9: Electrical Wiring
In the case of Class B fuse rated 15 A or 20 A, A Non-polarized B Upper level (TB15) NF model name (MITSUBISHI): NF30-CS (15 A) (20 A) C Remote Controller D Lower level (TB5) NV model name (MITSUBISHI): NV30-CA (15 A) (20 A) Use an earth leakage breaker with a sensitivity of less than 30 mA 0.1 s. -
Page 10: Connecting Electrical Connections
10.4. Selecting the power source 10.3. Connecting electrical connections It is 240V, 230V setting at factory shipment. Please identify the model name of the operation manual attached on the terminal So, it is necessary to change the setting in other power supply districts. bed box cover with that shown on the rating name plate. - Page 11 • Electromagnetic Compatibility Directive 89/ based on the following EU regulations: 336/EEC Please be sure to put the contact address/telephone number on this manual before handing it to the customer. HEAD OFFICE: MITSUBISHI DENKI BLDG., 2-2-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN WT04196X02...
