IAdea XDS-2288 User Manual

Iadea 22” touch-enabled digital door sign for smart workplace
Hide thumbs Also See for XDS-2288:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual

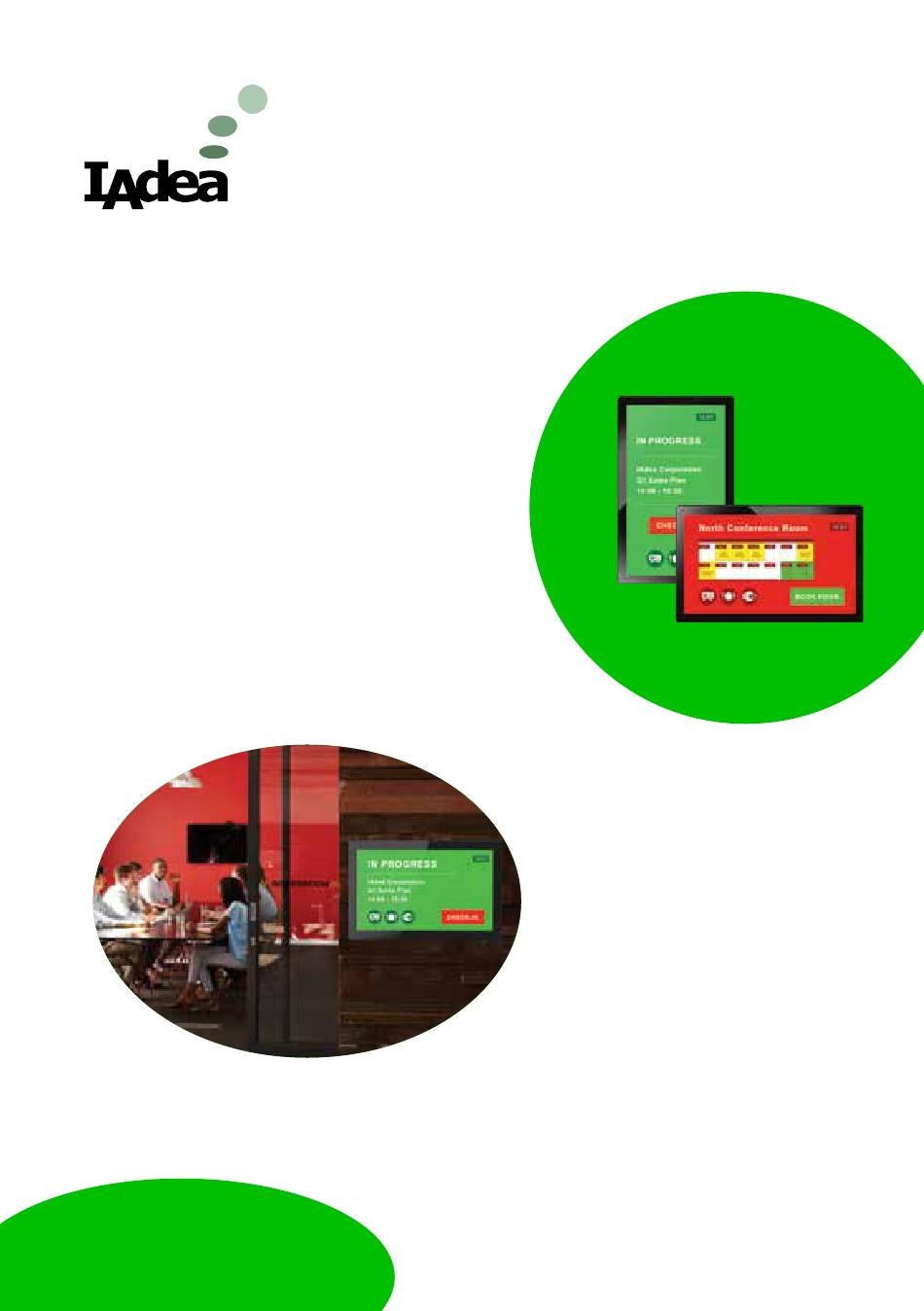

U S E R
M A N U A L
XDS-2288
IAdea 22" Touch-Enabled Digital
Door Sign for Smart Workplace

Advertisement

loading
Need help?

Need help?

Do you have a question about the XDS-2288 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IAdea XDS-2288

Summary of Contents for IAdea XDS-2288

  • Page 1 U S E R M A N U A L XDS-2288 IAdea 22” Touch-Enabled Digital Door Sign for Smart Workplace...

  • Page 2: Package Content

    IAdea 22” Touch-Enabled Digital Meeting Room Door Sign Hardware Package content: Power adapter Power cord IO cover Smart signboard Copyright© 2018 IAdea all rights reserved...
  • Page 3 IAdea 22” Touch-Enabled Digital Meeting Room Door Sign Hardware Physical views and features: Copyright© 2018 IAdea all rights reserved...

  • Page 4: Installation

    IAdea 22” Touch-Enabled Digital Meeting Room Door Sign Hardware Installation: Significant temperature deviations and changes in elevation or environment can lead the glass panel of the smart signboard to trap a slight amount of moisture. To avoid damaging the smart signboard, the condensation will re- quire at least 2 - 4 hours to evaporate prior to usage.
  • Page 5 IAdea 22” Touch-Enabled Digital Meeting Room Door Sign Hardware Place the display stand on the mounting bracket and install the screws. Rotate the display stand to switch between portrait or landscape orientation. This method also works when the smart sign- board is upright.
  • Page 6 IAdea 22” Touch-Enabled Digital Meeting Room Door Sign Hardware To change smart signboard system lan- guage, select “(Current Language) ..” For system configurations, select “Ad- vanced.” Important recommended configurations: 1) Set correct time, date, and time zone for properly scheduled playback.

  • Page 7: Technical Specification

    IAdea 22” Touch-Enabled Digital Meeting Room Door Sign Hardware Technical Specification: 21.5” IPS LCD panel 10 points capacitive multi-touch Display 250 nits maximum brightness 1920 x 1080 (Full HD) panel resolution Viewing angle (H/V): 178/178 Processor: Cortex-A17 1.8 GHz Quad-Core Internal Player System memory: 2.0 GB...
  • Page 8 IAdea 22” Touch-Enabled Digital Meeting Room Door Sign Hardware SD card slot (expendable to 64 GB) Mini USB for ADB (Android Debug Bridge) 3.5 mm audio out USB ports x 3 Connectivity Ethernet port x 1 Power jack Embedded wireless antenna...
  • Page 9 IAdea Headquarters IAdea America Corp. 3F, No.21, Lane 168, Xiangshan Road 20 Fairbanks, suite 170 Taipei, Taiwan 114 Irvine, CA 92618 Phone: +886-2-2791-1110 Fax: +886-2-2791-1170 Phone: +1-949-305-6489 Email: sales@IAdea.com Email: us-sales@IAdea.com...
