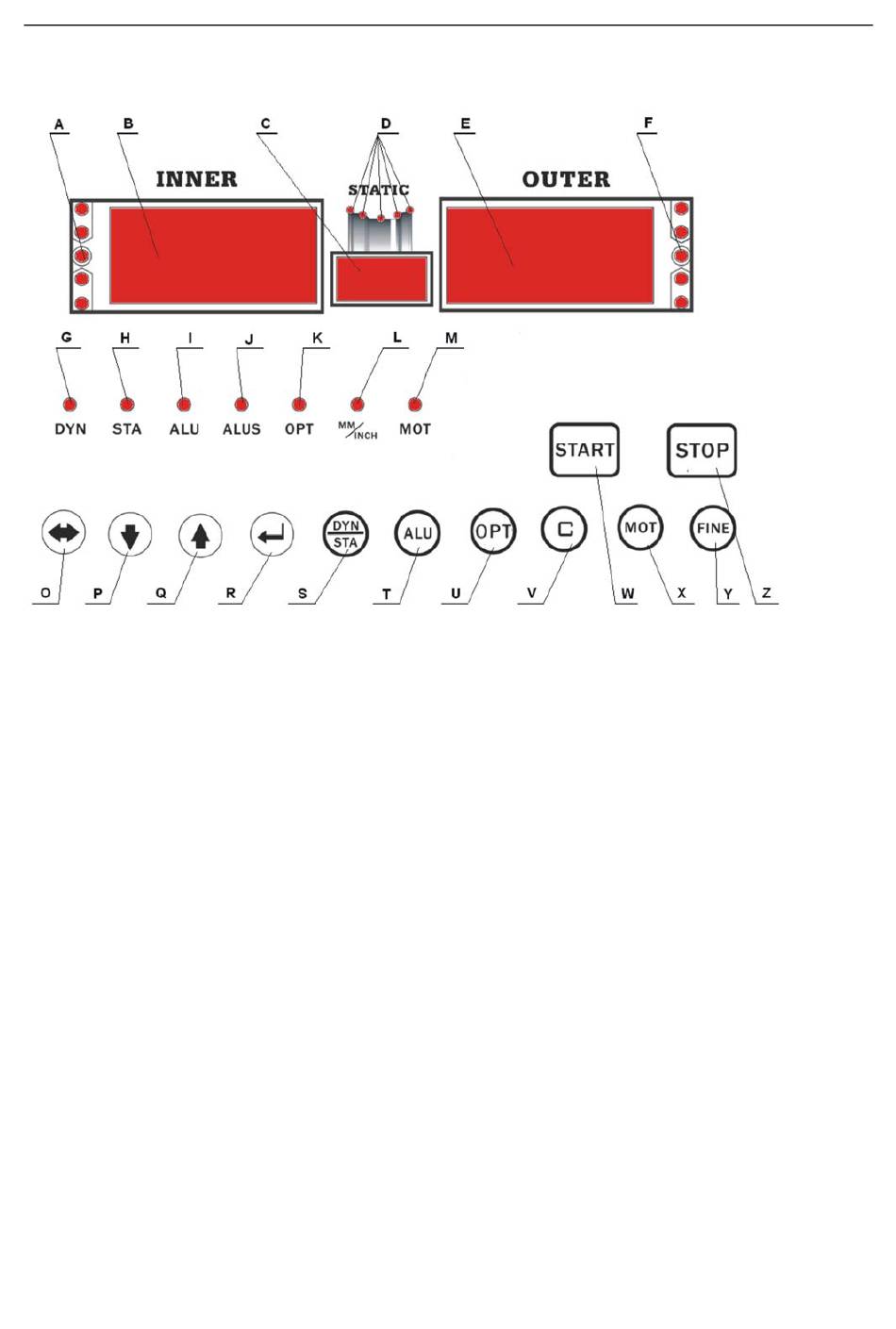

Control Unit
A. inside unbalance point
C. middle static unbalance display window
E. outside unbalance display window
G. standard dynamic mode indicator
I. ALU mode indicator
K. OPT indicator
M. Motorcycle mode indicator
P. function key
R. Enter key
T. ALU mode key
V. Unit shift key
X. Motorcycle mode key
Z. STOP key
Fig2
B. inside unbalance display window
D. sticking and clamping weight position indicator
F. outside unbalance point
H. static mode indicator
J. ALUS mode indicator
L. mm/inch indicator
. O. Size input shift key
Q. ＋function key
S. Dynamic/Static key
U. OPT key
W. START key
Y. Fine display key
4
KWB-511 Wheel Balancer user's manual
