Or first, choose static mode, then install the Wheel and input parameters, after that follow the process below.
7. ALU 1----ALU 3 Modes

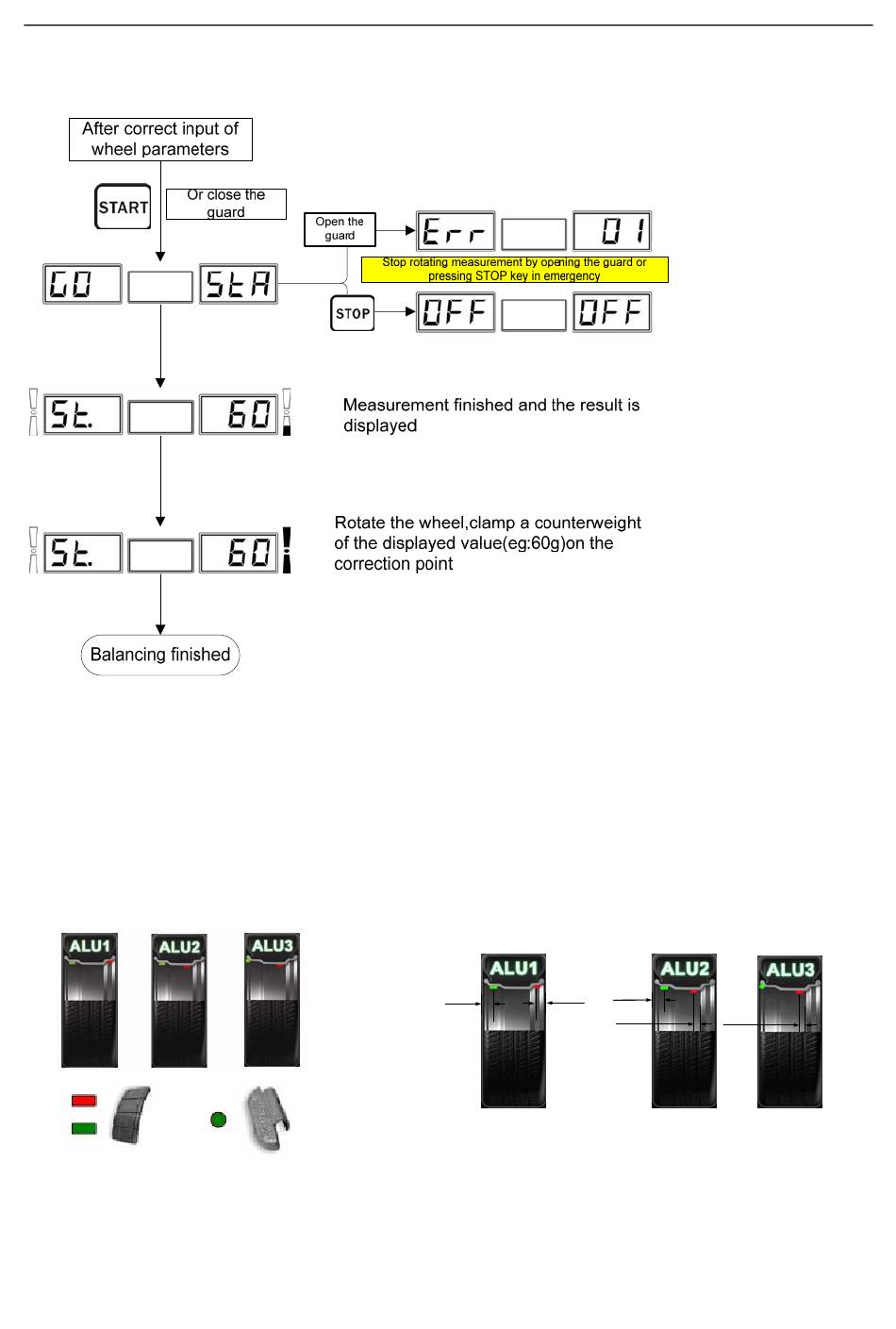

ALU1-3 mode refers to 3 counterweight sticking modes reduced according to the shapes and sizes of most rims. (Refer to
Fig12)
A special purpose gauge can be used to assist in sticking counterweights in Fig 13.
The measurement processes of ALU1-3 are the same as that of standard dynamic mode.
Fig12
Fig11
KWB-511 Wheel Balancer user's manual
19mm
19mm
3/4" 3/4"
Fig13
8
19mm
3/4"
13mm
13mm
1/2"
1/2"
