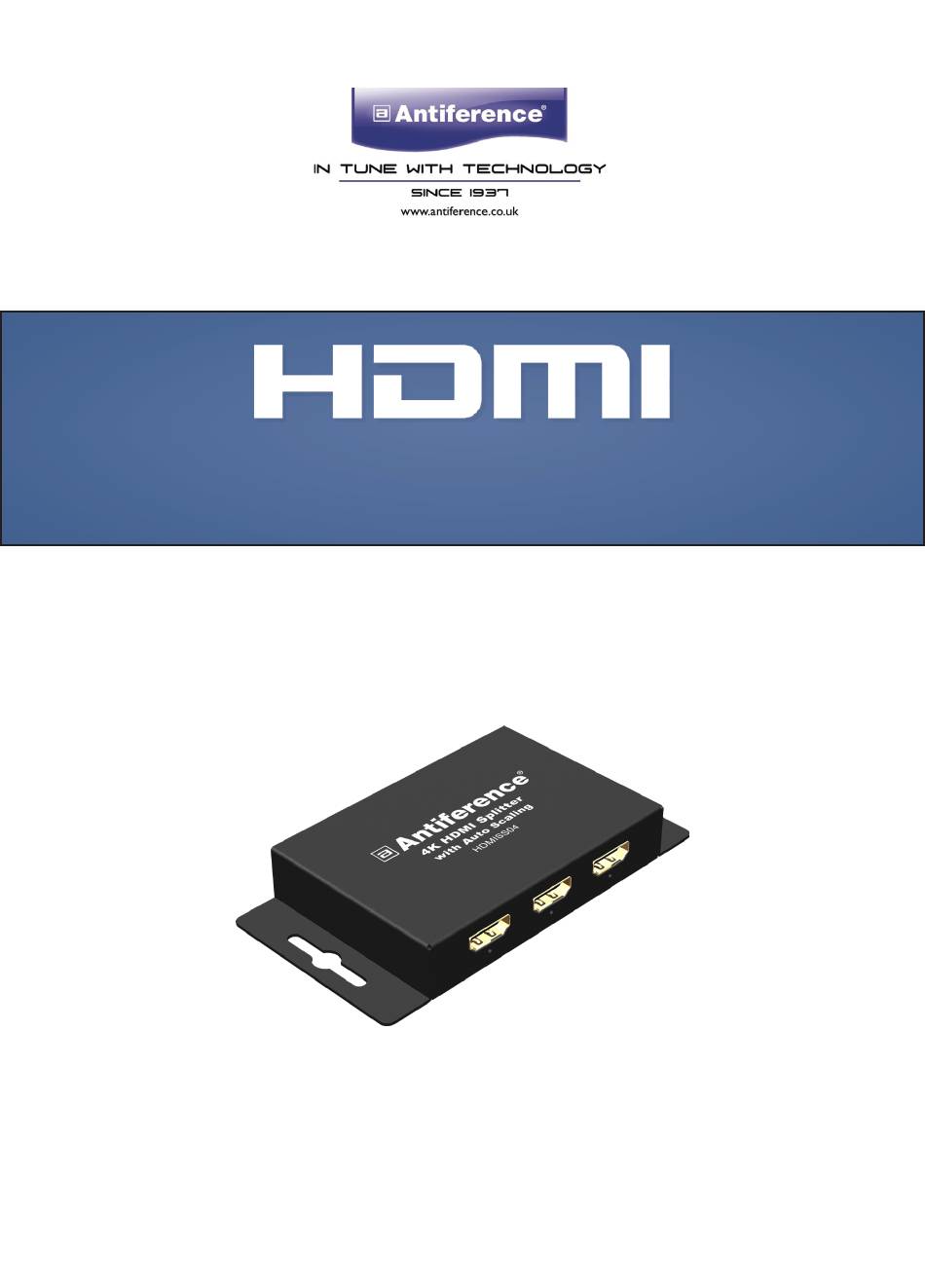

Page 1: User Guide
HDMISS04 1x4 HDMI 2.0a Splitter with EDID Management & Auto Scaling 4K/1080p User Guide... -
Page 2: Important Safety Notice

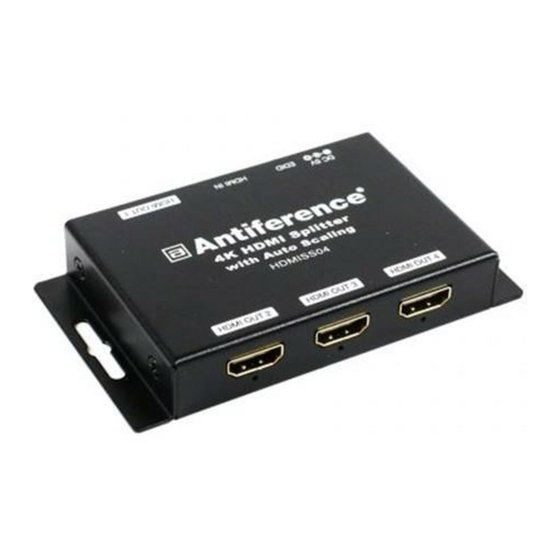

8. Use only the supplied power supply as 3rd party products may damage the product Introduction The HDMISS04 is a 1 to 4 HDMI 2.0a Splitter with auto scaling 4K/1080p. In addition, the device supports HDCP 2.2, HDR and also features an EDID Management system for complete flexibility. -
Page 3: Package Contents
• Supports default EDID and EDID learning from display • Supports xvYCC, x.v.Colour & Deep Colour • Micro-USB firmware update for expanding compatibility • Supports Dolby Digital, DTS-HD and Dolby TrueHD audio • Simple installation Package Contents 1x HDMISS04 1x DC 5V PSU 1x User Guide... -
Page 4: Panel Description
Panel Description Power LED: Lit up when device is receiving power Micro-USB Port: Connect to 5V DC power supply unit EDID Management System: See table below Signal LED: Input signal LED indicator HDMI IN: Connect to an HDMI input source Signal LED: Output 1-4 signal LED indicator HDMI OUT 1-4: HDMI outputs to HDMI displays [HDMI OUT1: EDID Learn Default]... -
Page 5: Hardware Installation
Hardware Installation Start with all devices including EDUs (TVs) powered off. Connect the EDU devices. Connect an HDMI source (such as a Blu-ray and SKY Q) to the HDMI input. Plug in 5V DC power supply. Power on the HDMI EDUs. Power on the HDMI source. -
Page 6: Advanced Options
Advanced Options Troubleshooting If for some reason there is no video output, try adjusting the EDID dip switch to “[pin1, pin2]=[ ↑-↓]” or “[pin1, pin2]=[↓-↓]”. Under “[pin1, pin2]=[↑-↓]”, there should be video output. The only requirement in this setting is that the display must support at least Full HD 1080p. If the default Full-HD EDID as described still doesn’t work then switch to “[pin1, pin2]=[↓-↓]”... -
Page 7: Specifications
Specifications Technical Role of usage 1x4 Distribution Amplifier (Splitter) HDMI compliance HDMI 2.0a HDCP compliance HDCP 2.2 / 1.4 Video bandwidth Single-link 600MHz [18Gbps] Video support HDR 4K2K@60(4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) Audio support DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, LPCM ESD protection Human body model —... -
Page 8: Declaration Of Conformity
Declaration of Conformity We, ANTIFERENCE LIMITED herewith declare that the HDMI splitter complies with all es- sential requirements and any other applicable conditions set forth on directive 2014/30/EU. According to the WEEE (Waste Electrical and Electronic Equipment) EU Directive, do not dispose of this product as household waste or commercial waste.
