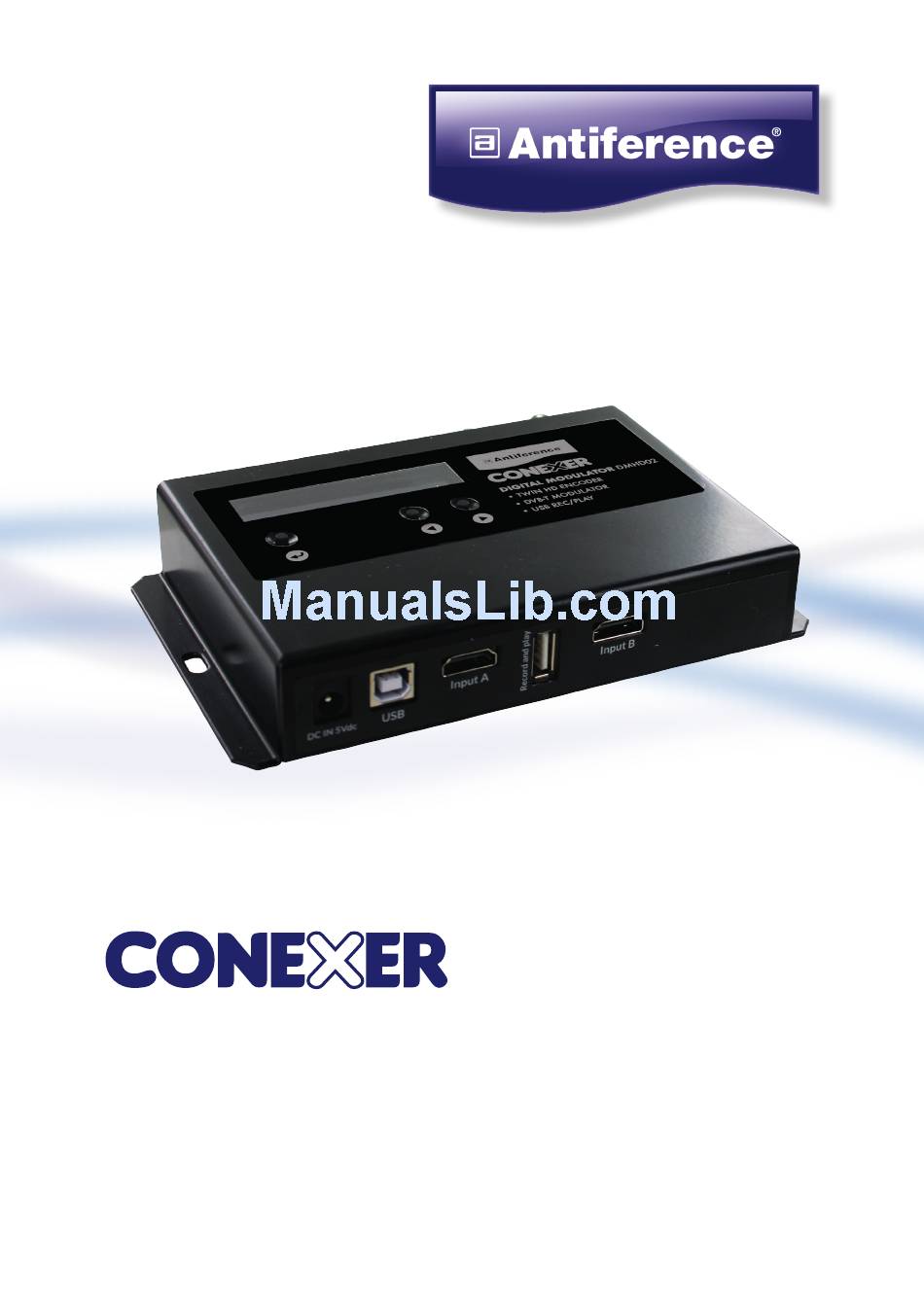

Page 1: User Manual
DIGITAL MODULATOR DMHD02 TWIN HD ENCODER • DVB-T MODULATOR • USB REC/PLAY USER MANUAL... -
Page 2: Table Of Contents
DMHDO2 Congratulations on your purchase of the DMHD02 This ‘state of the art’ product, is a twin HD encoder. Two HDMI sources (A and B) can be encoded and modulated simultaneously into one DVBT channel. Furthermore, a USB port is available which allows you to play a .ts file instead of using input A. -
Page 3: Safety Considerations
DMHDO2 1 SAFETY CONSIDERATIONS 1.1 Connecting to the mains supply This product has to be connected to the mains supply. If there is the slightest doubt concerning the type of connection available on the installation, please contact your supplier of electricity. Before carrying out maintenance operation or modification of the installation, the modulator has to be disconnected. -
Page 4: Description Of The Different Elements
DMHDO2 2 - Description of the different elements Power supply input (5 V/2 A) Display USB input (for PC programming) Enter button RF input Left button RF output Right button HDMI input A USB input for record and play HDMI input B DIGITAL MODULATOR DMHD02 •... -
Page 5: Display Screen Information
DMHDO2 3. Display Screen information The digital display on the DMHD02 will show basic status information. The status of input A and B is alternated with the set time and date.Typical information can be: Nothing connected to Input A and B Input A playing, .ts file DMHD02 DMHD02... -
Page 6: Advanced Menu
DMHDO2 4.2 - The Advanced menu To enter the advanced menu please press the following sequence of button: When entered successfully, the advanced menu becomes available, use the buttons to move between the different menu options. Press and hold the to select that option and use to change the value to that option. -
Page 7: Input A And Inpout B Settings
DMHDO2 Set the Program ID for input DMHD02 DMHD02 DMHD02 A or B INPUT A PROGRAM ID. Set the program name for DMHD02 DMHD02 DMHD02 input A or B INPUT B SERVICE NAME Channel A Set the LCN number for (Identical menus for A &... -
Page 8: Programming Using A Pc
Please refer to section 6.5 for more information on how to create ‘.ts’ files or check out the www.antiference.co.uk website for software to produce appropriate ‘.ts’ files for your DMHD02.To operate the USB menu, please first insert a USB 3.0 memory stick and then power up the DMNSD02. -
Page 9: Make And Play A Record List
DMHDO2 6 - Making Play and Record list using DMHDiFace The DMHD02 is an ideal product for Digital Signage applications thanks to the ability to record, playback and integral clock using a USB 3. memory stick. Different ‘.ts’ files can be played over a DVB-T network to a predefined programmed timetable using start and finish times on a weekly basis. - Page 10 ‘.ts’ file and then press the add to record button 6.5 - Creating your .ts files In order for you to generate a .ts file, a .ts converter is available on the Antiference website. This allows you to easily convert your files from .avi or .mp4 into .ts.
-
Page 11: Technical Specifications
0.9kg 8 - Declaration of Conformity: We, ANTIFERENCE LIMITED herewith declare that the modulator CONEXER DMHD02 complies with all essential requirements and any other applicable conditions set forth on directive 1999/05/CE. According to the WEEE (Waste Electrical and Electronic Equipment) EU Directive, do not dispose of this product as household waste or commercial waste. - Page 12 www.antiference.co.uk...
