Market Forge Industries 30P-STEL Installation, Operation & Maintenance Manual
Universe plus stel & stem series
electric tilting skillets
Hide thumbs
Also See for 30P-STEL:
- Installation operation & maintenance (10 pages) ,
- Installation & operation manual (16 pages) ,
- Owner's manual (23 pages)
Advertisement
Quick Links
UNIVERSE PLUS STEL & STEM SERIES
INSTALLATION - OPERATION - MAINTENANCE
OPEN LEG BASED MODELS
‰ 30P-STEL
‰ 40P-STEL
42 Allen Martin Drive, Essex Junction, Vermont 05452 USA
Telephone: (802) 658-6600 Fax: (802) 864-0183
www.marketforge.com
ELECTRIC TILTING SKILLETS
CLOSED BASED MODELS
‰ 30P-STEM
‰ 40P-STEM
© 2018 - Market Forge
PN 14-0382 Rev C (9/18)
Advertisement
Related Manuals for Market Forge Industries 30P-STEL
Summary of Contents for Market Forge Industries 30P-STEL

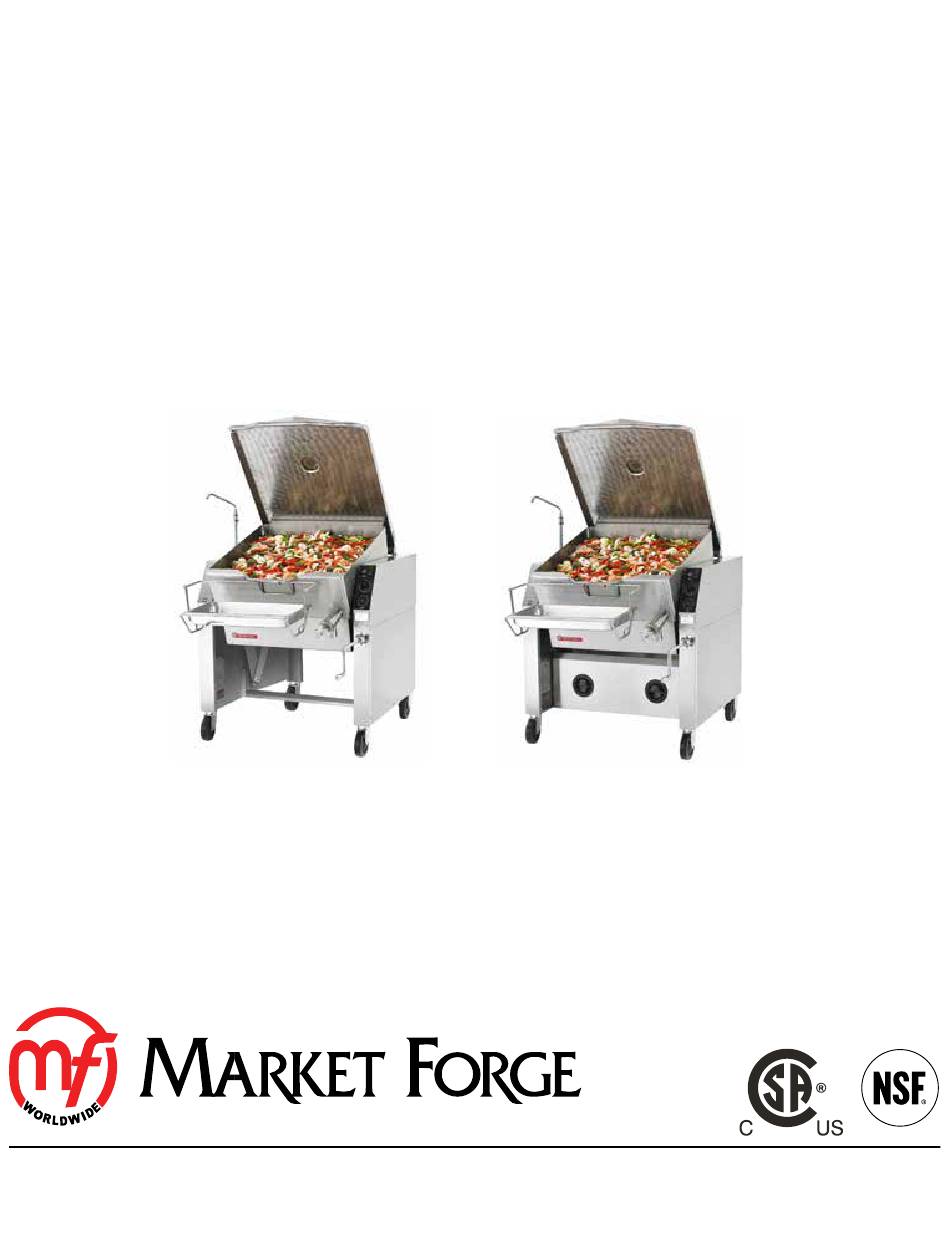

- Page 1 UNIVERSE PLUS STEL & STEM SERIES ELECTRIC TILTING SKILLETS INSTALLATION - OPERATION - MAINTENANCE OPEN LEG BASED MODELS CLOSED BASED MODELS ‰ 30P-STEL ‰ 30P-STEM ‰ 40P-STEL ‰ 40P-STEM 42 Allen Martin Drive, Essex Junction, Vermont 05452 USA Telephone: (802) 658-6600 Fax: (802) 864-0183 www.marketforge.com...
- Page 2 Your Service Agency’s Address: Model Serial number Skillet installed by Installation checked by...
-
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT INSTALLATION This is the safety alert Service Connections ........... . . 2 symbol. -
Page 4: Service Connections
Service Connections OPERATION SHALL BE BY 36 [914] 30 GAL. DIMENSIONS ARE 46 [1168] 40 GAL. IN INCHES [MM] All Universe Plus tilting skillets models are available in 208VAC, 18 [457] 30 GAL. 240VAC, field convertible to 1 or 3 phase, or 480VAC 3 phase. 23 [584] 40 GAL. -
Page 5: Introduction
2. Wash skillet using mild detergent, water and nylon brush. If food is stuck to skillet surface, soak and ap- The Market Forge UniVerse Models 30P-STEL (12 kW ply heat to loosen food. input) and 40P-STEL (18 kW input) are electrically oper- ated skillets, tilting type, with 30- and 40-gallon capaci- ties, respectively. -
Page 6: Installation Information
Installation Information UNPACKING ELECTRICAL CONNECTION Immediately after unpacking, check for possible shipping WARNING damage. If the tilting skillet is found to be damaged, save the packaging material and contact the carrier within 15 Electrical and grounding connections must comply with the appliance portions of The days of delivery. - Page 7 Installation Information AMPS PER LINE 30P-STEL, 30P-STEM 40P-STEL, 40P-STEM 3-Phase, 4 Wire, 50 Hz 3-Phase, 4 Wire, 50 Hz Amps Per Line Wire Amps Per Line Wire 12 kW 220/380V 18.2 18 kW 220/380V 12 kW 240/415V 16.7 18 kW...
-
Page 8: Operating Instructions
Operating Instructions DAILY SHUTDOWN PROCEDURE: WARNING 1. To turn skillet OFF, turn the THERMOSTAT dial to The tilting skillet and its parts are hot. Use care OFF. when operating, cleaning and servicing the tilting skillet. TILTING THE SKILLET BEFORE FIRST USE 1. -
Page 9: Suggested Cooking Temperatures
Suggested Cooking Temperatures 30-Gallon 40-Gallon PORTION THERMOSTAT BATCHES ITEM QTY. PER Gallon QTY. Gallon SIZE SETTING PER HOUR LOAD YIELD PER LOAD YIELD BREAKFAST FOODS Bacon 3 slices 12 lbs. 3 lb. Eggs 1 egg Boiled-Hard 1 egg Boiled-Soft 1 egg Fried 1 egg Poached... - Page 10 Suggested Cooking Temperatures 30-Gallon 40-Gallon PORTION THERMOSTAT BATCHES ITEM QTY. PER Gallon QTY. Gallon SIZE SETTING PER HOUR LOAD YIELD PER LOAD YIELD FRANKFURTERS Grilled 22 lb. 33 lb. Boiled 16 lb. 25 lb. POULTRY Chicken, Pan-Fired 2 1/4’s 50 pieces 80 pieces Chicken, Whole 2 oz.
-
Page 11: Maintenance
Cleaning & Troubleshooting CLEANING 1. Thoroughly wash pan, pouring spout, lid and exterior IMPORTANT! surfaces with detergent and warm water. If necessary, DISCONNECT ELECTRICAL POWER SUPPLY soak pan to remove food that is stuck to pan surface. BEFORE CLEANING. Rinse thoroughly and wipe dry with a soft clean cloth. Before cleaning allow the tilting skillet to cool and then 2.
