Binks SG-2 PLUS 80-600 Service Manual

2 qt. pressure cups (standard) (with oscillating agitator)
Hide thumbs Also See for SG-2 PLUS 80-600:
Table of Contents

Advertisement

Quick Links

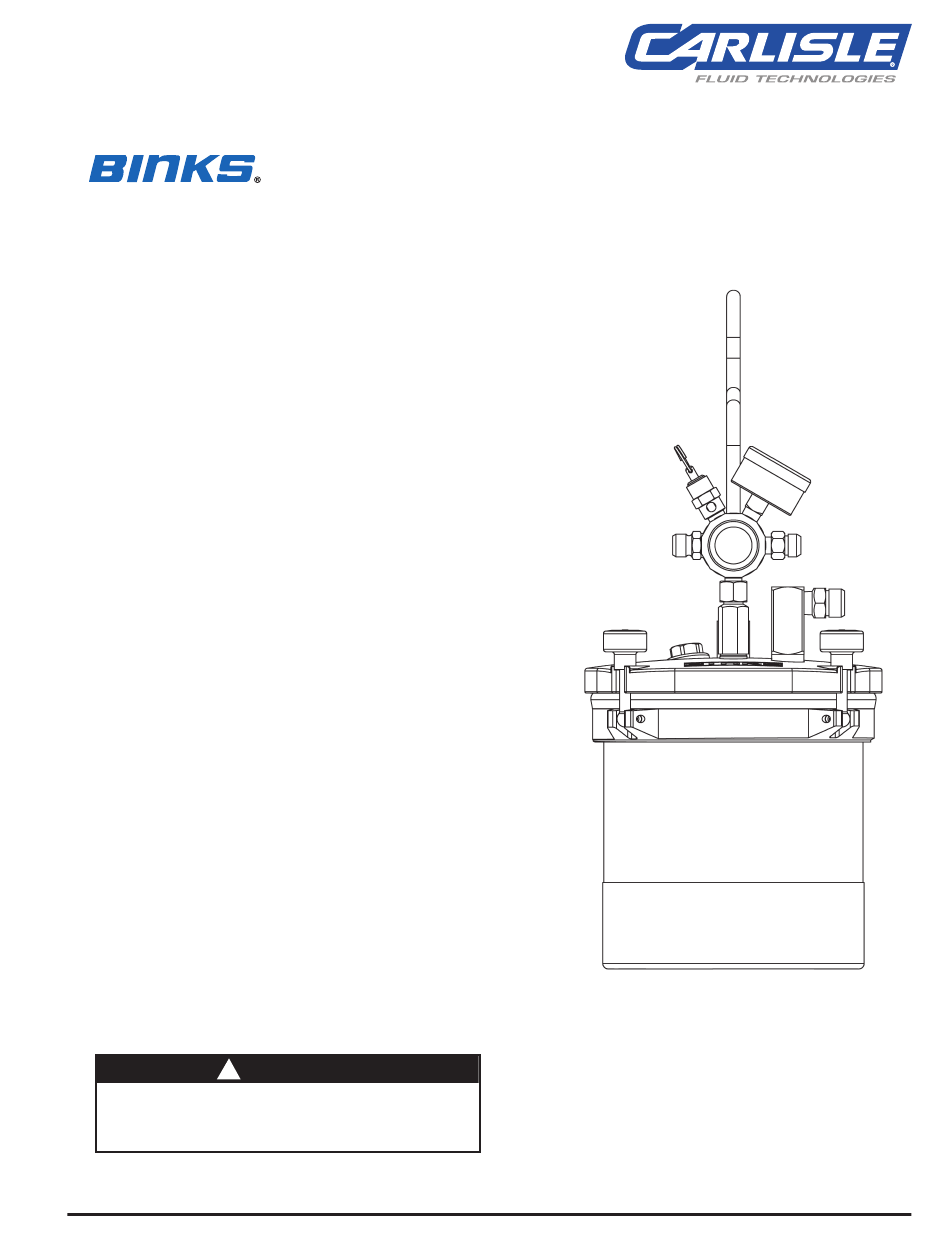

SERVICE MANUAL
EN
Binks SG-2 Plus
TM
Pressure Cup is ideal for component spraying and industrial
applications where small batch production spraying is required. The 2 qt. capacity is
sufficient to complete large spray jobs without refilling the cup. Its lightweight and
rugged construction is excellent for portability allowing the operator to make fluid
and air control adjustments quickly and efficiently at the spray station.
The internal construction is designed for waterborne and solvent base materials.
Other features include:
• Stainless steel pick-up tube, fluid fittings and removable
plastic liner makes it corrosion resistant.
• "Wide-mouth" opening allows easy cleaning,
plastic liner removal and quick color change.
• Positive grip carrying handle for operator comfort.
• Wide stainless steel base for stability and corrosion
resistance.
• 0-10 psig fluid pressure range.
• Optional 0-50 psig pressure kit (80-619) available for
high viscosity fluids.
• Fluid agitator on model 80-601 for paints requiring
continuous agitation.
• Silverstone
coating on interior and exterior of lid.
®

SPECIFICATIONS

MAX. WORKING PRESSURE . . . . . . . . . . . . . 50 psig
OVERALL HEIGHT . . . . . . . . . . . . . . . . . . . . . 15 11/16 in.
BASE DIAMETER . . . . . . . . . . . . . . . . . . . . . . 6 in.
DIA. ACROSS CLOSED CLAMPS. . . . . . . . . . . 8 1/16 in.
DIA. ACROSS OPEN CLAMPS . . . . . . . . . . . . 8 1/16 in.
AIR INLET & OUTLET CONNECTION SIZE . . . 1/4 NPS (m)
FLUID OUTLET CONNECTION SIZE . . . . . . . . 3/8 NPS (m)
FLUID CAPACITY . . . . . . . . . . . . . . . . . . . . . . 2 Qts. (U.S.)
WEIGHT
STANDARD UNIT . . . . . . . . . . . . . . . . . . . . 4 lb.14oz.
UNIT WITH AGITATOR . . . . . . . . . . . . . . . 5 lb.7oz.
!
All air and fluid pressure in the system must be relieved
before servicing the cup and before cup is filled or cleaned.
Attempting to service the cup while pressurized could
result in damage to components or personal injury.
77-2841-R6 (6/2018)
SG-2 PLUS
MODEL NO. 80-600 (STANDARD)
MODEL NO. 80-601 (WITH OSCILLATING AGITATOR)

INTRODUCTION

3.5 KG/cm
39.88 cm
15.24 cm
20.47 cm
20.47 cm
1.9 Liters
2.21 kg.
2.47 kg.
2 QT. PRESSURE CUPS
TM
2
--
--
1 / 12
MODEL NO. 80-600 (Standard)
www.carlisleft.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG-2 PLUS 80-600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Binks SG-2 PLUS 80-600

Summary of Contents for Binks SG-2 PLUS 80-600

  • Page 1 MODEL NO. 80-600 (STANDARD) MODEL NO. 80-601 (WITH OSCILLATING AGITATOR) INTRODUCTION Binks SG-2 Plus Pressure Cup is ideal for component spraying and industrial applications where small batch production spraying is required. The 2 qt. capacity is sufficient to complete large spray jobs without refilling the cup. Its lightweight and rugged construction is excellent for portability allowing the operator to make fluid and air control adjustments quickly and efficiently at the spray station.
  • Page 2 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows: WARNING NOTE CAUTION Hazards or unsafe practices which Hazards or unsafe practices which could result in severe personal Important installation, operation or could result in minor personal injury, injury, death or substantial property maintenance information.

  • Page 3: Typical Installation

    SETUP AND OPERATION Refer to “TYPICAL INSTALLATION” drawing below Set up the SG-2 Plus with the CONVENTIONAL WARNING or HVLP gun along with at least 5 ft. of air and fluid hose. Chlorinated solvents and aluminum are incompatible and will Attach air hose from extractor to air inlet on handle of steadi- cause an adverse chemical reaction, possibly resulting in bodi- ly injury.
  • Page 4 MODEL 80-600 SG-2 PLUS PRESSURE CUP (Standard) • Items NOT available separately. www.carlisleft.com 4 / 12 77-2841-R6 (6/2018)
  • Page 5 FLUID TUBE SEAL ........2 HAV-501 AIR ADJUSTING VALVE W/GAUGE ..1 80-392 LID GASKET ..........1 TIA-4326 SAFETY VALVE ......... 1 80-619 HIGH PRESSURE CONVERSION KIT PART Binks STEADI- GRIP 2 OUTFIT DESCRIPTION QTY. 59-369 GAUGE, ( ......... 1 60 PSI)
  • Page 6 MODEL 80-601 SG-2 PLUS PRESSURE CUP WITH OSCILLATING AGITATOR • Items NOT available separately. www.carlisleft.com 6 / 12 77-2841-R6 (6/2018)
  • Page 7 MODEL 80-601 SG-2 PLUS PRESSURE CUP WITH OSCILLATING AGITATOR PARTS LIST (When ordering, please specify Part No.) ITEM PART ITEM PART DESCRIPTION QTY. DESCRIPTION QTY. 80-375 2 QT CANISTER ASM ......1 81-307  BARBED CONNECTOR ......1 80-376+ 2 QT CANISTER SUB-ASM ....1 20-3236 ✖...
  • Page 8 PRESSURE CONVERSION KITS CONVERSION KIT 80-619 – Allows conversion from low (0-10 PSI) to high pressure operation. WARNING Attempting to install the conversion kit while the system is pressurized could result in damage to components or bodily injury. INSTRUCTIONS: 1. Depressurize and shut off the entire system before installing the 5.
  • Page 9 NOTES 77-2841-R6 (6/2018) 9 / 12 www.carlisleft.com...
  • Page 10 NOTES www.carlisleft.com 10 / 12 77-2841-R6 (6/2018)
  • Page 11 NOTES 77-2841-R6 (6/2018) 11 / 12 www.carlisleft.com...
  • Page 12 Carlisle Fluid Technologies is a global leader in innovative finishing technologies. Carlisle Fluid Technologies reserves the right to modify equipment specifications without prior notice. DeVilbiss , Ransburg , ms , BGK , and Binks ® ® ® ® ® are registered trademarks of Carlisle Fluid Technologies, Inc.
