Binks 183GZ-5200 Service Manual

SERVICE MANUAL
EN
Clean equipment extremely efficiently with less solvent
Important: Read and follow all instructions and SAFETY PRECAUTIONS
before using this equipment. Retain for future reference.
DESCRIPTION
Binks Hose/Gun Cleaner provides a means of cleaning
the inside of material hose, fluid passageways of
spray guns, and other paint equipment. It is
designed to mix solvents and compressed air to
pressure flush paint lines and passages quickly and
thoroughly, eliminating color contamination and
saving time. This results in clean and dry paint
passageways using less than 25% of cleaning
solvents required in wet flush systems.
SPECIFICATIONS
Maximum Working
Pressure
Capacity
Tank Shell
Tank Lid
Fluid Tube
Fluid Outlet
Air Inlet
Hose Cleaner Hub
Plugs
WETTED PARTS
Galvanized steel, aluminum, nickel plated brass,
PTFE, Santoprene , Sarlink
®
77-2933-R1.0 (6/2017)
183GZ-5200
2 GALLON HOSE/GUN CLEANER
110 psi
Up to 2.8 Gallons
SA-414 Steel, Galvanized (Zinc)
SA-414 Steel, Galvanized (Zinc)
3/8 in. Steel Pipe, Galvanized
3/8 NPS(M) (Plated Brass)
1/4 NPS(M)
Aluminum
Steel, Zinc Plate
, and polyethylene.
®

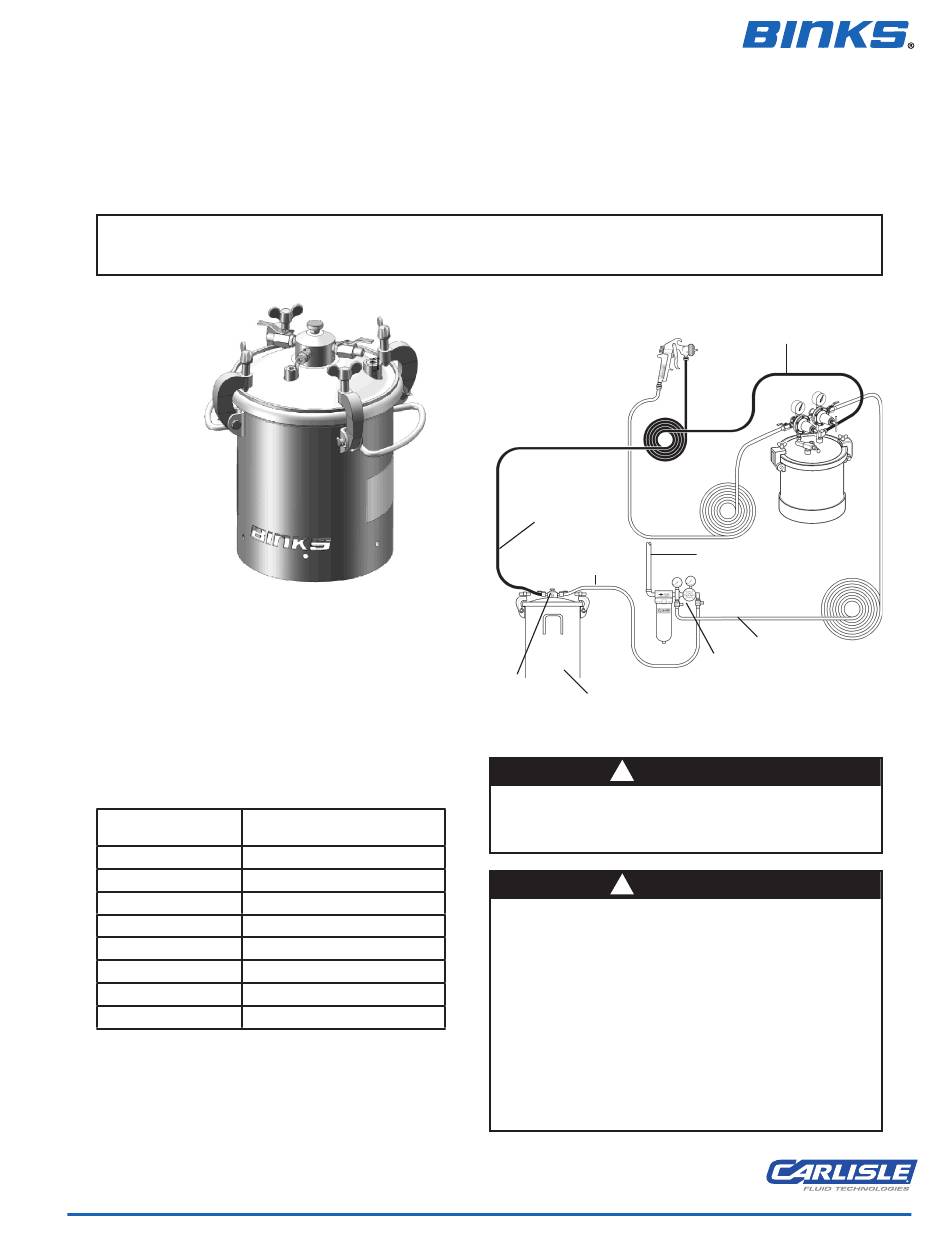

Typical Installation

Material
Hose
Regulate
to 110 psi
max.
Fluid
Hose/Gun
Outlet
Cleaner
WARNING
!
High pressure can cause serious injury.
Follow the pressure-relief procedure on page 3 before
opening the lid or performing maintenance on the tank.
WARNING
!
Static electricity produced when using this Hose/Gun Cleaner can
cause serious injury.
To prevent sparks from static electricity, you must ground:
1. The Hose/Gun Cleaner
2. The gun or tool attached to the fluid hose
3. The equipment to be cleaned
To Ground equipment:
1. Use air hose containing static electricity grounding wire.
2. Attach one end of a ground wire to each item listed above.
3. Attach the other end of the wire to a water pipe, metal
electrical conduit, or any pipe or structural member known to
be grounded.
1 / 6
Material Hose
Material
Main Air
Tank
Line
Main Air
Filter
Hose
Regulator
Assembly
