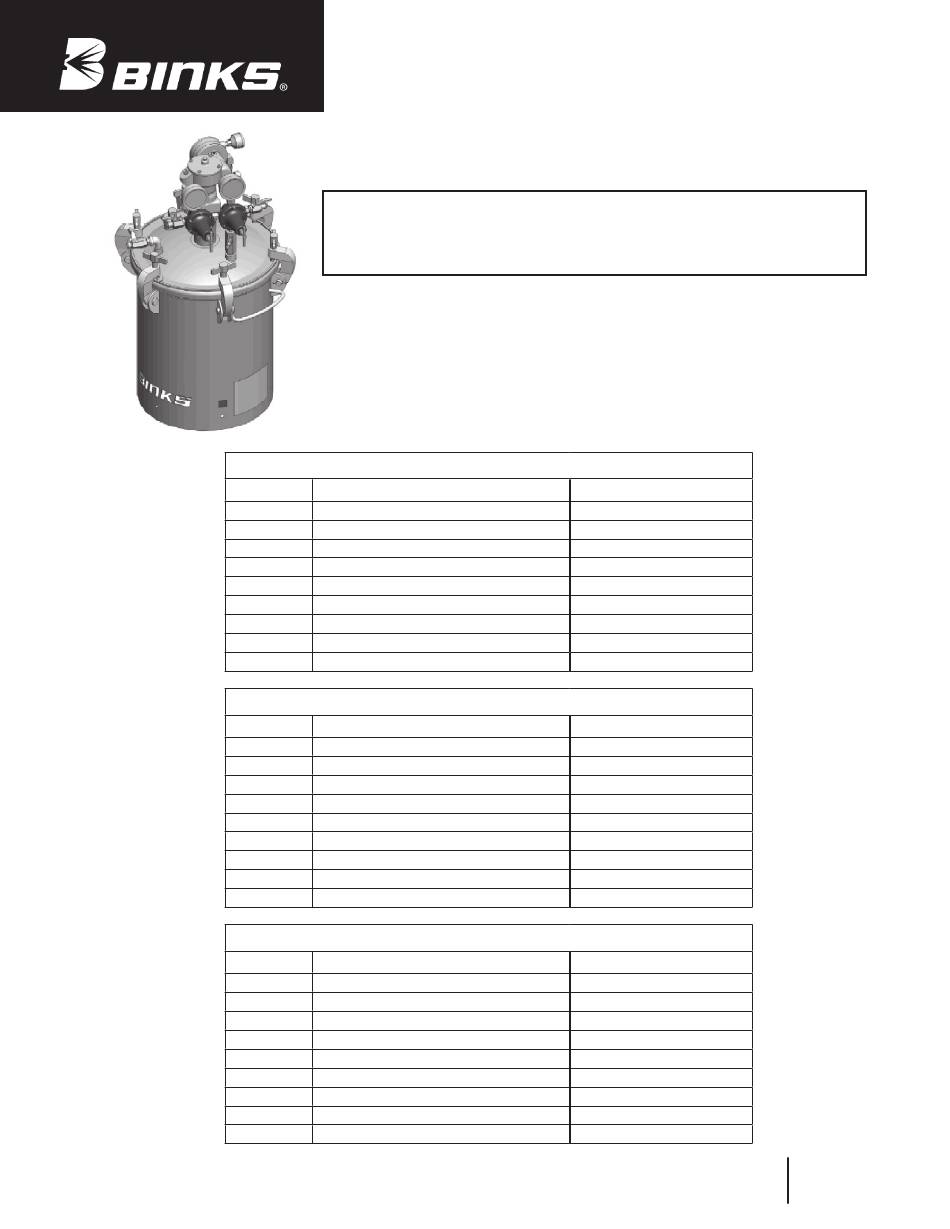

5, 10, and 15 GALLON
Important: Read and follow all instructions and
SAFETY PRECAUTIONS before using this equipment.
Retain for future reference.
DESCRIPTION
Binks pressure feed tanks are
intended for use as a pressure
container to supply material at a
constant preset pressure up to a
maximum of 110 psi. The tanks are
built to ASME specifications. Also
certified for vacuum operation.
GALVANIZED 5-GALLON MODELS
Tank Model
Regulation
183G-500
None
183G-510
Single (Regulated air to tank only)
183G-513
Single (Regulated air to tank only)
183G-520
Double (Regulated air to tank and gun)
183G-523
Double (Regulated air to tank and gun)
183G-530
Extra Sensitive
183G-533
Extra Sensitive
183G-540
Extra Sensitive w/ gun regulation
183G-543
Extra Sensitive w/ gun regulation
GALVANIZED 10-GALLON MODELS
Tank Model
Regulation
183G-1000
None
183G-1010
Single (Regulated air to tank only)
183G-1013
Single (Regulated air to tank only)
183G-1020
Double (Regulated air to tank and gun)
183G-1023
Double (Regulated air to tank and gun)
183G-1030
Extra Sensitive (Single)
183G-1033
Extra Sensitive (Single)
183G-1040
Extra Sensitive w/ gun regulation
183G-1043
Extra Sensitive w/ gun regulation
GALVANIZED 15-GALLON MODELS
Tank Model
Regulation
183G-1500
None
183G-1510
Single (Regulated air to tank only)
183G-1513
Single (Regulated air to tank only)
183G-1520
Double (Regulated air to tank and gun)
183G-1523
Double (Regulated air to tank and gun)
183G-1530
Extra Sensitive (Single)
183G-1533
Extra Sensitive (Single)
183G-1540
Extra Sensitive w/ gun regulation
183G-1543
Extra Sensitive w/ gun regulation
183G (GALVANIZED)
ASME TANKS
ACTUAL CAPACITIES
5-Gallon holds 9.8 gallons or a 5-gallon pail
10-Gallon holds 11.8 gallons
15-Gallon holds 19.8 gallons
Agitation
None
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
Agitation
None
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
Agitation
None
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
Replaces
Part
Part Sheet
Sheet
77-2928R-2
77-2928R-3
Advertisement
Related Manuals for Binks 183G
Summary of Contents for Binks 183G
- Page 1 SAFETY PRECAUTIONS before using this equipment. Retain for future reference. DESCRIPTION ACTUAL CAPACITIES Binks pressure feed tanks are 5-Gallon holds 9.8 gallons or a 5-gallon pail intended for use as a pressure 10-Gallon holds 11.8 gallons container to supply material at a 15-Gallon holds 19.8 gallons...
- Page 2 Failure to wear safety glasses with side shields could result in serious eye injury or blindness. IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PROVIDE THIS INFORMATION TO THE OPERATOR OF THE EQUIPMENT. FOR FURTHER SAFETY INFORMATION REGARDING BINKS AND DEVILBISS EQUIPMENT, SEE THE GENERAL EQUIPMENT SAFETY BOOKLET (77-5300).
- Page 3 5/10/15-GALLON GALVANIZED TANK ASSEMBLIES – SAFEGUARDS The following hazards may occur during the normal use of this equipment. Please read the following chart. HAZARD CAUSE SAFEGUARDS Fire Solvents and coatings can be 1. Adequate exhaust must be provided to keep the air highly flammable or combustible, free of accumulations of flammable vapors.
- Page 4 5/10/15-GALLON GALVANIZED TANK ASSEMBLIES – SPECIFICATIONS & OPTIONS SPECIFICATIONS GALVANIZED TANKS Maximum Working Pressure 110 psi Tank Shell SA-414 Steel, Galvanized (Zinc) Tank Lid SA-414 Steel, Galvanized (Zinc) Fluid Tube 3/8 in. Steel Pipe, Galvanized Fluid Outlet (Elbow) Steel, Zinc Plate Fluid Valve, Outlet Brass, Nickel Plate 3/8-18 NPS(M) Agitator Paddle/Propeller...
-
Page 5: Operation
5/10/15-GALLON GALVANIZED TANK ASSEMBLIES – OPERATION & SERVICE CHECKS OPERATION 4. Loosen thumb screws (17), tip clamps WARNING (16) back and tip lid (11) to one side 1. Close the air inlet valve to tank. Turn High pressure can cause serious injury. of tank. - Page 6 5/10/15-GALLON GALVANIZED TANK ASSEMBLIES NOTE Refer to SBBI-19-087 for information about Use PTFE based thread sealant on all NOTE the drive unit. air and fluid connections. Open side of shaft seal (8) faces downward. Retainer (9) required only for CAUTION vacuum operation.
- Page 7 5/10/15-GALLON GALVANIZED TANK ASSEMBLIES – PARTS LIST ITEM 5-GAL 10-GAL 15-GAL PART NO. DESCRIPTION QTY. QTY. QTY. QMS-46 RETAINING NUT ▲ QMG-85 THRUST WASHER ▲ ----- THRUST COLLAR ▲ ▲• ----- SET SCREW (5/16-18 X 3/8) QMS-447 THRUST COLLAR KIT (INCL 4 & 5) QMG-409 BEARING ASSY-PLAIN STEEL ▲...
- Page 8 5/10/15-GALLON GALVANIZED TANK ASSEMBLIES – AIR CONTROL SINGLE REGULATOR AIR CONTROL Control tank pressure only. 85-470 for non-agitated tanks 85-471 for agitated tanks *Items with an asterisk are for use with an agitator. ITEM PART DESCRIPTION 85-470 85-471 AIR IN HAR-511 AIR REGULATOR •...
- Page 9 5/10/15-GALLON GALVANIZED TANK ASSEMBLIES – ExTRA SENSITIVE AIR CONTROL ExTRA SENSITIVE REGULATOR AIR CONTROL SINGLE REGULATOR Provides extremely high precision control of tank pressure (only) from 0 – 30 PSI. Includes 40 PSI Safety Valve (not shown.) 85-490 for non-agitated tanks AIR IN 85-491 for agitated tanks *Items with an asterisk are for use with an agitator.
- Page 10 85-469 CONVERSION TO DOUBLE REGULATOR ASSEMBLY KIT Convert standard single regulator or extra-sensitive air control to a double regulator air control. ITEM PART DESCRIPTION QTY. • — 1/4 NPT PLUG (SUPPLIED W/ REGULATOR) 83-4233 D.M. NIPPLE 1/4 x 3/8 HAR-507 AIR REGULATOR 83-1355 GAUGE –...
- Page 11 ACCESSORIES VS-534 DISPOSABLE TANK LINERS FLUID STRAINER Molded polyethylene tank liners reduce solvent Primary fluid strainer that attaches waste and tank cleanup time. The liner is made between fluid outlet valve and fluid hose of tough, durable, leakproof poly-ethylene and to strain material.
-
Page 12: Warranty
WARRANTY This product is covered by Binks' 1 Year Limited Warranty. Binks Sales and Service: www.binks.com Binks DeVilbiss Automotive Refinishing Binks has authorized distributors throughout the world. For technical Binks has authorized distributors throughout the world. assistance or the distributor nearest you, see listing below.
