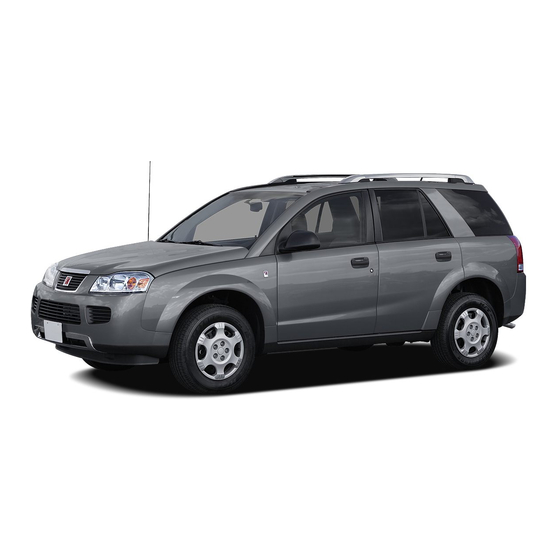

Saturn 2007 vue automobile owner's manual

Hide thumbs Also See for 2007 Vue:

Owner's manual (438 pages)

,

Getting to know manual (20 pages)

page of 470

/ 470
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

Download this manual

2007 Saturn VUE Owner Manual

Seats and Restraint Systems ....................... 7

Front Seats

.............................................. 9

Rear Seats

............................................. 18

Safety Belts

............................................ 20

Child Restraints

Airbag System

........................................ 71

Restraint System Check

Features and Controls ................................ 93

Keys

....................................................... 95

Doors and Locks

Windows

............................................... 104

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

.................................................. 125

®

OnStar

System

Storage Areas

...................................... 132

Sunroof

................................................ 136

...................................... 42

......................... 90

.................................. 100

....................... 107

....... 109

................................... 128

Instrument Panel ....................................... 137

Instrument Panel Overview

Climate Controls

Warning Lights, Gages, and

Indicators

.......................................... 161

Audio System(s)

Driving Your Vehicle ................................. 227

Your Driving, the Road, and Your

Vehicle

.............................................. 228

Towing

................................................. 284

Service and Appearance Care .................. 301

Service

................................................. 304

Fuel

...................................................... 306

Checking Things Under the Hood

All-Wheel Drive

..................................... 353

Headlamp Aiming

M

................... 140

................................... 155

................................... 182

......... 312

................................. 355

1

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the 2007 Vue and is the answer not in the manual?

Questions and answers

Summary of Contents for Saturn 2007 Vue

Page 1 2007 Saturn VUE Owner Manual Seats and Restraint Systems ... 7 Front Seats ... 9 Rear Seats ... 18 Safety Belts ... 20 Child Restraints ... 42 Airbag System ... 71 Restraint System Check Features and Controls ... 93 Keys ...
Page 2 Bulb Replacement ... 358 Windshield Wiper Blade Replacement ... 364 Tires ... 366 Appearance Care ... 399 Vehicle Identiﬁcation ... 408 Electrical System ... 409 Capacities and Speciﬁcations Maintenance Schedule ... 417 Maintenance Schedule Customer Assistance Information ... 439 Customer Assistance and Information Reporting Safety Defects Vehicle Data Recording and Privacy ...
Page 3: Canadian Owners
SATURN, the SATURN Emblem, and the name VUE are registered trademarks of Saturn Corporation. GENERAL MOTORS and GM are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without further notice.
Page 4: How To Use This Manual
How to Use This Manual Many people read the owner manual from beginning to end when they ﬁrst receive their new vehicle. If this is done, it can help you learn about the features and controls for the vehicle. Pictures and words work together in the owner manual to explain things.
Page 5: Vehicle Symbols
Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 6 These are some examples of symbols that may be found on the vehicle:...
Page 7: Table Of Contents
Section 1 Front Seats ... 9 Manual Seats ... 9 Driver Seat Height Adjuster ... 10 Power Seat ... 10 Manual Lumbar ... 11 Heated Seats ... 11 Manual Reclining Seatbacks ... 12 Head Restraints ... 15 Passenger Folding Seatback ... 16 Rear Seats ...
Page 8 Section 1 Airbag System ... 71 Where Are the Airbags? ... 75 When Should an Airbag Inﬂate? ... 77 What Makes an Airbag Inﬂate? ... 79 How Does an Airbag Restrain? ... 80 What Will You See After an Airbag Inﬂates? ... 80 Passenger Sensing System ...
Page 9: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 10: Driver Seat Height Adjuster
Driver Seat Height Adjuster If your vehicle has a manual driver seat height adjuster, it is located on the outboard side of the seat near the front of the seat cushion. To raise the seat, move the lever upward repeatedly until the seat is at the desired height.
Page 11: Manual Lumbar
Manual Lumbar If your vehicle has this feature, the knob is located on the front of the driver seat lower cushion on the inboard side. Turn the knob clockwise or counterclockwise to increase or decrease the lumbar support. Heated Seats Your vehicle may have heated seats.
Page 12: Manual Reclining Seatbacks
Manual Reclining Seatbacks CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 13 To recline the seatback on the driver’s seat, lift the lever on the rear outboard side of the seat and move the seatback to the desired position. Then release the lever to lock the seatback in place. To recline the seatback on the front passenger’s seat, lift the lever, located on the outboard side of the seat, up fully to disengage the seatback.
Page 14 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job because it will not be against your body.
Page 15: Head Restraints
Head Restraints Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant’s head. This position reduces the chance of a neck injury in a crash. Pull the head restraint up to raise it.
Page 16: Passenger Folding Seatback
Passenger Folding Seatback The front passenger’s seatback folds ﬂat. CAUTION: If you fold the seatback forward to carry longer objects, such as skis, be sure any such cargo is not near an airbag. In a crash, an inﬂating airbag might force that object toward a person.
Page 17 3. Lift the recliner lever, located on the outboard side of the seat, up fully and fold the seatback forward until it disengages. 4. Continue to fold the seat forward until it locks in the folded position. 5. Pull up on the seatback to be sure it is locked.
Page 18: Rear Seats
To raise the seatback, do the following: 1. Lift the recliner lever, located on the outboard side of the seat, up fully and push up on the seatback. 2. Continue raising the seatback until the seatback re-engages. CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash.
Page 19 Notice: Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts. Always unbuckle the safety belts and return them to their normal stowed position before folding a rear seat. Prior to lowering the seatback, ensure all three of the seatbelts are unbuckled and the front seats are not reclined.
Page 20: Safety Belts
Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she cannot wear a safety belt properly.
Page 21: Why Safety Belts Work
In most states and in all Canadian provinces, the law says to wear safety belts. Here is why: They work. You never know if you will be in a crash. If you do have a crash, you do not know if it will be a bad one.
Page 22 Put someone on it. Get it up to speed. Then stop the vehicle. The rider does not stop.
Page 23 The person keeps going until stopped by or the instrument panel... something. In a real vehicle, it could be the windshield...
Page 24: Questions And Answers About
or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. Questions and Answers About Safety Belts Will I be trapped in the vehicle after an...
Page 25: How To Wear Safety Belts Properly
If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt. Being a good driver does not protect you from things beyond your control, such as bad drivers.
Page 26: Driver Position
Driver Position Lap-Shoulder Belt The driver has a lap-shoulder belt. Here is how to wear it properly. 1. Close and lock the door. 2. Adjust the seat so you can sit up straight. To see how, see “Seats” in the Index. 3.
Page 27 6. To make the lap part tight, pull up on the shoulder belt. It may be necessary to pull stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants. The lap part of the belt should be worn low and snug on the hips, just touching the thighs.
Page 28 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 29 What is wrong with this? The lap belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force at your abdomen.
Page 30 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen.
Page 31 What is wrong with this? The belt is over an armrest. CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied at the abdomen, not at the pelvic bones, and that could cause serious or fatal injuries.
Page 32 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 33 What is wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your retailer to ﬁx it.
Page 34: Shoulder Belt Height Adjustment
To unlatch the belt, push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 35: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 36: Rear Seat Passengers
Rear Seat Passengers It is very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who are not safety belted can be thrown out of the vehicle in a crash.
Page 37 2. Push the latch plate into the buckle until it clicks. For the center rear position, if the belt stops before it reaches the buckle, tilt the latch plate and keep pulling until you can buckle it. For the outboard rear positions, when the shoulder belt is pulled out all the way, it will lock.
Page 38 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt.
Page 39: Rear Safety Belt Comfort Guides
Rear Safety Belt Comfort Guides Rear shoulder belt comfort guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, the comfort guide positions the belt away from the neck and head.
Page 40 3. Be sure that the belt is not twisted and it lies ﬂat. The elastic cord must be under the belt and the guide on top. CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash.
Page 41: Safety Belt Pretensioners
To remove and store the comfort guide, squeeze the belt edges together so that you can take them out of the guide. Pull the guide upward to expose its storage clip, and then slide the guide onto the clip. Turn the guide and clip inward and slide them in between the seatback and the interior body, leaving only the loop of the elastic cord exposed.
Page 42: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 43 CAUTION: Never do this. Here two children are wearing the same belt. The belt cannot properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.
Page 44 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 45: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 46 CAUTION: People should never hold a baby in their arms while riding in a vehicle. A baby does not weigh much — until a crash. During a crash a baby will become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12 lb (5.5 kg) baby will suddenly become a 240 lb (110 kg)
Page 47 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 48 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 49: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 50 A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.
Page 51 A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window.
Page 52 Securing an Add-on Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Make sure the child restraint is properly installed in the vehicle using the vehicle’s safety belt or LATCH system, following the instructions that came with that restraint, and also the instructions in...
Page 53: Securing The Child Within The Child Restraint
Securing the Child Within the Child Restraint There are several systems for securing the child within the child restraint. One system, the three-point harness, has straps that come down over each of the infant’s shoulders and buckle together at the crotch. The ﬁve-point harness system has two shoulder straps, two hip straps, and a crotch strap.
Page 54 A label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys. CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates.
Page 55: Lower Anchors And Tethers For Children (Latch)
Lower Anchors and Tethers for Children (LATCH) The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system.
Page 56 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.
Page 57 Lower Anchor and Top Tether Anchor Locations Seating positions with top tether anchors. (Lower Anchor): Seating positions with two lower anchors. Rear Seat Each rear seating position has exposed metal anchors located in the crease between the seatback and the seat cushion. The top tether anchors are located on the back of the rear seatback.
Page 58 Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed.
Page 59 CAUTION: Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Secure any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has...
Page 60 2. If the child restraint manufacturer recommends that the top tether be attached, attach and tighten the top tether to the top tether anchor, if equipped. Refer to the child restraint instructions and the following steps: 2.1. Find the top tether anchor. 2.2.
Page 61: Securing A Child Restraint In A Rear Outside Seat Position
If the position you are using has an adjustable head restraint and you are using a single tether, raise the head restraint and route the tether under the head restraint and in between the head restraint posts. 3. Push and pull the child restraint in different directions to be sure it is secure.
Page 62 3. Buckle the belt. Make sure the release button 4. Pull the rest of the shoulder belt all the way is positioned so you would be able to unbuckle out of the retractor to set the lock. the safety belt quickly if you ever had to.
Page 63 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 64: Securing A Child Restraint In The Center Rear Seat Position
Securing a Child Restraint in the Center Rear Seat Position If your child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 55. If your child restraint does not have the LATCH system, you will be using the lap-shoulder belt to secure the child restraint in this position.
Page 65 3. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 4. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor.
Page 66: Securing A Child Restraint In The Right Front Seat Position
5. If your child restraint has a top tether, attach and tighten the top tether to the top tether anchor. Refer to the instructions that came with the child restraint and to Lower Anchors and Tethers for Children (LATCH) on page 55. 6.
Page 67 A label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys. CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates.
Page 68 If your child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 55. There is no top tether anchor at the right front seating position. Do not secure a child seat in this position if a national or local law requires that the top tether be anchored or if the instructions that come with the child restraint say that the top tether must be anchored.
Page 69 4. Buckle the belt. Make sure the release button 5. Pull the rest of the shoulder belt all the way is positioned so you would be able to unbuckle out of the retractor to set the lock. the safety belt quickly if you ever had to.
Page 70 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 71: Airbag System
Airbag System Your vehicle has a frontal airbag for the driver and a frontal airbag for the right front passenger. Your vehicle may also have roof-mounted side impact airbags designed for either side impact or rollover deployment. Roof-mounted side impact airbags are available for the driver and the passenger seated directly behind the driver and for the right front passenger and the passenger...
Page 72 Here are the most important things to know about the airbag system: CAUTION: You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it.
Page 73 CAUTION: (Continued) Roof-mounted rollover airbags are designed to inﬂate in moderate to severe crashes where something hits the side of your vehicle or during a vehicle rollover. They may inﬂate in some frontal crashes. They are not designed to inﬂate in rear crashes.
Page 74 CAUTION: Anyone who is up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 75: Where Are The Airbags
Where Are the Airbags? The driver’s frontal airbag is in the middle of the steering wheel. The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side.
Page 76 If your vehicle has a roof-mounted side impact airbag for the driver and the person seated directly behind the driver, it is in the ceiling above the side windows. If your vehicle has a roof-mounted side impact airbag for the right front passenger and the person seated directly behind that passenger, it is in the ceiling above the side windows.
Page 77: When Should An Airbag Inﬂate
CAUTION: If something is between an occupant and an airbag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death. The path of an inﬂating airbag must be kept clear. Do not put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any other airbag...
Page 78 In addition, your vehicle has “dual stage” frontal airbags, which adjust the restraint according to crash severity. For moderate frontal impacts, these airbags inﬂate at a level less than full deployment. For more severe frontal impacts, full deployment occurs. If the front of your vehicle goes straight into a wall that does not move or deform, the threshold level for the reduced deployment is about 10 to 15 mph (16 to 24 km/h),...
Page 79: What Makes An Airbag Inﬂate
Your vehicle may or may not have roof-mounted side impact airbags and a rollover sensor. See Airbag System on page 71. These roof-mounted “rollover capable” side impact airbags are intended to inﬂate in moderate to severe side crashes, and during a rollover. They may also inﬂate in some frontal crashes.
Page 80: How Does An Airbag Restrain
How Does an Airbag Restrain? In moderate to severe frontal or near frontal collisions, even belted occupants can contact the steering wheel or the instrument panel. In moderate to severe side collisions, even belted occupants can contact the inside of the vehicle. Airbags supplement the protection provided by safety belts.
Page 81 CAUTION: When an airbag inﬂates, there may be dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so.
Page 82: Passenger Sensing System
Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for the airbag system. If you do not get them, the airbag system will not be there to help protect you in another crash.
Page 83 The passenger sensing system will turn off the right front passenger’s frontal airbag under certain conditions. The driver’s airbags are not part of the passenger sensing system. The passenger sensing system works with sensors that are part of the right front passenger’s seat.
Page 84 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front passenger seat unless the passenger airbag status indicator shows off and the airbag is off. Here is why: CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right...
Page 85 The passenger sensing system is designed to turn off the right front passenger’s frontal airbag if: • The right front passenger seat is unoccupied. • The system determines that an infant is present in a rear-facing infant seat. • The system determines that a small child is present in a forward-facing child restraint.
Page 86 For some children who have outgrown child restraints and for very small adults, the passenger sensing system may or may not turn off the right front passenger’s frontal airbag, depending upon the person’s seating posture and body build. Everyone in your vehicle who has outgrown child restraints should wear a safety belt properly —...
Page 87 CAUTION: If the airbag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the airbag system. If this ever happens, have the vehicle serviced promptly, because an adult-size person sitting in the right front passenger’s seat may not have the protection of the airbag(s).
Page 88: Servicing Your Airbag-Equipped Vehicle
Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle. You do not want the system to inﬂate while someone is working on your vehicle. Your retailer and the service manual have information about servicing your vehicle and the airbag system.
Page 89: Adding Equipment To Your Airbag-Equipped Vehicle
Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to the front or sides of the vehicle that could keep the airbags from working properly? Yes. If you add things that change your vehicle’s frame, bumper system, height, front end or side sheet metal, they may keep the airbag system from working properly.
Page 90: Restraint System Check
Restraint System Check Checking the Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 91: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as...
Page 92 ✍ NOTES...
Page 93: Features And Controls
Section 2 Keys ... 95 Remote Keyless Entry (RKE) System ... 96 Remote Keyless Entry (RKE) System Operation ... 97 Doors and Locks ... 100 Door Locks ... 100 Power Door Locks ... 101 Delayed Locking ... 101 Programmable Automatic Door Locks ... 101 Rear Door Security Locks ...
Page 94 Section 2 Outside Power Mirrors ... 127 Outside Convex Mirror ... 128 ® OnStar System ... 128 Storage Areas ... 132 Glove Box ... 132 Cupholder(s) ... 132 Features and Controls Floor Console Storage Area ... 132 Center Console Storage Area ... 132 Cargo Area ...
Page 95: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and they could be seriously injured or killed if caught in the path of a closing...
Page 96: Remote Keyless Entry (Rke) System
One key is used for the ignition and all of the locks. Key code information can be obtained only at the dealer/retailer where your vehicle was purchased. These code numbers can be used to make new keys. Additional keys that are needed can be made at any dealer/retailer provided you have the key code information.
Page 97: Remote Keyless Entry (Rke) System Operation
At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this: •...
Page 98: Matching Transmitter(S) To Your Vehicle
Your vehicle can be programmed so that the parking lamps or Daytime Running Lamps (DRL) will ﬂash and/or the horn will sound when you lock the doors with the remote keyless entry transmitter. See your retailer for more information on programming this feature. "...
Page 99 Notice: When replacing the battery, use care not to touch any of the circuitry. Static from your body transferred to these surfaces may damage the transmitter. 1. Use a ﬂat thin object to pry open the transmitter. 2. Once the transmitter is separated, use a pencil or similar object to remove the old battery.
Page 100: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 101: Power Door Locks
Power Door Locks The power door lock switches are located on the driver’s and front passenger’s doors. Press the bottom of the switch to lock all doors. Press the top of the switch to unlock all doors. Delayed Locking This feature will delay the actual locking of the doors and arming of the theft-deterrent system for ﬁve seconds when the power door lock switch or remote keyless entry transmitter is used to...
Page 102: Rear Door Security Locks
In the following situations, all doors will lock again when: • The brake pedal is applied, a door is opened and then closed, and the brake pedal is released, for a vehicle with an automatic transaxle. • A door is opened and then closed while the vehicle is moving faster than 3 mph (5 km/h), for a vehicle with an manual transaxle.
Page 103: Lockout Protection
When you want to open a rear door when the security lock is on, do the following: 1. Unlock the door using the remote keyless entry transmitter, the power door lock switch, or by lifting the rear door manual lock. 2.
Page 104: Windows
Use your remote keyless entry transmitter or power door lock switches to unlock the liftgate. To open the liftgate, lift the handle located in the center of the liftgate. Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous.
Page 105: Power Windows
Power Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome from extreme heat in warm or hot weather and suffer permanent injuries or even death from heat stroke. Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly...
Page 106: Sun Visors
A window switch is also located on each rear door. Press the bottom of the switch to lower the window. Press the top of the switch to raise the window. Express-Down Window The driver’s window switch has an express-down feature that is labeled AUTO. This allows the driver’s window to open fully without having to continuously press the switch.
Page 107: Theft-Deterrent Systems
Theft-Deterrent Systems Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal. Content Theft-Deterrent The remote keyless entry transmitter is used to arm/disarm the theft-deterrent system.
Page 108: Passlock
® Passlock Your vehicle is equipped with the ® Passlock theft-deterrent system. This light will come on for the theft-deterent system. ® Passlock is a passive theft-deterrent system. ® Passlock enables fuel if the ignition lock cylinder is turned with a valid key. If a correct key is not used or the ignition lock cylinder is tampered with, fuel is disabled.
Page 109: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines: • Do not drive at any one constant speed, fast or slow, for the ﬁrst 500 miles (805 km).
Page 110 If you have an automatic transaxle, the ignition switch cannot be turned to LOCK unless the shift lever is in PARK (P). Notice: Using a tool to force the key from the ignition switch could cause damage or break the key. Use the correct key and turn the key only with your hand.
Page 111: Key In The Ignition
Key In the Ignition Never leave your vehicle with the keys inside, as it is an easy target for joy riders or thieves. If you leave the key in the ignition and park your vehicle, a chime will sound, when you open the driver’s door.
Page 112 If the engine does not start and the key is held in START for many seconds, cranking will be stopped after 15 seconds to prevent cranking motor damage. To prevent gear damage, this system also prevents cranking if the engine is already running.
Page 113: To Use The Engine Coolant Heater
Engine Coolant Heater Your vehicle may have this feature. In very cold weather, 0°F (−18°C) or colder, the engine coolant heater can provide easier starting and better fuel economy during engine warm-up. Usually, the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle.
Page 114: Automatic Transaxle Operation
Automatic Transaxle Operation If your vehicle is equipped with an automatic transaxle, the shift lever is located on the console between the seats. There are several different positions for the automatic transaxle. PARK (P): This position locks your front wheels. It is the best position to use when you start your engine because your vehicle cannot move easily.
Page 115 Make sure the shift lever is fully in PARK (P) before starting the engine. Your vehicle has an automatic transaxle shift lock control system. You have to fully apply your regular brakes ﬁrst and then press the shift lever button before you can shift from PARK (P) when the ignition key is in RUN.
Page 116 DRIVE (D): This position is for normal driving with the automatic transaxle. It provides the best fuel economy for your vehicle. If you need more power for passing, and you are: • Going less than about 35 mph (55 km/h), push your accelerator pedal about halfway down.
Page 117: Manual Transaxle Operation
Manual Transaxle Operation Five-Speed This is your vehicle’s shift pattern. Here is how to operate your transaxle: FIRST (1): Press the clutch pedal and shift into FIRST (1). Then, slowly let up on the clutch pedal as you press the accelerator pedal. You can shift into FIRST (1) when you are going less than 20 mph (32 km/h).
Page 118: Shift Speeds
Shift Speeds CAUTION: If you skip a gear when you downshift, you could lose control of your vehicle. You could injure yourself or others. Do not shift down more than one gear at a time when you downshift. Up-Shift Light If your vehicle has a manual transaxle, you may have an up-shift...
Page 119: Parking Brake
Parking Brake The parking brake lever is located to the right of the driver’s seat. To set the parking brake, hold the brake pedal down and pull up on the parking brake lever. If the ignition is on, the brake system warning light will come on.
Page 120: Shifting Into Park (P) (Automatic Transaxle)
Shifting Into Park (P) (Automatic Transaxle) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 121: Torque Lock
Then, see if you can move the shift lever away from PARK (P) without ﬁrst pushing the button. If you can, it means that the shift lever was not fully locked into PARK (P). Torque Lock If you are parking on a hill and you do not shift your transaxle into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transaxle.
Page 122: Parking Your Vehicle (Manual Transaxle)
Shift Interlock By-Pass Use the following steps, if for some reason the shifter is not released when you apply the brake, or if service or towing requires the car to be shifted out of PARK (P) without running the engine. 1.
Page 123: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • The exhaust system sounds strange or different. •...
Page 124: Running The Engine While Parked
Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 125: Mirrors
Mirrors Automatic Dimming Rearview ® Mirror with OnStar , Compass and Temperature Display When on, an automatic dimming mirror automatically dims to the proper level to minimize glare from lights behind you after dark. The mirror also includes a dual display in the upper right corner of the mirror face.
Page 126: Compass Calibration
To adjust between Fahrenheit and Celsius, do the following: 1. Press and hold the on/off button until either a ﬂashing °F or °C appears. 2. Press the button again to change the display to the desired unit of measurement. After approximately four seconds of inactivity, the new unit will be locked in and the display will return.
Page 127: Outside Power Mirrors
2. Press and hold the on/off button until a zone number appears in the display. The compass is now in zone mode. 3. Keep pressing the on/off button until the desired zone number appears in the display. Release the button. After approximately four seconds of inactivity, the new zone number will be locked in and the comp/temp display will return.
Page 128: Onstar ® System
Outside Convex Mirror CAUTION: A convex mirror can make things (like other vehicles) look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on your right. Check your inside mirror or glance over your shoulder before changing lanes.
Page 129: Onstar Services
® OnStar service is provided to you subject to the ® OnStar Terms and Conditions. You may cancel ® your OnStar service at any time by contacting ® OnStar as provided below. A complete OnStar ® Owners Guide and the OnStar Conditions are included in the vehicle’s OnStar Subscriber glove box literature.
Page 130: Onstar ® Virtual Advisor
Available Services included with Directions & Connections • All Safe and Sound Plan Services • Driving Directions - Advisor delivered or ® OnStar Turn-by-Turn Navigation (If equipped) • RideAssist • Information and Convenience Services ® OnStar Hands-Free Calling ® OnStar Hands-Free Calling allows eligible ®...
Page 131 ® How OnStar Service Works In order to provide you with OnStar ® your vehicle’s OnStar system has the capability of recording and transmitting vehicle information. This information is automatically sent to an ® OnStar Call Center at the time of an OnStar button press, Emergency button press or if your airbags or AACN system deploys.
Page 132: Center Console Storage Area
Storage Areas Glove Box To open the glove box, lift up on the lever. Cupholder(s) Your vehicle has a removable cupholder liner and cupholder located inside the center console storage area. To access, pull the cover towards the rear of the vehicle. To remove the liner, pull it out of the cupholder.
Page 133 Use the following procedure to access and assemble the rear cargo organizer. 1. Pull up on the latch of the rear panel lid of the cargo organizer to open it. 2. Lift the front of the cargo organizer and fold out the end panels.
Page 134: Roof Rack System
5. Turn the center divider rearward and snap it into the panel lid. 6. Reverse the above steps to stow the dividers and close the cargo organizer. Push ﬁrmly on the rear panel lid to engage the latch of the organizer. Roof Rack System Your vehicle may be equipped with a roof rack system.
Page 135 CAUTION: If you try to carry something on top of your vehicle that is longer or wider than the luggage carrier — like paneling, plywood, a mattress and so forth — the wind can catch it as you drive along. This can cause you to lose control.
Page 136: Sunroof
Sunroof If your vehicle has a sunroof, the controls to operate it are located on the headliner above the rearview mirror. The ignition must be in RUN or ACC to operate the sunroof. See Ignition Positions on page 109. To express-open the sunroof glass panel and sunshade, press the switch rearward...
Page 137 Section 3 Instrument Panel Overview ... 140 Hazard Warning Flashers ... 142 Horn ... 142 Tilt Wheel ... 142 Turn Signal/Multifunction Lever ... 143 Turn and Lane-Change Signals ... 143 Headlamp High/Low-Beam Changer ... 144 Flash-to-Pass ... 144 Windshield Wipers ... 144 Windshield Washer ...
Page 138 Section 3 Malfunction Indicator Lamp ... 175 Oil Pressure Light ... 178 Change Engine Oil Light ... 179 Security Light ... 179 Reduced Engine Power Light ... 179 Highbeam On Light ... 180 Daytime Running Lamps (DRL) Indicator Light ... 180 Gate Ajar Light ...
Page 139 ✍ NOTES...
Page 140: Instrument Panel Overview
Instrument Panel Overview...
Page 141 The main components of the instrument panel are the following: A. Air Outlets. See Climate Control System on page 155. B. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 143. C. Cruise Control Buttons. See Cruise Control on page 146. D.
Page 142: Hazard Warning Flashers
Hazard Warning Flashers The hazard warning ﬂashers let you warn the police and others that you have a problem. The front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located in the center of the instrument panel.
Page 143: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: • Turn and Lane-Change Signals. See Turn and Lane-Change Signals on page 143. • Exterior Lamp Control. See Headlamps on page 149. • Headlamp High/Low-Beam Changer. See Headlamp High/Low-Beam Changer on page 144.
Page 144: Headlamp High/Low-Beam Changer
Headlamp High/Low-Beam Changer To change the headlamps from low beam to high or high beam to low, pull the turn signal lever all the way towards you. Then release it. When the high beams are on, this light on the instrument panel cluster will also be on.
Page 145: Windshield Washer
Canada The lever on the right side of the steering column operates the windshield wipers. Push up or pull down on the lever to place it in one of the following positions. MIST or (Mist): Pull the lever down and release it for a single wiping cycle.
Page 146: Rear Window Wiper/Washer
Rear Window Wiper/Washer The band on the wiper lever with the smaller arrow operates the rear wiper/washer. (Off): Turn the band to this position to turn off the rear wiper. (Rear Wiper): Turn the band with the smaller arrow to this position to turn on the rear wiper. To set for a shorter or longer delay between wipes, turn the other band with the larger arrow pointing to the numbers (1, 2, or 3).
Page 147 Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 148 Resuming a Set Speed Suppose you set your cruise control at a desired speed and then you apply the brakes. This will disengage the cruise control. The indicator light on the cruise control button will go out when the cruise is no longer engaged. To return to the previously set speed, press the RES+ button brieﬂy when the vehicle has reached a speed of about 25 mph (40 km/h) or more.
Page 149: Headlamps
When going downhill, you may have to brake or shift to a lower gear to keep the vehicle’s speed down. Of course, applying the brakes ends cruise control. Many drivers ﬁnd this to be too much trouble and do not use cruise control on steep hills.
Page 150: Daytime Running Lamps (Drl)
(Parking Lamps): Turn the control to this position to turn on the parking lamps together with the following: • Sidemarker Lamps • Taillamps • License Plate Lamps • Instrument Panel Lights (Headlamps): Turning the control to this position turns on the headlamps, together with the previously listed lamps and lights.
Page 151: Automatic Headlamp System
When the DRL are on, the low-beam headlamps will be on at a reduced brightness. The taillamps, sidemarker and other lamps will not be on. The instrument panel will not be lit up either. When you turn the exterior lamp band to the headlamp position, your regular headlamps will come on.
Page 152: Fog Lamps
Fog Lamps If your vehicle has this feature, use your fog lamps for better visibility in foggy or misty conditions. The button for your fog lamps is located on the instrument panel above the radio. Push the button to turn the fog lamps on or off. When using fog lamps, the parking lamps or low-beam headlamps must be on.
Page 153: Dome Lamp
Dome Lamp The dome lamp switch has three positions. (Off): The lamp will not come on as long as the switch is in this position. (Automatic): The lamp will come on when a door is opened. See Entry Lighting on page 153. (On): The lamp will stay on as long as the switch is in this position.
Page 154: Battery Run-Down Protection
Battery Run-Down Protection Your vehicle is equipped with a battery saver feature designed to protect your vehicle’s battery. When any interior lamp is left on and the ignition is turned off, the battery rundown protection system will automatically turn the lamp off after 20 minutes.
Page 155: Cigarette Lighter
Cigarette Lighter Your vehicle may have a cigarette lighter. To use the lighter, located on the instrument panel below the climate controls, push it in all the way and let go. When it is ready, it will pop back out by itself. Notice: Holding a cigarette lighter in while it is heating does not let the lighter back away from the heating element when it is hot.
Page 156 (Bi-Level): This mode directs air to the instrument panel outlets and to the ﬂoor outlets. Cooler air is directed to the upper outlets and warmer air to the ﬂoor outlets. (Floor): This mode directs most of the air to the ﬂoor outlets with some air directed to the windshield.
Page 157: Defogging And Defrosting
(Air Conditioning): Press this button to turn the air conditioning system on or off. When this button is pressed, an indicator light above the button will come on to let you know the air conditioning is activated. Air conditioning can be selected in any mode as long as the fan is on in any speed position.
Page 158: Rear Window Defogger
(Defrost): This mode directs most of the air to the windshield, with some air directed to the side window outlets and the ﬂoor outlets. When you select this mode, the system will turn recirculation mode off automatically and will run the air conditioning compressor unless the outside air is at or below freezing.
Page 159: Outlet Adjustment
Outlet Adjustment Use the louvers located on the air outlets to change the direction of the airﬂow. Operation Tips • Clear away any ice, snow, or leaves from the air inlets at the base of the vehicle that may block the ﬂow of air into your vehicle. •...
Page 160 3. Remove the air ﬁlter from the housing by pressing the tab on the inboard side of the housing. 4. Remove the ﬁlter by sliding it out of the housing. 5. Install the new air ﬁlter. When installing a new air ﬁlter make sure the AIR FLOW arrow is pointing rearward.
Page 161: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages on your vehicle. The pictures help to locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement. Paying attention to the warning lights and gages could also save you or others from injury.
Page 162: Instrument Panel Cluster
Instrument Panel Cluster The instrument cluster is designed to let you know at a glance how the vehicle is running. You will know how fast you are going, about how much fuel you have used, and many other things you will need to know to drive safely and economically.
Page 163: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles or kilometers. Your vehicle has a tamper-resistant odometer. If ERROR is displayed, this indicates someone has probably tampered with the odometer and the reading may not be accurate.
Page 164: Tachometer
Tachometer The tachometer displays the engine speed in revolutions per minute (rpm). Notice: If you operate the engine above 6,900 rpm, your vehicle could be damaged, and the damages would not be covered by your warranty. Do not operate the engine with the tachometer above 6,900 rpm.
Page 165: Passenger Safety Belt Reminder Light
Passenger Safety Belt Reminder Light Several seconds after the key is turned to RUN or START, a chime will sound for several seconds to remind the front passenger to buckle their safety belt. This would only occur if the passenger airbag is enabled.
Page 166: Passenger Airbag Status Indicator
If the airbag readiness light stays on after you start the vehicle or comes on when you are driving, your airbag system may not work properly. Have your vehicle serviced right away. CAUTION: If the airbag readiness light stays on after you start your vehicle, it means the airbag system may not be working properly.
Page 167 If the word ON or the on symbol is lit on the passenger airbag status indicator, it means that the right front passenger’s frontal airbag is enabled (may inﬂate). CAUTION: If the on indicator comes on when you have a rear-facing child restraint installed in the right front passenger’s seat, it means that the passenger sensing system has not turned off the passenger’s frontal airbag.
Page 168 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front passenger seat unless the passenger airbag status indicator shows off and the airbag is off. Here is why: CAUTION: Even though the passenger sensing system is designed to turn off the...
Page 169: Battery Warning Light
Battery Warning Light The battery warning light will come on brieﬂy as a check, when you turn on the ignition. Then it should go out when the engine is started. If the light does not come on when you start your vehicle, have your vehicle serviced right away.
Page 170: Brake System Warning Light
Brake System Warning Light Your vehicle’s hydraulic brake system is divided into two parts. If one part is not working, the other part can still work and stop you. For good braking, though, you need both parts working well. If the brake system warning light comes on, there is a brake problem.
Page 171: Anti-Lock Brake System Warning Light
Anti-Lock Brake System Warning Light If your vehicle has anti-lock brakes, the anti-lock brake system (ABS) warning light will come on brieﬂy, as a check, when you start your vehicle. If it does not, have your vehicle serviced so that the light works properly when it needs to.
Page 172: Traction Control System (Tcs) Warning Light
Traction Control System (TCS) Warning Light Your vehicle may have a traction control system warning light. The traction control system warning light may come on for the following reasons: • For vehicles equipped with the 2.2L L4 engine, turn the system off by pressing the traction control button located on the instrument panel above the audio system.
Page 173: Low Traction Light
Low Traction Light If your vehicle has the Traction Control System (TCS), this light will come on when the system is limiting wheel spin. You may feel or hear the system working, but this is normal. The roads may be slippery if this light comes on.
Page 174: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage This gage displays the temperature of the vehicle’s engine. If the indicator needle moves into the shaded area, the engine is too hot. The engine coolant temperature warning light will also come on when the engine has overheated. See Engine Coolant Temperature Warning Light on page 173 for more information.
Page 175: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light Your vehicle has a computer which monitors operation of the fuel, ignition, and emission control systems. This system is called OBD II (On-Board Diagnostics-Second Generation) and is intended to assure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 176: If The Light Is Flashing
This light should come on, as a check to show you it is working, when the ignition is on and the engine is not running. If the light does not come on, have it repaired. This light will also come on during a malfunction in one of two ways: •...
Page 177: Emissions Inspection And Maintenance Programs
Did you just drive through a deep puddle of water? If so, your electrical system may be wet. The condition will usually be corrected when the electrical system dries out. A few driving trips should turn the light off. Have you recently changed brands of fuel? If so, be sure to fuel your vehicle with quality fuel.
Page 178: Oil Pressure Light
Oil Pressure Light If you have a low engine oil pressure problem, this light will stay on after you start your engine, or come on when you are driving. This indicates that your engine is not receiving enough oil. The engine could be low on oil, or could have some other oil problem.
Page 179: Change Engine Oil Light
Change Engine Oil Light If this light comes on, it means that service is required for your vehicle. See Scheduled Maintenance on page 420 and Engine Oil on page 318 for more information. After having the oil changed you will need to reset the light.
Page 180: Highbeam On Light
Highbeam On Light This light comes on when the high-beam headlamps are in use. See Headlamp High/Low-Beam Changer on page 144 for more information. Daytime Running Lamps (DRL) Indicator Light This light is located on the instrument panel cluster. It comes on whenever the Daytime Running Lamps are on.
Page 181: Fuel Gage
Fuel Gage When the ignition is on, the fuel gage tells you about how much fuel you have left in your tank. When the indicator nears empty, the low fuel light will come on. You still have a little fuel left, but you should get more soon.
Page 182: Audio System(S)
Audio System(s) Determine which radio your vehicle has and then read the pages following to familiarize yourself with its features. Driving without distraction is a necessity for a safer driving experience. See Defensive Driving on page 230. By taking a few moments to read this manual and get familiar with your vehicle’s audio system, you can use it with less effort, as well as take advantage of its features.
Page 183: Setting The Time (Without Date Display)
While your vehicle is parked: • Familiarize yourself with all of its controls. • Familiarize yourself with its operation. • Set up your audio system by presetting your favorite radio stations, setting the tone, and adjusting the speakers. Then, when driving conditions permit, you can tune to your favorite radio stations using the presets and steering wheel controls if the vehicle has them.
Page 184: Setting The Time (With Date Display)
4. Press the clock button again until the clock display stops ﬂashing to set the currently displayed time; otherwise, the ﬂashing stops after ﬁve seconds and the current time displayed will be automatically set. To change the time default setting from 12 hour to 24 hour, press the clock button and then the pushbutton located under the forward arrow label.
Page 185 To set the time and date, follow these instructions: 1. Turn the ignition key to ACC (accessory) or RUN. Press the power knob, located in the center of the radio, to turn the radio on. 2. Press the MENU button. Once the clock option is displayed.
Page 186: Radio With Cd (Base)
Radio with CD (Base) Playing the Radio (Power/Volume): Press this knob to turn the system on and off. Turn this knob clockwise or counterclockwise to increase or decrease the volume. The radio plays at the previous volume setting whenever the radio is turned on. The volume can still be manually adjusted by using the volume knob.
Page 187: Setting Preset Stations
Setting Preset Stations Up to 18 stations (six FM1, six FM2, and six AM), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press BAND to select FM1, FM2, or AM. 3.
Page 188 Playing a CD (Single CD Player) Insert a CD partway into the slot, label side up. The player pulls it in and the CD should begin playing. If the ignition or radio is turned off with a CD in the player, it stays in the player.
Page 189 EJECT: Press the CD eject button to eject the CD. If the CD is not removed, after several seconds, the CD automatically pulls back into the player. (Tune): Turn this knob to select tracks on the CD currently playing. © ¨...
Page 190 To use repeat, do the following: • To repeat the track, press and release the RPT button. An arrow symbol displays. Press RPT again to turn off repeat play. • To repeat the CD, PRESS and hold the RPT button for a few seconds. An arrow symbol displays.
Page 191: Using The Auxiliary Input Jack
Using the Auxiliary Input Jack Your radio system has an auxiliary input jack located on the lower right side of the faceplate. This is not an audio output; do not plug the headphone set into the front auxiliary input jack. However, an external audio device such as an iPod, laptop computer, MP3 player, CD changer, or cassette tape player, etc.
Page 192: Radio With Cd (Mp3)
Radio with CD (MP3) Radio with CD shown, Radio with Six-Disc CD (MP3) similar Radio Data System (RDS) The audio system has a Radio Data System (RDS). The RDS feature is available for use only on FM stations that broadcast RDS information. This system relies upon receiving speciﬁc information from these stations and only works when the information is available.
Page 193 Playing the Radio (Power/Volume): Press this knob to turn the system on and off. Turn this knob clockwise to increase or counterclockwise to decrease the volume. Finding a Station BAND: Press this button to switch between AM, FM, or XM™ (if equipped). The display shows the selection.
Page 194 Each page of favorites can contain any combination of AM, FM, or XM™ (if equipped) stations. To store a station as a favorite, perform the following steps: 1. Tune to the desired radio station. 2. Press the FAV button to display the page where you want the station stored.
Page 195 To quickly adjust bass, midrange, or treble to the middle position, press the pushbutton positioned under the BASS, MID, or TREB label for more than two seconds. A beep sounds and the level adjusts to the middle position. To quickly adjust all tone and speaker controls to the middle position, press the tune knob for more than two seconds until a beep sounds.
Page 196: Finding A Category (Cat) Station
Finding a Category (CAT) Station CAT (Category): The CAT button is used to ﬁnd XM™ stations when the radio is in the XM™ mode. To ﬁnd XM™ channels within a desired category, perform the following: 1. Press the BAND button until the XM™ frequency displays.
Page 197: Playing A Cd(S) (Six-Disc Cd Player)
Radio Messages Calibration Error: The audio system has been calibrated for your vehicle from the factory. If Calibration Error displays, the radio has not been conﬁgured properly and your vehicle must be returned to your retailer for service. Playing a CD (Single CD Player) Insert a CD partway into the slot, label side up.
Page 198 If playing a CD-R, the sound quality can be reduced due to CD-R quality, the method of recording, the quality of the music that has been recorded, and the way the CD-R has been handled. There can be an increase in skipping, difficulty in ﬁnding tracks, and/or difficulty in loading and ejecting.
Page 199 (Tune): Turn this knob to select tracks on the CD currently playing. © ¨ SEEK : Press the left SEEK arrow to go to the start of the current track, if more than ten seconds have played. Press the right SEEK arrow to go to the next track.
Page 200: Playing An Mp3 Cd-R Or Cd-Rw Disc
Your radio system has an auxiliary input jack located on the lower right side of the faceplate. An external audio device such as a portable audio player can be connected to the auxiliary input jack for use as another source for playing CDs. Press the CD/AUX button again and the system begins playing audio from the connected portable audio player.
Page 201 Using the Auxiliary Input Jack The radio system has an auxiliary input jack located on the lower right side of the faceplate. This is not an audio output; do not plug the headphone set into the front auxiliary input jack. However, an external audio device such as an iPod, laptop computer, MP3 player, CD changer, or cassette tape player, etc.
Page 202: Radio With Cd And Dvd
Radio with CD and DVD If your vehicle has a Rear Seat Entertainment (RSE) system, the vehicle has a radio that accepts either CD audio or DVD video. The radio with CD and DVD is very similar to the radio with CD (Base) or the radio with CD (MP3).
Page 203 MP3 Format If you burn your own MP3 disc on a personal computer: • Make sure the MP3 ﬁles are recorded on a CD-R or CD-RW disc. • Avoid mixing standard audio and MP3 ﬁles on one disc. • The CD player is able to read and play a maximum of 50 folders, 50 playlists, and 255 ﬁles.
Page 204 Root Directory The root directory of the CD-R is treated as a folder. If the root directory has compressed audio ﬁles, the directory displays as F1 ROOT. All ﬁles contained directly under the root directory are accessed prior to any root directory folders. However, playlists (Px) are always accessed before root folders or ﬁles.
Page 205 File System and Naming The song name that is displayed is the song name that is contained in the ID3 tag. If the song name is not present in the ID3 tag, then the radio displays the ﬁle name without the extension (such as .mp3) as the track name.
Page 206 If playing a CD-R, the sound quality can be reduced due to CD-R quality, the method of recording, the quality of the music that has been recorded, and the way the CD-R has been handled. There can be an increase in skipping, difficulty in ﬁnding tracks, and/or difficulty in loading and ejecting.
Page 207 © ¨ SEEK : Press the left SEEK arrow to go to the start of the current MP3 ﬁle, if more than ten seconds have played. Press the right SEEK arrow to go to the next MP3 ﬁle. If either SEEK arrow is held or pressed multiple times, the player continues moving backward or forward through MP3 ﬁles on the CD.
Page 208 (Music Navigator): Use the music navigator feature to play MP3 ﬁles on the CD-R in order by artist or album. Press the pushbutton located below the music navigator label. The player scans the disc to sort the ﬁles by artist and album ID3 tag information.
Page 209: Xm Radio Messages
XM Radio Messages Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. XM Updating Updating encryption code No XM Signal Loss of signal Loading XM Acquiring channel audio (after four second delay) Channel Off Air Channel not in service...
Page 210 Radio Display Message No CAT Info Category Name not available No Information No Text/Informational message available CAT Not Found No channel available for the chosen category XM TheftLocked Theftlock XM Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Check XM Receivr...
Page 211: Rear Seat Entertainment System
Rear Seat Entertainment System Your vehicle may have a DVD Rear Seat Entertainment (RSE) system. The RSE system works with the vehicle’s audio system and includes a radio that accepts CD audio or DVD video, a video display screen, two sets of wireless headphones, and a remote control.
Page 212: Stereo Rca Jacks
To adjust the volume on the headphones, use the volume control located on the right side. Notice: Do not store the headphones in heat or direct sunlight. This could damage the headphones and repairs will not be covered by your warranty. Keep the headphones stored in a cool, dry place.
Page 213: Audio Output
The RCA jacks are color coded to match typical home entertainment system equipment. The yellow jack (right) is for the video input. The white jack (middle) is for the left audio input. The red jack (left) is for the right audio input. The red connector must always be used in order for the DVD system to recognize that an external source is plugged in.
Page 214: Video Screen
Video Screen The video screen is located in the overhead console. To use the video screen, do the following: 1. Push forward on the release button located on the DVD display console. 2. Pull the screen down, away from you, and adjust its position as desired.
Page 215 The DVD player is only compatible with DVDs that are authorized for use in the United States and Canada (Region Code 1). The DVD region code is printed on the jacket of most DVDs. Most audio CDs, CD-R, CD-RW, and MP3s can also be played by the radio with CD and DVD.
Page 216 © SEEK (Previous Track/Chapter): Press this button to return to the start of the current track or chapter. Press this button again to go to the previous track or chapter. This button might not work while the DVD is playing the copyright information or the previews.
Page 217 DVD Display Buttons Once a DVD is inserted, a screen display menu shows several tag options for DVD playing. Press the pushbuttons located under any desired tag option during DVD playback. See the tag options listed below for more information: (Play/Pause): Press either the play or pause icon displayed on the radio system, to toggle between pausing or restarting playback...
Page 218 Loading a disc into the system usually takes approximately 30 seconds for playback to begin. If a DVD is already in the radio, press the play/pause button on the remote control, or press the pushbutton located under the play symbol tag displayed on the radio to start playing the disc, when the DVD system is active.
Page 219: Remote Control
Ejecting a Disc Press the eject button on the radio to eject the disc. If a disc is ejected from the radio, but not removed, the radio reloads the disc after a short period of time. The disc is stored in the radio. The radio does not resume play of the disc automatically.
Page 220 (Main DVD Menu): Press this button to access the DVD menu. The DVD menu is different on every DVD. Use the up, down, left, and right arrow buttons to move the cursor around the DVD menu. After making a selection press the enter button. This button only operates when using a DVD.
Page 221 (Play/Pause): Press this button to start play of a DVD or CD. Press this button while a DVD or CD is playing to pause it. Press this button again to continue playing the DVD. While the DVD is playing, press the pause button then press the fast forward button.
Page 222 DVD Player Error Messages The video screen could display one of the following: Disc Load/Eject Error: This message displays when there are disc load or eject problems. Disc Format Error: This message displays, if the disc is inserted with the disc label wrong side up, or if the disc is damaged.
Page 223: Audio Steering Wheel Controls
Audio Steering Wheel Controls Some audio controls can be adjusted at the steering wheel. They include the following: : Press the up or the down arrow to go to the next or to the previous radio station and stay there. The radio seeks stations only with a strong signal that are in the selected band.
Page 224: Radio Reception
Radio Reception Frequency interference and static during normal radio reception can occur if items such as cellphone chargers, vehicle convenience accessories, and external electronic devices are plugged into the accessory power outlet. If there is interference or static, unplug the item from the accessory power outlet.
Page 225: Care Of Your Cds And Dvds
Care of Your CDs and DVDs Handle CDs carefully. Store them in their original cases or other protective cases and away from direct sunlight and dust. The CD player scans the bottom surface of the disc. If the surface of a CD is damaged, such as cracked, broken, or scratched, the CD does not play properly or not at all.
Page 226 ✍ NOTES...
Page 227: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ... 228 Driver Behavior ... 228 Driving Environment ... 229 Vehicle Design ... 229 Defensive Driving ... 230 Drunken Driving ... 231 Control of a Vehicle ... 234 Braking ... 234 Anti-Lock Brake System (ABS) ...
Page 228: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Whenever we drive, we are taking on an important responsibility. This is true for any motor vehicle — passenger car, van, truck, sport utility. Driver behavior, the driving environment, and the vehicle’s design all affect how well a vehicle performs.
Page 229: Driving Environment
Driving Environment You can also help avoid a rollover or other type of crash by being prepared for driving in inclement weather, at night, or during other times where visibility or traction may be limited, such as on curves, slippery roads, or hilly terrain. Unfamiliar surroundings can also have hidden hazards.
Page 230: Defensive Driving
Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 20. CAUTION: Defensive driving really means “Be ready for anything.”...
Page 231: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It is the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: •...
Page 232 According to the American Medical Association, a 180 lb (82 kg) person who drinks three 12 ounce (355 ml) bottles of beer in an hour will end up with a BAC of about 0.06 percent. The person would reach the same BAC by drinking three 4 ounce (120 ml) glasses of wine or three mixed drinks if each had 1-1/2 ounces (45 ml) of liquors like whiskey, gin, or vodka.
Page 233 But the ability to drive is affected well below a BAC of 0.10 percent. Research shows that the driving skills of many people are impaired at a BAC approaching 0.05 percent, and that the effects are worse at night. All drivers are impaired at BAC levels above 0.05 percent.
Page 234: Control Of A Vehicle
That means you can lose control of your vehicle. See Traction Control System (TCS) on page 238. Adding non-Saturn accessories can affect your vehicle’s performance. See Accessories and Modiﬁcations on page 304. Braking See Brake System Warning Light on page 170.
Page 235: Anti-Lock Brake System (Abs)
Once the power assist is used up, it may take longer to stop and the brake pedal will be harder to push. Adding non-Saturn accessories can affect your vehicle’s performance. See Accessories and Modiﬁcations on page 304.
Page 236 Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking. Here is what happens with ABS: A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each wheel.
Page 237: Braking In Emergencies
Remember: ABS does not change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you will not have time to apply the brakes if that vehicle suddenly slows or stops.
Page 238: Traction Control System (Tcs)
Traction Control System (TCS) Your vehicle may have a traction control system that limits wheel spin. This is especially useful in slippery road conditions. The system operates only if it senses that one or both of the front wheels are spinning or beginning to lose traction. When this happens, the system reduces engine power to limit wheel spin.
Page 239: All-Wheel Drive (Awd) System
Adding non-Saturn accessories can affect your vehicle’s performance. See Accessories and Modiﬁcations on page 304 for more information. All-Wheel Drive (AWD) System...
Page 240: Steering
Steering Electric Power Steering If the engine stalls while you are driving, the power steering assist system will continue to operate until you are able to stop your vehicle. If you lose power steering assist because the electric power steering system is not functioning, you can steer, but it will take more effort.
Page 241 Suppose you are steering through a sharp curve. Then you suddenly apply the brakes. Both control systems — steering and braking — have to do their work where the tires meet the road. Unless you have four-wheel anti-lock brakes, adding the hard braking can demand too much of those places.
Page 242: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 243: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your vehicle’s right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 244 So here are some tips for passing: • Drive ahead. Look down the road, to the sides, and to crossroads for situations that might affect your passing patterns. If you have any doubt whatsoever about making a successful pass, wait for a better time. •...
Page 245: Loss Of Control
• Check your vehicle’s mirrors, glance over your shoulder, and start your left lane change signal before moving out of the right lane to pass. When you are far enough ahead of the passed vehicle to see its front in your vehicle’s inside mirror, activate the right lane change signal and move back into the right lane.
Page 246 A cornering skid is best handled by easing your foot off the accelerator pedal. If you have the Traction Control System (TCS), remember: It helps avoid only the acceleration skid. See Traction Control System (TCS) on page 238. If you do not have this system, or if the system is off, then an acceleration skid is also best handled by easing your foot off the accelerator pedal.
Page 247: Off-Road Driving
Off-Road Driving This off-road guide is for vehicles that have all-wheel drive. If your vehicle does not have all-wheel drive, you should not drive off-road unless you are on a level, solid surface. Many of the same design features that help make your vehicle responsive on paved roads during poor weather conditions —...
Page 248: Loading Your Vehicle For Off-Road Driving
Loading Your Vehicle for Off-Road Driving CAUTION: • Cargo on the load ﬂoor piled higher than the seatbacks can be thrown forward during a sudden stop. You or your passengers could be injured. Keep cargo below the top of the seatbacks.
Page 249: Environmental Concerns
Environmental Concerns Off-road driving can provide wholesome and satisfying recreation. However, it also raises environmental concerns. We recognize these concerns and urge every off-roader to follow these basic rules for protecting the environment: • Always use established trails, roads, and areas that have been specially set aside for public off-road recreational driving;...
Page 250: Getting Familiar With Off-Road Driving
Getting Familiar with Off-Road Driving It is a good idea to practice in an area that is safe and close to home before you go into the wilderness. Off-road driving does require some new and different driving skills. Here is what we mean. Tune your senses to different kinds of signals.
Page 251: Scanning The Terrain
Scanning the Terrain Off-road driving can take you over many different kinds of terrain. You need to be familiar with the terrain and its many different features. Here are some things to consider. Surface Conditions: Off-roading can take you over hard-packed dirt, gravel, rocks, grass, sand, mud, snow, or ice.
Page 252: Driving On Off-Road Hills
When you drive over bumps, rocks, or other obstacles, the wheels can leave the ground. If this happens, even with one or two wheels, you cannot control the vehicle as well or at all. Because you will be on an unpaved surface, it is especially important to avoid sudden acceleration, sudden turns, or sudden braking.
Page 253: Approaching A Hill
Approaching a Hill When you approach a hill, you need to decide if it is one of those hills that is just too steep to climb, descend, or cross. Steepness can be hard to judge. On a very small hill, for example, there may be a smooth, constant incline with only a small change in elevation where you can easily see all the way to the top.
Page 254: Driving Uphill
Driving Uphill Once you decide you can safely drive up the hill, you need to take some special steps. • Use a low gear and get a ﬁrm grip on the steering wheel. • Get a smooth start up the hill and try to maintain speed.
Page 255 What should I do if my vehicle stalls, or is about to stall, and I cannot make it up the hill? If this happens, there are some things you should do, and there are some things you must not do. First, here is what you should do: •...
Page 256: Driving Downhill
Suppose, after stalling, I try to back down the hill and decide I just cannot do it. What should I do? Set the parking brake, put your transaxle in PARK (P), or FIRST (1) if your vehicle has a manual transaxle, and turn off the engine. Leave the vehicle and go get some help.
Page 257 Are there some things I should not do when driving down a hill? Yes! These are important because if you ignore them you could lose control and have a serious accident. • When driving downhill, avoid turns that take you across the incline of the hill. A hill that is not too steep to drive down may be too steep to drive across.
Page 258: Driving Across An Incline
Driving Across an Incline Sooner or later, an off-road trail will probably go across the incline of a hill. If this happens, you have to decide whether to try to drive across the incline. Here are some things to consider: CAUTION: Driving across an incline that is too steep will make your vehicle roll over.
Page 259: Stalling On An Incline
What if I am driving across an incline that is not too steep, but I hit some loose gravel and start to slide downhill. What should I do? If you feel your vehicle starting to slide sideways, turn downhill. This should help straighten out the vehicle and prevent the side slipping.
Page 260: Driving In Mud, Sand, Snow, Or Ice
Driving in Mud, Sand, Snow, or Ice When you drive in mud, snow, or sand, the wheels will not get good traction. You cannot accelerate as quickly, turning is more difficult, and you will need longer braking distances. It is best to use a low gear when you are in mud —the deeper the mud, the lower the gear.
Page 261: Driving In Water
Driving in Water CAUTION: Driving through rushing water can be dangerous. Deep water can sweep your vehicle downstream and you and your passengers could drown. If it is only shallow water, it can still wash away the ground from under your tires, and you could lose traction and roll the vehicle over.
Page 262: After Off-Road Driving
After Off-Road Driving Remove any brush or debris that has collected on the underbody, chassis, or under the hood. These accumulations can be a ﬁre hazard. After operation in mud or sand, have the brake linings cleaned and checked. These substances can cause glazing and uneven braking.
Page 263 No one can see as well at night as in the daytime. But as we get older these differences increase. A 50-year-old driver might require at least twice as much light to see the same thing at night as a 20-year-old.
Page 264: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you cannot stop, accelerate, or turn as well because your tire-to-road traction is not as good as on dry roads. And, if your tires do not have much tread left, you will get even less traction.
Page 265 CAUTION: Wet brakes can cause accidents. They may not work as well in a quick stop and may cause pulling to one side. You could lose control of the vehicle. After driving through a large puddle of water or a car wash, apply the brake pedal lightly until the brakes work normally.
Page 266: Driving Through Deep Standing Water
Driving Through Deep Standing Water Notice: If you drive too quickly through deep puddles or standing water, water can come in through the engine’s air intake and badly damage the engine. Never drive through water that is slightly lower than the underbody of your vehicle.
Page 267: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. Here are ways to increase your safety in city driving: •...
Page 268: Freeway Driving
Freeway Driving Mile for mile, freeways — also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 269: Before Leaving On A Long Trip
Once you are moving on the freeway, make certain you allow a reasonable following distance. Expect to move slightly slower at night. When you want to leave the freeway, move to the proper lane well in advance. If you miss your exit, do not, under any circumstances, stop and back up.
Page 270: Highway Hypnosis
Highway Hypnosis Is there actually such a condition as highway hypnosis? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
Page 271 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable. • Keep your vehicle in good shape. Check all ﬂuid levels and also the brakes, tires, cooling system, and transaxle.
Page 272: Winter Driving
• Stay in your own lane when driving on two-lane roads in hills or mountains. Do not swing wide or cut across the center of the road. Drive at speeds that let you stay in your own lane. • As you go over the top of a hill, be alert. There could be something in your lane, like a stalled car or an accident.
Page 273: Driving On Snow Or Ice
Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and reﬂective warning triangles. And, if you will be driving under severe conditions, include a small bag of sand, a piece of old carpet, or a couple of burlap bags to help provide traction.
Page 274: If You Are Caught In A Blizzard
Accelerate gently. Try not to break the fragile traction. If you accelerate too fast, the drive wheels will spin and polish the surface under the tires even more. The Anti-Lock Brake System (ABS) improves your vehicle’s stability when you make a hard stop on a slippery road.
Page 275 You can run the engine to keep warm, but be careful. CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 276: If Your Vehicle Is Stuck In Sand, Mud, Ice, Or Snow
You will need a well-charged battery to restart the vehicle, and possibly for signaling later on with your headlamps. Let the heater run for a while. Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold.
Page 277: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out First, turn the steering wheel left and right. That will clear the area around the front wheels. If your vehicle has traction control, you should turn the system off. See Traction Control System (TCS) on page 238.
Page 278 The recovery hook is located at the rear of your vehicle. It can only be used for pulling the vehicle out if it is stuck, not for towing the vehicle.
Page 279: Loading Your Vehicle
Loading Your Vehicle It is very important to know how much weight your vehicle can carry. This weight is called the vehicle capacity weight and includes the weight of all occupants, cargo, and all nonfactory-installed options. Two labels on your vehicle show how much weight it may properly carry, the Tire and Loading Information label and the Certiﬁcation/Tire label.
Page 280 The Tire and Loading Information label also shows the size of the original equipment tires (C) and the recommended cold tire inﬂation pressures (D). For more information on tires and inﬂation see Tires on page 366 and Inﬂation - Tire Pressure on page 374.
Page 281 Example 1 Item Description Vehicle Capacity Weight for Example 1 = Subtract Occupant Weight 150 lbs (68 kg) × 2 = Available Occupant and Cargo Weight = Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs (317 kg) Example 2 Description Vehicle Capacity Weight...
Page 282: Certification/Tire Label
Example 3 Item Description Vehicle Capacity Weight for Example 3 = Subtract Occupant Weight 200 lbs (91 kg) × 5 = Available Occupant and Cargo Weight = Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s capacity weight and seating positions.
Page 283 The Certiﬁcation/Tire label also tells you the maximum weights for the front and rear axles, called Gross Axle Weight Rating (GAWR). To ﬁnd out the actual loads on your front and rear axles, you need to go to a weigh station and weigh your vehicle.
Page 284: Towing
If you put things inside your vehicle — like suitcases, tools, packages, or anything else — they will go as fast as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they will keep going.
Page 285: Recreational Vehicle Towing
Recreational Vehicle Towing Recreational vehicle towing means towing your vehicle behind another vehicle – such as behind a motorhome. The two most common types of recreational vehicle towing are known as “dinghy towing” (towing your vehicle with all four wheels on the ground) and “dolly towing”...
Page 286: Dinghy Towing
Dinghy Towing Front-wheel-drive vehicles equipped with a manual transmission, four-speed automatic transmission or ﬁve-speed automatic transmission may be dinghy towed from the front. These vehicles may also be towed by putting the front wheels on a dolly. See “Dolly Towing” later in this section. All-wheel-drive vehicles with the ﬁve-speed automatic transmission can be dinghy towed from the front.
Page 287 As an example, if you initially perform the lubrication procedure and tow your vehicle for three hours, then park for four hours, the lubrication procedure will need to be performed again, prior to dinghy towing the vehicle. Notice: Towing your vehicle after shifting the automatic transaxle (four-speed or ﬁve-speed) from anything other than DRIVE (D) to NEUTRAL (N) can cause internal damage to...
Page 288: Dolly Towing (All-Wheel-Drive Vehicles)
Once you have reached your destination, do the following: 1. Set the parking brake. 2. Shift the transmission to REVERSE (R) for a manual transmission. Shift the transmission to PARK (P) for an automatic transmission. 3. Turn the ignition key to LOCK and remove the key from the ignition.
Page 289: Towing Your Vehicle From The Rear
To tow your front-wheel-drive vehicle from the front with two wheels on the ground, do the following: 1. Put the front wheels on a dolly. 2. If you have a ﬁve-speed automatic transmission or four-speed automatic transmission, move the shift lever to PARK (P).
Page 290: Towing A Trailer
Towing a Trailer CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all. You and your passengers could be seriously injured.
Page 291: If You Do Decide To Pull A Trailer
If You Do Decide to Pull a Trailer If you do, here are some important points: • There are many different laws, including speed limit restrictions, having to do with trailering. Make sure your rig will be legal, not only where you live but also where you’ll be driving.
Page 292: Weight Of The Trailer Tongue
Weight of the Trailer How heavy can a trailer safely be? It should never weigh more than 1,500 lbs (680 kg). But even that can be too heavy. It depends on how you plan to use your rig. For example, speed, altitude, road grades, outside temperature and how much your vehicle is used to pull a trailer are all important.
Page 293 If you’re using a weight-carrying hitch, the trailer tongue (A) should weigh 10 percent of the total loaded trailer weight (B). If you’re using a weight-distributing hitch, the trailer tongue (A) should weigh 12 percent of the total loaded trailer weight (B).
Page 294 The trailer rating should be: You can expect tongue weight to be at least 10 percent of trailer weight (850 lbs (386 kg)) and because the weight is applied well behind the rear axle, the effect on the rear axle will be greater than just the weight itself, as much as 1.5 times as much.
Page 295: Total Weight On Your Vehicle's Tires
Since tongue weight is usually at least 10 percent of total loaded trailer weight, you can expect that the largest trailer your vehicle can properly handle is 6,000 lbs (2 721 kg). It is important that you make sure your vehicle does not exceed any of its ratings —...
Page 296: Safety Chains
Safety Chains You should always attach chains between your vehicle and your trailer. Cross the safety chains under the tongue of the trailer so that the tongue will not drop to the road if it becomes separated from the hitch. Instructions about safety chains may be provided by the hitch manufacturer or by the trailer manufacturer.
Page 297: Following Distance
Following Distance Stay at least twice as far behind the vehicle ahead as you would when driving your vehicle without a trailer. This can help you avoid situations that require heavy braking and sudden turns. Passing You’ll need more passing distance up ahead when you’re towing a trailer.
Page 298: Driving On Grades
Thus, you may think drivers behind you are seeing your signal when they are not. It’s important to check occasionally to be sure the trailer bulbs are still working. Driving on Grades Notice: Do not tow on steep continuous grades exceeding 6 miles (9.6 km). Extended, higher than normal engine and transmission temperatures may result and damage your vehicle.
Page 299 3. When the chocks are in place, release the regular brakes until the chocks absorb the load. 4. Reapply the regular brakes. Then apply your parking brake and shift into PARK (P) for an automatic transmission or REVERSE (R) for a manual transmission.
Page 300: Trailer Wiring
Trailer Wiring Additional wire length has been provided for connecting trailer wiring to your vehicle. A loop of ﬁve wires is stored below the jack, which is located on the driver’s side of the cargo area. The wires are fused in both the underhood and instrument fuse block.
Page 301: Service And Appearance Care
Section 5 Service ... 304 Accessories and Modiﬁcations ... 304 California Proposition 65 Warning ... 305 Doing Your Own Service Work ... 305 Adding Equipment to the Outside of Your Vehicle ... 306 Fuel ... 306 Gasoline Octane ... 306 Gasoline Speciﬁcations ...
Page 302 Section 5 Windshield Wiper Blade Replacement ... 364 Tires ... 366 Tire Sidewall Labeling ... 367 Tire Terminology and Deﬁnitions ... 371 Inﬂation - Tire Pressure ... 374 Tire Inspection and Rotation ... 375 When It Is Time for New Tires ... 377 Buying New Tires ...
Page 303 Section 5 Electrical System ... 409 Add-On Electrical Equipment ... 409 Windshield Wiper Fuses ... 409 Power Windows and Other Power Options ... 409 Service and Appearance Care Fuses and Circuit Breakers ... 409 Instrument Panel Fuse Block ... 410 Underhood Fuse Block ...
Page 304: Service
You will get genuine Saturn parts and Saturn-trained and supported service people. We hope you will want to keep your Saturn vehicle all Saturn. Genuine Saturn parts have one of these marks.
Page 305: California Proposition 65 Warning
California Proposition 65 Warning Most motor vehicles, including this one, contain and/or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Engine exhaust, many parts and systems (including some inside the vehicle), many ﬂuids, and some component wear by-products contain and/or emit these chemicals.
Page 306: Adding Equipment To The Outside Of Your Vehicle
Use of the recommended fuel is an important part of the proper maintenance of your vehicle. To help keep the engine clean and maintain optimum vehicle performance, Saturn recommends the use of gasoline advertised as TOP TIER Detergent Gasoline. Gasoline Octane Use regular unleaded gasoline with a posted octane rating of 87 or higher.
Page 307: California Fuel
See Malfunction Indicator Lamp on page 175. If this occurs, return to your authorized Saturn retailer for diagnosis. If it is determined that the condition is caused by the type of fuel used, repairs may not be covered by your warranty.
Page 308: Fuels In Foreign Countries
Gasolines containing oxygenates, such as ethers and ethanol, and reformulated gasolines may be available in your area. We recommend that you use these gasolines if they comply with the speciﬁcations described earlier. However, E85 (85% ethanol) and other fuels containing more than 10% ethanol must not be used in vehicles that were not designed for those fuels.
Page 309: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling.
Page 310 To remove the fuel cap, turn it slowly counterclockwise. The fuel cap has a spring in it; if the cap is released too soon, it will spring back to the right. CAUTION: Fuel can spray out on you if you open the fuel cap too quickly.
Page 311: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs.
Page 312: Checking Things Under The Hood
Checking Things Under the Hood CAUTION: An electric fan under the hood can start up and injure you even when the engine is not running. Keep hands, clothing, and tools away from any underhood electric fan. CAUTION: Things that burn can get on hot engine parts and start a ﬁre.
Page 313: Hood Release
Hood Release To open the hood, do the following: 1. Pull the handle with this symbol on it. It is located under the instrument panel on the driver’s side of the vehicle. 2. Then go to the front of the vehicle and lift up on the secondary hood release lever.
Page 314: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 2.2L L4 engine, you will see the following:...
Page 315 A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 324. B. Engine Oil Dipstick. See “Checking Engine Oil” under Engine Oil on page 318. C. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine Oil on page 318. D.
Page 316 When you open the hood on the 3.5L V6 engine, you will see the following:...
Page 317 A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 324. B. Engine Oil Dipstick (Out of View). See “Checking Engine Oil” under Engine Oil on page 318. C. Engine Oil Fill Cap (Out of View). See “When to Add Engine Oil” under Engine Oil on page 318.
Page 318: When To Add Engine Oil
Engine Oil Checking Engine Oil It is a good idea to check the engine oil every time you get fuel. In order to get an accurate reading, the oil must be warm and the vehicle must be on level ground. The engine oil dipstick handle is a yellow loop for the 2.2L L4 engine and an orange loop for the 3.5L V6 engine.
Page 319 If the oil is below the MIN (minimum) mark for the 2.2L L4 engine or below the lower mark (B) for the 3.5L V6 engine, you need to add at least one quart/liter of oil. But you must use the right kind.
Page 320 What Kind of Engine Oil to Use For Vehicles with the 2.2L L4 Engine Only Look for three things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. Look for and use only an oil that meets GM Standard GM6094M. •...
Page 321 • Oils meeting these requirements should have the starburst symbol on the container. This symbol indicates that the oil has been certiﬁed by the American Petroleum Institute (API). Look for this information on the oil container, and use only those oils that are identiﬁed as meeting GM Standard GM6094M and have the starburst symbol on the front of the oil container.
Page 322: Engine Oil Additives
For Vehicles with the 3.5L V6 Engine Only As shown in the viscosity chart, SAE 5W-20 is best for your vehicle. These numbers on an oil container show its viscosity, or thickness. Do not use other viscosity oils such as SAE 20W-50. Oils meeting these requirements should also have the starburst...
Page 323: How To Reset The Engine Oil Life System
Engine Oil Life System When to Change Engine Oil Your vehicle has a computer system that lets you know when to change the engine oil and ﬁlter. This is based on engine revolutions and engine temperature, and not on mileage. Based on driving conditions, the mileage at which an oil change will be indicated can vary considerably.
Page 324: What To Do With Used Oil
What to Do with Used Oil Used engine oil contains certain elements that can be unhealthy for your skin and could even cause cancer. Do not let used oil stay on your skin for very long. Clean your skin and nails with soap and water, or a good hand cleaner.
Page 325 To inspect or replace the engine air cleaner/ﬁlter, do the following: 2. Disconnect the hose. 1. Unscrew the clamp on the air duct hose.
Page 326 3. Release the clamps on the side of the air cleaner assembly. 4. Turn the cover upward to disengage the cover hinges. 5. Remove the air cleaner cover assembly and air ﬁlter element. 6. Inspect or replace the air ﬁlter element. If the air ﬁlter element is dirty, you should replace it.
Page 327: How To Check Automatic Transaxle Fluid
Wipe all dust from inside of the housing and inspect the air cleaner and air outlet duct for cracks, cuts and deterioration. The air outlet duct must be replaced if damaged. 7. Reverse Steps 1 through 5 to reinstall the engine air cleaner/ﬁlter cover and air duct hose.
Page 328: Automatic Transaxle Fluid
Automatic Transaxle Fluid (3.5L V6 Engine) When to Check and Change Automatic Transaxle Fluid A good time to check your automatic transaxle ﬂuid level is when the engine oil is changed. Change the ﬂuid at the intervals listed in Additional Required Services on page 423, and be sure to use the transaxle ﬂuid listed in Recommended Fluids and Lubricants on page 432.
Page 329: Checking The Fluid Level
Checking the Fluid Level Prepare your vehicle as follows: 1. Park your vehicle on a level place. 2. Warm the engine to normal operating temperature until the electric radiator fan turns on at least once. 3. With the parking brake applied, place the shift lever in PARK (P).
Page 330: How To Add Automatic Transaxle Fluid
How to Add Automatic Transaxle Fluid Refer to the Maintenance Schedule to determine what kind of transaxle ﬂuid to use. See Recommended Fluids and Lubricants on page 432. If the ﬂuid level is low, add only enough of the proper ﬂuid to bring the level into the cross-hatched area on the dipstick.
Page 331: Hydraulic Clutch
Hydraulic Clutch The hydraulic clutch linkage in your vehicle is self-adjusting. The hydraulic clutch system does not have its own reservoir. The system receives ﬂuid from the brake master cylinder reservoir. It is ﬁlled with DOT-3 brake ﬂuid. See Brakes on page 343 for more information.
Page 332: What To Use
What to Use Use a mixture of one-half clean, drinkable water ® and one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 333: Checking Coolant
Checking Coolant The surge tank is located on the driver’s side of the engine compartment. See Engine Compartment Overview on page 314 for more information on location. CAUTION: Turning the surge tank pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
Page 334: Coolant Surge Tank Pressure Cap
Adding Coolant If you need more coolant, add the proper ® DEX-COOL coolant mixture at the surge tank, but only when the engine is cool. See Engine Overheating on page 334 for instructions on “How to Add Coolant to the Coolant Surge Tank.” CAUTION: You can be burned if you spill coolant on hot engine parts.
Page 335: If No Steam Is Coming From Your Engine
If Steam Is Coming From Your Engine CAUTION: Steam from an overheated engine can burn you badly, even if you just open the hood. Stay away from the engine if you see or hear steam coming from it. Just turn it off and get everyone away from the vehicle until it cools down.
Page 336: Cooling System
If you no longer have the overheat warning, you can drive. Just to be safe, drive slower for about ten minutes. If the warning does not come back on, you can drive normally. If the warning continues and you have not stopped, pull over, stop, and park your vehicle right away.
Page 337 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you. Keep hands, clothing, and tools away from any underhood electric fan. If the coolant inside the coolant surge tank is boiling, do not do anything else until it cools down.
Page 338: How To Add Coolant To The Coolant Surge Tank
How to Add Coolant to the Coolant Surge Tank Notice: This vehicle has a speciﬁc coolant ﬁll procedure. Failure to follow this procedure could cause your engine to overheat and be severely damaged. If you have not found a problem yet, check to see if coolant is visible in the surge tank.
Page 339 CAUTION: Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid such as alcohol, can boil before the proper coolant mixture will. Your vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, your engine could get too hot but you would not get the overheat warning.
Page 340 1. You can remove the coolant surge tank pressure cap when the cooling system, including the coolant surge tank pressure cap and upper radiator hose, is no longer hot. Turn the pressure cap slowly counterclockwise about one-quarter of a turn. If you hear a hiss, wait for that to stop.
Page 341: Windshield Washer Fluid
4. With the coolant surge tank pressure cap off, start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fan. By this time, the coolant level inside the coolant surge tank may be lower.
Page 342: Adding Windshield Washer Fluid
Adding Windshield Washer Fluid Open the cap with the washer symbol on it. Add washer ﬂuid until the tank is full. See Engine Compartment Overview on page 314 for reservoir location. Notice: • When using concentrated washer ﬂuid, follow the manufacturer’s instructions for adding water.
Page 343: Brakes
Brakes Brake Fluid The brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 314 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 344 What to Add When you do need brake ﬂuid, use only DOT-3 brake ﬂuid. Use new brake ﬂuid from a sealed container only. See Recommended Fluids and Lubricants on page 432. Always clean the brake ﬂuid reservoir cap and the area around the cap before removing it.
Page 345: Brake Wear
Brake Wear Your vehicle has front disc brakes and rear drum brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound can come and go or be heard all the time your vehicle is moving, except when you are pushing on the brake pedal ﬁrmly.
Page 346: Replacing Brake System Parts
Brake Pedal Travel See your dealer/retailer if the brake pedal does not return to normal height or if there is a rapid increase in pedal travel. This could be a sign that brake service might be required. Brake Adjustment Every time you make a moderate brake stop, the brakes adjust for wear.
Page 347: Battery
Battery Your vehicle has a maintenance free battery. When it is time for a new battery, get one that has the replacement number shown on the original battery’s label. We recommend an ACDelco replacement battery. See Engine Compartment Overview on page 314 for battery location. Warning: Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California...
Page 348: Jump Starting
Jump Starting If your vehicle’s battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 349 Notice: If you leave your radio or other accessories on during the jump starting procedure, they could be damaged. The repairs would not be covered by your warranty. Always turn off your radio and other accessories when jump starting your vehicle. 3.
Page 350 A. Remote Negative B. Positive Terminal 3.5L V6 Engine Vehicle equipped with the 3.5L V6 engine, the positive (+) terminal is located in the engine compartment on the driver’s side of the vehicle on the battery. The negative (−) terminal is located in the engine compartment on the driver’s side of the vehicle.
Page 351 CAUTION: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded. Use a ﬂashlight if you need more light. Be sure the battery has enough water. You do not need to add water to the battery installed in your new vehicle.
Page 352 6. Connect the red positive (+) cable to the positive (+) terminal on the vehicle with the dead battery. Use a remote positive (+) terminal if the vehicle has one. 7. Do not let the other end touch metal. Connect it to the positive (+) terminal of the good battery.
Page 353: All-Wheel Drive
Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 354 Transfer Case (3.5L V6 Engine) When to Check and Change Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant and when to change it. See Scheduled Maintenance on page 420. How to Check Lubricant A. Fill Plug B.
Page 355: Headlamp Aiming
Headlamp Aiming The visual optical headlamp aiming system has been preset at the factory and should need no further adjustment. However, if the vehicle is damaged in an accident, the aim of the headlamps may be affected and adjustment may be necessary. If oncoming vehicles ﬂash their high beams at you, this may mean the vertical aim of your headlamps needs to be adjusted.
Page 356 To adjust the vertical aim: 1. Open the hood. See Hood Release on page 313 for more information. 2. Locate the aim dot on the lens of the low-beam headlamp. 3. Measure the distance from the ground to the aim dot on the low-beam headlamp. Record the distance.
Page 357 7. Locate the vertical headlamp aiming screws, which are under the hood near each headlamp assembly. The adjustment screw can be turned with a 6 mm socket. 8. Turn the vertical aiming screw until the headlamp beam is aimed to the horizontal tape line.
Page 358: Bulb Replacement
Bulb Replacement For the type of bulb to use, see Replacement Bulbs on page 364. For any bulb changing procedure not listed in this section, contact your retailer. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb.
Page 359 To replace one of the headlamp bulbs, use the following procedure. To replace the parking/turn signal lamp bulb, see Front Turn Signal and Parking Lamps on page 361. 1. Open the hood. See Hood Release on page 313 for more information. 2.
Page 360 4. Insert a ﬂat blade tool through the opening in the top. Make sure the tool ﬁts through the opening in the headlamp bracket lower arm. 5. Push the locking tab toward the rear of the vehicle with the tool to lift the headlamp bracket lower arm.
Page 361: Front Turn Signal And Parking Lamps
Front Turn Signal and Parking Lamps To replace a front turn signal or parking lamp bulb, do the following: 1. Follow Steps 1 through 6 under Headlamps on page 358 to access the front turn signal or parking lamp. 2. Turn the bulb to be replaced counterclockwise to remove it from the headlamp assembly.
Page 362: Center High-Mounted Stoplamp (Chmsl)
Center High-Mounted Stoplamp (CHMSL) To replace a CHMSL bulb, do the following: 1. Remove the center high-mounted stoplamp (CHMSL) fasteners from the outside of the vehicle. 2. Pull the CHMSL out of the liftgate. 3. Disconnect the rear washer hose from the rear washer nozzle.
Page 363: Taillamps, Turn Signal, Stoplamps And Back-Up Lamps
Taillamps, Turn Signal, Stoplamps and Back-up Lamps To replace one of these bulbs, do the following: 1. Open the liftgate. See Liftgate on page 103 for more information. 2. Remove the two screws retaining the taillamp assembly. 3. Slide the taillamp 4.
Page 364: License Plate Lamp
License Plate Lamp To replace one of these bulbs, do the following: 1. Remove the two screws holding each of the license plate lamps to the fascia. 2. Turn and pull the license plate lamp forward through the fascia opening. 3.
Page 365 To replace the windshield wiper blade assembly do the following: 1. Lift the wiper arm away from the windshield. 2. Push the release lever (B) to disengage the hook and push the wiper arm (A) out of the blade (C). 3.
Page 366: Tires
If you ever have questions about your tire warranty and where to obtain service, see your Saturn Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle.
Page 367: Tire Sidewall Labeling
Your Saturn Warranty does not cover this type of damage. Keep tires set to the correct inﬂation pressure and, when possible avoid contact with curbs, potholes, and other road hazards.
Page 368 (B) TPC Spec (Tire Performance Criteria Speciﬁcation): Original equipment tires designed to GM’s speciﬁc tire performance criteria have a TPC speciﬁcation code molded onto the sidewall. GM’s TPC speciﬁcations meet or exceed all federal safety guidelines. (C) DOT (Department of Transportation): The Department of Transportation (DOT) code indicates that the tire is in compliance with the U.S.
Page 369 Compact Spare Tire Example (A) Temporary Use Only: The compact spare tire or temporary use tire has a tread life of approximately 3,000 miles (5 000 km) and should not be driven at speeds over 65 mph (105 km/h). The compact spare tire is for emergency use when a regular road tire has lost air and gone ﬂat.
Page 370 (F) Tire Size: A combination of letters and numbers deﬁne a tire’s width, height, aspect ratio, construction type, and service description. The letter T as the ﬁrst character in the tire size means the tire is for temporary use only. (G) TPC Spec (Tire Performance Criteria Speciﬁcation): Original equipment tires designed to GM’s speciﬁc tire performance criteria have...
Page 371: Tire Terminology And Deﬁnitions
(F) Service Description: These characters represent the load range and speed rating of the tire. The load index represents the load carry capacity a tire is certiﬁed to carry. The load index can range from 1 to 279. The speed rating is the maximum speed a tire is certiﬁed to carry a load.
Page 372 GAWR FRT: Gross Axle Weight Rating for the front axle. See Loading Your Vehicle on page 279. GAWR RR: Gross Axle Weight Rating for the rear axle. See Loading Your Vehicle on page 279. Intended Outboard Sidewall: The side of an asymmetrical tire, that must always face outward when mounted on a vehicle.
Page 373 Recommended Inﬂation Pressure: Vehicle manufacturer’s recommended tire inﬂation pressure as shown on the tire placard. See Inﬂation - Tire Pressure on page 374 and Loading Your Vehicle on page 279. Radial Ply Tire: A pneumatic tire in which the ply cords that extend to the beads are laid at 90 degrees to the centerline of the tread.
Page 374: Inﬂation - Tire Pressure
Inﬂation - Tire Pressure Tires need the correct amount of air pressure to operate effectively. Notice: Do not let anyone tell you that under-inﬂation or over-inﬂation is all right. It is not. If your tires do not have enough air (under-inﬂation), you can get the following: •...
Page 375: How To Check
How to Check Use a good quality pocket-type gage to check tire pressure. You cannot tell if your tires are properly inﬂated simply by looking at them. Radial tires may look properly inﬂated even when they are under-inﬂated. Check the tire’s inﬂation pressure when the tires are cold.
Page 376 When towing your vehicle with all four wheels on the ground, the vehicle’s odometer will not record the miles generated while towing. Keep a record of how many miles your vehicle was towed so they can be added to the mileage on the vehicle’s odometer when following your maintenance schedule for recommended services.
Page 377: When It Is Time For New Tires
When It Is Time for New Tires One way to tell when it is time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining. You need a new tire if any of the following statements are true: •...
Page 378 GM’s exclusive TPC Spec system considers over a dozen critical speciﬁcations that impact the overall performance of your vehicle, including brake system performance, ride and handling, traction control, and tire pressure monitoring performance. GM’s TPC Spec number is molded onto the tire’s sidewall by the tire manufacturer. If the tires have an all-season tread design, the TPC spec number will be followed by an MS for mud and snow.
Page 379: Different Size Tires And Wheels
You may increase the chance that you will crash and suffer serious injury. Only use Saturn speciﬁc wheel and tire systems developed for your vehicle, and have them properly installed by a Saturn certiﬁed technician.
Page 380: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration (NHTSA), which grades tires by treadwear, traction, and temperature performance.
Page 381 Traction – AA, A, B, C The traction grades, from highest to lowest, are AA, A, B, and C. Those grades represent the tire’s ability to stop on wet pavement as measured under controlled conditions on speciﬁed government test surfaces of asphalt and concrete. A tire marked C may have poor traction performance.
Page 382: Wheel Alignment And Tire Balance
Wheel Alignment and Tire Balance The tires and wheels on your vehicle were aligned and balanced carefully at the factory to give you the longest tire life and best overall performance. Adjustments to wheel alignment and tire balancing will not be necessary on a regular basis. However, if you notice unusual tire wear or your vehicle pulling to one side or the other, the alignment may need to be checked.
Page 383: Used Replacement Wheels
If you need to replace any of your wheels, wheel bolts or wheel nuts, replace them only with new Saturn original equipment parts. This way, you will be sure to have the right wheel, wheel bolts and wheel nuts for your vehicle.
Page 384: Tire Chains
Tire Chains CAUTION: If your vehicle has P235/65R16, P235/ 60R17, or P245/50R18 size tires, do not use tire chains. They can damage your vehicle because there is not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension, or other vehicle parts.
Page 385: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly. But if you should ever have a blowout, here are a few tips about what to expect and what to do: If a front tire fails, the ﬂat tire will create a drag...
Page 386: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning ﬂashers. CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people.
Page 387: Removing The Spare Tire And Tools
The following information will tell you how to use the jack and change a tire. Removing the Spare Tire and Tools The tools you will need are located on the driver’s side of the rear cargo area. To access the tools, do the following: 1.
Page 388 To access the spare tire, do the following: 1. Lift the forward ﬂoor panel of the load ﬂoor cargo organizer. 2. Remove the forward ﬂoor panel of the load ﬂoor cargo organizer and place it in the vehicle while you are removing the spare tire.
Page 389 3. Open the ﬂoor cargo organizer locks, located 4. Remove the load ﬂoor cargo organizer. on the top left and right corners of the organizer, by pushing inward on them.
Page 390 5. Remove the wheel retainer bolt holding down the spare tire by turning it counterclockwise. 6. Remove the compact spare tire. See Compact Spare Tire on page 398 for more information. The tools you will be using include the jack (A) and wheel wrench (B).
Page 391: Removing The Flat Tire And Installing The Spare Tire
Removing the Flat Tire and Installing the Spare Tire The wheel cover or hubcap needs to be removed in order to reach the wheel bolts. For steel wheels with full plastic covers and aluminum wheels with large circular center caps, do the following: 1.
Page 392 3. Position the lift head at the jack location nearest the ﬂat tire. Make sure all of the jack lift head is touching the jacking ﬂange under the body. Do not place the jack under a body panel. The lower body panel has an arrow to aid in locating the jacking location.
Page 393 CAUTION: Lifting a vehicle and getting under it to do maintenance or repairs is dangerous without the appropriate safety equipment and training. The jack provided with your vehicle is designed only for changing a ﬂat tire. If it is used for anything else, you or others could be badly injured or killed if the vehicle slips off the jack.
Page 394 6. Remove all of the wheel nuts. CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after time. The wheel could come off and cause an accident.
Page 395 8. Remove any rust or 9. Place the compact spare tire on the wheel-mounting surface. CAUTION: Never use oil or grease on studs or nuts. Because the nuts might come loose. The vehicle’s wheel could fall off, causing a serious accident. 10.
Page 396 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new GM original equipment wheel nuts.
Page 397: Storing A Flat Or Spare Tire And Tools
Storing a Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place.
Page 398: Compact Spare Tire
4. Screw the threaded wheel stow rod onto the spare tire bracket. The ﬁnal position of the wheel stow rod must be rotated to the farthest forward position so that the top of the rod faces forward. 5. Reverse Steps 1 through 4 under Removing the Spare Tire and Tools on page 387 to replace the ﬂoor cargo organizer and lock in place.
Page 399: Appearance Care
And do not mix the compact spare tire or wheel with other wheels or tires. They will not ﬁt. Keep the spare tire and its wheel together. Notice: Tire chains will not ﬁt your compact spare. Using them can damage your vehicle and can damage the chains too.
Page 400: Fabric/Carpet
Dust may be removed from small buttons and knobs using a small brush with soft bristles. Your retailer has a product for cleaning your vehicle’s glass. Should it become necessary, you can also obtain a product from your retailer to remove odors from your vehicle’s upholstery.
Page 401: Instrument Panel, Vinyl, And Other Plastic Surfaces
To clean, use the following instructions: 1. Saturate a lint-free, clean white cloth with water or club soda. 2. Wring the cloth to remove excess moisture. 3. Start on the outside edge of the soil and gently rub toward the center. Continue cleaning, using a clean area of the cloth each time it becomes soiled.
Page 402: Care Of Safety Belts
Care of Safety Belts Keep belts clean and dry. CAUTION: Do not bleach or dye safety belts. If you do, it may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water.
Page 403: Cleaning Exterior Lamps/Lenses
Occasional waxing or mild polishing of your vehicle by hand may be necessary to remove residue from the paint ﬁnish. You can get approved cleaning products from your Saturn retailer. See Vehicle Care/Appearance Materials on page 407. Your vehicle has a basecoat/clearcoat paint ﬁnish.
Page 404: Windshield And Wiper Blades
Windshield and Wiper Blades Clean the outside of the windshield with glass cleaner. Clean the rubber blades using a lint free cloth or paper towel soaked with windshield washer ﬂuid or a mild detergent. Wash the windshield thoroughly when cleaning the blades. Bugs, road grime, sap, and a buildup of vehicle wash/wax treatments may cause wiper streaking.
Page 405: Tires
Minor chips and scratches can be repaired with touch-up materials available from your Saturn retailer. Larger areas of ﬁnish damage can be corrected in your Saturn retailer’s body and paint shop.
Page 406: Underbody Maintenance
Clean any areas where mud and debris can collect. Dirt packed in close areas of the frame should be loosened before being ﬂushed. Your Saturn retailer or an underbody car washing system can do this for you.
Page 407: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Removes tar, road oil, Oil Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel. White Sidewall Removes soil and black Tire Cleaner marks from whitewalls.
Page 408: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver side. You can see it if you look through the windshield from outside your vehicle.
Page 409: Fuses And Circuit Breakers
Electrical System Add-On Electrical Equipment Notice: Do not add anything electrical to your vehicle unless you check with your retailer ﬁrst. Some electrical equipment can damage your vehicle and the damage would not be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 410: Instrument Panel Fuse Block
Instrument Panel Fuse Block The instrument panel fuse block is located on the passenger’s side of the lower console. Fuses Usage CRUISE Cruise Control Switch, Brake Switch Electronic Power Steering Instrument Cluster, Brake Transmission Shift Interlock IGN 1 Solenoid, Traction Switch, Fog Lamp Switch Power Door Locks, Power Mirror, LOCK/MIRROR...
Page 411: Underhood Fuse Block
Fuses Usage Body Control Module, Instrument BCM/CLUSTER Cluster INT LTS Body Control Module, OnStar DR LKS Door Locks Relays AFTER BLOW Not Used HVAC HVAC Control Head BLOWER PK LP Parking Lamps DR LCK All Door Lock Switch PSG DR Passenger Door Unlock Switch UNLCK DRV DR...
Page 412 Fuses ABS PWR Anti-lock Brake System Battery REAR DEFOG Rear Defogger COOL HI (L4)/ Cooling Fans High (L4)/Cooling COOL 1 (V6) Fan 1 (V6) FOG LP Fog Lamps LH HDLP Driver’s Side Headlamp RR WIPER Rear Wiper Anti-lock Brake System Module PWR WDW Power Window Relay and Sunroof CIGAR/AUX2...
Page 413 Fuses Usage PREM AUD Premium Radio Ampliﬁer Anti-lock Brake System Ignition PWR SEAT Power Seats Relays Usage FOG LP Fog Lamps COOL FAN Cooling Fan Motor High HI (L4) Engine Control Module/CAM, ENG MAIN Emissions, Injectors, Electronic Throttle Control REAR DEFOG Rear Defog System HORN Horn Daytime Running Lamps...
Page 414: Capacities And Speciﬁcations
Capacities and Speciﬁcations Application Air Conditioning Refrigerant R134a Cooling System 2.2L L4 Automatic Engine 2.2L L4 Manual Engine 3.5L V6 Engine Engine Oil with Filter 2.2L L4 Engine 3.5L V6 Engine Fuel Tank Transaxle Five-Speed Automatic Five-Speed Automatic AWD Four-Speed Automatic Five-Speed Manual Wheel Nut Torque All capacities are approximate.
Page 415: Engine Specifications
Engine Speciﬁcations Engine VIN Code Transaxle Spark Plug Gap Automatic 2.2L L4 (L61) 0.040 inches (1.01 mm) Manual 3.5L V6 (L66) Automatic 0.043 inches (1.1 mm)
Page 416 ✍ NOTES...
Page 417 Section 6 Maintenance Schedule ... 418 Introduction ... 418 Maintenance Requirements ... 418 Your Vehicle and the Environment ... 418 Using the Maintenance Schedule ... 418 Scheduled Maintenance ... 420 Additional Required Services ... 423 Maintenance Footnotes ... 425 Maintenance Schedule Owner Checks and Services ...
Page 418: Maintenance Schedule
Using the Maintenance Schedule We at Saturn want to help you keep your vehicle in good working condition. But we do not know exactly how you will drive it. You may drive very short distances only a few times a week.
Page 419 So, unless you are technically qualiﬁed and have the necessary equipment, you should have your Saturn retailer do these jobs. When you go to your Saturn retailer for your service needs, you will know that Saturn-trained and supported service technicians will perform the...
Page 420: Scheduled Maintenance
Your Saturn retailer has Saturn-trained service technicians who will perform this work using genuine Saturn parts and reset the system. If the engine oil life system is ever reset accidentally, you must service your vehicle within 3,000 miles (5 000 km) since your last service.
Page 421 When the Change Engine Oil light appears, certain services, checks, and inspections are required. Required services are described in the following for “Maintenance I” and “Maintenance II.” Generally, it is recommended that your ﬁrst service be Maintenance I, your second service be Maintenance II, and that you alternate Maintenance I and Maintenance II thereafter.
Page 422 Check engine coolant and windshield washer ﬂuid levels and add ﬂuid as needed. Perform any needed additional services. See “Additional Required Services” in this section. Inspect suspension and steering components. See footnote (b). Inspect engine cooling system. See footnote (c). Inspect wiper blades.
Page 423: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 424 Service and Miles (Kilometers) V6 engine: Replace timing belt (normal service). An Emission Control Service. See footnote †. V6 engine: Replace timing belt (severe service). An Emission Control Service. See footnotes † and (n). L4 engine: Change rear drive module and power takeoff unit ﬂuid (severe service).
Page 425: Maintenance Footnotes
Service and Miles (Kilometers) V6 engine: Inspect valve clearance. Engine cooling system service (or every ﬁve years, whichever occurs ﬁrst). An Emission Control Service. See footnote (i). Inspect engine accessory drive belt. An Emission Control Service. See footnote (p). Maintenance Footnotes †...
Page 426 (c) Visually inspect hoses and have them replaced if they are cracked, swollen, or deteriorated. Inspect all pipes, ﬁttings, and clamps; replace with genuine Saturn parts as needed. To help ensure proper operation, a pressure test of the cooling system and pressure cap and cleaning the outside of the radiator and air conditioning condenser is recommended at least once a year.
Page 427: Owner Checks And Services
These owner checks and services should be performed at the intervals speciﬁed to help ensure the safety, dependability, and emission control performance of your vehicle. Your Saturn retailer can assist you with these checks and services. Be sure any necessary repairs are completed at once.
Page 428: At Each Fuel Fill
At Each Fuel Fill It is important to perform these underhood checks at each fuel ﬁll. Engine Oil Level Check Check the engine oil level and add the proper oil if necessary. See Engine Oil on page 318 for further details. Notice: It is important to check the engine oil regularly and keep it at the proper level.
Page 429: At Least Once A Year
The vehicle should start only when the clutch pedal is pushed down all the way to the ﬂoor. If the vehicle starts when the clutch pedal is not pushed all the way down, contact your Saturn retailer for service.
Page 430 Without applying the regular brake, try to move the shift lever out of PARK (P) with normal effort. If the shift lever moves out of PARK (P), contact your Saturn retailer for service. Ignition Transaxle Lock Check...
Page 431 With the engine running, shift to PARK (P). Then release the parking brake followed by the regular brake. Contact your Saturn retailer if service is required. Underbody Flushing Service At least every spring, use plain water to ﬂush any corrosive materials from the underbody.
Page 432: Recommended Fluids And Lubricants
Cable Guides meeting requirements of NLGI #2, Category LB or GC-LB. ® Delco Hydraulic or equivalent DOT-3 brake ﬂuid Clutch System (Saturn Part No. 21013073). Manual Transmission Fluid Manual (GM Part No. U.S. 88861800, ® Transaxle in Canada 88861801). Automatic...
Page 433 Usage Fluid/Lubricant Automatic ATF Z1 Automatic Transmission Transaxle (with Fluid (Saturn Part No. 22717466). 3.5L V6 engine) Rear Drive Module and ® VERSATRAK Power Transfer (GM Part No. U.S. 12378514, Unit (except in Canada 88901045). with 3.5L V6 engine) ®...
Page 434: Normal Maintenance Replacement Parts
Passenger Compartment Air Filter Element Spark Plugs 2.2L L4 3.5L V6 Wiper Blades Driver’s Side – 24 inches (60.0 cm) Passenger’s Side – 19 inches (47.5 cm) Rear – 11.0 inches (28.0 cm) Saturn Part Number ACDelco 22676970 12605566 12582255 15822812 12607280 12582002...
Page 435: Engine Drive Belt Routing
Engine Drive Belt Routing If your vehicle has a hybrid engine, see “Engine Drive Belt Routing” in the Saturn Vue Hybrid Owners Manual. 3.5L V6 (L66) Engine 2.2L L4 (L61) Engine...
Page 436: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 418. Any additional information from Owner Checks and Services on page 427 can be added on the following record pages.
Page 437 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
Page 438 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
Page 439: Customer Assistance Information
Reporting Safety Defects to the United States Government ... 452 Reporting Safety Defects to the Canadian Government ... 453 Reporting Safety Defects to Saturn ... 453 Service Publications Ordering Information ... 453 Vehicle Data Recording and Privacy ... 455 Event Data Recorders ... 455 OnStar ...
Page 440: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your retailer and to Saturn. Together we are committed to providing our customers with unparalleled service, before, during, and after the purchase of a Saturn vehicle, for total customer satisfaction.
Page 441 Saturn vehicle. However, if you continue to remain unsatisﬁed after following the procedure outlined in Steps One and Two, Saturn and its retailers offer the additional assistance of a neutral party through our voluntary participation in a mediation/arbitration program called Better Business Bureau (BBB) Auto Line.
Page 442 For further information concerning eligibility in the Canadian Motor Vehicle Arbitration Plan (CAMVAP), call toll-free 1-800-207-0685. Alternatively, you may call the Saturn Customer Communication Centre, 1-800-263-1999, or you may write to: Mediation/Arbitration Program c/o Customer Communication Centre...
Page 443: Online Owner Center
Online Owner Center Online Owner Center (United States only) The Owner Center is a resource for your Saturn ownership needs. Speciﬁc vehicle information can be found in one place. The Online Owner Center allows you to: • Get e-mail service reminders.
Page 444: Customer Assistance For Text Telephone (Tty) Users
Canada may dial 1-800-263-3830. Customer Assistance Offices Saturn encourages customers to call the toll-free number for assistance. If a customer wishes to write to Saturn, the letter should be addressed to: Saturn Customer Assistance Center 100 Saturn Parkway Mail Code 371-999-S24...
Page 445: Gm Mobility Reimbursement Program
For vehicles purchased in Canada, call 1-800-268-6800. Service is available 24 hours a day, 365 days a year. As the owner of a new Saturn vehicle, you are automatically enrolled in the Saturn Roadside Assistance Program. Who is Covered? Roadside Assistance coverage is for the vehicle operator, regardless of ownership.
Page 446 OnStar subscription. • Emergency Tow From a Public Roadway or Highway: Tow to the nearest Saturn retailer for warranty service or in the event of a vehicle-disabling accident. Winch-out assistance provided when the vehicle is mired in sand, mud, or snow.
Page 447 $100 upon submission of the original receipt to Roadside Assistance. In many instances, mechanical failures are covered under Saturn’s Bumper-to-Bumper warranty for U.S. customers, and the duration of the Base Warranty Coverage for Canadian customers of the New Vehicle Limited Warranty.
Page 448: Collision Damage Repair
While we hope you never have the occasion to use our service, it is added security while traveling for you and your family. Remember we are only a phone call away. Saturn Roadside Assistance: 1-800-553-6000 ; text telephone (TTY) users, call 1-800-833-6000. Canadian customers call 1-800-268-6800.
Page 449: Collision Parts
Repair Facility GM also recommends that you choose a collision repair facility that meets your needs before you ever need collision repairs. Your Saturn retailer may have a collision repair center with GM-trained technicians and state of the art equipment, or...
Page 450: Insuring Your Vehicle
Insuring Your Vehicle Protect your investment in your GM vehicle with comprehensive and collision insurance coverage. There are signiﬁcant differences in the quality of coverage afforded by various insurance policy terms. Many insurance policies provide reduced protection to your GM vehicle by limiting compensation for damage repairs by using aftermarket collision parts.
Page 451: Managing The Vehicle Damage Repair Process
• Choose a reputable collision repair facility for your vehicle. Whether you select a Saturn retailer or a private collision repair facility to ﬁx the damage, make sure you are comfortable with them. Remember, you will have to feel comfortable with their work for a long time.
Page 452: Reporting Safety Defects
However, NHTSA cannot become involved in individual problems between you, your retailer or Saturn Corporation. To contact NHTSA, call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153);...
Page 453: Reporting Safety Defects To The Canadian Government
Reporting Safety Defects to Saturn In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you will notify us. U.S. customers can call the Saturn Customer Assistance Center at 1-800-553-6000, or write: Saturn Corporation 100 Saturn Parkway...
Page 454: Owner Publications
Gross Vehicle Weight Rating (GVWR) less than 10,000 pounds (4 536 kg). Copies of individual bulletins are also at your participating Saturn retailer. You can ask to see them. In Canada, information relating to product service bulletins can be obtained by contacting your Saturn retailer.
Page 455: Vehicle Data Recording And Privacy
Vehicle Data Recording and Privacy Your GM vehicle has a number of sophisticated computers that record information about the vehicle’s performance and how it is driven. For example, your vehicle uses computer modules to monitor and control engine and transmission performance, to monitor the conditions for airbag deployment and deploy airbags in a crash and, if so equipped, to provide anti-lock braking to help...
Page 456: Onstar
similar government office; as part of GM’s defense of litigation through the discovery process; or, as required by law. Data that GM collects or receives may also be used for GM research needs or may be made available to others for research purposes, where a need is shown and the data is not tied to a speciﬁc vehicle or vehicle owner.
Page 457 About Driving Your Vehicle ... 3 Accessories and Modiﬁcations ... 304 Adding Equipment to Your Airbag-Equipped Vehicle ... 89 Additives, Fuel ... 307 Add-On Electrical Equipment ... 409 Air Cleaner/Filter, Engine ... 324 Air Conditioning ... 155 Airbag Passenger Status Indicator ... 166 Readiness Light ...
Page 458 Audio System (cont.) Fixed Mast Antenna ... 225 Radio with CD ... 186, 192 Setting the Time ... 183, 184 Understanding Radio Reception ... 224 XM™ Satellite Radio Antenna System ... 225 Audio System(s) Radio with CD and DVD ... 202 Automatic Headlamp System ...
Page 459 Center Console Storage Area ... 132 Center High-Mounted Stoplamp (CHMSL) ... 362 Chains, Tire ... 384 Check Engine Light ... 175 Checking Things Under the Hood ... 312 Chemical Paint Spotting ... 406 Child Restraints Child Restraint Systems ... 49 Infants and Young Children ...
Page 460 Telephone (TTY) Users ... 444 Customer Assistance Offices ... 444 Customer Satisfaction Procedure ... 440 GM Mobility Reimbursement Program ... 445 Reporting Safety Defects to Saturn ... 453 Reporting Safety Defects to the Canadian Government ... 453 Reporting Safety Defects to the United States Government ...
Page 461 EDR ... 455 Electrical System Add-On Equipment ... 409 Fuses and Circuit Breakers ... 409 Instrument Panel Fuse Block ... 410 Power Windows and Other Power Options ... 409 Underhood Fuse Block ... 411 Windshield Wiper Fuses ... 409 Engine Air Cleaner/Filter ...
Page 462 Front Console Storage Area ... 132 Fuel ... 306 Additives ... 307 California Fuel ... 307 Filling a Portable Fuel Container ... 311 Filling Your Tank ... 309 Fuels in Foreign Countries ... 308 Gage ... 181 Gasoline Octane ... 306 Gasoline Speciﬁcations ...
Page 463 Horn ... 142 How to Use This Manual ... 4 How to Wear Safety Belts Properly ... 25 Hydraulic Clutch ... 331 Ignition Positions ... 109 Infants and Young Children, Restraints ... 45 Inﬂation - Tire Pressure ... 374 Instrument Panel Overview ...
Page 464 Light (cont.) Passenger Airbag Status Indicator ... 166 Passenger Safety Belt Reminder ... 165 Reduced Engine Power ... 179 Safety Belt Reminder ... 164 Security ... 179 Service Vehicle Soon ... 180 TCS Warning Light ... 172 Traction Control System (TCS) Warning ...
Page 465 Manual Lumbar Controls ... 11 Manual Reclining Seatbacks ... 12 Manual Seats ... 9 Manual Transaxle Fluid ... 330 Operation ... 117 Map Lamps ... 153 Mirrors Automatic Dimming Rearview with ® OnStar , Compass and Temperature Display ... 125 Outside Convex Mirror ...
Page 466 Parking Brake ... 119 Over Things That Burn ... 122 Parking Your Vehicle ... 122 Passenger Airbag Status Indicator ... 166 Passenger Compartment Air Filter ... 159 Passenger Sensing System ... 82 Passing ... 243 ® Passlock ... 108 Power Door Locks ...
Page 467 Removing the Spare Tire and Tools ... 387 Replacement Bulbs ... 364 Reporting Safety Defects Canadian Government ... 453 Saturn ... 453 United States Government ... 452 Restraint System Check Checking the Restraint Systems ... 90 Replacing Restraint System Parts After a Crash ...
Page 468 Securing a Child Restraint Center Rear Seat Position ... 64 Rear Outside Seat Position ... 61 Right Front Seat Position ... 66 Security Light ... 179 Service ... 304 Accessories and Modiﬁcations ... 304 Adding Equipment to the Outside of Your Vehicle ...
Page 469 Time, Setting ... 183, 184 Tires ... 366 Aluminum Wheels, Cleaning ... 404 Buying New Tires ... 377 Chains ... 384 Changing a Flat Tire ... 386 Cleaning ... 405 Compact Spare Tire ... 398 Different Size ... 379 If a Tire Goes Flat ... 385 Inﬂation - Tire Pressure ...
Page 470 Vehicle (cont.) Parking Your ... 122 Service Soon Light ... 180 Symbols ... 5 Vehicle Data Recording and Privacy ... 455 Vehicle Identiﬁcation Number (VIN) ... 408 Service Parts Identiﬁcation Label ... 408 Ventilation Adjustment ... 159 Visors ... 106 Warning Lights, Gages and Indicators ...

Save PDF
