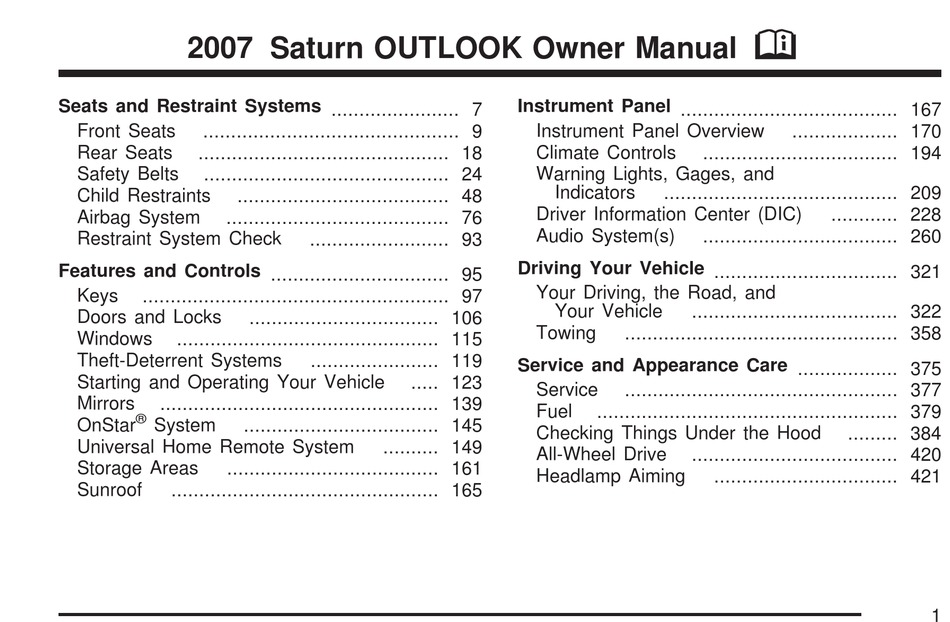

2007 Saturn OUTLOOK Owner Manual
Seats and Restraint Systems ....................... 7
Front Seats
.............................................. 9
Rear Seats
............................................. 18
Safety Belts
............................................ 24
Child Restraints
Airbag System
........................................ 76
Restraint System Check
Features and Controls ................................ 95
Keys
....................................................... 97
Doors and Locks
Windows
............................................... 115
Theft-Deterrent Systems
Starting and Operating Your Vehicle
Mirrors
.................................................. 139
®
OnStar
System
Universal Home Remote System
Storage Areas
...................................... 161
Sunroof
................................................ 165
...................................... 48
......................... 93
.................................. 106
....................... 119
..... 123
................................... 145
.......... 149
Instrument Panel ....................................... 167
Instrument Panel Overview
Climate Controls
Warning Lights, Gages, and
Indicators
.......................................... 209
Driver Information Center (DIC)
Audio System(s)
Driving Your Vehicle ................................. 321
Your Driving, the Road, and
Your Vehicle
..................................... 322
Towing
................................................. 358
Service and Appearance Care .................. 375
Service
................................................. 377
Fuel
...................................................... 379
Checking Things Under the Hood
All-Wheel Drive
..................................... 420
Headlamp Aiming
M
................... 170
................................... 194
............ 228
................................... 260
......... 384
................................. 421
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2007 Outlook and is the answer not in the manual?

Questions and answers

Summary of Contents for Saturn 2007 Outlook

  • Page 1 2007 Saturn OUTLOOK Owner Manual Seats and Restraint Systems ... 7 Front Seats ... 9 Rear Seats ... 18 Safety Belts ... 24 Child Restraints ... 48 Airbag System ... 76 Restraint System Check Features and Controls ... 95 Keys ...
  • Page 2 Bulb Replacement ... 422 Windshield Wiper Blade Replacement ... 424 Tires ... 425 Appearance Care ... 464 Vehicle Identification ... 474 Electrical System ... 475 Capacities and Specifications Maintenance Schedule ... 485 Maintenance Schedule Customer Assistance Information ... 503 Customer Assistance and Information Reporting Safety Defects Vehicle Data Recording and Privacy ...
  • Page 3: How To Use This Manual

    SATURN and the SATURN Emblem are registered trademarks of Saturn Corporation. GENERAL MOTORS and GM are registered trademarks and the name OUTLOOK is a trademark of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without further notice.
  • Page 4: Safety Warnings And Symbols

    Safety Warnings and Symbols There are a number of safety cautions in this book. A box with the word CAUTION is used to tell about things that could hurt you or others if you were to ignore the warning. CAUTION: These mean there is something that could hurt you or other people.
  • Page 5: Vehicle Symbols

    Vehicle Damage Warnings You will also find notices in this manual. Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
  • Page 6 These are some examples of symbols that may be found on the vehicle:...
  • Page 7: Table Of Contents

    Section 1 Front Seats ... 9 Manual Seats ... 9 Driver Seat Height Adjuster ... 10 Power Seats ... 10 Manual Lumbar ... 11 Power Lumbar ... 12 Heated Seats ... 12 Memory Seat and Mirrors ... 13 Reclining Seatbacks ... 15 Head Restraints ...
  • Page 8 Section 1 Airbag System ... 76 Where Are the Airbags? ... 79 When Should an Airbag Inflate? ... 82 What Makes an Airbag Inflate? ... 83 How Does an Airbag Restrain? ... 84 What Will You See After an Airbag Inflates? ... 84 Passenger Sensing System ...
  • Page 9: Front Seats

    Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
  • Page 10: Driver Seat Height Adjuster

    Driver Seat Height Adjuster If your vehicle has a manual driver seat height adjuster, it is located on the outboard side of the seat. See Manual Seats on page 9 for more information. To raise the seat, move the lever upward repeatedly until the seat is at the desired height.
  • Page 11: Manual Lumbar

    Move the seat forward or rearward by sliding the control forward or rearward. Your vehicle may have additional features to adjust your vehicle’s power seat: • Raise or lower the entire seat by moving the entire control up or down. •...
  • Page 12: Power Lumbar

    Power Lumbar If the seats have power lumbar, the controls used to operate this feature are located on the outboard side of the seats. See Power Seats on page 10 for more information. • To increase lumbar support, press and hold the front of the control.
  • Page 13: Memory Seat And Mirrors

    If your vehicle has remote vehicle start and is started using the remote keyless entry transmitter, the front heated seats will be turned on to the high setting if it is cold outside. See ″Remote Vehicle Start″ under Remote Keyless Entry (RKE) System Operation on page 100.
  • Page 14 A second seating and mirror position can be programmed by repeating the above steps and pressing button 2. To recall the memory positions, the vehicle must be in PARK (P). Press and release either button 1 or button 2 corresponding to the desired driving position.
  • Page 15: Reclining Seatbacks

    Reclining Seatbacks Manual Reclining Seatbacks CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
  • Page 16: Power Reclining Seatbacks

    Power Reclining Seatbacks In vehicles with seats that have power reclining seatbacks, the control used to recline them is located on the outboard side of the seat behind the power seat control. See Power Seats on page 10 for more information. •...
  • Page 17: Head Restraints

    Do not have a seatback reclined if your vehicle is moving. Head Restraints Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant’s head. This position reduces the chance of a neck injury in a crash.
  • Page 18: Rear Seats

    Rear Seats Rear Seat Operation A. Seat Adjustment Handle. B. Reclining Seatback Strap. C. Sliding Seat Lever. Entering and Exiting the Third Row CAUTION: Using the third row seating position while the second row is folded, or folded and tumbled, could cause injury in a sudden stop or crash.
  • Page 19: Returning The Seat To The Seating Position

    To access the third row: 1. Make sure there are no objects on the floor in front of or on the second row seat, or in the seat tracks on the floor. 2. On seats with folding armrests, make sure the armrest is in the upright position.
  • Page 20: Reclining The Seatbacks

    Reclining the Seatbacks To recline the seatback: 1. Leaning forward in the seat, pull the reclining seatback strap (B). 2. Move the seatback to the desired position, then release the strap to lock the seatback in place. 3. Push and pull on the seatback to make sure it is locked.
  • Page 21: Third Row Seats

    Third Row Seats CAUTION: Using the third row seating position while the second row is folded, or pushed forward in the entry position, could cause injury in a sudden stop or crash. Be sure to return the seat to the passenger seating position.
  • Page 22 3. Pull up on the 4. Push the seatback forward to lay flat. To return the seatback to the seating position: 1. Raise the seatback into place by using the pullstrap from the rear of the vehicle, or by pushing it into place from inside the vehicle. 2.
  • Page 23: Removing The Third Row Seats

    4. Make sure the safety belt is not twisted, and reconnect the center safety belt mini-latch to the mini-buckle. 5. Pull on the safety belt to be sure the mini-latch is secure. Removing the Third Row Seats 1. Remove the cargo management system, if it is in the vehicle.
  • Page 24: Safety Belts

    Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she cannot wear a safety belt properly.
  • Page 25: Why Safety Belts Work

    You never know if you will be in a crash. If you do have a crash, you do not know if it will be a bad one. A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive.
  • Page 26 Put someone on it. Get it up to speed. Then stop the vehicle. The rider does not stop.
  • Page 27 The person keeps going until stopped by or the instrument panel... something. In a real vehicle, it could be the windshield...
  • Page 28: Questions And Answers About Safety Belts

    or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. Questions and Answers About Safety Belts Will I be trapped in the vehicle after an...
  • Page 29: How To Wear Safety Belts Properly

    If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt. Being a good driver does not protect you from things beyond your control, such as bad drivers.
  • Page 30: Driver Position

    Driver Position Lap-Shoulder Belt The driver has a lap-shoulder belt. Here is how to wear it properly. 1. Close and lock the door. 2. Adjust the seat so you can sit up straight. To see how, see “Seats” in the Index. 3.
  • Page 31 6. To make the lap part tight, pull up on the shoulder belt. It may be necessary to pull stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants. The lap part of the belt should be worn low and snug on the hips, just touching the thighs.
  • Page 32 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
  • Page 33 What is wrong with this? The lap belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force at your abdomen.
  • Page 34 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen.
  • Page 35 What is wrong with this? The belt is over an armrest. CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied at the abdomen, not at the pelvic bones, and that could cause serious or fatal injuries.
  • Page 36 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
  • Page 37 What is wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer/retailer to fix it.
  • Page 38: Shoulder Belt Height Adjustment

    To unlatch the belt, push the button on the buckle. The belt should go back out of the way. When the safety belt is not in use, slide the latch plate up the safety belt webbing. The latch plate should rest on the stitching on the safety belt, near the guide loop on the side wall.
  • Page 39: Safety Belt Use During Pregnancy

    Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
  • Page 40: Rear Seat Passengers

    Rear Seat Passengers It is very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who are not safety belted can be thrown out of the vehicle in a crash.
  • Page 41 2. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again.
  • Page 42 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
  • Page 43: Rear Safety Belt Comfort Guides

    To unlatch the belt, push the button on the buckle. For outboard seating positions, when the safety belt is not in use, slide the latch plate up the safety belt webbing. The latch plate should rest on the stitching on the safety belt, near the guide loop on the side wall.
  • Page 44 There is a guide for each outboard passenger positions in the second row seat and all passenger positions in the third row. Here is how to install a comfort guide to the safety belt: Outboard Positions 1. For the outboard positions, remove the guide from its storage clip on the interior body.
  • Page 45 2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt, and insert the two edges of the belt into the slots of the guide. 3. Be sure that the belt is not twisted and it lies flat.
  • Page 46 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
  • Page 47: Safety Belt Pretensioners

    Safety Belt Pretensioners Your vehicle has safety belt pretensioners for the driver and right front passenger. Although you cannot see them, they are part of the safety belt assembly. They help tighten the safety belts during the early stages of a moderate to severe frontal, near frontal or side crash or a rollover if the threshold conditions for pretensioner activation are met.
  • Page 48: Child Restraints

    Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
  • Page 49 CAUTION: Never do this. Here two children are wearing the same belt. The belt cannot properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.
  • Page 50 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
  • Page 51: Infants And Young Children

    Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
  • Page 52 CAUTION: People should never hold a baby in their arms while riding in a vehicle. A baby does not weigh much — until a crash. During a crash a baby will become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12 lb (5.5 kg) baby will suddenly become a 240 lb (110 kg) force...
  • Page 53 CAUTION: Children who are up against, or very close to, any airbag when it inflates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
  • Page 54 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
  • Page 55: Child Restraint Systems

    CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
  • Page 56 A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.
  • Page 57 A booster seat (F-G) is a child restraint designed to improve the fit of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a five-point harness. A booster seat can also help a child to see out the window.
  • Page 58 Securing an Add-on Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Make sure the child restraint is properly installed in the vehicle using the vehicle’s safety belt or LATCH system, following the instructions that came with that restraint,...
  • Page 59: Securing The Child Within The Child Restraint

    Securing the Child Within the Child Restraint There are several systems for securing the child within the child restraint. One system, the three-point harness, has straps that come down over each of the infant’s shoulders and buckle together at the crotch. The five-point harness system has two shoulder straps, two hip straps, and a crotch strap.
  • Page 60 A label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys. CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inflates.
  • Page 61: Lower Anchors And Tethers For Children (Latch)

    Lower Anchors and Tethers for Children (LATCH) The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system.
  • Page 62 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.
  • Page 63 Lower Anchor and Top Tether Anchor Locations Seating positions with top tether anchors. (Lower Anchor): Seating positions with two lower anchors. Second Row — Bucket (Top Tether Anchor): Second Row — 60/40 (Top Tether Anchor): Seating positions with top tether anchors. (Lower Anchor): Seating positions with two lower anchors.
  • Page 64 To assist you in locating the lower anchors, each second row anchor position has a label, near the crease between the seatback and the seat cushion. To assist you in locating the top tether anchors, the top tether anchor symbol is located on the trim cover or near the anchor.
  • Page 65 Third Row Seat The third row has one top tether anchor located at the bottom rear of the center seatback. This anchor should be used for the center seating position only. Never install two top tethers using the same top tether anchor. Do not secure a child restraint in the right front passenger position or the third row outboard seating positions, if a national or local law requires...
  • Page 66 Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed.
  • Page 67 CAUTION: Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Secure any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has been...
  • Page 68 1.3. Put the child restraint on the seat. 1.4. Attach and tighten the lower attachments on the child restraint to the lower anchors. 2. If the child restraint manufacturer recommends that the top tether be attached, attach and tighten the top tether to the top tether anchor, if the vehicle has one.
  • Page 69: Securing A Child Restraint In A Rear Seat Position

    If the position you are using has a fixed head rest/restraint and you are using a dual tether, route the tether around the head rest/restraint. If the position you are using has a fixed head rest/restraint and you are using a single tether, route the tether over the head rest/restraint.
  • Page 70 3. Buckle the belt. Make sure the release button 4. Pull the rest of the shoulder belt all the way is positioned so you would be able to unbuckle out of the retractor to set the lock. the safety belt quickly if you ever had to.
  • Page 71 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt.
  • Page 72: Securing A Child Restraint In The Right Front Seat Position

    Securing a Child Restraint in the Right Front Seat Position Your vehicle has a right front passenger airbag. A rear seat is a safer place to secure a forward-facing child restraint. See Where to Put the Restraint on page 59. In addition, your vehicle has a passenger sensing system.
  • Page 73 CAUTION: (Continued) If you secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat. If your child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 61.
  • Page 74 4. Buckle the belt. Make sure the release button 5. Pull the rest of the shoulder belt all the way is positioned so you would be able to unbuckle out of the retractor to set the lock. the safety belt quickly if you ever had to.
  • Page 75 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt.
  • Page 76: Airbag System

    Airbag System Your vehicle has the following airbags: • A frontal airbag for the driver. • A frontal airbag for the right front passenger. • A seat-mounted side impact airbag for the driver. • A seat-mounted side impact airbag for the right front passenger.
  • Page 77 Here are the most important things to know about the airbag system: CAUTION: You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it.
  • Page 78 CAUTION: Airbags inflate with great force, faster than the blink of an eye. Anyone who is up against, or very close to, any airbag when it inflates can be seriously injured or killed. Do not sit unnecessarily close to the airbag, as you would be if you were sitting on the edge of your seat or leaning forward.
  • Page 79: Where Are The Airbags

    There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol. The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 212 for more information.
  • Page 80 The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side. Driver Side shown, Passenger Side similar The seat-mounted side impact airbags for the driver and right front passenger are in the side of the seatbacks closest to the door.
  • Page 81 Driver Side shown, Passenger Side similar The roof-rail airbags for the driver, right front passenger, passengers behind the driver and right front passenger, and the third row outboard passengers are in the ceiling above the side windows. CAUTION: If something is between an occupant and an airbag, the airbag might not inflate properly or it might force the object into that person causing severe injury or even...
  • Page 82: When Should An Airbag Inflate

    When Should an Airbag Inflate? Frontal airbags are designed to inflate in moderate to severe frontal or near-frontal crashes to help reduce the potential for severe injuries mainly to the driver’s or right front passenger’s head and chest. However, they are only designed to inflate if the impact exceeds a predetermined deployment threshold.
  • Page 83: What Makes An Airbag Inflate

    Seat-mounted side impact and roof-rail airbags are intended to inflate in moderate to severe side crashes. In addition, these roof-rail airbags are intended to inflate during a rollover or in a severe frontal impact. Seat-mounted side impact and roof-rail airbags will inflate if the crash severity is above the system’s designed threshold level.
  • Page 84: How Does An Airbag Restrain

    How Does an Airbag Restrain? In moderate to severe frontal or near frontal collisions, even belted occupants can contact the steering wheel or the instrument panel. In moderate to severe side collisions, even belted occupants can contact the inside of the vehicle. Airbags supplement the protection provided by safety belts.
  • Page 85 CAUTION: When an airbag inflates, there may be dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so.
  • Page 86: Passenger Sensing System

    Passenger Sensing System Your vehicle has a passenger sensing system for the right front passenger’s position. The passenger airbag status indicator will be visible on the instrument panel when you start your vehicle. United States The words ON and OFF, or the symbol for on and off, will be visible during the system check.
  • Page 87 CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inflates. This is because the back of the rear-facing child restraint would be very close to the inflating airbag. Even though the passenger sensing system is designed to turn off the right front passenger’s frontal and seat-mounted side impact airbag if the system detects a...
  • Page 88 • The right front passenger seat is occupied by a smaller person, such as a child who has outgrown child restraints. • Or, if there is a critical problem with the airbag system or the passenger sensing system. When the passenger sensing system has turned off the right front passenger’s frontal airbag and seat-mounted side impact airbag, the off indicator will light and stay lit to remind you that...
  • Page 89 The passenger sensing system is designed to enable (may inflate) the right front passenger’s frontal airbag and seat-mounted side impact airbag anytime the system senses that a person of adult size is sitting properly in the right front passenger’s seat. When the passenger sensing system has allowed the airbags to be enabled, the on indicator will light and stay lit to remind you that the airbags are active.
  • Page 90 Safety belts help keep the passenger in position on the seat during vehicle maneuvers and braking, which helps the passenger sensing system maintain the passenger airbag status. See “Safety Belts” and “Child Restraints” in the Index for additional information about the importance of proper restraint use.
  • Page 91: Servicing Your Airbag-Equipped Vehicle

    See Adding Equipment to Your Airbag-Equipped Vehicle on page 92 for more information about modifications that can affect how the system operates. CAUTION: Stowing of articles under the passenger’s seat or between the passenger’s seat cushion and seatback may interfere with the proper operation of the passenger sensing system.
  • Page 92: Adding Equipment To Your Airbag-Equipped Vehicle

    Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to the exterior of the vehicle that could keep the airbags from working properly? Yes. If you add things that change your vehicle’s frame, bumper system, height, front end or side sheet metal, they may keep the airbag system from working properly.
  • Page 93: Restraint System Check

    Restraint System Check Checking the Restraint Systems Safety Belts Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors, and anchorages are working properly. See Safety Belt Reminder Light on page 211 for more information.
  • Page 94: Replacing Restraint System Parts After A Crash

    Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as...
  • Page 95: Features And Controls

    Section 2 Keys ... 97 Remote Keyless Entry (RKE) System ... 98 Remote Keyless Entry (RKE) System Operation ... 100 Doors and Locks ... 106 Door Locks ... 106 Power Door Locks ... 107 Delayed Locking ... 107 Programmable Automatic Door Locks ... 107 Rear Door Security Locks ...
  • Page 96 Section 2 ® OnStar System ... 145 Universal Home Remote System ... 149 System Identification ... 149 Universal Home Remote System ... 149 Universal Home Remote System Operation (With One Triangular LED) ... 150 Universal Home Remote System Operation (With Three Round LED) ... 154 Storage Areas ...
  • Page 97: Keys

    Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and they could be seriously injured or killed if caught in the path of a...
  • Page 98: Remote Keyless Entry (Rke) System

    One key is used for the ignition and all locks. When a new vehicle is delivered to the dealer/retailer, the key has a key tag. This tag has a bar-coded key code that tells your dealer/retailer how to make extra keys. This tag may be removed and kept by your dealer/retailer.
  • Page 99 This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference received, including interference that may cause undesired operation of the device. Changes or modifications to this system by other than an authorized service facility could void authorization to use this equipment.
  • Page 100: Remote Keyless Entry (Rke) System Operation

    Remote Keyless Entry (RKE) System Operation The Remote Keyless Entry (RKE) transmitter functions will work up to 195 feet (60 m) away. However, the operating range may be less while the vehicle is running. There are other conditions which can affect the performance of the transmitter.
  • Page 101: Matching Transmitter(S) To Your Vehicle

    See DIC Vehicle Customization (With DIC Buttons) on page 250. Pressing the unlock button on the RKE transmitter will disarm the content theft-deterrent system. See Content Theft-Deterrent on page 119. & (Power Liftgate): Press and hold this button on the RKE transmitter to open and close the liftgate.
  • Page 102: Battery Replacement

    Battery Replacement Under normal use, the battery in the RKE transmitter should last about four years. The battery is weak if the transmitter will not work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it is probably time to change the battery.
  • Page 103: Remote Vehicle Start

    4. Snap the front and the back of the transmitter together. 5. Test the operation of the transmitter with the vehicle. Remote Vehicle Start Your vehicle may have a remote starting feature. This feature allows you to start the engine from outside of the vehicle.
  • Page 104 (Remote Start): This button will be on the RKE transmitter if you have remote start. To start the vehicle using the remote start feature, do the following: 1. Aim the transmitter at the vehicle. 2. Press and release the transmitter’s lock button, then immediately press and hold the transmitter’s remote start button until the turn signal lights flash.
  • Page 105: Remote Start Ready

    Once two remote starts, or a single remote start with one time extension has been done, the vehicle must be started with the key. After the key is removed from the ignition, the vehicle can be remote started again. The vehicle cannot be remote started if the key is in the ignition, the hood is not closed, or if there is an emission control system malfunction.
  • Page 106: Doors And Locks

    Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
  • Page 107: Power Door Locks

    Power Door Locks The power door lock switches are located on the armrest on the front doors. (Unlock): Press the side of the switch with the unlock symbol to unlock the doors. (Lock): Press the side of the switch with the lock symbol to lock the doors.
  • Page 108: Rear Door Security Locks

    Rear Door Security Locks Your vehicle has rear door security locks. These prevent passengers from opening the rear doors from the inside. The rear door security locks are located on the inside edge of each rear door. You must open the rear doors to access them.
  • Page 109: Lockout Protection

    Lockout Protection This feature protects you from locking the key in the vehicle when the key is in the ignition and a front door is open. If the driver’s side power door lock switch is pressed when the driver’s door is open and the key is in the ignition, all of the doors will lock and then the driver’s door will unlock.
  • Page 110: Power Liftgate

    To unlock the liftgate, use the power door lock switch or press the door unlock button on the Remote Keyless Entry (RKE) transmitter twice. See Remote Keyless Entry (RKE) System Operation on page 100. To open the liftgate, press the touchpad on the underside of the liftgate handle.
  • Page 111 CAUTION: (Continued) • If you have air outlets on or under the instrument panel, open them all the way. • If your vehicle has a power liftgate, disable the power liftgate function. See Power Liftgate on page 110. Your vehicle may have a power liftgate. The vehicle must be in PARK (P) to use the power feature.
  • Page 112 The power liftgate can be power opened and closed in the following ways: • Press and hold the power liftgate button on the Remote Keyless Entry (RKE) transmitter until the liftgate starts moving. Remote Keyless Entry (RKE) System Operation on page 100 for more information.
  • Page 113 If you shift the transmission out of PARK (P) while the power function is in progress, the liftgate power function will continue to completion. If you shift the transmission out of PARK (P) and accelerate before the power liftgate latches closed, the liftgate may reverse to the open position.
  • Page 114 Manual Operation of Power Liftgate To change the liftgate to manual operation, press the switch on the center console to the OFF position. With the power liftgate disabled and all of the doors unlocked, the liftgate can be manually opened and closed. To open the liftgate, press the touchpad on the handle on the outside of the liftgate, and lift the gate open.
  • Page 115: Windows

    Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
  • Page 116: Power Windows

    Power Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome from extreme heat in warm or hot weather and suffer permanent injuries or even death from heat stroke. Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly...
  • Page 117: Express-Down Windows

    The driver’s door also has switches that control the passenger and rear windows. The power windows work when the ignition has been turned to ACCESSORY or ON or when Retained Accessory Power (RAP) is active. See Retained Accessory Power (RAP) on page 125. Press the switch to lower the window.
  • Page 118: Sun Visors

    Anti-Pinch Feature The anti-pinch feature is on windows with the express-up feature. If an object is in the way of the window as it is express-closing, or in certain weather conditions like severe icing, the window will stop and open to a factory preset position. The window functions normally once the obstruction is removed.
  • Page 119: Theft-Deterrent Systems

    Theft-Deterrent Systems Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal. Content Theft-Deterrent Your vehicle may have a content theft-deterrent alarm system.
  • Page 120: Testing The Alarm

    The theft-deterrent system will not activate if the doors are locked with the vehicle’s key or the manual door lock. It activates only if you use the power door lock switch with the door open or the RKE transmitter. You should also remember that you can start your vehicle with the correct ignition key if the alarm has been set off.
  • Page 121: Pass-Key Iii+ Operation

    ® PASS-Key III+ ® The PASS-Key III+ system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
  • Page 122 If the engine still does not start, and the key appears to be not damaged, try another ignition key. At this time, you may also want to check the fuse, see Fuses and Circuit Breakers on page 476. If the engine still does not start with the other key, your vehicle needs service.
  • Page 123: Starting And Operating Your Vehicle

    If you lose or damage your PASS-Key see your dealer/retailer or a locksmith who can ® service PASS-Key III+ to have a new key made. The SERVICE THEFT DETERRENT SYSTEM message displays on the Driver Information Center (DIC) when there is a problem with the theft-deterrent system.
  • Page 124: Ignition Positions

    Ignition Positions With the key in the ignition, you can turn it to four different positions. A (OFF): This is the only position in which you can remove the key. This position locks the ignition and transmission. Notice: Using a tool to force the key from the ignition switch could cause damage or break the key.
  • Page 125: Key In The Ignition

    Key In the Ignition Never leave your vehicle with the keys inside, as it is an easy target for joy riders or thieves. If you leave the key in the ignition and park your vehicle, a chime will sound when you open the driver’s door.
  • Page 126: Starting The Engine

    Starting the Engine Place the transmission in the proper gear. Move your shift lever to PARK (P) or NEUTRAL (N). Your engine will not start in any other position – this is a safety feature. To restart when you are already moving, use NEUTRAL (N) only.
  • Page 127: Engine Coolant Heater

    2. If the engine does not start after 5-10 seconds, especially in very cold weather (below 0°F or −18°C), it could be flooded with too much gasoline. Try pushing the accelerator pedal all the way to the floor and holding it there as you hold the key in START for up to a maximum of 15 seconds.
  • Page 128: To Use The Engine Coolant Heater

    To Use the Engine Coolant Heater 1. Turn off the engine. 2. Open the hood and unwrap the electrical cord. The cord is located on the driver’s side of the engine compartment, it is routed around the windshield washer fluid reservoir. 3.
  • Page 129: Automatic Transmission Operation

    Automatic Transmission Operation Your vehicle has an electronic shift position indicator within the instrument panel cluster. When using the Electronic Range Select Mode a number will display next to the L, indicating the current gear that has been selected. See Electronic Range Select mode in this section for more information.
  • Page 130 You must fully apply your regular brake first and then press the shift lever button before you can shift from PARK (P) when the ignition key is in ON. If you cannot shift out of PARK (P), ease pressure on the shift lever, then push the shift lever all the way into PARK (P) as you maintain brake application.
  • Page 131: Electronic Range Select Mode

    DRIVE (D): This position is for normal driving. It provides the best fuel economy for your vehicle. If you need more power for passing, and you are: • Going less than 35 mph (56 km/h), push your accelerator pedal about halfway down. •...
  • Page 132: Tow/Haul Mode

    However, your vehicle can automatically shift to lower gears as required by various driving conditions. This means that all gears below that number are available. For example, when FOURTH (4) is shown next to the L, FIRST (1) through FOURTH (4) gears are automatically shifted by the vehicle.
  • Page 133: Parking Brake

    Automatic Engine Grade Braking Automatic Engine Grade Braking assists when driving on a downhill grade. It maintains the vehicle’s speed by automatically implementing a shift schedule that uses the engine and the transmission to slow the vehicle. This reduces wear on the brakes system and increases control of the vehicle.
  • Page 134: Shifting Into Park (P)

    To release the parking brake, hold the regular brake pedal down with your right foot. Push down momentarily on the parking brake pedal with your left foot until you feel the pedal release, then slowly pull your foot up off the park brake pedal.
  • Page 135: Leaving Your Vehicle With The Engine Running

    Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake firmly set.
  • Page 136: Shifting Out Of Park (P)

    Shifting Out of Park (P) Your vehicle has an automatic transmission shift lock control system. You have to apply your regular brake first and then press the shift lever button before you can shift from PARK (P). See Automatic Transmission Operation on page 129.
  • Page 137: Engine Exhaust

    Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • The exhaust system sounds strange or different. •...
  • Page 138: Running The Engine While Parked

    Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
  • Page 139: Mirrors

    Mirrors Manual Rearview Mirror with ® OnStar When you are sitting in a comfortable driving position, adjust the mirror so you can see clearly behind your vehicle. Hold the mirror in the center to move it up or down and side to side. The day/night adjustment allows you to adjust the mirror to avoid glare from the lamps behind you.
  • Page 140: Compass Operation

    Compass Operation Press the on/off button once to turn the compass on or off. There is a compass display in the window in the upper right corner of the mirror face. Compass Calibration Press and hold the on/off button to activate the compass calibration mode.
  • Page 141 To adjust for compass variance: 1. Find your current location and variance zone number on the following zone map. 2. Press and hold the on/off button until the zone number is displayed. The number shown is the current zone number. 3.
  • Page 142: Outside Power Mirrors

    Outside Power Mirrors If your vehicle is equipped with outside power mirrors, the controls are located on the driver’s door armrest. Press (A) to select the driver’s side mirror or (B) to select the passenger’s side mirror. Press either (A) or (B) again to deselect the mirror. To adjust each mirror, press one of the four arrows located on the control pad to move the mirror in the direction you want it to go.
  • Page 143: Outside Power Foldaway Mirrors

    Outside Power Foldaway Mirrors If your vehicle is equipped with outside power foldaway mirrors, the controls are located on the driver’s door armrest. • Press (A) to select the driver’s side mirror. Then press the arrows located on the four-way control pad to adjust the mirror.
  • Page 144: Outside Convex Mirror

    Automatic Dimming The driver’s outside mirror will adjust for the glare of the headlamps behind you. See Automatic Dimming Rearview Mirror with OnStar Compass on page 139. Curb View Assist If your vehicle has the memory package, the outside mirrors are able to perform the curb view assist mirror function.
  • Page 145: Outside Heated Mirrors

    Outside Heated Mirrors Press the rear window defogger button, located on the climate control panel, to also turn the outside heated mirrors on or off. The mirrors will heat to help clear fog or frost from the surface of the mirror.
  • Page 146 ® OnStar Services ® For new vehicles with OnStar Plan, or the Directions & Connections included for one year from the date of purchase. You can extend this plan beyond the first year, or upgrade to the Directions & Connections For more information, press the OnStar to speak with an advisor.
  • Page 147 Hands-Free Calling may also be linked to a Verizon Wireless service plan in the U.S. or a Bell Mobility service plan in Canada, depending on eligibility. To find out more, refer to the OnStar Owner’s Guide in the vehicle’s glove box, visit www.onstar.com or www.onstar.ca, or speak with ®...
  • Page 148 ® OnStar service cannot work unless your vehicle ® is in a place where OnStar has an agreement with a wireless service provider for service in that ® area. OnStar service also cannot work unless you are in a place where the wireless service ®...
  • Page 149: Universal Home Remote System

    Universal Home Remote System System Identification Your vehicle may have a Universal Home Remote System. Determine which Universal Home Remote your vehicle has and then read the pages following for instructions on programming your specific system. If there is one triangular Light Emitting Diode (LED) indicator light above the Universal Home Remote buttons, follow the instructions under Universal Home Remote System Operation...
  • Page 150: Universal Home Remote System Operation (With One Triangular Led)

    This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. This device complies with RSS-210 of Industry Canada.
  • Page 151 Read the instructions completely before attempting to program the Universal Home Remote. Because of the steps involved, it may be helpful to have another person available to assist you in the programming steps Keep the original hand-held transmitter for use in other vehicles as well as for future Universal Home Remote programming.
  • Page 152 4. The indicator light will flash slowly at first and then rapidly after Universal Home Remote successfully receives the frequency signal from the hand-held transmitter. Release both buttons. 5. Press and hold the newly-trained Universal Home Remote button and observe the indicator light.
  • Page 153: Gate Operator And Canadian Programming

    Gate Operator and Canadian Programming Canadian radio-frequency laws require transmitter signals to time out or quit after several seconds of transmission. This may not be long enough for Universal Home Remote to pick up the signal during programming. Similarly, some U.S. gate operators are manufactured to time out in the same manner.
  • Page 154: Universal Home Remote System Operation (With Three Round Led)

    Reprogramming a Single Universal Home Remote Button To program a device to Universal Home Remote using a Universal Home Remote button previously trained: 1. Press and hold the desired Universal Home Remote button. Do not release the button. 2. The indicator light will begin to flash after 20 seconds.
  • Page 155 Read the instructions completely before attempting to program the transmitter. Because of the steps involved, it may be helpful to have another person available to assist you in programming the transmitter. Be sure to keep the original remote control transmitter for use in other vehicles, as well as, for future programming.
  • Page 156 2. Locate in the garage, the garage door opener receiver (motor-head unit). Locate the “Learn” or “Smart” button. It can usually be found where the hanging antenna wire is attached to the motor-head unit and may be a colored button. Press this button. After you press this button, you will have 30 seconds to complete the following steps.
  • Page 157 Programming Universal Home Remote — Fixed Code Most garage door openers sold before 1996 are Fixed Code units. Programming a garage door opener involves time-sensitive actions, so read the entire procedure before you begin. If you do not follow these actions, the device will time out and you will have to repeat the procedure.
  • Page 158 Example of Eight Dip Switches with Two Positions Example of Eight Dip Switches with Three Positions Your panel of switches may not appear exactly as they do in the examples above, but they should be similar. The switch positions on your hand-held transmitter may be labeled, as follows: •...
  • Page 159 2. Write down the eight to 12 switch settings from left to right as follows: • When a switch is in the up position, write “Left.” • When a switch is in the down position, write “Right.” • If a switch is set between the up and down position, write “Middle.”...
  • Page 160 5. After entering all of the switch positions, again, firmly press and release all three buttons at the same time. The indicator lights will turn on. 6. Press and hold the button you would like to use to control the garage door until the garage door moves.
  • Page 161: Storage Areas

    Storage Areas Glove Box To open, lift the handle up. Use the key to lock and unlock. Cupholder(s) There are two cupholders, with removable liners, located in front of the center console. There are cupholders located in the second row seat armrest.
  • Page 162: Floor Mats

    Floor Mats There is a grommet in the driver side floor mat that attaches to a hook on the floor of the vehicle. This allows the mat to remain in position under your feet and out of reach of the accelerator and brake pedal.
  • Page 163: Rear Seat Armrest

    Notice: Loading cargo on the luggage carrier that weighs more than 200 lbs (91 kg) or hangs over the rear or sides of the vehicle may damage your vehicle. Load cargo so that it rests as far forward as possible and against the side rails, making sure to fasten it securely.
  • Page 164: Cargo Management System

    Cargo Management System Your vehicle has a cargo management system located in the rear of the vehicle. To open, pull the handle toward the rear of the vehicle and lift the cover up. There is an additional storage compartment on each side of the system.
  • Page 165: Sunroof

    Sunroof The vehicle may have a sunroof over the front seats, and a rear sunroof over the second row seats. The rear sunroof does not open. The switches to operate the front sunroof and rear sunshade are located on the headliner above the rearview mirror.
  • Page 166 ✍ NOTES...
  • Page 167 Section 3 Instrument Panel Overview ... 170 Hazard Warning Flashers ... 172 Other Warning Devices ... 172 Horn ... 172 Tilt and Telescopic Steering Wheel ... 172 Power Tilt Wheel and Telescopic Steering Column ... 173 Turn Signal/Multifunction Lever ... 174 Turn and Lane-Change Signals ...
  • Page 168 Section 3 Warning Lights, Gages, and Indicators ... 209 Instrument Panel Cluster ... 210 Speedometer and Odometer ... 211 Tachometer ... 211 Safety Belt Reminder Light ... 211 Passenger Safety Belt Reminder Light ... 212 Airbag Readiness Light ... 212 Passenger Airbag Status Indicator ...
  • Page 169 Section 3 Audio System(s) ... 260 Setting the Time ... 261 Radio with CD ... 263 Radio with CD and DVD ... 273 Using an MP3 (Radio with CD or Six-Disc CD Player) ... 290 Using an MP3 (Radio with CD and DVD Player) ...
  • Page 170: Instrument Panel Overview

    Instrument Panel Overview...
  • Page 171 The main components of your instrument panel are listed here: A. Air Vent. See Outlet Adjustment on page 205. B. Multifunction Lever. See Turn Signal/Multifunction Lever on page 174. Windshield Wipers. See Turn Signal/Multifunction Lever on page 174. C. Instrument Panel Cluster. See Instrument Panel Cluster on page 210.
  • Page 172: Hazard Warning Flashers

    R. Heated Seats Button. See Heated Seats on page 12. S. Dual Automatic Climate Controls. See Dual Automatic Climate Control System on page 198. T. Passenger Air Bag Status Indicator. See Passenger Sensing System on page 86. U. Glove Box. See Glove Box on page 161. Hazard Warning Flashers The hazard warning flashers let you warn others.
  • Page 173: Power Tilt Wheel And Telescopic Steering Column

    The lever that lets you tilt and telescope the steering wheel is located on the left side of the steering column. To tilt and telescope the steering wheel, pull down the lever. Then move the steering wheel up or down or backward or forward into a comfortable position.
  • Page 174: Turn Signal/Multifunction Lever

    Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: • Turn and Lane Change Signals. See Turn and Lane-Change Signals on page 174. • Headlamp High/Low-Beam Changer. See Headlamp High/Low-Beam Changer on page 175. •...
  • Page 175: Turn Signal On Chime

    To signal a lane change, raise or lower the lever until the arrow starts to flash. Hold it there until you complete your lane change. The lever will return by itself when you release it. If you momentarily press and release the lever, the turn signal will flash three times.
  • Page 176: Flash-To-Pass

    Flash-to-Pass With the turn signal lever in the low-beam position, pull the lever toward you momentarily to switch to high-beam (to signal that you are going to pass). If the headlamps are on, they will return to low-beam when the lever is released. This feature operates even when the headlamps are off.
  • Page 177: Windshield Washer

    Windshield Washer (Washer Fluid): Press and release this paddle, located at the top of the turn signal/multifunction lever, to spray washer fluid on the windshield. The wipers clear the windshield and either stop or return to the preset speed. The ignition key must be in ACCESSORY or ON for this to work.
  • Page 178: Rear Window Wiper/Washer

    When the heated windshield washer fluid system is activated under certain outside temperature conditions, steam might flow out of the washer nozzles for a short period of time before washer fluid is sprayed. This is a normal condition. WASHER FLUID LOW ADD FLUID is displayed on the DIC when the washer fluid is low.
  • Page 179: Cruise Control

    Cruise Control With cruise control, you can maintain a speed of about 25 mph (40 km/h) or more without keeping your foot on the accelerator. This can really help on long trips. Cruise control does not work at speeds below about 25 mph (40 km/h). When you apply your brakes, cruise control is turned off.
  • Page 180: Increasing Speed While Using Cruise Control

    Setting Cruise Control Cruise control will not work if your parking brake is set, or if the master cylinder brake fluid level is low. The cruise control light on the instrument panel cluster comes on after the cruise control has been set to the desired speed.
  • Page 181 Reducing Speed While Using Cruise Control To reduce your speed while using cruise control: • Press and hold the SET– button on the steering wheel until you reach the lower speed desired, then release it. • To slow down in very small amounts, press the SET–...
  • Page 182: Exterior Lamps

    Exterior Lamps The exterior lamps control is located on the instrument panel to the left of the steering wheel. It controls the following systems: • Headlamps • Taillamps • Parking Lamps • License Plate Lamps • Instrument Panel Lights • Fog Lamps (if equipped) The exterior lamps control has four positions: (Off): Briefly turn the control to this position to...
  • Page 183: Delayed Headlamps

    (Fog Lamps) (If your vehicle has them): Push the fog lamps control in to turn on the fog lamps. See Fog Lamps on page 184. Delayed Headlamps The delayed headlamps feature provides a period of exterior lighting as you leave the area around your vehicle.
  • Page 184: Fog Lamps

    When it is dark enough outside, the low-beam headlamps will turn off and the headlamps and parking lamps will turn on. The other lamps that come on with the headlamps will also come on. When it is bright enough outside, the headlamps will go off and the DRL will come on.
  • Page 185: Dome Lamps

    Dome Lamps The dome lamps automatically come on when a door is opened, unless the dome lamp override button is pressed in. The lamps can also be turned on by turning the instrument panel brightness control clockwise to the farthest position. In this position, the dome lamps will remain on until they are turned off.
  • Page 186: Delayed Entry Lighting

    Delayed Entry Lighting Delayed entry lighting illuminates the interior for a period of time after all the doors have been closed. The ignition must be off for delayed entry lighting to work. Immediately after all the doors have been closed, the delayed entry lighting feature will continue to work until one of the following occurs: •...
  • Page 187: Reading Lamps

    Reading Lamps The vehicle has reading lamps that also act as the dome lamp. Press the button to turn them on and off. Electric Power Management The vehicle has Electric Power Management (EPM) that estimates the battery’s temperature and state of charge. It then adjusts the voltage for best performance and extended life of the battery.
  • Page 188: Battery Run-Down Protection

    Battery Run-Down Protection This vehicle has a feature to help prevent the battery from being drained, if the interior courtesy lamps, reading/map lamps, visor vanity lamps or trunk lamp are accidentally left on. If any of these lamps are left on, they will automatically turn off after 10 minutes, if the ignition is off.
  • Page 189 CAUTION: The Ultrasonic Rear Park Assist (URPA) system does not replace driver vision. URPA does not: • Operate above speeds of 5 mph (8 km/h). • Detect objects more than 8 feet (2.5 meters) behind the vehicle. This distance may be less during warmer or humid weather.
  • Page 190: How The System Works

    How the System Works When the shift lever is moved into REVERSE (R), the rear display will briefly come on to let you know the display is operating correctly. URPA comes on automatically when the shift lever is moved into REVERSE (R). The system does not work at a reverse speed greater than 5 mph (8 km/h).
  • Page 191 light will come on the URPA display when the shift lever is moved into REVERSE (R). This occurs under the following conditions: • The parking brake pedal is depressed. • A trailer was attached to your vehicle, or a bicycle or an object was hanging out of your trunk during your last drive when you turned off the vehicle.
  • Page 192: Accessory Power Outlet(S)

    Accessory Power Outlet(s) The accessory power outlets can be used to connect electrical equipment such as a cellular phone or CB radio. Your vehicle may have four accessory power outlets. They are located on the instrument panel below the climate controls, inside the front center console storage bin, at the rear of the center console, and in the rear cargo area.
  • Page 193: Power Outlet 115 Volt Alternating Current

    Power Outlet 115 Volt Alternating Current Your vehicle may have a power outlet that can be used to plug in auxiliary electrical equipment with a maximum limit of 150 watts. If you try to use equipment that requires more than the limit, a protection circuit will cut the power supply.
  • Page 194: Climate Controls

    Climate Controls Climate Control System With this system you can control the heating, cooling, defrost, defog, and ventilation of the vehicle. Manual Operation (Fan): Turn the left knob clockwise or counterclockwise to increase or decrease the fan speed. Turn the knob all the way counterclockwise to turn the front system off.
  • Page 195 (Floor): This mode directs most of the air to the floor outlets, with some of the air directed to the windshield, side window outlets, and second row floor outlets. In this mode, the system automatically selects outside air. Recirculation cannot be selected when in Floor Mode. The right knob can also be used to select defog or defrost mode.
  • Page 196: Defogging And Defrosting

    (Air Conditioning): Press this button on the left knob to turn the air conditioning system on or off. When A/C is pressed, an indicator light comes on to show that the air conditioning has been activated. The air conditioning compressor does not operate when outside temperatures fall below 40°F (4°C).
  • Page 197: Rear Window Defogger

    (Defog): The defog mode is used to clear the windows of fog or moisture and warm the passengers. This mode directs air to the windshield, floor outlets, and side window vents. When you select this mode, the system turns off recirculation and runs the air conditioning compressor unless the outside temperature is less than 40°F (4°C).
  • Page 198: Dual Automatic Climate Control System

    Dual Automatic Climate Control System With this system, you can control the heating, cooling, and ventilation in your vehicle. Your vehicle also has a flow-through ventilation system described later in this section. You can select different temperature settings for the driver and all passengers. Display Function Each time the temperature, mode, or fan control buttons are pressed the display shows that...
  • Page 199 Passenger’s Side Temperature Control The passenger’s temperature buttons can be used to change the temperature of the air coming through the system on the passenger side of the vehicle. The temperature can be adjusted even if the system is turned off. This is possible since outside air will always flow through the system as the vehicle is moving forward unless it is set to recirculation mode.
  • Page 200 2. Set the driver’s and passenger’s temperature. To find your comfort setting, start with a 73°F (22.5°C) temperature setting and allow about 20 minutes for the system to regulate. Use the driver’s or passenger’s temperature buttons to adjust the temperature setting as necessary.
  • Page 201 Manual Operation The air delivery mode or fan speed can be manually adjusted. (Fan): The buttons with the fan symbols let you manually adjust the fan speed. Press the up arrow to increase fan speed and the down arrow to decrease fan speed.
  • Page 202: Air Conditioning

    The recirculation mode cannot be used with floor, defrost, or defogging modes. If you try to select recirculation in one of those modes, the indicator flashes three times and turns off. The air conditioning compressor also comes on when this mode is activated.
  • Page 203 Sensors The solar sensor, located in the defrost grille in the middle of the instrument panel, monitors the solar radiation. Do not cover the solar sensor or the system will not work properly. The interior temperature sensor located on the instrument panel to the right of the steering column, measures the temperature of the air inside the vehicle.
  • Page 204 The climate control system uses the information from these sensors to maintain your comfort setting by adjusting the outlet temperature, fan speed, and the air delivery mode. The system may also supply cooler air to the side of the vehicle facing the sun.
  • Page 205: Outlet Adjustment

    Rear Window Defogger The rear window defogger uses a warming grid to remove fog from the rear window. < (Rear Window Defogger): Press this button to turn the rear window defogger on or off. The rear window defogger stays on for about 10 minutes after the button is pressed, before turning off.
  • Page 206: Rear Air Conditioning And

    Rear Air Conditioning and Heating System If your vehicle has this system, the rear controls are three knobs located on the rear of the center console. The system can be controlled from the front controls as well as the rear controls. To turn the system on, press the AUX button on the front climate control system, an indicator will be lit.
  • Page 207: Rear Air Conditioning And Heating System And Electronic Climate Controls

    Mode Knob The right knob on the control panel lets you choose the direction of the air flow. (Vent): This setting directs the air through the headliner outlets. (Bi-Level): This setting directs the air through the rear floor outlets under the third row seat, as well as the headliner outlets.
  • Page 208 Rear Climate Control with Rear Seat Audio Controls Manual Operation (Fan): The fan buttons on the rear seat audio control panel let you manually adjust the fan speed. Press to increase airflow and to decrease airflow. +/− (Increase/Decrease Temperature): These buttons select the temperature of the air flowing into the rear passenger area.
  • Page 209: Warning Lights, Gages, And Indicators

    Warning Lights, Gages, and Indicators This part describes the warning lights and gages on your vehicle. The pictures help to locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement. Paying attention to the warning lights and gages could also save you or others from injury.
  • Page 210: Instrument Panel Cluster

    Instrument Panel Cluster The instrument cluster is designed to let you know at a glance how the vehicle is running. You will know how fast you are going, about how much fuel you have used, and many other things you will need to know to drive safely and economically.
  • Page 211: Speedometer And Odometer

    Speedometer and Odometer The speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). The odometer shows how far your vehicle has been driven, in either miles or kilometers. Your vehicle has a tamper-resistant odometer. If your vehicle needs a new odometer installed, the new one will be set to the mileage total of the old odometer.
  • Page 212: Passenger Safety Belt Reminder Light

    Passenger Safety Belt Reminder Light Several seconds after the key is turned to ON or START, a chime will sound for several seconds to remind the front passenger to buckle their safety belt. This would only occur if the passenger airbag is enabled.
  • Page 213 If the airbag readiness light stays on after you start the vehicle or comes on when you are driving, your airbag system may not work properly. Have your vehicle serviced right away. CAUTION: If the airbag readiness light stays on after you start your vehicle, it means the airbag system may not be working properly.
  • Page 214: Passenger Airbag Status Indicator

    Passenger Airbag Status Indicator Your vehicle has the passenger sensing system. Your instrument panel has a passenger airbag status indicator. United States When you start the vehicle, the passenger airbag status indicator will light ON and OFF, or the symbol for on and off, for several seconds as a system check.
  • Page 215 CAUTION: Even though the passenger sensing system is designed to turn off the right front passenger’s frontal airbag and seat-mounted side impact airbag (if equipped) if the system detects a rear-facing child restraint, no system is fail-safe, and no one can guarantee that an airbag will not deploy under some unusual circumstance, even though it is turned off.
  • Page 216: Charging System Light

    Charging System Light The charging system light will come on briefly when you turn on the ignition, but the engine is not running, as a check to show you it is working. It should go out once the engine is running. If it stays on, or comes on while you are driving, you may have a problem with the charging system.
  • Page 217: Brake System Warning Light

    Readings in the low warning zone may occur when a large number of electrical accessories are operating in the vehicle and the engine is left idling for an extended period. If there is a problem with the battery charging system, a SERVICE BATTERY CHARGING SYSTEM message will appear in the Driver Information Center (DIC) and/or the charging system light will come on.
  • Page 218: Antilock Brake System Warning Light

    When the ignition is on, the brake system warning light will also come on when you set your parking brake. The light will stay on if your parking brake does not release fully. If it stays on after your parking brake is fully released, it means you have a brake problem.
  • Page 219: Stabilitrak Indicator Light

    Turn the ignition off. Then start the engine again to reset the system. If the light still stays on, or comes on again while you are driving, your vehicle needs service. If the regular brake system warning light is not on, you still have brakes, but you do not have antilock brakes.
  • Page 220: Engine Coolant Temperature Warning Light

    Engine Coolant Temperature Warning Light The engine coolant temperature warning light will come on when the engine has overheated. If this happens you should pull over and turn off the engine as soon as possible. See Engine Overheating on page 400 for more information. Notice: Driving with the engine coolant temperature warning light on could cause your vehicle to overheat.
  • Page 221: Tire Pressure Light

    Tire Pressure Light This light comes on briefly when you turn the ignition to ON. It will also come on when one or more of your tires are significantly underinflated. A CHECK TIRE PRESSURE Driver Information Center (DIC) message will accompany the light.
  • Page 222: Malfunction Indicator Lamp

    Malfunction Indicator Lamp Check Engine Light Your vehicle has a computer which monitors operation of the fuel, ignition, and emission control systems. This system is called OBD II (On-Board Diagnostics-Second Generation) and is intended to make sure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
  • Page 223: If The Light Is Flashing

    This light should come on, as a check to show you it is working, when the ignition is on and the engine is not running. If the light does not come on, have it repaired. This light will also come on during a malfunction in one of two ways: •...
  • Page 224: If The Light Is On Steady

    If the Light Is On Steady You might be able to correct the emission system malfunction by considering the following: Did you recently put fuel into your vehicle? If so, reinstall the fuel cap, making sure to fully install the cap. See Filling the Tank on page 381. The diagnostic system can determine if the fuel cap has been left off or improperly installed.
  • Page 225: Emissions Inspection And Maintenance Programs

    Emissions Inspection and Maintenance Programs Some state/provincial and local governments have or might begin programs to inspect the emission control equipment on your vehicle. Failure to pass this inspection could prevent you from getting a vehicle registration. Here are some things you need to know to help your vehicle pass an inspection: Your vehicle will not pass this inspection if the check engine light is on or not working properly.
  • Page 226: Security Light

    The light comes on when you turn your key to ON or START. It goes off once you start your engine. That is a check to be sure the light works. If it does not come on, be sure to have it fixed so it will be there to warn you if something goes wrong.
  • Page 227: Highbeam On Light

    Highbeam On Light This light comes on when the high-beam headlamps are in use. See Headlamp High/Low-Beam Changer on page 175 for more information. Tow/Haul Mode Light This light comes on when the Tow/Haul mode has been activated. For more information, see Tow/Haul Mode on page 132.
  • Page 228: Driver Information Center (Dic)

    Here are some situations you may experience with your fuel gage. None of these indicate a problem with the fuel gage. • At the gas station, the fuel pump shuts off before the gage reads full. • It takes a little more or less fuel to fill up than the fuel gage indicated.
  • Page 229: Dic Operation And Displays (With Dic Buttons)

    DIC Operation and Displays (With DIC Buttons) If your vehicle has DIC buttons, the information below explains the operation of this system. The DIC has different displays which can be accessed by pressing the DIC buttons located on the instrument panel. See Instrument Panel Overview on page 170 for more information.
  • Page 230 (Vehicle Information): Press this button to display the oil life, park assist on vehicles with this feature, units, tire pressure readings, Tire Pressure Monitor (TPM) system programming, and Remote Keyless Entry (RKE) transmitter programming. (Trip/Fuel): Press this button to display the odometer, trip odometers, fuel range, average economy, timer, fuel used, and average speed.
  • Page 231 PARK ASSIST If your vehicle has the Ultrasonic Rear Parking Assist (URPA) system, press the vehicle information button until PARK ASSIST displays. This display allows the system to be turned on or off. Once in this display, press the set/reset button to select between ON or OFF.
  • Page 232 RELEARN TIRE POSITIONS After rotating the tires or after replacing a tire or sensor, the Tire Pressure Monitor (TPM) system must re-learn the tire positions. To re-learn the tire positions, see Tire Pressure Monitor System on page 433. See Tire Inspection and Rotation on page 438 and DIC Warnings and Messages on page 239 for more information.
  • Page 233 TRIP A and TRIP B Press the trip/fuel button until TRIP A or TRIP B displays. This display shows the current distance traveled in either miles (mi) or kilometers (km) since the last reset for each trip odometer. Both trip odometers can be used at the same time. Pressing the trip odometer reset stem will also display the trip odometers.
  • Page 234 For example, if driving in traffic and making frequent stops, this display may read one number, but if the vehicle is driven on a freeway, the number may change even though the same amount of fuel is in the fuel tank. This is because different driving conditions produce different fuel economies.
  • Page 235: Dic Operation And Displays (Without Dic Buttons)

    AVG (Average) SPEED Press the trip/fuel button until AVG SPEED displays. This display shows the average speed of the vehicle in miles per hour (mph) or kilometers per hour (km/h). This average is calculated based on the various vehicle speeds recorded since the last reset of this value.
  • Page 236 TRIP A or TRIP B Press the trip odometer reset stem until TRIP A or TRIP B displays. This display shows the current distance traveled in either miles (mi) or kilometers (km) since the last reset for each trip odometer. Both trip odometers can be used at the same time.
  • Page 237 When the remaining oil life is low, the CHANGE ENGINE OIL SOON message will appear on the display. See “CHANGE ENGINE OIL SOON” under DIC Warnings and Messages on page 239. You should change the oil as soon as you can. See Engine Oil on page 387.
  • Page 238 RELEARN TIRE POSITIONS To access this display, the vehicle must be in PARK (P). After rotating the tires or after replacing a tire or sensor, the Tire Pressure Monitor (TPM) system must re-learn the tire positions. To re-learn the tire positions, see Tire Pressure Monitor System on page 433.
  • Page 239: Dic Warnings And Messages

    DISPLAY LANGUAGE To access this display, the vehicle must be in PARK (P). This display allows you to select the language in which the DIC messages will appear. To select a language, do the following: 1. Press the trip odometer reset stem until DISPLAY LANGUAGE, LANGUE AFFICHAGE (French), or MOSTRAR IDIOMA (Spanish) displays.
  • Page 240: Battery Saver Active

    ALL WHEEL DRIVE OFF If your vehicle has the All-Wheel Drive (AWD) system, this message displays when there is a compact spare tire on the vehicle, when the Anti-lock Brake System (ABS) warning light comes on, or when the rear differential fluid is overheating.
  • Page 241: Check Tire Pressure

    CHANGE ENGINE OIL SOON This message displays when the engine oil needs to be changed. When you change the engine oil, be sure to reset the CHANGE ENGINE OIL SOON message. See Engine Oil Life System on page 390 for information on how to reset the message.
  • Page 242 ENGINE HOT A/C (Air Conditioning) OFF This message displays when the engine coolant becomes hotter than the normal operating temperature. See Engine Coolant Temperature Gage on page 220. To avoid added strain on a hot engine, the air conditioning compressor automatically turns off.
  • Page 243: Engine Overheated Stop Engine

    ENGINE OVERHEATED STOP ENGINE Notice: If you drive your vehicle while the engine is overheating, severe engine damage may occur. If an overheat warning appears on the instrument panel cluster and/or DIC, stop the vehicle as soon as possible. See Engine Overheating on page 400 for more information.
  • Page 244: Oil Pressure Low Stop Engine

    HEATING WASH (Washer) FLUID WASH (Washer) WIPES PENDING If your vehicle has this feature, this message displays when you turn on the heated windshield washer fluid system. See “Heated Windshield Washer” under Windshield Washer on page 177 for more information. HOOD OPEN This message displays and a chime sounds if the hood is not fully closed.
  • Page 245 PARK ASSIST OFF If your vehicle has the Ultrasonic Rear Parking Assist (URPA) system, after the vehicle has been started and shifted out of PARK (P), this message displays to remind the driver that the URPA system has been turned off. Press the set/reset button or the trip odometer reset stem to acknowledge this message and clear it from the DIC display.
  • Page 246 SERVICE A/C (Air Conditioning) SYSTEM This message displays when the electronic sensors that control the air conditioning and heating systems are no longer working. Have the climate control system serviced by your dealer/retailer if you notice a drop in heating and air conditioning efficiency.
  • Page 247 SERVICE PARK ASSIST If your vehicle has the Ultrasonic Rear Parking Assist (URPA) system, this message displays if there is a problem with the URPA system. Do not use this system to help you park. See Ultrasonic Rear Parking Assist (URPA) on page 188 for more information.
  • Page 248 SERVICE TRACTION CONTROL This message displays when there is a problem with the Traction Control System (TCS). When this message is displayed, the system will not limit wheel spin. Adjust your driving accordingly. See your dealer/retailer for service. See ® StabiliTrak System on page 329 for more information.
  • Page 249: Traction Control Off

    TIRE LEARNING ACTIVE This message displays when the Tire Pressure Monitor (TPM) system is re-learning the tire positions on your vehicle. See DIC Operation and Displays (With DIC Buttons) on page 229 or DIC Operation and Displays (Without DIC Buttons) on page 235 for more information.
  • Page 250: Dic Vehicle Customization (With Dic Buttons)

    WASHER FLUID LOW ADD FLUID This message displays when the windshield washer fluid is low. Fill the windshield washer fluid reservoir as soon as possible. See Engine Compartment Overview on page 386 for the location of the windshield washer fluid reservoir. Also, see Windshield Washer Fluid on page 409 for more information.
  • Page 251 Feature Settings Menu Items The following are customization features that allow you to program settings to the vehicle: DISPLAY IN ENGLISH This feature will only display if a language other than English has been set. This feature allows you to change the language in which the DIC messages appear to English.
  • Page 252 AUTO DOOR LOCK This feature allows you to select when the vehicle’s doors will automatically lock. See Programmable Automatic Door Locks on page 107 for more information. Press the customization button until AUTO DOOR LOCK appears on the DIC display. Press the set/reset button once to access the settings for this feature.
  • Page 253 NO CHANGE: No change will be made to this feature. The current setting will remain. Choose one of the available settings and press the set/reset button while it is displayed on the DIC to select it. REMOTE DOOR LOCK This feature allows you to select the type of feedback you will receive when locking the vehicle with the Remote Keyless Entry (RKE) transmitter.
  • Page 254 Press the customization button until REMOTE DOOR UNLOCK appears on the DIC display. Press the set/reset button once to access the settings for this feature. Then press the customization button to scroll through the following settings: LIGHTS OFF: The exterior lamps will not flash when you press the unlock button on the RKE transmitter.
  • Page 255 EXIT LIGHTING This feature allows you to select the amount of time you want the exterior lamps to remain on when it is dark enough outside. This happens after the key is turned from ON to OFF. Press the customization button until EXIT LIGHTING appears on the DIC display.
  • Page 256 NO CHANGE: No change will be made to this feature. The current setting will remain. Choose one of the available settings and press the set/reset button while it is displayed on the DIC to select it. CHIME VOLUME This feature allows you to select the volume level of the chime.
  • Page 257 NO CHANGE: No change will be made to this feature. The current setting will remain. Choose one of the available settings and press the set/reset button while it is displayed on the DIC to select it. EASY EXIT SEAT If your vehicle has this feature, it allows you to select your preference for the automatic easy exit seat feature.
  • Page 258 ON: The driver’s seat and outside mirrors will automatically move to the stored driving position when the unlock button on the Remote Keyless Entry (RKE) transmitter is pressed. See “Relearn Remote Key” under DIC Operation and Displays (With DIC Buttons) on page 229 or DIC Operation and Displays (Without DIC Buttons) on page 235 for more information on matching transmitters to driver ID numbers.
  • Page 259 Press the customization button until FACTORY SETTINGS appears on the DIC display. Press the set/reset button once to access the settings for this feature. Then press the customization button to scroll through the following settings: RESTORE ALL (default): The customization features will be set to their factory default settings.
  • Page 260: Audio System(S)

    Audio System(s) Determine which radio your vehicle has and then read the pages following to familiarize yourself with its features. Driving without distraction is a necessity for a safer driving experience. See Defensive Driving on page 322. By taking a few moments to read this manual and get familiar with your vehicle’s audio system, you can use it with less effort, as well as take advantage of its features.
  • Page 261: Setting The Time

    Notice: Before adding any sound equipment to your vehicle, such as an audio system, CD player, CB radio, mobile telephone, or two-way radio, make sure that it can be added by checking with your dealer/retailer. Also, check federal rules covering mobile radio and telephone units.
  • Page 262 Changing the Time and Date Default Settings To change the time default setting from 12 hour to 24 hour or to change the date default setting from month/day/year to day/month/year, follow these instructions: 1. Press the clock button and then the pushbutton located under the forward arrow that is currently displayed on the radio screen until the time 12H (hour) and 24H (hour),...
  • Page 263: Radio With Cd

    Changing the Time and Date Default Settings To change the time default setting from 12 hour to 24 hour or to change the date default setting from month/day/year to day/month/year, follow these instructions: 1. Press the MENU button. Once the clock option displays, press the pushbutton located under the forward arrow that is currently displayed on the radio screen until...
  • Page 264: Xm™ Satellite Radio Service

    This system relies upon receiving specific information from these stations and only works when the information is available. While the radio is tuned to an FM-RDS station, the station name or call letters appear on the display. In rare cases, a radio station can broadcast incorrect information that causes the radio features to work improperly.
  • Page 265: Finding A Station

    4. Press the pushbutton under the desired Speed Compensated Volume setting (OFF, Low, Med, or High) to select the level of radio volume compensation. Press the pushbutton located below the BACK label on the MENU SETUP display or let the display time out after approximately 10 seconds.
  • Page 266 FAV (Favorites): A maximum of 36 stations can be programmed as favorites using the six pushbuttons positioned below the radio station frequency labels and by using the radio favorites page button (FAV button). Press the FAV button to go through up to six pages of favorites, each having six favorite stations available per page.
  • Page 267: Setting The Tone (Bass/Treble)

    Setting the Tone (Bass/Treble) BASS/MID/TREB (Bass, Midrange, or Treble): To adjust bass, midrange, or treble, press the tune knob until the tone control labels display. Continue pressing to highlight the desired label, or press the pushbutton positioned under the desired label. Turn the tune knob clockwise or counterclockwise to adjust the highlighted setting.
  • Page 268: Finding A Category (Cat) Station

    Finding a Category (CAT) Station CAT (Category): The CAT button is used to find XM™ stations when the radio is in the XM™ mode. To find XM™ channels within a desired category, perform the following: 1. Press the BAND button until the XM™ frequency displays.
  • Page 269: Radio Messages

    Radio Messages Calibration Error: The audio system has been calibrated for your vehicle from the factory. If Calibration Error displays, it means that the radio has not been configured properly for your vehicle and it must be returned to your dealer/retailer for service.
  • Page 270 When a CD is inserted, the CD symbol displays. As each new track starts to play, the track number displays. If playing a CD-R, the sound quality can be reduced due to CD-R quality, the method of recording, the quality of the music that has been recorded, and the way the CD-R has been handled.
  • Page 271 © ¨ SEEK : Press the left SEEK arrow to go to the start of the current track, if more than ten seconds on the CD have been played. Press the right SEEK arrow to go to the next track. If either SEEK arrow is held, or pressed multiple times, the player continues moving backward or forward through the tracks on the CD.
  • Page 272: Using The Auxiliary Input Jack

    Playing an MP3/WMA CD-R or CD-RW Disc If you have a radio with a six-disc CD player, it has the capability of playing an MP3/WMA CD-R or CD-RW disc. For more information on how to play an MP3/WMA CD-R or CD-RW disc, see “Using an MP3”...
  • Page 273: Radio With Cd And Dvd

    To use a portable audio player, connect a 3.5 mm (1/8 inch) cable to the radio’s front auxiliary input jack. When a device is connected, press the radio CD/AUX button to begin playing audio from the device over the vehicle speakers. (Power/Volume): Turn this knob clockwise or counterclockwise to increase or decrease the volume of the portable player.
  • Page 274 The DVD player is the top slot on the radio faceplate. The player is capable of reading the DTS programmed DVD Audio or DVD Video media (DTS and DTS Digital Surround are registered trademarks of Digital Theater Systems, Inc.). Manufactured under license from ®...
  • Page 275 Speed Compensated Volume (SCV): The radio has Speed Compensated Volume (SCV). When SCV is on, the radio volume automatically adjusts to compensate for road and wind noise as you speed up or slow down while driving. That way, the volume level should sound about the same as you drive.
  • Page 276 (Information) (XM™ Satellite Radio Service, MP3, and RDS Features): Press the information button to display additional text information related to the current FM-RDS or XM™ station, or MP3 song. A choice of additional information such as: Channel, Song, Artist, and CAT (category) can appear.
  • Page 277 3. Select the desired number of favorites pages by pressing the pushbutton located below the displayed page numbers. 4. Press the FAV button, or let the menu time out, to return to the original main radio screen showing the radio station frequency labels and to begin the process of programming your favorites for the chosen amount of numbered pages.
  • Page 278 To quickly adjust balance or fade to the middle position, press the pushbutton positioned under the BAL or FADE label for more than two seconds. A beep sounds and the level adjusts to the middle position. To quickly adjust both the balance and fade to the middle position at one time, press the tune knob for more than two seconds until a beep sounds.
  • Page 279 Removed categories can be restored by pressing the pushbutton under the Add label when a removed category is displayed or by pressing the pushbutton under the Restore All label. You cannot remove or add categories while the vehicle is moving faster than 5 mph (8 km/h). Radio Messages Calibration Error: The audio system has been calibrated for your vehicle from the factory.
  • Page 280 If playing a CD-R, the sound quality can be reduced due to CD-R quality, the method of recording, the quality of the music that has been recorded, and the way the CD-R has been handled. There can be an increase in skipping, difficulty in finding tracks, and/or difficulty in loading and ejecting.
  • Page 281 DVD (Eject): Press and release the DVD eject button to eject the CD that is currently playing in the top slot. You will hear a beep and Ejecting Disc will be displayed. Once the disc is ejected, Remove Disc will appear on display. The CD can be removed.
  • Page 282: Audio Output

    DVD/CD AUX (Auxiliary): Press this button to cycle through DVD, CD, or Auxiliary when listening to the radio. The DVD/CD text label and a message showing the track or chapter number displays when a disc is in either slot. Press this button again and the system automatically searches for an auxiliary input device, such as a portable audio player.
  • Page 283: Using The Dvd Player

    Playing an MP3/WMA CD-R or CD-RW Disc Your radio with CD and DVD has the capability of playing an MP3/WMA CD-R or CD-RW disc. For more information on how to play an MP3/WMA CD-R or CD-RW disc, see “Using an MP3” in the index.
  • Page 284 The DVD slot of the radio is compatible with most audio CDs, CD-R, CD-RW, DVD-Video, DVD-Audio, DVD-R/RW, DVD+R/RW media along with MP3 and WMA formats. If an error message appears on the video screen or the radio, see “DVD Display Error Messages” under, Rear Seat Entertainment System on page 305 and “DVD Radio Error Messages”...
  • Page 285 (Tune): Turn this knob to change tracks on a CD or DVD, to manually tune a radio station, or to change clock or date settings, while in the clock or date setting mode. See the information given earlier in this section specific to the radio, CD, and the DVD.
  • Page 286 The rear seat passenger can navigate the DVD-V menus and controls through the remote control. See “Remote Control”, under Rear Seat Entertainment System on page 305 for more information. The Video Screen automatically turns on when the DVD-V is inserted into the DVD slot. (Play/Pause): Press either the play or pause icon displayed on the radio system, to toggle between pausing or restarting playback...
  • Page 287 DVD-A (Audio) Display Buttons Once a DVD-A is inserted, radio display menu shows several tag options for DVD playing. Press the pushbuttons located under any desired tag option during DVD playback. See the tag options listed below for more information. The rear seat operator can navigate the DVD-A menus and controls through the remote control.
  • Page 288: Dvd Radio Error Messages

    Stopping and Resuming Playback To stop playing a DVD without turning off the system, press the stop button on the remote control, or press the pushbutton located under the stop or the play/pause symbol tags displayed on the radio. If the radio head is sourced to something other than DVD-V, press the DVD/CD AUX button to make DVD-V the active source.
  • Page 289 device such as an iPod, laptop computer, MP3 player, CD player, or cassette tape player, etc. to the auxiliary input jack for use as another source for audio listening. Drivers are encouraged to set up any auxiliary device while the vehicle is in PARK (P). See Defensive Driving on page 322 for more information on driver distraction.
  • Page 290: Using An Mp3 (Radio With Cd Or Six-Disc Cd Player)

    Using an MP3 (Radio with CD or Six-Disc CD Player) MP3/WMA CD-R or CD-RW Disc The radio plays MP3/WMA files that were recorded on a CD-R or CD-RW disc. The files can be recorded with the following fixed bit rates: 32 kbps, 40 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 160 kbps, 192 kbps, 224 kbps, 256 kbps, and 320 kbps or a variable...
  • Page 291 • Minimize the length of the file, folder, or playlist names. Long file, folder, or playlist names, or a combination of a large number of files and folders, or playlists can cause the player to be unable to play up to the maximum number of files, folders, playlists, or sessions.
  • Page 292 No Folder When the CD-R or CD-RW contains only compressed files, the files are located under the root folder. The next and previous folder function does not display on a CD-R or CD-RW that was recorded without folders or playlists. When the CD-R or CD-RW contains only playlists and compressed audio files, but no folders, all files are located under the root folder.
  • Page 293 Playing an MP3/WMA Insert a CD-R or CD-RW partway into the slot (Single CD Player), or press the load button and wait for the message to insert disc (Six-Disc CD Player), label side up. The player pulls it in, and the CD-R or CD-RW should begin playing. If the ignition or radio is turned off with a CD-R or CD-RW in the player, it stays in the player.
  • Page 294 EJECT: Press the CD eject button to eject CD-R(s) or CD-RW(s). To eject the CD-R or CD-RW that is currently playing, press and release this button. A beep sounds and Ejecting Disc displays. Once the disc is ejected, Remove Disc displays.
  • Page 295 • To play songs from all CDs loaded in a six-disc CD player in random order, press the pushbutton positioned under the RDM label until Randomize All Discs displays. Press the same pushbutton again to turn off random play. (Music Navigator): Use the music navigator feature to play MP3/WMA files on the CD-R or CD-RW in order by artist or album.
  • Page 296: Using An Mp3 (Radio With Cd And Dvd Player)

    BAND: Press this button to listen to the radio when a CD is playing. The CD remains inside the radio for future listening. CD/AUX (CD/Auxiliary): Press this button to play a CD when listening to the radio. The CD icon and a message showing disc and/or track number displays when a CD is in the player.
  • Page 297 • Create a folder structure that makes it easy to find songs while driving. Organize songs by albums using one folder for each album. Each folder or album should contain 18 songs or less. • Avoid subfolders. The system can support up to eight subfolders deep, however, keep the total number of folders to a minimum in order to reduce the complexity and confusion in trying to...
  • Page 298 No Folder When the CD-R or CD-RW contains only compressed files, the files are located under the root folder. The next and previous folder function does not function on a CD-R or CD-RW that was recorded without folders or playlists. When displaying the name of the folder the radio displays ROOT.
  • Page 299 Preprogrammed Playlists Preprogrammed playlists that were created using WinAmp™, MusicMatch™, or Real Jukebox™ software can be accessed, however, they cannot be edited using the radio. These playlists are treated as special folders containing compressed audio song files. Playing an MP3/WMA (In Either the DVD or CD Slot) Insert a CD-R or CD-RW partway into either the top or bottom slot, label side up.
  • Page 300 DVD (Eject): Press and release this button to eject the CD-R or CD-RW that is currently playing in the top slot. A sound is heard and Ejecting Disc displays. Once the disc is ejected, Remove Disc displays. The CD-R or CD-RW can be removed.
  • Page 301 RDM (Random): With the random setting, MP3/WMA files on the CD-R or CD-RW can be listened to in random, rather than sequential order. To play MP3/WMA files from the CD-R or CD-RW you are listening to in random order, press the pushbutton positioned under the RDM label until Random Current Disc displays.
  • Page 302 To exit music navigator mode, press the pushbutton below the Back label to return to normal MP3/WMA playback. BAND: Press this button to listen to the radio when a CD or a DVD is playing. The CD or DVD remains inside the radio for future listening or viewing entertainment.
  • Page 303: Xm Radio Messages

    XM Radio Messages Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. XM Updating Updating encryption code The encryption code in the receiver is being updated, and No XM Signal Loss of signal Loading XM Acquiring channel audio...
  • Page 304 Radio Display Message CAT Not Found No channel available for the chosen category XM Theftlocked Theft lock active XM Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Check XM Receivr Hardware failure XM Not Available XM™...
  • Page 305: Navigation/Radio System

    Navigation/Radio System Your vehicle may have a navigation radio system. The navigation system has built-in features intended to minimize driver distraction. Technology alone, no matter how advanced, can never replace your own judgment. See the Navigation System manual for some tips to help you reduce distractions while driving.
  • Page 306 Headphones The RSE includes two 2-channel wireless headphones that are dedicated to this system. These headphones are used to listen to media such as CDs, DVDs, MP3s, DVDAs, radio, any auxiliary source connected to A/V jacks, or the auxiliary input jack, if your vehicle has this feature.
  • Page 307 For optimal audio performance, the headphones must be worn correctly. The symbol L (Left) appears on the upper left side, above the ear pad and should be positioned on the left ear. The symbol R (Right) appears on the upper right side, above the ear pad and should be positioned on the right ear.
  • Page 308: Audio/Video (A/V) Jacks

    Audio/Video (A/V) Jacks The A/V jacks located on the rear of the floor console, allow audio or video signals to be connected from an auxiliary device such as a camcorder or a video game unit to the RSE system. Adapter connectors or cables may be required to connect the auxiliary device to the A/V jacks.
  • Page 309: Video Screen

    Audio Output Audio from the DVD player or auxiliary inputs can be heard through the following possible sources: • Wireless Headphones • Vehicle Speakers • Vehicle wired headphone jacks on the rear seat audio system, if your vehicle has this feature.
  • Page 310: Remote Control

    Remote Control To use the remote control, aim it at the transmitter window at the rear of the RSE overhead console and press the desired button. Direct sunlight or very bright light can affect the ability of the RSE transmitter to receive signals from the remote control.
  • Page 311 (Main Menu): Press this button to access the DVD menu. The DVD menu is different on every DVD. Use the up, down, left, and right arrow buttons to move the cursor around the DVD menu. After making a selection, press the enter button. This button only operates when using a DVD.
  • Page 312 (Fast Reverse): Press this button to fast reverse the DVD or CD. To stop fast reversing a DVD video, press the play button. To stop fast reversing a DVD audio or CD, release the fast reverse button. This button might not work when the DVD is playing the copyright information or the previews.
  • Page 313 Battery Replacement To change the remote control batteries, do the following: 1. Remove the battery compartment door located on the bottom of the remote control. 2. Replace the two AA batteries in the compartment. Make sure that they are installed correctly, using the diagram on the inside of the battery compartment.
  • Page 314: Dvd Display Error Messages

    Problem Recommended Action Sometimes the wireless Check for obstructions, headphone audio cuts out low batteries, reception or buzzes. range, and interference from cellular telephone towers or by using your cellular telephone in the vehicle. Check that the headphones are on correctly using the L (left) and R (right) on the headphones.
  • Page 315: Dvd Distortion

    DVD Distortion Video distortion may occur when operating cellular phones, scanners, CB radios, Global Position Systems (GPS)*, two-way radios, mobile fax, or walkie talkies. It may be necessary to turn off the DVD player when operating one of these devices in or near the vehicle.
  • Page 316 (Power): Press this button to turn the RSA on or off. Volume: Turn this knob to increase or to decrease the volume of the wired headphones. The left knob controls the left headphones and the right knob controls the right headphones. SRCE (Source): Press this button to switch between the radio (AM/FM), XM (if equipped), CD, and if your vehicle has these features, DVD,...
  • Page 317: Theft-Deterrent Feature

    PROG (Program): Press this button to go to the next preset radio station or channel set on the main radio. This function is inactive, with some radios, if the front seat passengers are listening to the radio. When a CD or DVD audio is playing, press this button to go to the beginning of the CD or DVD audio.
  • Page 318: Radio Reception

    (Mute/Voice Recognition): Press and release this button to silence the vehicle speakers only. The audio of the wireless and wired headphones, if your vehicle has these features, does not mute. Press and release this button again, to turn the sound on. If your vehicle has the navigation system, press and hold this button briefly to initiate voice recognition.
  • Page 319 The range for most AM stations is greater than for FM, especially at night. The longer range can cause station frequencies to interfere with each other. For better radio reception, most AM radio stations boosts the power levels during the day, and then reduce these levels during the night.
  • Page 320: Care Of Your Cds And Dvds

    Care of Your CDs and DVDs Handle CDs carefully. Store them in their original cases or other protective cases and away from direct sunlight and dust. The CD player scans the bottom surface of the disc. If the surface of a CD is damaged, such as cracked, broken, or scratched, the CD does not play properly or not at all.
  • Page 321: Driving Your Vehicle

    Section 4 Your Driving, the Road, and Your Vehicle ... 322 Defensive Driving ... 322 Drunken Driving ... 323 Control of a Vehicle ... 326 Braking ... 326 Antilock Brake System (ABS) ... 327 Braking in Emergencies ... 329 ® StabiliTrak System ...
  • Page 322: Your Driving, The Road, And Your Vehicle

    Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 24. CAUTION: Defensive driving really means “Be ready for anything.”...
  • Page 323: Drunken Driving

    Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It is the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: •...
  • Page 324 According to the American Medical Association, a 180 lb (82 kg) person who drinks three 12 ounce (355 ml) bottles of beer in an hour will end up with a BAC of about 0.06 percent. The person would reach the same BAC by drinking three 4 ounce (120 ml) glasses of wine or three mixed drinks if each had 1-1/2 ounces (45 ml) of liquors like whiskey, gin, or vodka.
  • Page 325 But the ability to drive is affected well below a BAC of 0.10 percent. Research shows that the driving skills of many people are impaired at a BAC approaching 0.05 percent, and that the effects are worse at night. All drivers are impaired at BAC levels above 0.05 percent.
  • Page 326: Control Of A Vehicle

    Control of a Vehicle The following three systems help to control your vehicle while driving — brakes, steering, and accelerator. At times, as when driving on snow or ice, it is easy to ask more of those control systems than the tires and road can provide. Meaning, you can lose control of your vehicle.
  • Page 327: Antilock Brake System (Abs)

    Avoid needless heavy braking. Some people drive in spurts — heavy acceleration followed by heavy braking — rather than keeping pace with traffic. This is a mistake. The brakes might not have time to cool between hard stops. The brakes will wear out much faster if you do a lot of heavy braking.
  • Page 328 Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking. Here is what happens with ABS: A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each wheel.
  • Page 329: Braking In Emergencies

    Remember: ABS does not change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you will not have time to apply the brakes if that vehicle suddenly slows or stops.
  • Page 330 If any of these messages still appear on the Driver Information Center (DIC), your vehicle should be taken in for service. For more information on the DIC messages, see Driver Information Center (DIC) on page 228. The StabiliTrak will flash on the instrument panel cluster when the system is both on and activated.
  • Page 331: Traction Control Operation

    Traction Control Operation The traction control system is part of the ® StabiliTrak system. Traction control limits wheel spin by reducing engine power to the wheels (engine speed management) and by applying brakes to each individual wheel (brake-traction control) as necessary. The traction control system is enabled automatically when you start your vehicle.
  • Page 332: Power Steering

    All-Wheel Drive (AWD) System If your vehicle has this feature, engine power is sent to all four wheels when extra traction is needed. This is like four-wheel drive, but there is no separate lever or switch to engage or disengage the front axle. It is fully automatic, and adjusts itself as needed for road conditions.
  • Page 333: Steering In Emergencies

    Adding the sudden acceleration can demand too much of those places. You can lose control. ® See StabiliTrak System on page 329. What should you do if this ever happens? Ease up on the accelerator pedal, steer the vehicle the way you want it to go, and slow down.
  • Page 334: Off-Road Recovery

    An emergency like this requires close attention and a quick decision. If you are holding the steering wheel at the recommended 9 and 3 o’clock positions, you can turn it a full 180 degrees very quickly without removing either hand. But you have to act fast, steer quickly, and just as quickly straighten the wheel once you have avoided the object.
  • Page 335: Passing

    Passing The driver of a vehicle about to pass another on a two-lane highway waits for just the right moment, accelerates, moves around the vehicle ahead, then goes back into the right lane again. A simple maneuver? Not necessarily! Passing another vehicle on a two-lane highway is a potentially dangerous move, since the passing vehicle occupies the same lane as oncoming traffic for several seconds.
  • Page 336: Loss Of Control

    • If other vehicles are lined up to pass a slow vehicle, wait your turn. But take care that someone is not trying to pass you as you pull out to pass the slow vehicle. Remember to glance over your shoulder and check the blind spot.
  • Page 337: Driving At Night

    A cornering skid is best handled by easing your foot off the accelerator pedal. If your vehicle starts to slide, ease your foot off the accelerator pedal and quickly steer the way you want the vehicle to go. If you start steering quickly enough, your vehicle may straighten out.
  • Page 338 No one can see as well at night as in the daytime. But as we get older these differences increase. A 50-year-old driver might require at least twice as much light to see the same thing at night as a 20-year-old.
  • Page 339: Driving In Rain And On Wet Roads

    Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you cannot stop, accelerate, or turn as well because your vehicle’s tire-to-road traction is not as good as on dry roads. And, if the tires do not have much tread left, you get even less traction.
  • Page 340 CAUTION: Wet brakes can cause accidents. They may not work as well in a quick stop and may cause pulling to one side. You could lose control of the vehicle. After driving through a large puddle of water or a car wash, apply the brake pedal lightly until the brakes work normally.
  • Page 341: Driving Through Deep Standing Water

    Driving Through Deep Standing Water Notice: If you drive too quickly through deep puddles or standing water, water can come in through the engine’s air intake and badly damage the engine. Never drive through water that is slightly lower than the underbody of your vehicle.
  • Page 342: City Driving

    City Driving One of the biggest problems with city streets is the amount of traffic on them. Watch out for what the other drivers are doing and pay attention to traffic signals. Here are ways to increase your safety in city driving: •...
  • Page 343: Before Leaving On A Long Trip

    Before changing lanes, check the mirrors. Then, use the turn signal. Just before you leave the lane, glance quickly over your shoulder to make sure there is not another vehicle in your blind spot. Once you are moving on the freeway, make sure you allow a reasonable following distance.
  • Page 344: Highway Hypnosis

    Here are some things you can check before a trip: • Windshield Washer Fluid: Is the reservoir full? Are all windows clean inside and outside? • Wiper Blades: Are they in good shape? • Fuel, Engine Oil, Other Fluids: Have you checked all levels? •...
  • Page 345: Hill And Mountain Roads

    Then here are some tips: • Make sure your vehicle is well ventilated, with a comfortably cool interior. • Keep your eyes moving. Scan the road ahead and to the sides. Check your vehicle’s mirrors and instruments frequently. • If you get sleepy, pull off the road into a rest, service, or parking area and take a nap, get some exercise, or both.
  • Page 346 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable. • Keep your vehicle in good shape. Check all fluid levels and also the brakes, tires, cooling system, and transmission.
  • Page 347: Winter Driving

    • Stay in your own lane when driving on two-lane roads in hills or mountains. Do not swing wide or cut across the center of the road. Drive at speeds that let you stay in your own lane. • As you go over the top of a hill, be alert. There could be something in your lane, like a stalled car or an accident.
  • Page 348: Driving On Snow Or Ice

    Driving on Snow or Ice Most of the time, those places where the tires meet the road probably have good traction. However, if there is snow or ice between the tires and the road, you can have a very slippery situation.
  • Page 349 Whatever the condition — smooth ice, packed, blowing, or loose snow — drive with caution. ® StabiliTrak improves your ability to accelerate when driving on a slippery road. Even with ® StabiliTrak , slow down and adjust your driving to the road conditions.
  • Page 350: If You Are Caught In A Blizzard

    If You Are Caught in a Blizzard If you are stopped by heavy snow, you could be in a serious situation. You should probably stay with your vehicle unless you know for sure that you are near help and you can hike through the snow.
  • Page 351 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle. Clear away snow from around the base of your vehicle, especially any that is blocking the exhaust pipe.
  • Page 352: If Your Vehicle Is Stuck In Sand, Mud, Ice, Or Snow

    If Your Vehicle is Stuck in Sand, Mud, Ice, or Snow In order to free your vehicle when it is stuck, you need to spin the wheels, but you do not want to spin the wheels too fast. The method known as rocking can help you get out when you are stuck, but you must use caution.
  • Page 353: Loading Your Vehicle

    Loading Your Vehicle It is very important to know how much weight your vehicle can carry. This weight is called the vehicle capacity weight and includes the weight of all occupants, cargo, and all nonfactory-installed options. Two labels on your vehicle show how much weight it may properly carry, the Tire and Loading Information label and the Certification/Tire label.
  • Page 354 The Tire and Loading Information label also shows the size of the original equipment tires (C) and the recommended cold tire inflation pressures (D). For more information on tires and inflation see Tires on page 425 and Inflation - Tire Pressure on page 432.
  • Page 355 Example 1 Item Description Vehicle Capacity Weight for Example 1 = Subtract Occupant Weight 150 lbs (68 kg) × 2 = Available Occupant and Cargo Weight = Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs (317 kg) Example 2 Description Vehicle Capacity Weight...
  • Page 356 Example 3 Item Description Vehicle Capacity Weight for Example 3 = Subtract Occupant Weight 200 lbs (91 kg) × 5 = Available Cargo Weight = Refer to your vehicle’s tire and loading information label for specific information about your vehicle’s capacity weight and seating positions.
  • Page 357 To find out the actual loads on your front and rear axles, you need to go to a weigh station and weigh your vehicle. Your dealer/retailer can help you with this. Be sure to spread out your load equally on both sides of the centerline. Never exceed the GVWR for your vehicle or the Rating GAWR for either the front or rear axle.
  • Page 358: Towing

    Towing Towing Your Vehicle Consult your dealer/retailer or a professional towing service if you need to have your disabled vehicle towed. See Roadside Assistance Program on page 509. If you want to tow your vehicle behind another vehicle for recreational purposes (such as behind a motorhome), see “Recreational Vehicle Towing”...
  • Page 359: Dinghy Towing

    Dinghy Towing If you have a front-wheel-drive vehicle, it can be dinghy towed from the front. These vehicles may also be towed by putting the front wheels on a dolly. See “Dolly Towing” later in this section. If you have an all-wheel-drive vehicle, it can be dinghy towed from the front.
  • Page 360: Dolly Towing (All-Wheel-Drive Vehicles)

    6. Shift your transmission to NEUTRAL (N). 7. Release the parking brake. Notice: If you tow your vehicle without performing each of the steps listed under “Dinghy Towing,” you could damage the automatic transmission. Be sure to follow all steps of the dinghy towing procedure prior to and after towing your vehicle.
  • Page 361: Towing Your Vehicle From The Rear

    Dolly Towing (Front-Wheel-Drive Vehicles Only) To tow your front-wheel-drive vehicle from the front with two wheels on the ground: 1. Put the front wheels on a dolly. 2. Move the shift lever to PARK (P). 3. Set the parking brake and then remove the key. 4.
  • Page 362: Towing A Trailer

    Towing a Trailer CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all. You and your passengers could be seriously injured.
  • Page 363 If You Do Decide to Pull a Trailer If you do, here are some important points: • There are many different laws, including speed limit restrictions, having to do with trailering. Make sure your rig will be legal, not only where you live but also where you’ll be driving.
  • Page 364 Tow/Haul Mode Tow/Haul is a feature that assists when pulling a heavy trailer or a large or heavy load. The purpose of the Tow/Haul mode is to: • Reduce the frequency and improve the predictability of transmission shifts when pulling a heavy trailer or a large or heavy load. •...
  • Page 365: Weight Of The Trailer

    Tow/Haul is designed to be most effective when the vehicle and trailer combined weight is at least 75 percent of the vehicle’s Gross Combined Weight Rating (GCWR). See Weight of the Trailer later in this section. Tow/Haul is most useful under the following driving conditions: •...
  • Page 366: Weight Of The Trailer Tongue

    Look in the following chart to find the maximum trailer weight for your vehicle. Maximum Package Trailer Weight Front-Wheel 4,500 lbs Drive (2 041 kg) 4,500 lbs All-Wheel Drive (2 041 kg) *The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded vehicle and trailer including any passengers, cargo, equipment and conversions.
  • Page 367 If you’re using a weight-carrying hitch or a weight-distributing hitch, the trailer tongue (A) should weigh 10-15 percent of the total loaded trailer weight (B). After you’ve loaded your trailer, weigh the trailer and then the tongue, separately, to see if the weights are proper.
  • Page 368: Total Weight On Your Vehicle's Tires

    But let’s say your specific vehicle is equipped with some of the latest options and you have a front seat passenger and two rear seat passengers with some luggage and gear in the vehicle as well. You may add 300 lbs (136 kg) to the front axle weight and 400 lbs (181 kg) to the rear axle weight.
  • Page 369: Safety Chains

    Hitches It’s important to have the correct hitch equipment. Crosswinds, large trucks going by and rough roads are a few reasons why you’ll need the right hitch. Here are some rules to follow: • The rear bumper on your vehicle is not intended for hitches.
  • Page 370: Driving With A Trailer

    Driving with a Trailer Towing a trailer requires a certain amount of experience. Before setting out for the open road, you’ll want to get to know your rig. Acquaint yourself with the feel of handling and braking with the added weight of the trailer. And always keep in mind that the vehicle you are driving is now a good deal longer and not nearly as responsive as your vehicle is by itself.
  • Page 371: Making Turns

    Making Turns Notice: Making very sharp turns while trailering could cause the trailer to come in contact with the vehicle. Your vehicle could be damaged. Avoid making very sharp turns while trailering. When you’re turning with a trailer, make wider turns than normal.
  • Page 372: Parking On Hills

    Parking on Hills CAUTION: You really should not park your vehicle, with a trailer attached, on a hill. If something goes wrong, your rig could start to move. People can be injured, and both your vehicle and the trailer can be damaged.
  • Page 373: Maintenance When Trailer Towing

    Maintenance When Trailer Towing Your vehicle will need service more often when you’re pulling a trailer. See Scheduled Maintenance on page 488 for more information. Things that are especially important in trailer operation are automatic transmission fluid (don’t overfill), engine oil, axle lubricant, drive belt, cooling system and brake system.
  • Page 374: Engine Cooling When Trailer Towing

    The seven-wire harness contains the following trailer circuits: • Yellow: Left Stop/Turn Signal • Dark Green: Right Stop/Turn Signal • Brown: Taillamps • White: Ground • Light Green: Back-up Lamps • Red: Battery Feed* • Dark Blue: Trailer Brake* *The fuses for these two circuits are installed in the underhood electrical center, but the wires are not connected.
  • Page 375: Service And Appearance Care

    Section 5 Service ... 377 Accessories and Modifications ... 377 California Proposition 65 Warning ... 378 Doing Your Own Service Work ... 378 Adding Equipment to the Outside of Your Vehicle ... 379 Fuel ... 379 Gasoline Octane ... 379 Gasoline Specifications ...
  • Page 376 Section 5 Buying New Tires ... 440 Different Size Tires and Wheels ... 442 Uniform Tire Quality Grading ... 442 Wheel Alignment and Tire Balance ... 444 Wheel Replacement ... 444 Tire Chains ... 445 If a Tire Goes Flat ... 446 Changing a Flat Tire ...
  • Page 377: Service

    You will get genuine Saturn parts and Saturn-trained and supported service people. We hope you will want to keep your Saturn vehicle all Saturn. Genuine Saturn parts have one of these marks.
  • Page 378: California Proposition 65 Warning

    California Proposition 65 Warning Most motor vehicles, including this one, contain and/or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Engine exhaust, many parts and systems (including some inside the vehicle), many fluids, and some component wear by-products contain and/or emit these chemicals.
  • Page 379: Adding Equipment To The Outside Of Your Vehicle

    Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airflow around it. This can cause wind noise and can affect fuel economy and windshield washer performance. Check with your dealer/retailer before adding equipment to the outside of your vehicle.
  • Page 380: California Fuel

    California Fuel If your vehicle is certified to meet California Emissions Standards, it is designed to operate on fuels that meet California specifications. See the underhood emission control label. If this fuel is not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal specifications, but emission control system performance might be affected.
  • Page 381: Fuels In Foreign Countries

    Some gasolines that are not reformulated for low emissions can contain an octane-enhancing additive called methylcyclopentadienyl manganese tricarbonyl (MMT); ask the attendant where you buy gasoline whether the fuel contains MMT. We recommend against the use of such gasolines. Fuels containing MMT can reduce the life of spark plugs and the performance of the emission control system could be affected.
  • Page 382 To open the fuel door, push the rearward center edge in and release. The door will pop open. To remove the fuel cap, turn it slowly counterclockwise. The fuel cap has a spring in it; if the cap is released too soon, it will spring back to the right.
  • Page 383 CAUTION: Fuel can spray out on you if you open the fuel cap too quickly. If you spill fuel and then something ignites it, you could be badly burned. This spray can happen if your tank is nearly full, and is more likely in hot weather.
  • Page 384: Filling A Portable Fuel Container

    Filling a Portable Fuel Container CAUTION: Never fill a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
  • Page 385: Hood Release

    Hood Release To open the hood, do the following: 1. Pull the hood 2. At the front of the vehicle, pull up on the center of the hood, and push the secondary hood release to the right. 3. After you have partially lifted the hood, gas struts will automatically take over to lift and hold the hood in the fully open position.
  • Page 386: Engine Compartment Overview

    Engine Compartment Overview When you lift the hood, here is what you will see:...
  • Page 387: Engine Oil

    A. Radiator Pressure Cap (Out of View). See Radiator Pressure Cap on page 399. B. Engine Coolant Recovery Cap. See Cooling System on page 402. C. Underhood Fuse Block. See Underhood Fuse Block on page 479. D. Remote Positive (+) Terminal. See Jump Starting on page 414.
  • Page 388: When To Add Engine Oil

    When to Add Engine Oil If the oil is below the cross-hatched area at the tip of the dipstick, you need to add at least one quart/liter of oil. But you must use the right kind. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Specifications on page 483.
  • Page 389: What Kind Of Engine Oil To Use

    What Kind of Engine Oil to Use Look for three things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. Look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
  • Page 390: Engine Oil Additives

    If you are in an area of extreme cold, where the temperature falls below −20°F (−29°C), it is recommended that you use either an SAE 5W-30 synthetic oil or an SAE 0W-30 oil. Both provide easier cold starting and better protection for the engine at extremely low temperatures.
  • Page 391: How To Reset The Engine Oil Life System

    How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change the engine oil and filter based on vehicle use. Whenever the oil is changed, reset the system so it can calculate when the next oil change is required.
  • Page 392: What To Do With Used Oil

    What to Do with Used Oil Used engine oil contains certain elements that can be unhealthy for your skin and could even cause cancer. Do not let used oil stay on your skin for very long. Clean your skin and nails with soap and water, or a good hand cleaner.
  • Page 393: How To Inspect The Engine Air Cleaner/Filter

    How to Inspect the Engine Air Cleaner/Filter To inspect the air cleaner/filter, remove the filter from the vehicle and lightly shake the filter (away from vehicle) to release loose dust and dirt. If the filter remains caked with dirt, a new filter is required.
  • Page 394: How To Check Automatic Transmission Fluid

    Automatic Transmission Fluid When to Check and Change Automatic Transmission Fluid A good time to check the automatic transmission fluid level is when the engine oil is changed. Change the fluid at the intervals listed in Additional Required Services on page 491, and be sure to use the transmission fluid listed in Recommended Fluids and Lubricants on page 497.
  • Page 395 Checking the Fluid Level Prepare the vehicle as follows: 1. Park the vehicle on a level place. Keep the engine running. 2. With the parking brake applied, place the shift lever in PARK (P). 3. With your foot on the brake pedal, move the shift lever through each gear, pausing for about three seconds in each one.
  • Page 396: How To Add Automatic Transmission Fluid

    How to Add Automatic Transmission Fluid Refer to the Maintenance Schedule to determine what kind of transmission fluid to use. See Recommended Fluids and Lubricants on page 497. If the fluid level is low, add only enough of the proper fluid to bring the level into the crosshatched area on the dipstick.
  • Page 397 Notice: Using coolant other than DEX-COOL may cause premature engine, heater core, or radiator corrosion. In addition, the engine coolant may require changing sooner, at the first maintenance service after each 30,000 miles (50 000 km) or 24 months, whichever occurs first. Any repairs would not be covered by your warranty.
  • Page 398: Checking Coolant

    If coolant needs to be added more than four times a year, have your dealer/retailer check the cooling system. Notice: If you use extra inhibitors and/or additives in your vehicle’s cooling system, you could damage your vehicle. Use only the proper mixture of the engine coolant listed in this manual for the cooling system.
  • Page 399: Radiator Pressure Cap

    Adding Coolant If more coolant is needed, add the proper ® DEX-COOL coolant mixture at the coolant recovery tank, but be careful not to spill it. If the coolant recovery tank is completely empty, add coolant to the radiator. See Engine Overheating on page 400.
  • Page 400: Engine Overheating

    Engine Overheating There is an engine coolant temperature gage on your vehicle’s instrument panel. See Engine Coolant Temperature Gage on page 220. Your vehicle may also have an ENGINE OVERHEATED IDLE ENGINE and ENGINE OVERHEATED STOP ENGINE message displayed in the Driver Information Center (DIC). See DIC Warnings and Messages on page 239.
  • Page 401: If No Steam Is Coming From Your Engine

    If No Steam Is Coming From Your Engine If you get an engine overheat warning but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: • Climb a long hill on a hot day.
  • Page 402: Overheated Engine Protection Operating Mode

    Overheated Engine Protection Operating Mode This emergency operating mode lets your vehicle be driven to a safe place in an emergency situation. If an overheated engine condition exists, an overheat protection mode which alternates firing groups of cylinders helps prevent engine damage.
  • Page 403 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you. Keep hands, clothing, and tools away from any underhood electric fan. If the coolant inside the coolant recovery tank is boiling, do not do anything else until it cools down.
  • Page 404 If there seems to be no leak, with the engine on, check to see if the electric engine cooling fans are running. If the engine is overheating, both fans should be running. If they are not, your vehicle needs service. Notice: Engine damage from running your engine without coolant is not covered by your warranty.
  • Page 405 CAUTION: Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid such as alcohol, can boil before the proper coolant mixture will. Your vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, your engine could get too hot but you would not get the overheat warning.
  • Page 406 1. To remove the panel that covers the radiator cap, detach fasteners and lift off panel. 2. Remove the radiator pressure cap when the cooling system, including the upper radiator hose, is no longer hot. Turn the pressure cap slowly counterclockwise about one full turn. If you hear a hiss, wait for that to stop.
  • Page 407 5. Fill the coolant recovery tank to the FULL COLD mark. 6. Reinstall the cap on the coolant recovery tank, but leave the radiator pressure cap off. 7. Start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fan.
  • Page 408: When To Check Power Steering Fluid

    Power Steering Fluid The power steering fluid reservoir is located toward the front of the engine compartment on the passenger’s side of the vehicle. See Engine Compartment Overview on page 386 for reservoir location. When to Check Power Steering Fluid It is not necessary to regularly check power steering fluid unless you suspect there is a leak in the system or you hear an unusual noise.
  • Page 409: Windshield Washer Fluid

    Windshield Washer Fluid What to Use When adding windshield washer fluid, be sure to read the manufacturer’s instructions before use. If operating your vehicle in an area where the temperature may fall below freezing, use a fluid that has sufficient protection against freezing. Adding Washer Fluid When the windshield washer fluid reservoir is low, a WASHER FLUID LOW ADD FLUID message...
  • Page 410: Brakes

    Brakes Brake Fluid The brake master cylinder reservoir is filled with DOT-3 brake fluid. See Engine Compartment Overview on page 386 for the location of the reservoir. There are only two reasons why the brake fluid level in the reservoir might go down. The first is that the brake fluid goes down to an acceptable level during normal brake lining wear.
  • Page 411 What to Add When you need brake fluid, use only DOT-3 brake fluid. Use new brake fluid from a sealed container only. See Recommended Fluids and Lubricants on page 497. Always clean the brake fluid reservoir cap and the area around the cap before removing it. This helps keep dirt from entering the reservoir.
  • Page 412: Brake Wear

    Brake Wear Your vehicle has four-wheel disc brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound can come and go or be heard all the time your vehicle is moving, except when you are pushing on the brake pedal firmly.
  • Page 413: Replacing Brake System Parts

    Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top-quality brake parts.
  • Page 414: Vehicle Storage

    Vehicle Storage If you are not going to drive your vehicle for 25 days or more, remove the black, negative (−) cable from the battery. This will help keep the battery from running down. CAUTION: Batteries have acid that can burn you and gas that can explode.
  • Page 415 Notice: Ignoring these steps could result in costly damage to your vehicle that would not be covered by your warranty. Trying to start your vehicle by pushing or pulling it will not work, and it could damage your vehicle. 1. Check the other vehicle. It must have a 12-volt battery with a negative ground system.
  • Page 416 4. Open the hoods and locate the positive (+) and negative (−) terminal locations on the other vehicle. Your vehicle has a remote positive (+) and a remote negative (−) jump starting terminal. See Engine Compartment Overview on page 386 for more information on the terminal locations.
  • Page 417 CAUTION: Fans or other moving engine parts can injure you badly. Keep your hands away from moving parts once the engine is running. 5. Check that the jumper cables do not have loose or missing insulation. If they do, you could get a shock.
  • Page 418 8. Now connect the black negative (−) cable to the negative (−) terminal of the good battery. Use a remote negative (−) terminal if the vehicle has one. Do not let the other end touch anything until the next step. The other end of the negative (−) cable does not go to the dead battery.
  • Page 419 Jumper Cable Removal A. Heavy, Unpainted Metal Engine Part or Remote Negative (−) Terminal B. Good Battery or Remote Positive (+) and Remote Negative (−) Terminals C. Dead Battery or Remote Positive (+) Terminal To disconnect the jumper cables from both vehicles, do the following: 1.
  • Page 420: All-Wheel Drive

    All-Wheel Drive Be sure to perform the lubricant checks described in this section. There are two additional systems that need lubrication. Transfer Case When to Check Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant. See Scheduled Maintenance on page 488.
  • Page 421: Headlamp Aiming

    Rear Drive Module When to Check Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant. See Scheduled Maintenance on page 488. How to Check Lubricant (A) Filler Plug (B) Drain Plug To get an accurate reading, the vehicle should be on a level surface.
  • Page 422: Bulb Replacement

    Bulb Replacement For the proper type of replacement bulbs, see Replacement Bulbs on page 423. For any bulb changing procedure not listed in this section, contact your dealer/retailer. High Intensity Discharge (HID) Lighting CAUTION: The high beam and low beam high intensity discharge lighting system operates at a very high voltage.
  • Page 423: License Plate Lamp

    License Plate Lamp To replace one of these bulbs: 1. Remove the two screws holding each of the license plate lamps to the liftgate trim. 2. Turn and pull the license plate lamp forward through the lift gate trim opening. 3.
  • Page 424: Windshield Wiper Blade Replacement

    Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear or cracking. See Scheduled Maintenance on page 488 for more information. Replacement blades come in different types and are removed in different ways. To replace the wiper blade assembly, do the following: 1.
  • Page 425: Tires

    If you ever have questions about your tire warranty and where to obtain service, see your Saturn Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle.
  • Page 426: Tire Sidewall Labeling

    Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger (P-Metric) Tire Example (A) Tire Size: The tire size is a combination of letters and numbers used to define a particular tire’s width, height, aspect ratio, construction type, and service description.
  • Page 427 (F) Uniform Tire Quality Grading (UTQG): Tire manufacturers are required to grade tires based on three performance factors: treadwear, traction, and temperature resistance. For more information see Uniform Tire Quality Grading on page 442. (G) Maximum Cold Inflation Load Limit: Maximum load that can be carried and the maximum pressure needed to support that load.
  • Page 428 (E) Tire Inflation: The temporary use tire or compact spare tire should be inflated to 60 psi (420 kPa). For more information on tire pressure and inflation see Inflation - Tire Pressure on page 432. (F) Tire Size: A combination of letters and numbers define a tire’s width, height, aspect ratio, construction type, and service description.
  • Page 429: Tire Terminology And Definitions

    (D) Construction Code: A letter code is used to indicate the type of ply construction in the tire. The letter R means radial ply construction; the letter D means diagonal or bias ply construction; and the letter B means belted-bias ply construction.
  • Page 430 Curb Weight: The weight of a motor vehicle with standard and optional equipment including the maximum capacity of fuel, oil, and coolant, but without passengers and cargo. DOT Markings: A code molded into the sidewall of a tire signifying that the tire is in compliance with the U.S.
  • Page 431 Outward Facing Sidewall: The side of an asymmetrical tire that has a particular side that faces outward when mounted on a vehicle. The side of the tire that contains a whitewall, bears white lettering, or bears manufacturer, brand, and/or model name molding that is higher or deeper than the same moldings on the other sidewall of the tire.
  • Page 432: Inflation - Tire Pressure

    Vehicle Maximum Load on the Tire: Load on an individual tire due to curb weight, accessory weight, occupant weight, and cargo weight. Vehicle Placard: A label permanently attached to a vehicle showing the vehicle’s capacity weight and the original equipment tire size and recommended inflation pressure.
  • Page 433: When To Check

    When to Check Check your tires once a month or more. Do not forget to check the compact spare tire, it should be at 60 psi (420 kPa). For additional information regarding the compact spare tire, see Compact Spare Tire on page 463. How to Check Use a good quality pocket-type gage to check tire pressure.
  • Page 434 If your vehicle has the DIC feature, a message to check the pressure in a specific tire also appears on the DIC display. The low tire pressure warning symbol on the instrument panel cluster and the CHECK TIRE PRESSURE warning message on the DIC display appears at each ignition cycle until the tires are inflated to the correct inflation pressure.
  • Page 435 Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low tire pressure telltale.
  • Page 436 Resetting the TPMS Identification Codes Each TPMS sensor has a unique identification code. Any time you rotate your vehicle’s tires or replace one or more of the TPMS sensors, the identification codes need to be matched to the new tire/wheel position. The sensors are matched to the tire/wheel positions in the following order: driver side front tire, passenger side front tire, passenger side rear tire, and driver side...
  • Page 437 5. Start with the driver side front tire. The driver side front turn signal lamp is on. 6. Remove the valve cap from the valve stem. Activate the TPMS sensor by increasing or decreasing the tire’s air pressure for five seconds, or until a horn chirp sounds. The horn chirp, which may take up to 30 seconds to sound, confirms that the sensor identification code has been matched to this...
  • Page 438: Tire Inspection And Rotation

    Federal Communications Commission (FCC) and Industry and Science Canada The Tire Pressure Monitor System (TPMS) operates on a radio frequency and complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference.
  • Page 439 When rotating your tires, always use the correct rotation pattern shown here. Do not include the compact spare tire in your tire rotation. After the tires have been rotated, adjust the front and rear inflation pressures as shown on the Tire and Loading Information label.
  • Page 440: When It Is Time For New Tires

    When It Is Time for New Tires One way to tell when it is time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining.
  • Page 441 the TPC spec number will be followed by an MS for mud and snow. See Tire Sidewall Labeling on page 426 for additional information. CAUTION: Mixing tires could cause you to lose control while driving. If you mix tires of different sizes, brands, or types (radial and bias-belted tires), the vehicle may not handle properly, and you could have a...
  • Page 442: Different Size Tires And Wheels

    You may increase the chance that you will crash and suffer serious injury. Only use Saturn specific wheel and tire systems developed for your vehicle, and have them properly installed by a Saturn certified technician.
  • Page 443 While the tires available on General Motors passenger cars and light trucks may vary with respect to these grades, they must also conform to federal safety requirements and additional General Motors Tire Performance Criteria (TPC) standards. Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course.
  • Page 444: Wheel Alignment And Tire Balance

    If you need to replace any of your wheels, wheel bolts or wheel nuts, replace them only with new Saturn original equipment parts. This way, you will be sure to have the right wheel, wheel bolts and wheel nuts for your vehicle.
  • Page 445: Used Replacement Wheels

    It could fail suddenly and cause a crash. If you have to replace a wheel, use a new Saturn original equipment wheel. Tire Chains CAUTION: Do not use tire chains. There is not enough clearance.
  • Page 446: If A Tire Goes Flat

    If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly. But if you should ever have a blowout, here are a few tips about what to expect and what to do: If a front tire fails, the flat tire creates a drag that...
  • Page 447: Changing A Flat Tire

    Changing a Flat Tire If a tire goes flat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your vehicle’s hazard warning flashers. See Hazard Warning Flashers on page 172 for more information. CAUTION: Changing a tire can be dangerous.
  • Page 448: Removing The Spare Tire And Tools

    Removing the Spare Tire and Tools The tools needed to remove the spare tire are located in the storage compartment on the driver side, at the rear of the vehicle. 1. Open the jack storage compartment by squeezing down on the latch tab and pulling the cover off.
  • Page 449: Removing The Spare Tire

    Removing the Spare Tire The compact spare tire is located under the vehicle, in front of the rear bumper. See Compact Spare Tire on page 463 for more information about the compact spare. A. Rear D. Hoist Shaft Convenience E. Compact Center Spare Tire B.
  • Page 450 6. Turn the wrench clockwise to raise the cable back up after removing the spare tire. Do not store a full-size or a flat road tire under the vehicle. See Storing a Flat or Spare Tire and Tools on page 459. To continue changing the flat tire, see Removing the Flat Tire and Installing the Spare Tire on page 451.
  • Page 451: Removing The Flat Tire And Installing The Spare Tire

    Removing the Flat Tire and Installing the Spare Tire 1. Do a safety check before proceeding. See Changing a Flat Tire on page 447 for more information. 2. If the vehicle has a wheel cover, loosen the plastic nut caps with the wheel wrench. They will not come off.
  • Page 452 4. To identify the appropriate jacking location, find the triangle (A) about 12 inches (30.5 cm) from the front tire or (B) about 10.5 inches (27 cm) from the rear tire. The triangle is located near each wheel on the vehicle’s exterior.
  • Page 453 6. Attach the lug wrench to the jack, and turn the wrench clockwise to raise the jack head 3 inches (7.6 cm). 7. Place the jack under the vehicle as identified in Step 3. Raise the vehicle by turning the lug wrench clockwise in the jack.
  • Page 454 CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after time. The wheel could come off and cause an accident. When changing a wheel, remove any rust or dirt from the places where the wheel attaches to the vehicle.
  • Page 455 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new GM original equipment wheel nuts.
  • Page 456: Secondary Latch System

    Secondary Latch System Your vehicle has an underbody mounted tire hoist assembly equipped with a secondary latch system. It is designed to stop the compact spare tire from suddenly falling off your vehicle if the cable holding the spare tire is damaged. For the secondary latch to work, the tire must be stowed with the valve stem pointing down.
  • Page 457 All-Wheel-Drive Vehicle shown 2. Turn the folding wrench counterclockwise until approximately 6 inches (15 cm) of cable is exposed. Front-Wheel-Drive Vehicle shown 3. Attach the folding wrench to the jack and raise the jack at least 10 turns. 4. Place the jack under the vehicle, ahead of the rear bumper.
  • Page 458 6. Keep raising the jack until the spare tire stops moving upward and is held firmly in place. This lets you know that the secondary latch has released and the spare tire is balancing on the jack. 7. Lower the jack by turning the folding wrench counterclockwise.
  • Page 459: Storing A Flat Or Spare Tire And Tools

    Storing a Flat or Spare Tire and Tools Storing the Spare Tire CAUTION: The underbody-mounted spare tire needs to be stored with the valve stem pointing down. If the spare tire is stored with the valve stem pointing upwards, its secondary latch will not work properly and the spare tire could loosen and suddenly fall from your vehicle.
  • Page 460 4. Slide the cable retainer through the center of the wheel and start to raise the compact spare tire. Make sure the retainer is fully seated across the underside of the wheel. 5. When the compact spare tire is almost in the stored position, turn the tire so the valve is toward the rear of the vehicle.
  • Page 461 Storing the Flat Tire Notice: Storing the full-size flat tire in the underbody hoist system can expose it to heat from the exhaust system. This can damage the tire and underbody hoist system. Do not store the full-size flat tire in the underbody hoist system.
  • Page 462 6. Hook the other end 7. Pull on the cable to make sure it is secure. 8. Make sure the metal tube is centered at the striker. 9. Push the tube 10. Close the liftgate and make sure it is latched properly.
  • Page 463: Compact Spare Tire

    Put back all tools as they were stored in the jack storage compartment and put the compartment cover back on. 1. Make that the bottom of the jack is facing toward you. 2. Turn the jack (C) on its side and place it down on the holding bracket.
  • Page 464: Appearance Care

    And do not mix the compact spare tire or wheel with other wheels or tires. They will not fit. Keep the spare tire and its wheel together. The All-Wheel Drive (AWD) system will be automatically disabled when you use the compact spare.
  • Page 465: Fabric/Carpet

    Many cleaners contain solvents that may become concentrated in your vehicle’s breathing space. Before using cleaners, read and adhere to all safety instructions on the label. While cleaning your vehicle’s interior, maintain adequate ventilation by opening your vehicle’s doors and windows.
  • Page 466: Leather

    To clean, use the following instructions: 1. Saturate a lint-free, clean white cloth with water or club soda. 2. Wring the cloth to remove excess moisture. 3. Start on the outside edge of the soil and gently rub toward the center. Continue cleaning, using a clean area of the cloth each time it becomes soiled.
  • Page 467: Instrument Panel, Vinyl, And Other Plastic Surfaces

    Instrument Panel, Vinyl, and Other Plastic Surfaces A soft cloth dampened with water may be used to remove dust. If a more thorough cleaning is necessary, a clean soft cloth dampened with a mild soap solution can be used to gently remove dust and dirt.
  • Page 468: Washing Your Vehicle

    Washing Your Vehicle The paint finish on the vehicle provides beauty, depth of color, gloss retention, and durability. The best way to preserve the vehicle’s finish is to keep it clean by washing it often with lukewarm or cold water. Do not wash the vehicle in the direct rays of the sun.
  • Page 469: Windshield, Backglass, And Wiper Blades

    Foreign materials such as calcium chloride and other salts, ice melting agents, road oil and tar, tree sap, bird droppings, chemicals from industrial chimneys, etc., can damage your vehicle’s finish if they remain on painted surfaces. Wash the vehicle as soon as possible. If necessary, use non-abrasive cleaners that are marked safe for painted surfaces to remove foreign matter.
  • Page 470: Aluminum Or Chrome-Plated Wheels And Trim

    The repairs would not be covered by your warranty. Use only Saturn-approved cleaners on aluminum or chrome-plated wheels. The surface of these wheels is similar to the painted surface of your vehicle. Do not use strong...
  • Page 471: Tires

    Tires To clean the tires, use a stiff brush with tire cleaner. Notice: Using petroleum-based tire dressing products on your vehicle may damage the paint finish and/or tires. When applying a tire dressing, always wipe off any overspray from all painted surfaces on your vehicle. Sheet Metal Damage If the vehicle is damaged and requires sheet metal repair or replacement, make sure the body...
  • Page 472: Underbody Maintenance

    Underbody Maintenance Chemicals used for ice and snow removal and dust control can collect on the underbody. If these are not removed, corrosion and rust can develop on the underbody parts such as fuel lines, frame, floor pan, and exhaust system even though they have corrosion protection.
  • Page 473: Vehicle Care/Appearance Materials

    Vehicle Care/Appearance Materials Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Oil Removes tar, road oil, Remover and asphalt. Chrome Cleaner and Use on chrome or Polish stainless steel. White Sidewall Tire Removes soil and black Cleaner marks from whitewalls.
  • Page 474: Vehicle Identification

    Vehicle Identification Vehicle Identification Number (VIN) This is the legal identifier for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver side. You can see it if you look through the windshield from outside your vehicle.
  • Page 475: Electrical System

    Electrical System High Voltage Devices and Wiring CAUTION: Exposure to high voltage can cause shock, burns, and even death. The high voltage systems in your vehicle can only be serviced by technicians with special training. High voltage devices are identified by labels.
  • Page 476: Power Windows And Other Power Options

    Power Windows and Other Power Options Circuit breakers in the fuse panel protect the power windows and other power accessories. When the current load is too heavy, the circuit breaker opens and closes, protecting the circuit until the problem is fixed. Fuses and Circuit Breakers The wiring circuits in your vehicle are protected from short circuits by a combination of fuses,...
  • Page 477 Fuse Side Fuses Usage FRT/WSW Front Windshield Wiper SPARE Spare HTD/SEAT Front Heated Seats STR/WHL/ Steering Wheel Illumination ILLUM Memory Seat Module PWR/MIRRORS Power Mirrors DR/LCK Door Locks AIRBAG Airbag System LT/TRN/SIG Driver Side Turn Signal REAR WIPER Rear Window Wiper PassKey Module, Body Control PWR MOD Module...
  • Page 478 Fuses DRL 2** Not Used INFOTAINMENT Infotainment System Body Control Module SPARE Spare CTSY Dome Lamps INADV/ Interior Lamps PWR/LED ONSTR/VENT Emissions Audio Amplifier Harness Connector BODY Harness Connector Usage Usage Relay Side...
  • Page 479: Underhood Fuse Block

    Relays Usage LT/PWR/SEAT Driver Side Power Seat Relay RT/PWR/SEAT Passenger Side Power Seat Relay PWR/WNDW Power Windows Relay PWR/COLUMN Power Steering Column Relay L/GATE Liftgate Relay Power Lock Relay REAR/WSW Rear Window Washer Relay UNLCK Power Unlock Relay DRL2 Daytime Running Lamps 2 Relay LT/UNLCK Driver Side Unlock Relay Daytime Running Lamps Relay...
  • Page 480 To remove fuses, hold the end of the fuse between your thumb and index finger and pull straight out.
  • Page 481 Fuses Usage LT PRK Left Parking Lamp RT PRK Right Parking Lamp TRLR PRK Trailer Parking Lamps LAMP AIRBAG Airbag System PCM IGN Powertrain Control Module Ignition Adaptive Forward Lighting System TRANS Transmission REAR Rear Camera CAMERA EMISSION 1 Antilock Brakes System 2 TRLR BRK Trailer Brake All-Wheel-Drive System...
  • Page 482 J-Case Fuses FAN 2 Cooling Fan 2 PWR L/GATE Power Liftgate FAN 1 Cooling Fan 1 HVAC BLWR Climate Control System Blower STRTR Starter BATT 2 Battery 2 HTD WASH Heated Windshield Washer System BATT 1 Battery 1 BATT 3 Battery 3 ABS MTR Antilock Brake System Motor...
  • Page 483: Capacities And Specifications

    Capacities and Specifications The following approximate capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 497 for more information. Application Air Conditioning Refrigerant R134a Cooling System Engine Oil with Filter Fuel Tank Transmission Fluid Wheel Nut Torque All capacities are approximate.
  • Page 484 ✍ NOTES...
  • Page 485 Section 6 Maintenance Schedule ... 486 Introduction ... 486 Maintenance Requirements ... 486 Your Vehicle and the Environment ... 486 Using the Maintenance Schedule ... 486 Scheduled Maintenance ... 488 Additional Required Services ... 491 Maintenance Footnotes ... 492 Maintenance Schedule Owner Checks and Services ...
  • Page 486: Maintenance Schedule

    Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and recommended fluids and lubricants as prescribed in this manual are necessary to keep your vehicle in good working condition. Any damage caused by failure to follow scheduled maintenance might not be covered by warranty.
  • Page 487 Because of all the different ways people use their vehicles, maintenance needs vary. You might need more frequent checks and replacements. So please read the following and note how you drive. If you have any questions on how to keep your vehicle in good condition, see your dealer/retailer.
  • Page 488: Scheduled Maintenance

    If you want to purchase service information, see Service Publications Ordering Information on page 518. Owner Checks and Services on page 493 tells you what should be checked, when to check it, and what you can easily do to help keep your vehicle in good condition.
  • Page 489 When the CHANGE ENGINE OIL SOON message appears, certain services, checks, and inspections are required. Required services are described in the following for “Maintenance I” and “Maintenance II.” Generally, it is recommended that your first service be Maintenance I, your second service be Maintenance II, and that you alternate Maintenance I and Maintenance II thereafter.
  • Page 490 Check engine coolant and windshield washer fluid levels and add fluid as needed. Perform any needed additional services. See “Additional Required Services” in this section. Inspect suspension and steering components. See footnote (b). Inspect engine cooling system. See footnote (c). Inspect wiper blades.
  • Page 491: Additional Required Services

    Additional Required Services The following services should be performed at the first maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
  • Page 492: Maintenance Footnotes

    Maintenance Footnotes (a) Visually inspect brake lines and hoses for proper hook-up, binding, leaks, cracks, chafing, etc. Inspect disc brake pads for wear and rotors for surface condition. Inspect other brake parts, including calipers, parking brake, etc. Check parking brake adjustment. (b) Visually inspect front and rear suspension and steering system for damaged, loose, or missing parts or signs of wear.
  • Page 493: Owner Checks And Services

    (g) A fluid loss in any vehicle system could indicate a problem. Have the system inspected and repaired and the fluid level checked. Add fluid if needed. (h) Change automatic transmission fluid if the vehicle is mainly driven under one or more of these conditions: −...
  • Page 494: At Each Fuel Fill

    At Each Fuel Fill It is important to perform these underhood checks at each fuel fill. Engine Oil Level Check Check the engine oil level and add the proper oil if necessary. See Engine Oil on page 387 for further details. Notice: It is important to check the engine oil regularly and keep it at the proper level.
  • Page 495: At Least Once A Year

    At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle. 2.
  • Page 496 Ignition Transmission Lock Check While parked, and with the parking brake set, try to turn the ignition to OFF in each shift lever position. • The ignition should turn to OFF only when the shift lever is in PARK (P). •...
  • Page 497: Recommended Fluids And Lubricants

    Recommended Fluids and Lubricants Fluids and lubricants identified below by name, part number, or specification can be obtained from your dealer/retailer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Engine Oil Certified for Gasoline Engines starburst symbol.
  • Page 498: Normal Maintenance Replacement Parts

    Normal Maintenance Replacement Parts Replacement parts identified below by name, part number, or specification can be obtained from your dealer/retailer. Part Engine Air Cleaner/Filter Engine Oil Filter Spark Plugs Windshield Wiper Blades Right – 20.8 inches (53. cm) Left – 24.6 inches (62.5 cm) Rear –...
  • Page 499: Engine Drive Belt Routing

    Engine Drive Belt Routing 3.6L V6 Engine...
  • Page 500: Maintenance Record

    Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 486. Any additional information from Owner Checks and Services on page 493 can be added on the following record pages.
  • Page 501 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
  • Page 502 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
  • Page 503: Customer Assistance Information

    Reporting Safety Defects to the United States Government ... 516 Reporting Safety Defects to the Canadian Government ... 517 Reporting Safety Defects to Saturn ... 517 Service Publications Ordering Information ... 518 Vehicle Data Recording and Privacy ... 519 Event Data Recorders ... 520 OnStar ...
  • Page 504: Customer Assistance And Information

    Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your retailer and to Saturn. Together we are committed to providing our customers with unparalleled service, before, during, and after the purchase of a Saturn vehicle, for total customer satisfaction.
  • Page 505 Saturn vehicle. However, if you continue to remain unsatisfied after following the procedure outlined in Steps One and Two, Saturn and its retailers offer the additional assistance of a neutral party through our voluntary participation in a mediation/arbitration program called Better Business Bureau (BBB) Auto Line.
  • Page 506 For further information concerning eligibility in the Canadian Motor Vehicle Arbitration Plan (CAMVAP), call toll-free 1-800-207-0685. Alternatively, you may call the Saturn Customer Communication Centre, 1-800-263-1999, or you may write to: Mediation/Arbitration Program c/o Customer Communication Centre...
  • Page 507: Online Owner Center

    Online Owner Center Online Owner Center (United States only) The Owner Center is a resource for your Saturn ownership needs. Specific vehicle information can be found in one place. The Online Owner Center allows you to: • Get e-mail service reminders.
  • Page 508: Customer Assistance For Text Telephone (Tty) Users

    Canada may dial 1-800-263-3830. Customer Assistance Offices Saturn encourages customers to call the toll-free number for assistance. If a customer wishes to write to Saturn, the letter should be addressed to: Saturn Customer Assistance Center 100 Saturn Parkway Mail Code 371-999-S24...
  • Page 509: Gm Mobility Reimbursement Program

    For vehicles purchased in Canada, call 1-800-268-6800. Service is available 24 hours a day, 365 days a year. As the owner of a new Saturn vehicle, you are automatically enrolled in the Saturn Roadside Assistance Program. Who is Covered? Roadside Assistance coverage is for the vehicle operator, regardless of ownership.
  • Page 510 In Canada, the vehicle registration is also required. • Emergency Tow From a Public Roadway or Highway: Tow to the nearest Saturn retailer for warranty service or in the event of a vehicle-disabling accident. Winch-out assistance is provided when the vehicle is mired in sand, mud, or snow.
  • Page 511 However, any cost for parts and labor for non-warranty repairs are the responsibility of the driver. Saturn and General Motors of Canada Limited reserve the right to limit services or reimbursement to an owner or driver when, in their sole discretion, the claims become excessive in frequency or type of occurrence.
  • Page 512 Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty. Saturn and General Motors of Canada Limited reserve the right to make any changes or discontinue the Roadside Assistance...
  • Page 513: Collision Damage Repair

    Repair Facility GM also recommends that you choose a collision repair facility that meets your needs before you ever need collision repairs. Your Saturn retailer may have a collision repair center with GM-trained technicians and state of the art equipment, or...
  • Page 514: Insuring Your Vehicle

    Insuring Your Vehicle Protect your investment in your GM vehicle with comprehensive and collision insurance coverage. There are significant differences in the quality of coverage afforded by various insurance policy terms. Many insurance policies provide reduced protection to your GM vehicle by limiting compensation for damage repairs by using aftermarket collision parts.
  • Page 515 • Choose a reputable collision repair facility for your vehicle. Whether you select a Saturn retailer or a private collision repair facility to fix the damage, make sure you are comfortable with them. Remember, you will have to feel comfortable with their work for a long time.
  • Page 516: Managing The Vehicle Damage Repair Process

    finds that a safety defect exists in a group of vehicles, it could order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your retailer or Saturn Corporation.
  • Page 517: Reporting Safety Defects To The Canadian Government

    1-800-333-0510 or write to: Transport Canada Road Safety Branch 2780 Sheffield Road Ottawa, Ontario K1B 3V9 Reporting Safety Defects to Saturn In addition to notifying NHTSA (or Transport Canada) in a situation like this, please notify Saturn. Call 1-800-553-6000, or write:...
  • Page 518: Service Publications Ordering Information

    Gross Vehicle Weight Rating (GVWR) less than 10,000 pounds (4 536 kg). Copies of individual bulletins are also at your participating Saturn retailer. You can ask to see them. In Canada, information relating to product service bulletins can be obtained by contacting your Saturn retailer.
  • Page 519: Service Bulletins

    Publications at 1-800-2-SATURN or visit www.saturn-publications.com to order online. Vehicle Data Recording and Privacy Your Saturn vehicle has a number of sophisticated computers that record information about the vehicle’s performance and how it is driven. For example, your vehicle uses computer modules...
  • Page 520: Event Data Recorders

    EDR. Saturn will not access this data or share it with others except: with the consent of the vehicle owner or, if the vehicle is leased, with the consent of the lessee;...
  • Page 521: Onstar

    RFID technology in Saturn vehicles does not use or record personal information or link with any other Saturn system containing personal information.
  • Page 522 ✍ NOTES...
  • Page 523 Accessories and Modifications ... 377 Adding Equipment to Your Airbag-Equipped Vehicle ... 92 Additives, Fuel ... 380 Add-On Electrical Equipment ... 475 Air Cleaner/Filter, Engine ... 392 Air Conditioning ... 194, 198 Airbag Passenger Status Indicator ... 214 Readiness Light ... 212 Airbag System ...
  • Page 524 Audio System (cont.) Navigation/Radio System, see Navigation Manual ... 305 Radio with CD ... 263 Rear Seat Audio (RSA) ... 315 Setting the Time ... 261 Theft-Deterrent Feature ... 317 Understanding Radio Reception ... 318 Audio System(s) Radio with CD and DVD ... 273 Automatic Transmission Fluid ...
  • Page 525 CD, MP3 ... 290, 296 Center Console Storage Area ... 161 Chains, Tire ... 445 Charging System Light ... 216 Check Engine Light ... 222 Checking Things Under the Hood ... 384 Chemical Paint Spotting ... 472 Child Restraints Child Restraint Systems ... 55 Infants and Young Children ...
  • Page 526 Telephone (TTY) Users ... 508 Customer Assistance Offices ... 508 Customer Satisfaction Procedure ... 504 GM Mobility Reimbursement Program ... 509 Reporting Safety Defects to Saturn ... 517 Reporting Safety Defects to the Canadian Government ... 517 Reporting Safety Defects to the United States Government ...
  • Page 527 Driver Information Center (DIC) ... 228 DIC Operation and Displays ... 229, 235 DIC Vehicle Customization ... 250 DIC Warnings and Messages ... 239 Driving At Night ... 337 City ... 342 Defensive ... 322 Drunken ... 323 Freeway ... 342 Hill and Mountain Roads ...
  • Page 528 Filter Engine Air Cleaner ... 392 Finish Damage ... 471 Flashers, Hazard Warning ... 172 Flash-to-Pass ... 176 Flat Tire ... 446 Flat Tire, Changing ... 447 Flat Tire, Storing ... 459 Floor Mats ... 162 Fluid Automatic Transmission ... 394 Power Steering ...
  • Page 529 Hazard Warning Flashers ... 172 Head Restraints ... 17 Headlamp Aiming ... 421 Headlamps Bulb Replacement ... 422 Daytime Running Lamps/Automatic Headlamp System ... 183 Delayed ... 183 Exterior Lamps ... 182 Flash-to-Pass ... 176 Halogen Bulbs ... 422 High Intensity Discharge (HID) Lighting ... 422 High/Low Beam Changer ...
  • Page 530 Keyless Entry System ... 98 Keys ... 97 Labeling, Tire Sidewall ... 426 Lamps Courtesy ... 184 Dome ... 185 Dome Lamp Override ... 185 Reading ... 187 LATCH System Child Restraints ... 61 License Plate Lamps ... 423 Liftgate Carbon Monoxide ...
  • Page 531 Lockout Protection ... 109 Locks Delayed Locking ... 107 Door ... 106 Lockout Protection ... 109 Power Door ... 107 Programmable Automatic Door Locks ... 107 Rear Door Security Locks ... 108 Loss of Control ... 336 Luggage Carrier ... 162 Lumbar Manual Controls ...
  • Page 532 Navigation System, Privacy ... 521 Navigation/Radio System, see Navigation Manual ... 305 New Vehicle Break-In ... 123 Normal Maintenance Replacement Parts ... 498 Odometer ... 211 Off-Road Recovery ... 334 Engine ... 387 Pressure Light ... 225 Oil, Engine Oil Life System ... 390 Older Children, Restraints ...
  • Page 533 Passenger Airbag Status Indicator ... 214 Passenger Sensing System ... 86 Passing ... 335 ® PASS-Key III+ ... 121 ® PASS-Key III+ Operation ... 121 Power Door Locks ... 107 Electrical System ... 476 Liftgate ... 110 Lumbar Controls ... 12 Outlet 115 Volt Alternating Current ...
  • Page 534 Removing the Spare Tire and Tools ... 448 Replacement Bulbs ... 423 Reporting Safety Defects Canadian Government ... 517 Saturn ... 517 United States Government ... 516 Restraint System Check Checking the Restraint Systems ... 93 Replacing Restraint System Parts After a Crash ...
  • Page 535 Safety Belts (cont.) Rear Safety Belt Comfort Guides ... 43 Rear Seat Passengers ... 40 Right Front Passenger Position ... 39 Safety Belt Extender ... 47 Safety Belt Use During Pregnancy ... 39 Safety Belts Are for Everyone ... 24 Shoulder Belt Height Adjuster ...
  • Page 536 Steering ... 332 Steering Wheel Controls, Audio ... 317 Steering Wheel, Power Tilt Wheel and Telescopic Steering Column ... 173 Storage Areas Cargo Management System ... 164 Center Console Storage Area ... 161 Convenience Net ... 163 Cupholder(s) ... 161 Glove Box ...
  • Page 537 Tires (cont.) Storing a Flat or Spare Tire and Tools ... 459 Tire Sidewall Labeling ... 426 Tire Terminology and Definitions ... 429 Uniform Tire Quality Grading ... 442 Wheel Alignment and Tire Balance ... 444 Wheel Replacement ... 444 When It Is Time for New Tires ...
  • Page 538 Warning Lights, Gages and Indicators ... 209 Warnings DIC Warnings and Messages ... 239 Hazard Warning Flashers ... 172 Other Warning Devices ... 172 Safety and Symbols ... 4 Vehicle Damage ... 5 Wheels Alignment and Tire Balance ... 444 Different Size ...

Table of Contents

Save PDF
