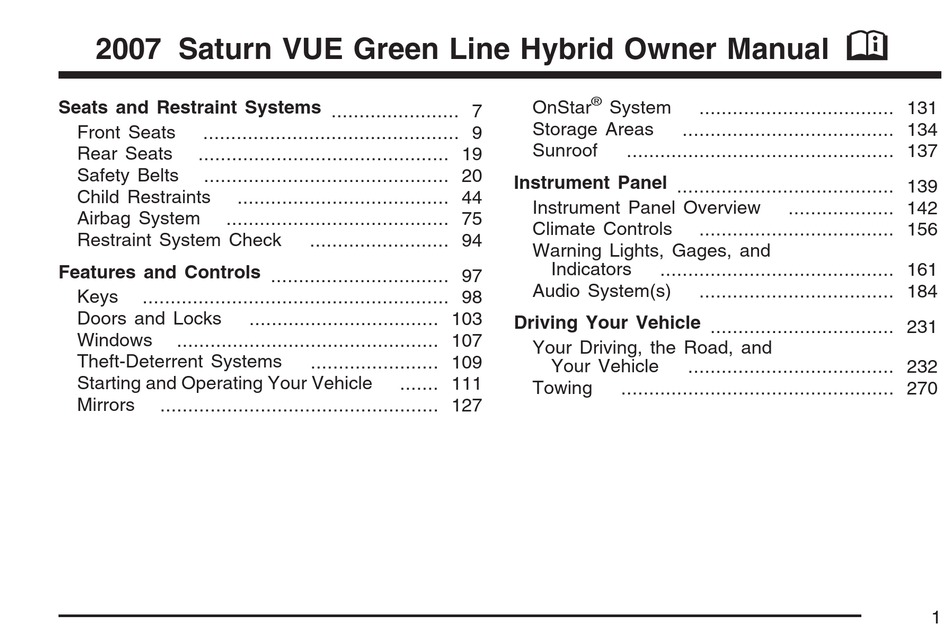

2007 Saturn VUE Green Line Hybrid Owner Manual

Seats and Restraint Systems ....................... 7

Front Seats

.............................................. 9

Rear Seats

............................................. 19

Safety Belts

............................................ 20

Child Restraints

Airbag System

........................................ 75

Restraint System Check

Features and Controls ................................ 97

Keys

....................................................... 98

Doors and Locks

Windows

............................................... 107

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

.................................................. 127

...................................... 44

......................... 94

.................................. 103

....................... 109

....... 111

®

OnStar

System

Storage Areas

...................................... 134

Sunroof

................................................ 137

Instrument Panel ....................................... 139

Instrument Panel Overview

Climate Controls

Warning Lights, Gages, and

Indicators

.......................................... 161

Audio System(s)

Driving Your Vehicle ................................. 231

Your Driving, the Road, and

Your Vehicle

..................................... 232

Towing

................................................. 270

M

................................... 131

................... 142

................................... 156

................................... 184

1

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the 2007 VUE Green Line Hybrid and is the answer not in the manual?

Questions and answers

Summary of Contents for Saturn 2007 VUE Green Line Hybrid

Page 1 2007 Saturn VUE Green Line Hybrid Owner Manual Seats and Restraint Systems ... 7 Front Seats ... 9 Rear Seats ... 19 Safety Belts ... 20 Child Restraints ... 44 Airbag System ... 75 Restraint System Check Features and Controls ... 97 Keys ...
Page 2 Service and Appearance Care ... 285 Service ... 287 Fuel ... 289 Checking Things Under the Hood Headlamp Aiming ... 328 Bulb Replacement ... 331 Windshield Wiper Blade Replacement Tires ... 339 Appearance Care ... 370 Vehicle Identiﬁcation ... 379 Electrical System ...
Page 3: Canadian Owners
SATURN, the SATURN Emblem, and the name VUE are registered trademarks, of Saturn Corporation. GENERAL MOTORS and GM are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without further notice.
Page 4: How To Use This Manual
How to Use This Manual Many people read the owner manual from beginning to end when they ﬁrst receive their new vehicle. If this is done, it can help you learn about the features and controls for the vehicle. Pictures and words work together in the owner manual to explain things.
Page 5: Vehicle Symbols
Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 6 These are some examples of symbols that may be found on the vehicle:...
Page 7: Table Of Contents
Section 1 Front Seats ... 9 Manual Seats ... 9 Driver Seat Height Adjuster ... 10 Power Seat ... 10 Manual Lumbar ... 11 Heated Seats ... 11 Manual Reclining Seatbacks ... 12 Head Restraints ... 15 Passenger Folding Seatback ... 16 Rear Seats ...
Page 8 Section 1 Airbag System ... 75 Where Are the Airbags? ... 78 When Should an Airbag Inﬂate? ... 81 What Makes an Airbag Inﬂate? ... 83 How Does an Airbag Restrain? ... 83 What Will You See After an Airbag Inﬂates? ... 84 Passenger Sensing System ...
Page 9: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 10: Driver Seat Height Adjuster
Driver Seat Height Adjuster If your vehicle has a manual driver seat height adjuster, it is located on the outboard side of the seat near the front of the seat cushion. To raise the seat, move the lever upward repeatedly until the seat is at the desired height.
Page 11: Manual Lumbar
Manual Lumbar If your vehicle has this feature, the knob is located on the front of the driver seat lower cushion on the inboard side. Turn the knob clockwise or counterclockwise to increase or decrease the lumbar support. Heated Seats Your vehicle may have heated seats.
Page 12: Manual Reclining Seatbacks
Manual Reclining Seatbacks CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 13 To recline the seatback on the driver’s seat, lift the lever on the rear outboard side of the seat and move the seatback to the desired position. Then release the lever to lock the seatback in place. To recline the seatback on the front passenger’s seat, lift the lever, located on the outboard side of the seat, up fully to disengage the seatback.
Page 14 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety beltscannot do their job when you are reclined like this. The shoulder belt cannot do its job because it will not be against your body. Instead, it will be in front of you.
Page 15: Head Restraints
CAUTION: (Continued) The lap belt cannot do its job either. In a crash, the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries. For proper protection when the vehicle is in motion, have the seatback upright.
Page 16: Passenger Folding Seatback
Pull the head restraint up to raise it. To lower the head restraint, press the button, located on the top of the seatback, and push the restraint down. Passenger Folding Seatback The front passenger’s seatback folds ﬂat. CAUTION: If you fold the seatback forward to carry longer objects, such as skis, be sure any such cargo is not near an airbag.
Page 17 CAUTION: Things you put on this seatback can strike and injure people in a sudden stop or turn, or in a crash. Remove or secure all items before driving. To fold the seatback, do the following: 1. Lower the head restraint all the way. 2.
Page 18 4. Continue to fold the seat forward until it locks in the folded position. 5. Pull up on the seatback to be sure it is locked. To raise the seatback, do the following: 1. Lift the recliner lever, located on the outboard side of the seat, up fully and push up on the seatback.
Page 19: Rear Seats
Rear Seats Split Folding Rear Seat The rear split bench seatbacks have three available positions — folded forward, upright, or partially reclined. Each of the rear seatbacks can be moved to any of the three positions independent of the other seatback position. CAUTION: A safety belt that is improperly routed, not properly attached, or twisted will not...
Page 20: Safety Belts
Lift the lever on the upper back corner of the seatback to move it to the desired position and then release it. Push and pull on the seatback to be sure it is locked in place. Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly.
Page 21 CAUTION: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts.
Page 22: Why Safety Belts Work
Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it is just a seat on wheels.
Page 23 Get it up to speed. Then stop the vehicle. The rider does not stop. The person keeps going until stopped by something. In a real vehicle, it could be the windshield...
Page 24 or the instrument panel... or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense.
Page 25: Questions And Answers About
Questions and Answers About Safety Belts Will I be trapped in the vehicle after an accident if I am wearing a safety belt? You could be — whether you are wearing a safety belt or not. But you can unbuckle a safety belt, even if you are upside down.
Page 26: How To Wear Safety Belts Properly
How to Wear Safety Belts Properly This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see Older Children on page 44 or Infants and Young Children on page 47.
Page 27 4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 43. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 28 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 29 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 30 What is wrong with this? The lap belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force at your abdomen.
Page 31 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen.
Page 32 What is wrong with this? The belt is over an armrest. CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied at the abdomen, not at the pelvic bones, and that could cause serious or fatal injuries.
Page 33 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 34 What is wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your retailer to ﬁx it.
Page 35: Shoulder Belt Height Adjustment
To unlatch the belt, push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 36: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 37: Rear Seat Passengers
Rear Seat Passengers It is very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who are not safety belted can be thrown out of the vehicle in a crash.
Page 38 2. Push the latch plate into the buckle until it clicks. For the center rear position, if the belt stops before it reaches the buckle, tilt the latch plate and keep pulling until you can buckle it. For the outboard rear positions, when the shoulder belt is pulled out all the way, it will lock.
Page 39 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 40: Rear Safety Belt Comfort Guides
To unlatch the belt, push the button on the buckle. Rear Safety Belt Comfort Guides Rear shoulder belt comfort guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, the comfort guide positions the belt away from the neck and head.
Page 41 2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt, and insert the two edges of the belt into the slots of the guide. 3. Be sure that the belt is not twisted and it lies ﬂat.
Page 42 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
Page 43: Safety Belt Pretensioners
Safety Belt Pretensioners Your vehicle has safety belt pretensioners for the driver and right front passenger. Although you cannot see them, they are part of the safety belt assembly. They help tighten the safety belts during the early stages of a moderate to severe frontal or near frontal crash if the threshold conditions for pretensioner activation are met.
Page 44: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 45 CAUTION: Never do this. Here two children are wearing the same belt. The belt cannot properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.
Page 46 What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck? If the child is sitting in a seat next to a window, move the child toward the center of the vehicle.
Page 47: Infants And Young Children
Wherever the child sits, the lap portion of the belt should be worn low and snug on the hips, just touching the child’s thighs. This applies belt force to the child’s pelvic bones in a crash. Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children.
Page 48 Every time infants and young children ride in vehicles, they should have the protection provided by appropriate restraints. Young children should not use the vehicle’s adult safety belts alone, unless there is no other choice. Instead, they need to use a child restraint. CAUTION: People should never hold a baby in their arms while riding in a vehicle.
Page 49 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 50 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 51: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 52 A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.
Page 53 A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window.
Page 54 Securing an Add-on Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Make sure the child restraint is properly installed in the vehicle using the vehicle’s safety belt or LATCH system, following the instructions that came with that restraint,...
Page 55: Securing The Child Within The Child Restraint
Securing the Child Within the Child Restraint There are several systems for securing the child within the child restraint. One system, the three-point harness, has straps that come down over each of the infant’s shoulders and buckle together at the crotch. The ﬁve-point harness system has two shoulder straps, two hip straps, and a crotch strap.
Page 56: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We recommend that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat.
Page 57 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front passenger seat unless the passenger airbag status indicator shows off and the airbag is off.
Page 58: Lower Anchors And Tethers For Children (Latch)
Lower Anchors and Tethers for Children (LATCH) The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system.
Page 59 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.
Page 60 Lower Anchor and Top Tether Anchor Locations Seating positions with top tether anchors. (Lower Anchor): Seating positions with two lower anchors. Rear Seat Each rear seating position has exposed metal anchors located in the crease between the seatback and the seat cushion. The top tether anchors are located on the back of the rear seatback.
Page 61 Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed.
Page 62 CAUTION: Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Secure any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has been...
Page 63 2. If the child restraint manufacturer recommends that the top tether be attached, attach and tighten the top tether to the top tether anchor, if equipped. Refer to the child restraint instructions and the following steps: 2.1. Find the top tether anchor. 2.2.
Page 64: Securing A Child Restraint In A Rear Outside Seat Position
If the position you are using has an adjustable head restraint and you are using a single tether, raise the head restraint and route the tether under the head restraint and in between the head restraint posts. 3. Push and pull the child restraint in different directions to be sure it is secure.
Page 65 3. Buckle the belt. Make sure the release button 4. Pull the rest of the shoulder belt all the way is positioned so you would be able to unbuckle out of the retractor to set the lock. the safety belt quickly if you ever had to.
Page 66 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 67: Securing A Child Restraint In The Center Rear Seat Position
Securing a Child Restraint in the Center Rear Seat Position If your child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 58. If your child restraint does not have the LATCH system, you will be using the lap-shoulder belt to secure the child restraint in this position.
Page 68 3. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 4. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor.
Page 69: Securing A Child Restraint In The Right Front Seat Position
5. If your child restraint has a top tether, attach and tighten the top tether to the top tether anchor. Refer to the instructions that came with the child restraint and to Lower Anchors and Tethers for Children (LATCH) on page 58.
Page 70 If your vehicle has a rear seat that will accommodate a rear-facing child restraint, a label on your sun visor that says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.
Page 71 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front passenger seat unless the passenger airbag status indicator shows off and the airbag is off.
Page 72 If you need to secure a forward-facing child restraint in the right front seat position, move the seat as far back as it will go before securing the forward-facing child restraint. See Manual Seats on page 9. If your child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 58.
Page 73 4. Buckle the belt. Make sure the release button 5. Pull the rest of the shoulder belt all the way is positioned so you would be able to unbuckle out of the retractor to set the lock. the safety belt quickly if you ever had to.
Page 74 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 75: Airbag System
Airbag System Your vehicle has a frontal airbag for the driver and a frontal airbag for the right front passenger. Your vehicle may also have roof-mounted side impact airbags designed for either side impact or rollover deployment. Roof-mounted side impact airbags are available for the driver and the passenger seated directly behind the driver and for the right front passenger and the passenger...
Page 76 Here are the most important things to know about the airbag system: CAUTION: You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it.
Page 77 CAUTION: Both frontal and roof-mounted side impact airbags inﬂate with great force, faster than the blink of an eye. If you are too close to an inﬂating airbag, as you would be if you were leaning forward, it could seriously injure you.
Page 78: Where Are The Airbags
There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol. The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 165 for more information.
Page 79 The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side. If your vehicle has a roof-mounted side impact airbag for the driver and the person seated directly behind the driver, it is in the ceiling above the side windows.
Page 80 If your vehicle has a roof-mounted side impact airbag for the right front passenger and the person seated directly behind that passenger, it is in the ceiling above the side windows. CAUTION: If something is between an occupant and an airbag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 81: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? The driver’s and right front passenger’s frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact exceeds a predetermined deployment threshold. Deployment thresholds take into account a variety of desired deployment and non-deployment events and are used to predict how severe a crash is likely to be in...
Page 82 Frontal airbags (driver and right front passenger) are not intended to inﬂate during vehicle rollovers, rear impacts, or in many side impacts. Your vehicle may or may not have roof-mounted side impact airbags and a rollover sensor. See Airbag System on page 75. These roof-mounted “rollover capable”...
Page 83: What Makes An Airbag Inﬂate
What Makes an Airbag Inﬂate? In an impact of sufficient severity, the airbag sensing system detects that the vehicle is in a crash. Additionally, in the case of a “rollover capable” roof-mounted side impact airbag, the sensing system detects that the vehicle is about to roll over.
Page 84: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After the airbag inﬂates, it quickly deﬂates, so quickly that some people may not even realize the airbag inﬂated. Some components of the airbag module may be hot for a short time. These components include the steering wheel hub for the driver’s frontal airbag and the instrument panel for the right front passenger’s frontal airbag.
Page 85 Your vehicle has a feature that may automatically unlock the doors, turn the interior dome lamp on, and ﬂash the exterior lamps on and off when the airbags inﬂate. You can lock the doors again and turn the interior lamps off by using the door lock and interior lamp controls.
Page 86: Passenger Sensing System
Passenger Sensing System Your vehicle has a passenger sensing system. The passenger airbag status indicator on the instrument panel will be visible when you turn your ignition key to RUN or START. United States The words ON and OFF or the symbol for on and off, will be visible during the system check.
Page 87 If your vehicle has a rear seat that will accommodate a rear-facing child restraint, there is a label on your sun visor that says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great if the airbag deploys.
Page 88 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front passenger seat unless the passenger airbag status indicator shows off and the airbag is off.
Page 89 The passenger sensing system is designed to turn off the right front passenger’s frontal airbag if: • The right front passenger seat is unoccupied. • The system determines that an infant is present in a rear-facing infant seat. • The system determines that a small child is present in a forward-facing child restraint.
Page 90 If the on indicator is still lit, secure the child in the child restraint in a rear seat position in the vehicle if one is available and check with your retailer. The passenger sensing system is designed to enable (may inﬂate) the right front passenger’s frontal airbag anytime the system senses that a person of adult size is sitting properly in the right front passenger’s seat.
Page 91 CAUTION: If the airbag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the airbag system. If this ever happens, have the vehicle serviced promptly, because an adult-size person sitting in the right front passenger’s seat may not have the protection of the frontal airbag.
Page 92: Servicing Your Airbag-Equipped Vehicle
Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle. You do not want the system to inﬂate while someone is working on your vehicle. Your retailer and the service manual have information about servicing your vehicle and the airbag system.
Page 93: Adding Equipment To Your Airbag-Equipped Vehicle
Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to the front or sides of the vehicle that could keep the airbags from working properly? Yes. If you add things that change your vehicle’s frame, bumper system, height, front end or side sheet metal, they may keep the airbag system from working properly.
Page 94: Restraint System Check
Restraint System Check Checking the Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 95: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon...
Page 96 NOTES...
Page 97: Features And Controls
Section 2 Keys ... 98 Remote Keyless Entry (RKE) System ... 99 Remote Keyless Entry (RKE) System Operation ... 100 Doors and Locks ... 103 Door Locks ... 103 Power Door Locks ... 104 Delayed Locking ... 104 Programmable Automatic Door Locks ... 104 Rear Door Security Locks ...
Page 98: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and they could be seriously injured or killed if caught in the path of a closing...
Page 99: Remote Keyless Entry (Rke) System
Key code information can be obtained only at the retailer where your vehicle was purchased. These code numbers can be used to make new keys. Additional keys that are needed can be made at any retail service facility provided you have the key code information. Store this information in a safe place, but not in your vehicle.
Page 100: Remote Keyless Entry (Rke) System Operation
Remote Keyless Entry (RKE) System Operation on page 100. • If you are still having trouble, see your Saturn retailer or authorized service provider for service. Remote Keyless Entry (RKE) System Operation With this feature, you can lock and unlock the...
Page 101: Matching Transmitter(S) To Your Vehicle
" (Unlock): Press this button on the remote keyless entry transmitter to unlock the driver’s door. This also disarms the content theft-deterrent system. See Content Theft-Deterrent on page 109 for information on disarming the content theft-deterrent system. Press the button again within 5 seconds to unlock the rest of the doors.
Page 102 2. Once the transmitter is separated, use a pencil or similar object to remove the old battery. Do not use a metal object. 3. Insert the new battery as the instructions under the cover indicate. 4. Snap the transmitter back together tightly to be sure no moisture can enter.
Page 103: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 104: Power Door Locks
Power Door Locks The power door lock switches are located on the driver’s and front passenger’s doors. Press the bottom of the switch to lock all doors. Press the top of the switch to unlock all doors. Delayed Locking This feature will delay the actual locking of the doors and arming of the theft-deterrent system for ﬁve seconds when the power door lock switch or remote keyless entry transmitter is used to lock...
Page 105: Rear Door Security Locks
Programmable Automatic Unlocking All the doors and liftgate will automatically unlock when the shift lever is moved into PARK (P). The unlocking feature can be programmed on or off by turning the ignition to RUN, engine not running, and pressing the unlock part of the power door lock switch for eight seconds.
Page 106: Lockout Protection
Lockout Protection If you press the power door lock switch when the key is in the ignition and any door is open, all the doors will lock and then the driver’s door will unlock. Be sure to remove the key from the ignition when locking your vehicle.
Page 107: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 108: Power Windows
Power Windows The window switches are located on each side of the shift lever on the center console. To lower a window, press the switch down. To raise a window, pull the switch up. The power windows operate when the ignition is in RUN or ACC.
Page 109: Theft-Deterrent Systems
Theft-Deterrent Systems Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal. Content Theft-Deterrent The remote keyless entry transmitter is used to arm/disarm the theft-deterrent system.
Page 110: Passlock
If you accidentally set off the alarm when entering/exiting the vehicle, you can shut it off by pressing any button on the remote keyless entry transmitter other than the panic alarm button. If you hear three horn chirps when you press the unlock button on the transmitter, that means the vehicle’s alarm was triggered while you were away.
Page 111: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines: • Do not drive at any one constant speed, fast or slow, for the ﬁrst 500 miles (805 km).
Page 112: Key In The Ignition
ACC (Accessory): This position operates some of your electrical accessories. It unlocks the steering wheel and ignition. (RUN): This is the position the switch returns to after you start your engine and release the switch. The switch stays in RUN when the engine is running.
Page 113: Starting The Engine (Automatic Engine Start/Stop)
Starting the Engine (Automatic Engine Start/Stop) Place the transaxle in the proper gear. Move your shift lever to PARK (P) or NEUTRAL (N). Your engine will not start in any other position — this is a safety feature. To restart when you are already moving, use NEUTRAL (N) only.
Page 114: Automatic Engine Start/Stop
2. If the engine does not start after 5-10 seconds, especially in very cold weather (below 0°F or 18°C), it could be ﬂooded with too much gasoline. Try pushing the accelerator pedal all the way to the ﬂoor and holding it there as you hold the key in START for up to a maximum of 15 seconds.
Page 115 After the engine is started and has reached operating temperature, the AUTO STOP feature may cause the engine to turn off when you apply the brakes and come to a complete stop. When you take your foot off the brake pedal or press the accelerator pedal, the engine will start.
Page 116: Engine Coolant Heater
The Engine Will Restart When: • The brake pedal is released. • The accelerator pedal is applied. • When shifting from DRIVE (D) to PARK (P) or NEUTRAL (N), the engine will restart after 3.5 seconds. • When shifting from DRIVE (D) to INTERMEDIATE (I), LOW (L) or REVERSE (R) the engine will restart immediately.
Page 117: To Use The Engine Coolant Heater
To Use the Engine Coolant Heater 1. Turn off the engine. 2. Open the hood and unwrap the electrical cord. The cord is located near the air cleaner assembly. 3. Plug it into a normal, grounded 110-volt AC outlet. CAUTION: Plugging the cord into an ungrounded outlet could cause an electrical shock.
Page 118: Automatic Transaxle Operation
Automatic Transaxle Operation The shift lever is located on the console between the seats. There are several different positions for the automatic transaxle. PARK (P): This position locks the front wheels. It is the best position to use when you start the engine because your vehicle cannot move easily.
Page 119 Make sure the shift lever is fully in PARK (P) before starting the engine. Your vehicle has an automatic transaxle shift lock control system. You have to fully apply the regular brakes ﬁrst and then press the shift lever button before shifting from PARK (P) when the ignition key is in RUN.
Page 120 DRIVE (D): This position is for normal driving with the automatic transaxle. It provides the best fuel economy for your vehicle. If you need more power for passing, and you are: • Going less than about 35 mph (55 km/h), push the accelerator pedal about halfway down.
Page 121: Parking Brake
Parking Brake The parking brake lever is located to the right of the driver’s seat. To set the parking brake, hold the brake pedal down and pull up on the parking brake lever. If the ignition is on, the brake system warning light will come on.
Page 122: Shifting Into Park (P)
Shifting Into Park (P) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 123: Torque Lock
Torque Lock If you are parking on a hill and you do not shift your transaxle into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transaxle. You may ﬁnd it difficult to pull the shift lever out of PARK (P).
Page 124: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn.
Page 125: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • The exhaust system sounds strange or different. •...
Page 126: Running The Engine While Parked
Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 127: Mirrors
Mirrors Automatic Dimming Rearview Mirror ® with OnStar , Compass and Temperature Display When on, an automatic dimming mirror automatically dims to the proper level to minimize glare from lights behind you after dark. The mirror also includes a dual display in the upper right corner of the mirror face.
Page 128: Compass Calibration
Temperature and Compass Display Press the on/off button, located to the far left, brieﬂy to turn the comp/temp display on or off. If the display reads CAL, the compass needs to be calibrated. See the information following on calibration. To adjust between Fahrenheit and Celsius, do the following: 1.
Page 129: Cleaning The Mirror
To adjust for compass variance do the following: 1. Find your current location and variance zone number on the following zone map. 2. Press and hold the on/off button until a zone number appears in the display. The compass is now in zone mode. 3.
Page 130: Outside Power Mirrors
Outside Power Mirrors The outside power mirror controls are located on the driver’s side of the vehicle next to the shift lever. Move the selector switch to the left or right to choose the mirror to be adjusted; then press the four-way control pad to adjust the direction of the mirror.
Page 131: Onstar System
® OnStar System ® OnStar uses several innovative technologies and live advisors to provide you with a wide range of safety, security, information, and convenience services. If your airbags deploy, the system is designed to make an automatic call to OnStar Emergency advisors who can request emergency services be sent to your location.
Page 132: Onstar ® Virtual Advisor
Available Services with Safe & Sound • Automatic Notiﬁcation of Airbag Deployment • Advanced Automatic Crash Notiﬁcation (AACN) (If equipped) • Link to Emergency Services • Roadside Assistance • Stolen Vehicle Location Assistance • AccidentAssist • Remote Door Unlock/Vehicle Alert ®...
Page 133 ® OnStar Steering Wheel Controls Your vehicle may have a Talk/Mute button that can be used to interact with OnStar Calling. See Audio Steering Wheel Controls on page 227 for more information. On some vehicles, you may have to hold the button for a few seconds and give the command “ONSTAR”...
Page 134: Storage Areas
Your vehicle must have a working electrical system (including adequate battery power) for the ® OnStar equipment to operate. There are other ® problems OnStar cannot control that may prevent ® OnStar from providing OnStar at any particular time or place. Some examples are damage to important parts of your vehicle in an accident, hills, tall buildings, tunnels, weather or wireless phone network congestion.
Page 135: Floor Console Storage Area
Floor Console Storage Area Your vehicle may have a ﬂoor console storage area. Push the button to open. Center Console Storage Area Your vehicle has a center console storage area. To access, slide the cover back towards the rear of the vehicle.
Page 136 3. Turn the end panels forward and snap them into the rear panel lid. 4. Pull the center divider out from the rear panel lid. 5. Turn the center divider rearward and snap it into the panel lid. 6. Reverse the above steps to stow the dividers and close the cargo organizer.
Page 137: Cargo Tie Downs
Cargo Tie Downs Your vehicle has four cargo tie-downs. They are located in the rear of the vehicle and can be used for securing cargo. Sunroof If your vehicle has a sunroof, the controls to operate it are located on the headliner above the rearview mirror.
Page 138 NOTES...
Page 139 Section 3 Instrument Panel Overview ... 142 Hazard Warning Flashers ... 144 Horn ... 144 Tilt Wheel ... 144 Turn Signal/Multifunction Lever ... 145 Turn and Lane-Change Signals ... 145 Headlamp High/Low-Beam Changer ... 146 Flash-to-Pass ... 146 Windshield Wipers ... 146 Windshield Washer ...
Page 140 Section 3 Change Engine Oil Light ... 177 Security Light ... 177 Reduced Engine Power Light ... 178 Highbeam On Light ... 178 Daytime Running Lamps (DRL) Indicator Light ... 179 Gate Ajar Light ... 179 Fuel Gage ... 180 Low Fuel Warning Light ...
Page 141 NOTES...
Page 142: Instrument Panel Overview
Instrument Panel Overview...
Page 143 The main components of the instrument panel are the following: A. Air Outlets. See Climate Control System on page 156. B. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 145. C. Cruise Control Buttons. See Cruise Control on page 148. D.
Page 144: Hazard Warning Flashers
Hazard Warning Flashers The hazard warning ﬂashers let you warn the police and others that you have a problem. The front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located in the center of the instrument panel.
Page 145: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: • Turn and Lane-Change Signals. See Turn and Lane-Change Signals on page 145. • Exterior Lamp Control. See Headlamps on page 151. • Headlamp High/Low-Beam Changer. See Headlamp High/Low-Beam Changer on page 146.
Page 146: Headlamp High/Low-Beam Changer
Headlamp High/Low-Beam Changer To change the headlamps from low beam to high or high beam to low, pull the turn signal lever all the way towards you. Then release it. When the high beams are on, this light on the instrument panel cluster will also be on.
Page 147: Windshield Washer
Canada The lever on the right side of the steering column operates the windshield wipers. Push up or pull down on the lever to place it in one of the following positions. MIST or (Mist): Pull the lever down and release it for a single wiping cycle.
Page 148: Rear Window Wiper/Washer
Rear Window Wiper/Washer The band on the wiper lever with the smaller arrow operates the rear wiper/washer. (Off): Turn the band to this position to turn off the rear wiper. (Rear Wiper): Turn the band with the smaller arrow to this position to turn on the rear wiper. To set for a shorter or longer delay between wipes, turn the other band with the larger arrow pointing to the numbers (1, 2, or 3).
Page 149 Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 150 Resuming a Set Speed Suppose you set your cruise control at a desired speed and then you apply the brakes. This will disengage the cruise control. The indicator light on the cruise control button will go out when the cruise is no longer engaged. To return to the previously set speed, press the RES+ button brieﬂy when the vehicle has reached a speed of about 25 mph (40 km/h) or more.
Page 151: Headlamps
Ending Cruise Control There are three ways to disengage the cruise control: • Step lightly on the brake pedal or clutch; when cruise control disengages, the indicator light on the cruise control button will go out. • Press the on/off button, this will turn off the cruise control system.
Page 152: Daytime Running Lamps (Drl)
Daytime Running Lamps (DRL) Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day. DRL can be helpful in many different driving conditions, but they can be especially helpful in the short periods after dawn and before sunset.
Page 153: Automatic Headlamp System
Automatic Headlamp System When it is dark enough outside, the headlamps will come on automatically. Your vehicle has a light sensor located on top of the instrument panel. Make sure it is not covered, or the headlamps will be on when you don’t need them.
Page 154: Dome Lamp
Dome Lamp The dome lamp switch has three positions. (Off): The lamp will not come on as long as the switch is in this position. (Automatic): The lamp will come on when a door is opened. See Entry Lighting on page 154. (On): The lamp will stay on as long as the switch is in this position.
Page 155: Cigarette Lighter
Notice: Leaving electrical equipment on for extended periods will drain the battery. Always turn off electrical equipment when not in use and do not plug in equipment that exceeds the maximum 20 ampere rating. Certain electrical accessories may not be compatible with the accessory power outlet and could result in blown vehicle or adapter fuses.
Page 156: Climate Controls
Climate Controls Climate Control System With this system you can control the heating, cooling, and ventilation for the vehicle. Operation To change the current mode, use the right knob to select one of the following: (Vent): This mode directs air to the instrument panel outlets.
Page 157 (Fan): Turn the left knob clockwise to increase the fan speed or counterclockwise to decrease the fan speed. To turn the fan off, turn the left knob all the way counterclockwise. In any setting other than off, the fan will run continuously with the ignition on.
Page 158: Defogging And Defrosting
(Air Conditioning): Press this button to change the air conditioning mode between economy, normal, and off. When this button is pressed the indicator light will change with each mode. The green indicator light comes on when economy mode is selected. The yellow indicator light comes on when normal mode is selected.
Page 159: Rear Window Defogger
This helps prevent window fogging and moisture building up within the cabin. To defog the windows faster, turn the temperature knob clockwise to the warmest setting. Using the defog mode may force the engine into the start/stop mode. See “Air Conditioning and Engine Start/Stop”...
Page 160 Air Conditioning and Engine Start/Stop The climate control system might cause the engine to keep running while the vehicle is at a complete stop or it might restart the engine during an auto stop. In cold weather, the climate control system uses the automatic engine start/stop feature to maintain heater and defogging performance in all air ﬂow modes.
Page 161: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 162: Instrument Panel Cluster
Instrument Panel Cluster The instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, about how much fuel you have and many other things you will need to know to drive safely and economically.
Page 163: Speedometer And Odometer
Speedometer and Odometer The speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). The odometer shows how far your vehicle has been driven, in either miles or kilometers. Your vehicle has a tamper-resistant odometer. If your vehicle needs a new odometer installed, the new one will be set to the mileage total of the old odometer.
Page 164: Safety Belt Reminder Light
Safety Belt Reminder Light When the key is turned to RUN or START, a chime will be provided for several seconds to remind people to buckle their safety belts. The driver safety belt light will also be provided and stay on for several seconds, then it will ﬂash for several more.
Page 165: Airbag Readiness Light
Airbag Readiness Light There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol. The system checks the airbag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the airbag sensor, the airbag modules, the wiring and the crash sensing and diagnostic module.
Page 166: Passenger Airbag Status Indicator
Passenger Airbag Status Indicator Your vehicle has the passenger sensing system. Your instrument panel has a passenger airbag status indicator. United States When the ignition key is turned to RUN or START, the passenger airbag status indicator will light ON and OFF, or the symbol for on and off, for several seconds as a system check.
Page 167 If your vehicle has a rear seat that will accommodate a rear-facing child restraint, a label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.
Page 168: Battery Warning Light
If the word OFF or the off symbol is lit on the airbag status indicator, it means that the passenger sensing system has turned off the right front passenger’s frontal airbag. See Passenger Sensing System on page 86 for more on this, including important safety information.
Page 169: Brake System Warning Light
Brake System Warning Light Your vehicle’s hydraulic brake system is divided into two parts. If one part is not working, the other part can still work and stop you. For good braking, though, you need both parts working well. If the brake system warning light comes on, there is a brake problem.
Page 170: Anti-Lock Brake System Warning Light
Anti-Lock Brake System Warning Light The Anti-Lock Brake System (ABS) warning light will come on brieﬂy, as a check, when you start your vehicle. If it does not, have your vehicle serviced so that the light works properly when it needs to. If the light stays on after you start your engine, or comes on and stays...
Page 171: Traction Control System (Tcs) Warning Light
Traction Control System (TCS) Warning Light The Traction Control System (TCS) warning light may come on for the following reasons: • Turning the system off by pressing the traction control button located on the instrument panel above the audio system. The warning light will come on and stay on.
Page 172: Engine Coolant Temperature Warning Light
Engine Coolant Temperature Warning Light The engine coolant temperature warning light will come on when the engine has overheated. If this happens you should pull over and see Engine Overheating on page 309 for more information. Notice: Driving with the engine coolant temperature warning light on could cause your vehicle to overheat.
Page 173: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light Your vehicle has a computer which monitors operation of the fuel, ignition, and emission control systems. This system is called OBD II (On-Board Diagnostics-Second Generation) and is intended to assure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 174: If The Light Is Flashing
This light should come on, as a check to show you it is working, when the ignition is on and the engine is not running. If the light does not come on, have it repaired. This light will also come on during a malfunction in one of two ways: •...
Page 175: Emissions Inspection And Maintenance Programs
Did you just drive through a deep puddle of water? If so, your electrical system may be wet. The condition will usually be corrected when the electrical system dries out. A few driving trips should turn the light off. Have you recently changed brands of fuel? If so, be sure to fuel your vehicle with quality fuel.
Page 176: Oil Pressure Light
Oil Pressure Light If you have a low engine oil pressure problem, this light will stay on after you start your engine, or come on when you are driving. This indicates that your engine is not receiving enough oil. The engine could be low on oil, or could have some other oil problem.
Page 177: Change Engine Oil Light
Change Engine Oil Light If this light comes on, it means that service is required for your vehicle. See Scheduled Maintenance on page 392 and Engine Oil on page 297 for more information. After having the oil changed you will need to reset the light.
Page 178: Reduced Engine Power Light
Reduced Engine Power Light This light will come on brieﬂy when you start the engine. This light, along with the service engine soon light will be displayed when a noticeable reduction in the vehicle’s performance may occur. Stop the vehicle and turn off the ignition. Wait for 10 seconds and restart your vehicle.
Page 179: Daytime Running Lamps (Drl)
Daytime Running Lamps (DRL) Indicator Light This light is located on the instrument panel cluster. It comes on whenever the Daytime Running Lamps are on. See Daytime Running Lamps (DRL) on page 152 for further information. Gate Ajar Light If this light comes on, your liftgate is not completely closed.
Page 180: Fuel Gage
Fuel Gage When the ignition is on, the fuel gage tells you about how much fuel you have left in your tank. When the indicator nears empty, the low fuel light will come on. You still have a little fuel left, but you should get more soon.
Page 181: Low Fuel Warning Light
Low Fuel Warning Light The light next to the fuel gage will come on brieﬂy when you are starting the engine. This light also comes on when the fuel tank is low on fuel. When you add fuel the light should go off.
Page 182: Charge/Assist Gage
Charge/Assist Gage The CHARGE/ASSIST gage displays the charge (current) into and out of the hybrid battery. When the electric motor is performing an automatic restart of the engine, or when it is assisting the engine as in a maximum acceleration, the needle will move to the ASSIST range.
Page 183: Fuel Economy Light
Fuel Economy Light This light will come on when the vehicle is achieving fuel economy close to rated performance. By changing your driving habits and increasing the time that the fuel economy light is on, will improve fuel economy. To turn the fuel economy light off or on, press the trip/reset button until the fuel economy light is selected.
Page 184: Hood Ajar Light
Hood Ajar Light If this light comes on, the hood is not fully closed. Close the hood to turn off the light. The auto start/stop function will not operate with the hood open. If the vehicle is in auto stop mode when this light appears, you will have to restart the engine with the ignition key.
Page 185 CAUTION: This system provides you with a far greater access to audio stations and song listings. Giving extended attention to entertainment tasks while driving can cause a crash and you or others can be injured or killed. Always keep your eyes on the road and your mind on the drive —...
Page 186: Setting The Time (Without Date Display)
Setting the Time (Without Date Display) If your vehicle has an AM/FM base radio with a single CD player and preset buttons numbered one through six, the radio has a clock button for setting the time. You can set the time by following these steps: 1.
Page 187 3. Press the pushbutton located under any one of the labels that you want to change. Every time the pushbutton is pressed again, the time or the date if selected, increases by one. • Another way to increase the time or date, is to press the right SEEK arrow or FWD (forward) button.
Page 188: Radio With Cd (Base)
The date does not automatically display. To see the date press the MENU button and then the clock button while the radio is on. The date with display times out after a few seconds and goes back to the normal radio and time display. To change the time default setting from 12 hour to 24 hour or to change the date default setting from month/day/year to day/month/year, follow...
Page 189: Finding A Station
Finding a Station BAND: Press this button to switch between FM1, FM2 or AM. The display shows the selection. (Tune): Turn this knob to select radio stations. © ¨ SEEK : Press the right or left SEEK arrow to go to the next or to the previous station and stay there.
Page 190: Radio Messages
Setting the Tone (Bass/Treble) BASS/TREB (Bass/Treble): To adjust the bass or treble, press the tune knob or bass/treble pushbutton until the desired tone control label displays. Turn the tune knob clockwise or counterclockwise to increase or decrease the setting. The setting can also be adjusted by pressing either the SEEK, FWD (forward), or REV (reverse) buttons.
Page 191 Playing a CD (Single CD Player) Insert a CD partway into the slot, label side up. The player pulls it in and the CD should begin playing. If the ignition or radio is turned off with a CD in the player, it stays in the player.
Page 192 EJECT: Press the CD eject button to eject the CD. If the CD is not removed, after several seconds, the CD automatically pulls back into the player. (Tune): Turn this knob to select tracks on the CD currently playing. © ¨...
Page 193 (Information): Press this button to switch the display between the track number, elapsed time of the track, and the time. When the ignition is off, press this button to display the time. BAND: Press this button to listen to the radio when a CD is playing.
Page 194: Using The Auxiliary Input Jack
Using the Auxiliary Input Jack Your radio system has an auxiliary input jack located on the lower right side of the faceplate. This is not an audio output; do not plug the headphone set into the front auxiliary input jack. However, an external audio device such as an iPod, laptop computer, MP3 player, CD changer, or cassette tape player, etc.
Page 195: Radio With Cd (Mp3)
Radio with CD (MP3) Radio with CD shown, Radio with Six-Disc CD (MP3) similar Radio Data System (RDS) The audio system has a Radio Data System (RDS). The RDS feature is available for use only on FM stations that broadcast RDS information. This system relies upon receiving speciﬁc information from these stations and only works when the information is available.
Page 196 Playing the Radio (Power/Volume): Press this knob to turn the system on and off. Turn this knob clockwise to increase or counterclockwise to decrease the volume. Finding a Station BAND: Press this button to switch between AM, FM, or XM™ (if equipped). The display shows the selection.
Page 197 Storing a Radio Station as a Favorite Drivers are encouraged to set up their radio station favorites while the vehicle is parked. Tune to your favorite stations using the presets, favorites button, and steering wheel controls, if your vehicle has them. See Defensive Driving on page 233. FAV (Favorites): A maximum of 36 stations can be programmed as favorites using the six pushbuttons positioned below the radio station...
Page 198 Setting the Tone (Bass/Midrange/Treble) BASS/MID/TREB (Bass, Midrange, or Treble): To adjust bass, midrange, or treble, press the tune knob until the tone control labels display. Continue pressing to highlight the desired label, or press the pushbutton positioned under the desired label. Turn the tune knob clockwise or counterclockwise to adjust the highlighted setting.
Page 199: Adjusting The Speakers (Balance/Fade)
Adjusting the Speakers (Balance/Fade) BAL/FADE (Balance/Fade): To adjust balance or fade, press the tune knob until the speaker control labels display. Continue pressing to highlight the desired label, or press the pushbutton positioned under the desired label. Turn the tune knob clockwise or counterclockwise to adjust the highlighted setting.
Page 200: Playing A Cd(S) (Six-Disc Cd Player)
Undesired XM™ categories can be removed through the setup menu. To remove an undesired category, perform the following: 1. Press the MENU button to display the radio setup menu. 2. Press the pushbutton located below the XM CAT label. 3. Turn the tune knob to display the category you want removed.
Page 201 To insert multiple CDs, do the following: 1. Press and hold the load button for two seconds. A beep sounds and Load All Discs displays. 2. Follow the displayed instruction on when to insert the discs. The CD player takes up to six CDs.
Page 202 EJECT: Press the CD eject button to eject CD(s). To eject the CD that is currently playing, press and release this button. A beep sounds and Ejecting Disc displays. Once the disc is ejected, Remove Disc displays. The CD can be removed. If the CD is not removed, after several seconds, the CD automatically pulls back into the player and begins playing.
Page 203: Playing An Mp3 Cd-R Or Cd-Rw Disc
CD/AUX (CD/Auxiliary): Press this button to play a CD when listening to the radio. The CD icon and track number displays when a CD is in the player. Your radio system has an auxiliary input jack located on the lower right side of the faceplate. An external audio device such as a portable audio player can be connected to the auxiliary input jack for use as another source for playing CDs.
Page 204 Using the Auxiliary Input Jack The radio system has an auxiliary input jack located on the lower right side of the faceplate. This is not an audio output; do not plug the headphone set into the front auxiliary input jack. However, an external audio device such as an iPod, laptop computer, MP3 player, CD changer, or cassette tape player, etc.
Page 205: Radio With Cd And Dvd
Radio with CD and DVD If your vehicle has a Rear Seat Entertainment (RSE) system, the vehicle has a radio that accepts either CD audio or DVD video. The radio with CD and DVD is very similar to the radio with CD (Base) or the radio with CD (MP3). If you are interested in learning more about the radio and CD audio functions for this type of radio system, see Radio with CD (Base) on page 188...
Page 206 Compressed Audio The radio also plays discs that contain both uncompressed CD audio (.CDA ﬁles) and MP3 ﬁles. By default the radio reads only the uncompressed audio and ignore the MP3 ﬁles. Pressing the CAT (category) button toggles between compressed and uncompressed audio format.
Page 207 Change playlists by using the previous and next folder buttons, the tuner knob, or the seek buttons. You can also play an MP3 CD-R that was recorded using no ﬁle folders. If a CD-R contains more than the maximum of 50 folders, 50 playlists, and 255 ﬁles, the player lets you access and navigate up to the maximum, but all items over the maximum are not accessible.
Page 208 Order of Play Tracks recorded to the CD-R are played in the following order: • Play begins from the ﬁrst track in the ﬁrst playlist and continues sequentially through all tracks in each playlist. When the last track of the last playlist has played, play continues from the ﬁrst track of the ﬁrst playlist.
Page 209 Playing an MP3 Insert a CD-R partway into the slot (Single CD Player), or press the load button and wait for the message to insert disc (Six-Disc CD Player), label side up. The player pulls it in, and the CD-R should begin playing.
Page 210 EJECT: Press the CD eject button to eject CD-R(s). To eject the CD-R that is currently playing, press and release this button. A beep sounds and Ejecting Disc displays. Once the disc is ejected, Remove Disc displays. The CD-R can be removed. If the CD-R is not removed, after several seconds, the CD-R automatically pulls back into the player and begins playing.
Page 211 (Music Navigator): Use the music navigator feature to play MP3 ﬁles on the CD-R in order by artist or album. Press the pushbutton located below the music navigator label. The player scans the disc to sort the ﬁles by artist and album ID3 tag information.
Page 212: Xm Radio Messages
XM Radio Messages Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. XM Updating Updating encryption code The encryption code in the receiver is being updated, and no No XM Signal Loss of signal Loading XM...
Page 213 Radio Display Message No CAT Info Category Name not available No Information No Text/Informational message available CAT Not Found No channel available for the chosen category XM TheftLocked Theftlock XM Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Check XM Receivr...
Page 214: Rear Seat Entertainment System
Rear Seat Entertainment System Your vehicle may have a DVD Rear Seat Entertainment (RSE) system. The RSE system works with the vehicle’s audio system and includes a radio that accepts CD audio or DVD video, a video display screen, two sets of wireless headphones, and a remote control.
Page 215 The infrared transmitters are located in the display below the video screen. The headphones shut off automatically to save the battery power if the DVD system is shut off or if the headphones are out of range of the transmitters for more than three minutes.
Page 216: Stereo Rca Jacks
Stereo RCA Jacks The RCA jacks are located behind the video screen on the overhead console. The RCA jacks allow audio or video signals to be connected from an auxiliary device such as a camcorder or a video game unit to the RSE. Adapter connectors or cables might be required to connect the auxiliary device to the RCA jacks.
Page 217: Audio Output
Audio Output Only one audio source can be heard through the speakers at one time. Press the power button to turn the radio on. The radio can be heard through all of the vehicle speakers. When a DVD is inserted, playback is heard through the vehicle speakers and headphones.
Page 218: Dvd Player
DVD Player The DVD player is part of the radio and is located in the center of the instrument panel. The DVD player is controlled by the buttons on the radio faceplate, or by the buttons on the remote control. See “Remote Control” later in this section for more information.
Page 219 DVD Player Buttons To learn about the DVD functions for this type of radio system, read the following for more information on the DVD player. DVD/AUX (Auxiliary): While a DVD is playing, press this button to switch between front auxiliary and RSE.
Page 220 FWD (Fast Forward): Press this button to fast forward the DVD or CD. The radio displays the elapsed time and fast forwards ﬁve times the normal speed. To stop fast forwarding, press this button again. This button might not work while the DVD is playing the copyright information or the previews.
Page 221 (Menu): Press this button to access the DVD menu. The DVD menu is different on every DVD. Use the pushbuttons located under the navigation arrows to navigate the cursor through the DVD menu. After making a selection press the enter button. This button only operates when using a DVD.
Page 222 Playing an MP3 CD The CD player has the ability to recognize up to 255 folders, and up to 255 ﬁles per folder to a maximum of 512 total MP3 selections on a CD. Mixed media CD’s are not supported. Stopping and Resuming Playback To turn the RSE system off, press the power button twice on the radio.
Page 223: Remote Control
Remote Control To use the remote control, aim it at the transmitter window below the video screen and press the desired button. Direct sunlight or very bright light could affect the ability of the RSE transmitter to receive signals from the remote control. If the remote control does not seem to be working, the batteries might need to be replaced.
Page 224 (Main DVD Menu): Press this button to access the DVD menu. The DVD menu is different on every DVD. Use the up, down, left, and right arrow buttons to move the cursor around the DVD menu. After making a selection press the enter button. This button only operates when using a DVD.
Page 225 (Play/Pause): Press this button to start play of a DVD or CD. Press this button while a DVD or CD is playing to pause it. Press this button again to continue playing the DVD. While the DVD is playing, press the pause button then press the fast forward button.
Page 226 DVD Player Error Messages The video screen could display one of the following: Disc Load/Eject Error: This message displays when there are disc load or eject problems. Disc Format Error: This message displays, if the disc is inserted with the disc label wrong side up, or if the disc is damaged.
Page 227: Audio Steering Wheel Controls
Audio Steering Wheel Controls Some audio controls can be adjusted at the steering wheel. They include the following: : Press the up or the down arrow to go to the next or to the previous radio station and stay there. The radio seeks stations only with a strong signal that are in the selected band.
Page 228: Radio Reception
Radio Reception Frequency interference and static during normal radio reception can occur if items such as cellphone chargers, vehicle convenience accessories, and external electronic devices are plugged into the accessory power outlet. If there is interference or static, unplug the item from the accessory power outlet.
Page 229: Care Of Your Cds And Dvds
Care of Your CDs and DVDs Handle CDs carefully. Store them in their original cases or other protective cases and away from direct sunlight and dust. The CD player scans the bottom surface of the disc. If the surface of a CD is damaged, such as cracked, broken, or scratched, the CD does not play properly or not at all.
Page 230 NOTES...
Page 231: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ... 232 Driver Behavior ... 232 Driving Environment ... 232 Vehicle Design ... 232 Defensive Driving ... 233 Drunken Driving ... 234 Control of a Vehicle ... 237 Braking ... 237 Anti-Lock Brake System (ABS) ...
Page 232: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Whenever we drive, we are taking on an important responsibility. This is true for any motor vehicle — passenger car, van, truck, sport utility. Driver behavior, the driving environment, and the vehicle’s design all affect how well a vehicle performs.
Page 233: Defensive Driving
Speciﬁc design characteristics like these give the driver a better view of the road, but also give utility vehicles a higher center of gravity than other types of vehicles. This means that you should not expect a utility vehicle to handle the same way a vehicle with a lower center of gravity, like a car, would in similar situations.
Page 234: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It is the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: •...
Page 235 According to the American Medical Association, a 180 lb (82 kg) person who drinks three 12 ounce (355 ml) bottles of beer in an hour will end up with a BAC of about 0.06 percent. The person would reach the same BAC by drinking three 4 ounce (120 ml) glasses of wine or three mixed drinks if each had 1-1/2 ounces (45 ml) of liquors like whiskey, gin, or vodka.
Page 236 But the ability to drive is affected well below a BAC of 0.10 percent. Research shows that the driving skills of many people are impaired at a BAC approaching 0.05 percent, and that the effects are worse at night. All drivers are impaired at BAC levels above 0.05 percent.
Page 237: Control Of A Vehicle
That means you can lose control of your vehicle. See Traction Control System (TCS) on page 240. Adding non-Saturn accessories can affect your vehicle’s performance. See Accessories and Modiﬁcations on page 287. Braking See Brake System Warning Light on page 169.
Page 238: Anti-Lock Brake System (Abs)
Once the power assist is used up, it may take longer to stop and the brake pedal will be harder to push. Adding non-Saturn accessories can affect your vehicle’s performance. See Accessories and Modiﬁcations on page 287.
Page 239 Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking. Here is what happens with ABS: A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each wheel.
Page 240: Braking In Emergencies
Remember: ABS does not change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you will not have time to apply the brakes if that vehicle suddenly slows or stops.
Page 241: Steering
Adding non-Saturn accessories can affect your vehicle’s performance. See Accessories and Modiﬁcations on page 287 for more information.
Page 242: Steering Tips
Maintain a reasonable, steady speed. Wait to accelerate until you are out of the curve, and then accelerate gently into the straightaway. Adding non-Saturn accessories can affect your vehicle’s performance. See Accessories and Modiﬁcations on page 287.
Page 243: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 244: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your vehicle’s right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 245 indicates it is all right to pass, providing the road ahead is clear. Never cross a solid line on your side of the lane or a double solid line, even if the road seems empty of approaching traffic. • Do not get too close to the vehicle you want to pass while you are awaiting an opportunity.
Page 246: Loss Of Control
Loss of Control Let us review what driving experts say about what happens when the three control systems — brakes, steering, and acceleration — do not have enough friction where the tires meet the road to do what the driver has asked. In any emergency, do not give up.
Page 247: Driving At Night
While driving on a surface with reduced traction, try your best to avoid sudden steering, acceleration, or braking, including reducing vehicle speed by shifting to a lower gear. Any sudden changes could cause the tires to slide. You may not realize the surface is slippery until your vehicle is skidding.
Page 248: Driving In Rain And On Wet Roads
You can be temporarily blinded by approaching headlamps. It can take a second or two, or even several seconds, for your eyes to re-adjust to the dark. When you are faced with severe glare, as from a driver who does not lower the high beams, or a vehicle with misaimed headlamps, slow down a little.
Page 249 The heavier the rain, the harder it is to see. Even if your windshield wiper blades are in good shape, a heavy rain can make it harder to see road signs and traffic signals, pavement markings, the edge of the road, and even people walking. It is wise to keep your wiping equipment in good shape and keep your windshield washer ﬂuid reservoir ﬁlled with washer ﬂuid.
Page 250: Driving Through Deep Standing Water
Driving Through Deep Standing Water Notice: If you drive too quickly through deep puddles or standing water, water can come in through the engine’s air intake and badly damage the engine. Never drive through water that is slightly lower than the underbody of your vehicle.
Page 251: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. Here are ways to increase your safety in city driving: •...
Page 252: Freeway Driving
Freeway Driving Mile for mile, freeways — also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 253: Before Leaving On A Long Trip
Of course, you will ﬁnd experienced and able service experts at Saturn retailers all across the United States and Canada. They will be ready and willing to help if you need it.
Page 254: Highway Hypnosis
Here are some things you can check before a trip: • Windshield Washer Fluid: Is the reservoir full? Are all windows clean inside and outside? • Wiper Blades: Are they in good shape? • Fuel, Engine Oil, Other Fluids: Have you checked all levels? •...
Page 255: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or mountains is different from driving in ﬂat or rolling terrain. If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable. •...
Page 256 CAUTION: Coasting downhill in NEUTRAL (N) or with the ignition off is dangerous. The brakes will have to do all the work of slowing down. They could get so hot that they would not work well. You would then have poor braking or even none going down a hill.
Page 257: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your vehicle. Also see Tires on page 339. Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and reﬂective warning triangles.
Page 258: Driving On Snow Or Ice
Driving on Snow or Ice Most of the time, those places where the tires meet the road probably have good traction. However, if there is snow or ice between the tires and the road, you can have a very slippery situation.
Page 259: If You Are Caught In A Blizzard
The Anti-Lock Brake System (ABS) improves your vehicle’s stability when you make a hard stop on a slippery road. Even though you have ABS, you will want to begin stopping sooner than you would on dry pavement. See Anti-Lock Brake System (ABS) on page 238.
Page 260 You can run the engine to keep warm, but be careful. CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 261: If Your Vehicle Is Stuck In Sand, Mud, Ice, Or Snow
You will need a well-charged battery to restart the vehicle, and possibly for signaling later on with your headlamps. Let the heater run for a while. Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold.
Page 262: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out First, turn the steering wheel left and right. That will clear the area around the front wheels. You should turn the traction control system off. See Traction Control System (TCS) on page 240. Then shift back and forth between REVERSE (R) and a forward gear, spinning the wheels as little as possible.
Page 263 The recovery hook is located at the rear of your vehicle. It can only be used for pulling the vehicle out if it is stuck, not for towing the vehicle.
Page 264: Loading Your Vehicle
Loading Your Vehicle It is very important to know how much weight your vehicle can carry. This weight is called the vehicle capacity weight and includes the weight of all occupants, cargo, and all nonfactory-installed options. Two labels on your vehicle show how much weight it may properly carry, the Tire and Loading Information label and the Certiﬁcation/Tire label.
Page 265 The Tire and Loading Information label also shows the size of the original equipment tires (C) and the recommended cold tire inﬂation pressures (D). For more information on tires and inﬂation see Tires on page 339 and Inﬂation - Tire Pressure on page 345.
Page 266 5. Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in Step 4. 6. If your vehicle will be towing a trailer, the load from your trailer will be transferred to your vehicle.
Page 267 Example 2 Item Description Vehicle Capacity Weight for Example 2 Subtract Occupant Weight 150 lbs (68 kg) Available Occupant and Cargo Weight = Total Item 1,000 lbs (453 kg) 750 lbs (340 kg) 250 lbs (113 kg) Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s capacity weight and seating positions.
Page 268 Certiﬁcation/Tire Label A vehicle speciﬁc Certiﬁcation/Tire label is attached to the rear edge of the driver’s door. The label shows the gross weight capacity of your vehicle. This is called the Gross Vehicle Weight Rating (GVWR). The GVWR includes the weight of the vehicle, all occupants, fuel, cargo, and trailer tongue weight, if your vehicle is pulling a trailer.
Page 269 Using heavier suspension components to get added durability might not change your vehicle’s weight ratings. Ask your retailer to help you load your vehicle correctly if you are using these components. Notice: Overloading your vehicle may cause damage. Repairs would not be covered by your warranty.
Page 270: Towing
Towing Towing Your Vehicle Consult your retailer or a professional towing service if you need to have your disabled vehicle towed. See Roadside Assistance Program on page 413. If you want to tow your vehicle behind another vehicle for recreational purposes (such as behind a motorhome), see “Recreational Vehicle Towing”...
Page 271: Dinghy Towing
Here are some important things to consider before you do recreational vehicle towing: • What’s the towing capacity of the towing vehicle? Be sure you read the tow vehicle manufacturer’s recommendations. • How far will you tow? Some vehicles have restrictions on how far and how long they can tow.
Page 272 4. Shift the transaxle from DRIVE (D) to NEUTRAL (N) and let the engine run for three minutes. Then turn it off. Due to transaxle ﬂuid drain back, the transaxle lubrication procedure in Step 4 is required every seven hours after the initial procedure has been completed, regardless of the vehicle being towed or parked.
Page 273: Towing Your Vehicle From The Rear
Once you have reached your destination, do the following: 1. Set the parking brake. 2. Shift the transaxle to PARK (P). 3. Turn the ignition key to LOCK and remove the key from the ignition. 4. Reinstall the large IGN fuse. Notice: Too much or too little ﬂuid can damage the transaxle.
Page 274: Dolly Towing
Dolly Towing To tow your vehicle from the front with two wheels on the ground, do the following: 1. Put the front wheels on a dolly. 2. Move the shift lever to PARK (P). 3. Set the parking brake and then remove the key. 4.
Page 275 Your vehicle can tow a trailer if it is equipped with the proper trailer towing equipment. To identify the trailering capacity of your vehicle, you should read the information in “Weight of the Trailer” that appears later in this section. Trailering is different than just driving your vehicle by itself.
Page 276: Weight Of The Trailer Tongue
• Obey speed limit restrictions when towing a trailer. Don’t drive faster than the maximum posted speed for trailers, or no more than 55 mph (90 km/h), to save wear on your vehicle’s parts. • Don’t tow a trailer when the outside temperature is above 100°F (38°C).
Page 277 See Loading Your Vehicle on page 264 for more information about your vehicle’s maximum load capacity. If you’re using a weight-carrying hitch, the trailer tongue (A) should weigh 10 percent of the total loaded trailer weight (B). If you’re using a weight-distributing hitch, the trailer tongue (A) should weigh 12 percent of the total loaded trailer weight (B).
Page 278 You can expect tongue weight to be at least 10 percent of trailer weight (850 lbs (386 kg)) and because the weight is applied well behind the rear axle, the effect on the rear axle will be greater than just the weight itself, as much as 1.5 times as much.
Page 279: Total Weight On Your Vehicle's Tires
Since tongue weight is usually at least 10 percent of total loaded trailer weight, you can expect that the largest trailer your vehicle can properly handle is 6,000 lbs (2 721 kg). It is important that you make sure your vehicle does not exceed any of its ratings —...
Page 280 Safety Chains You should always attach chains between your vehicle and your trailer. Cross the safety chains under the tongue of the trailer so that the tongue will not drop to the road if it becomes separated from the hitch. Instructions about safety chains may be provided by the hitch manufacturer or by the trailer manufacturer.
Page 281: Making Turns
Passing You’ll need more passing distance up ahead when you’re towing a trailer. And, because you’re a good deal longer when towing a trailer, you’ll need to go much farther beyond the passed vehicle before you can return to your lane. Backing Up Hold the bottom of the steering wheel with one hand.
Page 282: Driving On Grades
Driving on Grades Notice: Do not tow on steep continuous grades exceeding 6 miles (9.6 km). Extended, higher than normal engine and transaxle temperatures may result and damage your vehicle. Frequent stops are very important to allow the engine and transaxle to cool. Reduce speed and shift to a lower gear before you start down a long or steep downgrade.
Page 283: When You Are Ready To Leave After Parking On A Hill
3. When the chocks are in place, release the regular brakes until the chocks absorb the load. 4. Reapply the regular brakes. Then apply your parking brake and shift into PARK (P). 5. Release the regular brakes. When You Are Ready to Leave After Parking on a Hill 1.
Page 284: Engine Cooling When Trailer Towing
Engine Cooling When Trailer Towing Your cooling system may temporarily overheat during severe operating conditions. See Engine Overheating on page 309. Changing a Tire When Trailer Towing If you get a ﬂat tire while towing a trailer, be sure to secure the trailer and disconnect it from the vehicle before changing the tire.
Page 285: Service And Appearance Care
Section 5 Service ... 287 Accessories and Modiﬁcations ... 287 California Proposition 65 Warning ... 288 Doing Your Own Service Work ... 288 Adding Equipment to the Outside of Your Vehicle ... 289 Fuel ... 289 Gasoline Octane ... 289 Gasoline Speciﬁcations ...
Page 286 Section 5 Tires ... 339 Tire Sidewall Labeling ... 340 Tire Terminology and Deﬁnitions ... 342 Inﬂation - Tire Pressure ... 345 Tire Inspection and Rotation ... 348 When It Is Time for New Tires ... 349 Buying New Tires ... 350 Different Size Tires and Wheels ...
Page 287: Service
You will get genuine Saturn parts and Saturn-trained and supported service people. We hope you will want to keep your Saturn vehicle all Saturn. Genuine Saturn parts have one of these marks.
Page 288: California Proposition 65 Warning
Service and repair of these hybrid components should only be performed by a Saturn-trained service technician with the proper knowledge and tools. CAUTION: You can be injured and your vehicle could...
Page 289: Adding Equipment To The Outside Of Your Vehicle
D 4814 in the United States or CAN/CGSB-3.5 in Canada. Some gasolines may contain an octane-enhancing additive called methylcyclopentadienyl manganese tricarbonyl (MMT). Saturn recommends against the use of gasolines containing MMT. See Additives on page 290 for additional information.
Page 290: California Fuel
See Malfunction Indicator Lamp on page 173. If this occurs, return to your authorized Saturn retailer for diagnosis. If it is determined that the condition is caused by the type of fuel used, repairs may not be covered by your warranty.
Page 291: Fuels In Foreign Countries
However, E85 (85% ethanol) and other fuels containing more than 10% ethanol must not be used in vehicles that were not designed for those fuels. Notice: Your vehicle was not designed for fuel that contains methanol. Do not use fuel containing methanol. It can corrode metal parts in the fuel system and also damage plastic and rubber parts.
Page 292: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling.
Page 293 CAUTION: If you spill fuel and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather.
Page 294: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 295: Hood Release
Hood Release To open the hood, do the following: 1. Pull the handle with this symbol on it. It is located under the instrument panel on the driver’s side of the vehicle. 2. Then go to the front of the vehicle and lift up on the secondary hood release lever.
Page 296: Engine Compartment Overview
Engine Compartment Overview When you open the hood, you will see the following:...
Page 297 A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 302. B. Remote Negative ( ) Terminal (On generator). See Jump Starting on page 322. C. Engine Oil Dipstick (out of view). See Engine Oil on page 297. D. Engine Oil Fill Cap. See Engine Oil on page 297.
Page 298: When To Add Engine Oil
When to Add Engine Oil If the oil is below the cross-hatched area at the tip of the dipstick, you need to add at least one quart/liter of oil. But you must use the right kind. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Speciﬁcations on page 387.
Page 299: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for two things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. Look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 300: Engine Oil Additives
Your retailer has trained service people who will perform this work using genuine Saturn parts and reset the system. It is also important to check your oil regularly and keep it at the proper level.
Page 301: How To Reset The Engine Oil Life System
How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change your engine oil and ﬁlter based on vehicle use. Anytime your oil is changed, reset the system so it can calculate when the next oil change is required.
Page 302: When To Inspect The Engine Air Cleaner/Filter
Engine Air Cleaner/Filter See Engine Compartment Overview on page 296 for the location of the engine air cleaner/ﬁlter. When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at the Maintenance II intervals and replace it at the ﬁrst oil change after each 50,000 mile (83 000 km) interval.
Page 303 2. Disconnect the hose. 3. Release the clamps on the side of the air cleaner assembly. 4. Turn the cover upward to disengage the cover hinges.
Page 304 5. Remove the air cleaner cover assembly and air ﬁlter element. 6. Inspect or replace the air ﬁlter element. If the air ﬁlter element is dirty, you should replace it. If it is only dusty, it may be cleaned by blowing compressed air through it from the clean side.
Page 305: Automatic Transaxle Fluid
CAUTION: Operating the engine with the air cleaner/ﬁlter off can cause you or others to be burned. The air cleaner not only cleans the air; it helps to stop ﬂames if the engine backﬁres. If it is not there and the engine backﬁres, you could be burned.
Page 306: Engine Coolant
Engine Coolant The cooling system in your vehicle is ﬁlled with ® DEX-COOL engine coolant. This coolant is designed to remain in your vehicle for ﬁve years or 150,000 miles (240 000 km), whichever occurs ﬁrst, if you add only DEX-COOL life coolant.
Page 307: What To Use
What to Use Use a mixture of one-half clean, drinkable water ® and one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 308: Checking Coolant
Checking Coolant The surge tank is located on the driver’s side of the engine compartment. See Engine Compartment Overview on page 296 for more information on location. CAUTION: Turning the surge tank pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
Page 309: Coolant Surge Tank Pressure Cap
CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol, and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine. When replacing the pressure cap, make sure it is hand-tight and fully seated.
Page 310: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine If you get an engine overheat warning, but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: • Climb a long hill on a hot day.
Page 311: Cooling System
Cooling System When you decide it is safe to lift the hood, here is what you will see: A. Electric Engine Fan B. Coolant Surge Tank with Pressure Cap CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
Page 312 The coolant level should be at the COLD FILL line. If it is not, you may have a leak at the radiator hoses, heater hoses, radiator, water pump, or somewhere else in the cooling system. CAUTION: Heater and radiator hoses, and other engine parts, can be very hot.
Page 313: How To Add Coolant To The Coolant Surge Tank
How to Add Coolant to the Coolant Surge Tank Notice: This vehicle has a speciﬁc coolant ﬁll procedure. Failure to follow this procedure could cause your engine to overheat and be severely damaged. If you have not found a problem yet, check to see if coolant is visible in the surge tank.
Page 314 CAUTION: Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid such as alcohol, can boil before the proper coolant mixture will. Your vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, your engine could get too hot but you would not get the overheat warning.
Page 315 1. You can remove the coolant surge tank pressure cap when the cooling system, including the coolant surge tank pressure cap and upper radiator hose, is no longer hot. Turn the pressure cap slowly counterclockwise about one-quarter of a turn. If you hear a hiss, wait for that to stop.
Page 316 4. With the coolant surge tank pressure cap off, start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fan. By this time, the coolant level inside the coolant surge tank may be lower.
Page 317: Adding Windshield Washer Fluid
Windshield Washer Fluid What to Use When you need windshield or rear window washer ﬂuid, be sure to read the manufacturer’s instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 318: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 296 for the location of the reservoir. The brake master cylinder reservoir is located under the engine cover. To access the reservoir, pull up on the engine cover and lift it off the engine.
Page 319 What to Add When you do need brake ﬂuid, use only DOT-3 brake ﬂuid. Use new brake ﬂuid from a sealed container only. See Recommended Fluids and Lubricants on page 401. Always clean the brake ﬂuid reservoir cap and the area around the cap before removing it.
Page 320: Brake Wear
Properly torqued wheel nuts are necessary to help prevent brake pulsation. When tires are rotated, inspect brake pads for wear and evenly tighten wheel nuts in the proper sequence to Saturn torque speciﬁcations. Your rear drum brakes do not have wear...
Page 321: Replacing Brake System Parts
— be sure you get new approved Saturn replacement parts. If you do not, your brakes may no longer work properly. For example, if someone puts in brake linings...
Page 322: Vehicle Storage
36-Volt Battery System If you need a new 36-volt hybrid battery system, see your retailer. Vehicle Storage If you are not going to drive your vehicle for 30 days or more you should disconnect the standard 12-volt battery by disconnecting the negative battery cable, the one that is exposed.
Page 323 CAUTION: Batteries can hurt you. They can be dangerous because: • They contain acid that can burn you. • They contain gas that can explode or ignite. • They contain enough electricity to burn you. If you do not follow these steps exactly, some or all of these things can hurt you.
Page 324 Notice: If you leave your radio or other accessories on during the jump starting procedure, they could be damaged. The repairs would not be covered by your warranty. Always turn off your radio and other accessories when jump starting your vehicle. 3.
Page 325 CAUTION: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded. Use a ﬂashlight if you need more light. Be sure the battery has enough water. You do not need to add water to the battery installed in your new vehicle.
Page 326 6. Check that the jumper cables do not have loose or missing insulation. If they do, you could get a shock. The vehicles could be damaged too. Before you connect the cables to the other vehicle, here are some basic things you should know. Positive (+) will go to positive (+) or to a remote positive terminal (+) if the vehicle has one.
Page 327 Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 328: Headlamp Aiming
Headlamp Aiming The vehicle has a visual optical headlamp aiming system. The aim of the headlamps have been preset at the factory and should need no further adjustment. However, if the vehicle is damaged in an accident, the aim of the headlamps may be affected and adjustment may be necessary.
Page 329 Headlamp aiming is done with the vehicle’s low-beam headlamps. The high-beam headlamps will be correctly aimed if the low-beam headlamps are aimed properly. To adjust the vertical aim, do the following: 1. Open the hood. See Hood Release on page 295 for more information. 2.
Page 330 7. Locate the vertical headlamp aiming screws, which are under the hood near each headlamp assembly. The adjustment screw can be turned with a ® E8 Torx socket. 8. Turn the vertical aiming screw until the headlamp beam is aimed to the horizontal tape line.
Page 331: Bulb Replacement
Bulb Replacement For the type of bulb to use, see Replacement Bulbs on page 337. For any bulb changing procedure not listed in this section, contact your retailer. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb.
Page 332 To replace one of the headlamp bulbs, use the following procedure. To replace the parking/turn signal lamp bulb, see Front Turn Signal and Parking Lamps on page 334. 1. Open the hood. See Hood Release on page 295 for more information. 2.
Page 333 4. Insert a ﬂat blade tool through the opening in the top. Make sure the tool ﬁts through the opening in the headlamp bracket lower arm. 5. Push the locking tab toward the rear of the vehicle with the tool to lift the headlamp bracket lower arm.
Page 334: Front Turn Signal And Parking Lamps
Front Turn Signal and Parking Lamps To replace a front turn signal or parking lamp bulb, do the following: 1. Follow Steps 1 through 6 under Headlamps on page 331 to access the front turn signal or parking lamp. 2. Turn the bulb to be replaced counterclockwise to remove it from the headlamp assembly.
Page 335: Center High-Mounted Stoplamp (Chmsl)
Center High-Mounted Stoplamp (CHMSL) To replace a CHMSL bulb, do the following: 1. Remove the center high-mounted stoplamp (CHMSL) fasteners from the outside of the vehicle. 2. Pull the CHMSL out of the liftgate. 3. Disconnect the rear washer hose from the rear washer nozzle.
Page 336: Taillamps, Turn Signal, Stoplamps And
Taillamps, Turn Signal, Stoplamps and Back-up Lamps To replace one of these bulbs, do the following: 1. Open the liftgate. See Liftgate on page 106 for more information. 2. Remove the two screws retaining the taillamp assembly. 3. Slide the taillamp 4.
Page 337: License Plate Lamp
License Plate Lamp To replace one of these bulbs, do the following: 1. Remove the two screws holding each of the license plate lamps to the fascia. 2. Turn and pull the license plate lamp forward through the fascia opening. 3.
Page 338: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear and cracking. See Scheduled Maintenance on page 392 for more information. Replacement blades come in different types and are removed in different ways. For proper type and length, see Normal Maintenance Replacement Parts on page 402.
Page 339: Tires
Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your Saturn Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle.
Page 340: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into the sidewall. The following illustration is an example of a typical P-Metric tire sidewall. (A) Tire Size: The tire size code is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type, and service description.
Page 341 (E) Tire Ply Material: The type of cord and number of plies in the sidewall and under the tread. (F) Uniform Tire Quality Grading (UTQG): Tire manufacturers are required to grade tires based on three performance factors: treadwear, traction, and temperature resistance.
Page 342: Tire Terminology And Deﬁnitions
(C) Aspect Ratio: A two-digit number that indicates the tire height-to-width measurements. For example, if the tire size aspect ratio is 75, as shown in item C, of the illustration, it would mean that the tire’s sidewall is 75 percent as high as it is wide.
Page 343 Bias Ply Tire: A pneumatic tire in which the plies are laid at alternate angles less than 90 degrees to the centerline of the tread. Cold Tire Pressure: The amount of air pressure in a tire, measured in pounds per square inch (psi) or kilopascals (kPa) before a tire has built up heat from driving.
Page 344 Maximum Load Rating: The load rating for a tire at the maximum permissible inﬂation pressure for that tire. Maximum Loaded Vehicle Weight: The sum of curb weight, accessory weight, vehicle capacity weight, and production options weight. Normal Occupant Weight: The number of occupants a vehicle is designed to seat multiplied by 150 lbs (68 kg).
Page 345: Inﬂation - Tire Pressure
UTQGS (Uniform Tire Quality Grading Standards): A tire information system that provides consumers with ratings for a tire’s traction, temperature, and treadwear. Ratings are determined by tire manufacturers using government testing procedures. The ratings are molded into the sidewall of the tire. See Uniform Tire Quality Grading on page 352.
Page 346: When To Check
A Tire and Loading Information label is attached to the vehicle’s center pillar, below the driver’s door latch. This label lists your vehicle’s original equipment tires and shows the correct inﬂation pressures for your tires when they are cold. The recommended cold tire inﬂation pressure, shown on the label, is the minimum amount of air pressure needed to support your vehicle’s maximum load carrying capacity.
Page 347: High Speed Operation
High Speed Operation CAUTION: Driving at high speeds, 100 mph (160 km/h) or higher, puts an additional strain on tires. Sustained high-speed driving causes excessive heat build up and can cause sudden tire failure. You could have a crash and you or others could be killed.
Page 348: Tire Inspection And Rotation
Tire Inspection and Rotation Tires should be rotated every 5,000 to 8,000 miles (8 000 to 13 000 km). Any time you notice unusual wear, rotate your tires as soon as possible and check wheel alignment. Also check for damaged tires or wheels. See When It Is Time for New Tires on page 349 and Wheel Replacement on page 353 for more information.
Page 349: When It Is Time For New Tires
Make certain that all wheel nuts are properly tightened. See “Wheel Nut Torque” under Capacities and Speciﬁcations. CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after a time. The wheel could come off and cause a crash.
Page 350: Buying New Tires
Buying New Tires GM has developed and matched speciﬁc tires for your vehicle. The original equipment tires installed on your vehicle, when it was new, were designed to meet General Motors Tire Performance Criteria Speciﬁcation (TPC spec) system rating. If you need replacement tires, GM strongly recommends that you get tires with the same TPC Spec rating.
Page 351: Different Size Tires And Wheels
You may increase the chance that you will crash and suffer serious injury. Only use Saturn speciﬁc wheel and tire systems developed for your vehicle, and have them properly installed by a Saturn certiﬁed technician.
Page 352: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration (NHTSA), which grades tires by treadwear, traction, and temperature performance.
Page 353: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 354 If you need to replace any of your wheels, wheel bolts, or wheel nuts, replace them only with new Saturn original equipment parts. This way, you will be sure to have the right wheel, wheel bolts, and wheel nuts for your vehicle.
Page 355 This could lead to a crash. Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new Saturn original equipment wheel nuts. Notice: Improperly tightened wheel nuts can lead to brake pulsation and rotor damage.
Page 356: Tire Chains
Tire Chains CAUTION: If your vehicle has P235/65R16, P235/60R17 or 245/50R18 size tires, do not use tire chains, there is not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension or other vehicle parts.
Page 357: If A Tire Goes Flat
Notice: If your vehicle has a tire size other than P235/65R16, P235/60R17 or 245/50R18 size tires, use tire chains only where legal and only when you must. Use only SAE Class “S” type chains that are the proper size for your tires. Install them on the front tires and tighten them as tightly as possible with the ends securely fastened.
Page 358: Tire Inﬂator Kit
A rear blow out, particularly on a curve, acts much like a skid and may require the same correction you would use in a skid. In any rear blow out, remove your foot from the accelerator pedal. Get the vehicle under control by steering the way you want the vehicle to go.
Page 359 The kit includes the following: A. Air Compressor E. Air Pressure Gage B. Tire Sealant Canister F. Air Compressor C. Air Compressor Accessory Plug G. Sealant Filling D. On/Off Switch If the ﬂat tire is due to a slow leak caused by a nail or other similar road hazard, the tire inﬂator kit can be used to temporarily repair the damaged tire.
Page 360 Accessing the Tire Inﬂator Kit To access the tire inﬂator kit, do the following: 1. Open the liftgate. See Liftgate on page 106 for more information 2. Lift the forward ﬂoor panel of the load ﬂoor cargo organizer. 3. Remove the forward ﬂoor panel of the load ﬂoor cargo organizer and place it in the vehicle while you are removing the tire inﬂator kit.
Page 361 4. Open the ﬂoor cargo organizer locks, located on the top left and right corners of the organizer, by pushing inward on them. 5. Remove the load ﬂoor cargo organizer. 6. Remove the foam retainer bolt (B) holding down the foam container. 7.
Page 362: Tire Sealant
Tire Sealant The kit contains a liquid sealant that when injected into a ﬂat tire, might temporarily repair nail holes or cuts in the tread area of the tire. The tire sealant cannot repair tire damage caused while driving on a ﬂat tire or a tire that has had a “blow out” or a tire that has punctures in the sidewall areas.
Page 363 4. Attach the sealant ﬁlling hose (A) onto the tire valve stem. Turn it clockwise until it is tight. Make sure the inﬂator kit on/off switch (B) is in the O (off) position. 5. Plug the air compressor accessory plug (C) into an accessory power outlet in the vehicle.
Page 364 7. Push the inﬂator kit switch to the I (on) position. The inﬂator kit forces sealant and air into the tire. Sealant can leak from the puncture hole until the vehicle is driven and the hole has sealed. 8. Make sure there is a proper connection between the tire valve stem and the sealant ﬁlling hose by looking at the air pressure gage.
Page 365 15. Stow the air compressor accessory plug back in the air compressor. To do this, wrap the air compressor accessory plug, snap in the plug, and then push in the bottom and then the top of the wrapped air compressor accessory plug.
Page 366 20. Immediately drive the vehicle 5 miles (8 km) to distribute the sealant evenly in the tire. Stop at a safe location and check the tire pressure, refer to Steps 1 through 8 under Using the Air Compressor without Sealant next in this section.
Page 367 4. Push the air compressor inﬂator hose onto the tire valve stem and push the lever down to secure in place. 5. Plug the air compressor accessory plug into an accessory power outlet in the vehicle. See Accessory Power Outlet(s) on page 154 for more information.
Page 368: Removal And Installation Of The Sealant Canister
9. Inﬂate the tire up to the recommended inﬂation pressure using the air pressure gage on the top of the unit. 10. Turn off the air compressor by moving the switch to the O (off) position. CAUTION: Storing the tire inﬂator kit or other equipment in the passenger compartment of the vehicle could cause injury.
Page 369 4. Turn the sealant canister so the inﬂator ﬁlling hose is aligned with the slot in the compressor. 5. Lift the sealant canister from the compressor and replace with a new sealant canister. See your retailer for more information. To install a new sealant canister, do the following: 1.
Page 370: Appearance Care
Appearance Care Cleaning the Inside of Your Vehicle Your vehicle’s interior will continue to look its best if it is cleaned often. Although not always visible, dust and dirt can accumulate on your upholstery. Dirt can damage carpet, fabric, leather, and plastic surfaces.
Page 371 Dust may be removed from small buttons and knobs using a small brush with soft bristles. Your retailer has a product for cleaning your vehicle’s glass. Should it become necessary, you can also obtain a product from your retailer to remove odors from your vehicle’s upholstery.
Page 372: Fabric/Carpet
Fabric/Carpet Use a vacuum cleaner with a soft brush attachment frequently to remove dust and loose dirt. A canister vacuum with a beater bar in the nozzle may only be used on ﬂoor carpet and carpeted ﬂoor mats. For soils, always try to remove them ﬁrst with plain water or club soda.
Page 373: Instrument Panel, Vinyl, And Other Plastic Surfaces
Instrument Panel, Vinyl, and Other Plastic Surfaces A soft cloth dampened with water may be used to remove dust. If a more thorough cleaning is necessary, a clean soft cloth dampened with a mild soap solution can be used to gently remove dust and dirt.
Page 374: Washing Your Vehicle
Occasional waxing or mild polishing of your vehicle by hand may be necessary to remove residue from the paint ﬁnish. You can get approved cleaning products from your Saturn retailer. See Vehicle Care/Appearance Materials on page 378. Your vehicle has a basecoat/clearcoat paint ﬁnish.
Page 375: Windshield And Wiper Blades
Foreign materials such as calcium chloride and other salts, ice melting agents, road oil and tar, tree sap, bird droppings, chemicals from industrial chimneys, etc., can damage your vehicle’s ﬁnish if they remain on painted surfaces. Wash the vehicle as soon as possible. If necessary, use non-abrasive cleaners that are marked safe for painted surfaces to remove foreign matter.
Page 376: Aluminum Wheels
The repairs would not be covered by your warranty. Use only Saturn-approved cleaners on aluminum or chrome-plated wheels. Keep the wheels clean using a soft clean cloth with mild soap and water. Rinse with clean water.
Page 377: Sheet Metal Damage
Although no defect in the paint job causes this, Saturn will repair, at no charge to the owner, the surfaces of new vehicles damaged by this fallout condition within 12 months or 12,000 miles...
Page 378: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Oil Removes tar, road oil, Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel. White Sidewall Removes soil and black Tire Cleaner marks from whitewalls.
Page 379: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver side. You can see it if you look through the windshield from outside your vehicle.
Page 380: Electrical System
Electrical System Add-On Electrical Equipment Notice: Do not add anything electrical to your vehicle unless you check with your retailer ﬁrst. Some electrical equipment can damage your vehicle and the damage would not be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 381: Instrument Panel Fuse Block
Instrument Panel Fuse Block The instrument panel fuse block is located on the passenger’s side of the lower console. Fuses Usage CRUISE Cruise Control Switch, Brake Switch Electronic Power Steering Fuses Usage Instrument Cluster, Brake Transmission Shift Interlock IGN 1 Solenoid, Traction Switch, Fog Lamp Switch LOCK/...
Page 382: Underhood Fuse Block
Fuses Usage BCM/ Body Control Module, Instrument CLUSTER Cluster INT LTS Body Control Module, OnStar DR LKS Door Locks Relays AFTER BLOW Not Used HVAC HVAC Control Head BLOWER PK LP Parking Lamps DR LCK All Door Lock Switch PSG DR Passenger Door Unlock Switch UNLCK DRV DR...
Page 383 Fuses Usage Battery Voltage to Engine Control ECM/TCM Module/Transaxle Control Module BATT FEED Instrument Panel Fuse Box Fuses Usage HORN Horn ABS PWR Anti-lock Brake System Battery EMISS Emissions...
Page 384 Fuses REAR DEFOG Rear Defogger COOL HI Cooling Fan High LH HDLP Driver’s Side Headlamp RR WIPER Rear Wiper Anti-lock Brake System Module Engine Ignition Module, IGN/INJ Fuel Injectors PWR WDW Power Window Relay and Sunroof CIGAR LITER Cigarette Lighter HVAC Climate Control System BLOWER...
Page 385 Relays Usage Daytime Running Lamps Relay HORN Horn Relay COOL FAN HI Cooling Fan High Relay Engine Control Module/CAM, ENG MAIN Emissions, Injectors, Electronic Throttle Control Relay REAR DEFOG Rear Defog System Relay WIPER Wiper System Relay SYSTEM Power Window Switch, Sunroof PWR WDW Module Relay FRT WIPER...
Page 386 Hybrid Underhood Fuse Block The hybrid underhood fuse block is located under the engine cover on the driver’s side of the engine compartment. To access the fuse block, remove the engine cover by pulling up on the cover and lifting it off the engine. The hybrid underhood fuse block is the smaller of the two fuse blocks in the engine compartment, and is located near the front of the vehicle.
Page 387: Capacities And Speciﬁcations
Capacities and Speciﬁcations Application Air Conditioning Refrigerant R134a Cooling System Engine Oil with Filter Fuel Tank Transaxle (Bottom Pan Removal) Wheel Nut Torque All capacities are approximate. When adding, be sure to ﬁll to the approximate level, as recommended in this manual.
Page 388 NOTES...
Page 389: Maintenance Schedule
Section 6 Maintenance Schedule ... 390 Introduction ... 390 Maintenance Requirements ... 390 Your Vehicle and the Environment ... 390 Using the Maintenance Schedule ... 390 Scheduled Maintenance ... 392 Additional Required Services ... 395 Maintenance Footnotes ... 396 Owner Checks and Services ... 397 Maintenance Schedule At Each Fuel Fill ...
Page 390: Maintenance Schedule
Using the Maintenance Schedule We at Saturn want to help you keep your vehicle in good working condition. But we do not know exactly how you will drive it. You may drive very short distances only a few times a week.
Page 391 So, unless you are technically qualiﬁed and have the necessary equipment, you should have your Saturn retailer do these jobs. When you go to your Saturn retailer for your service needs, you will know that Saturn-trained and supported service technicians will perform the...
Page 392: Scheduled Maintenance
However, your engine oil and ﬁlter must be changed at least once a year and at this time the system must be reset. Your Saturn retailer has Saturn-trained service technicians who will perform this work using genuine Saturn parts and reset the system.
Page 393 When the Change Engine Oil light appears, certain services, checks, and inspections are required. Required services are described in the following for “Maintenance I” and “Maintenance II.” Generally, it is recommended that your ﬁrst service be Maintenance I, your second service be Maintenance II, and that you alternate Maintenance I and Maintenance II thereafter.
Page 394 Scheduled Maintenance (cont’d) Service Maintenance I Maintenance II Inspect brake system. See footnote (a). Check engine coolant and windshield washer ﬂuid levels and add ﬂuid as needed. Perform any needed additional services. See “Additional Required Services” in this section. Inspect suspension and steering components. See footnote (b). Inspect engine cooling system.
Page 395: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 396: Maintenance Footnotes
(c) Visually inspect hoses and have them replaced if they are cracked, swollen, or deteriorated. Inspect all pipes, ﬁttings, and clamps; replace with genuine Saturn parts as needed. To help ensure proper operation, a pressure test of the cooling system and pressure cap and cleaning the outside of the radiator and air conditioning condenser is recommended at least once a year.
Page 397: Owner Checks And Services
These owner checks and services should be performed at the intervals speciﬁed to help ensure the safety, dependability, and emission control performance of your vehicle. Your Saturn retailer can assist you with these checks and services. Be sure any necessary repairs are completed at once.
Page 398: At Each Fuel Fill
At Each Fuel Fill It is important to perform these underhood checks at each fuel ﬁll. Engine Oil Level Check Check the engine oil level and add the proper oil if necessary. See Engine Oil on page 297 for further details. Notice: It is important to check the engine oil regularly and keep it at the proper level.
Page 399 LOCK in each shift lever position. • The ignition should turn to LOCK only when the shift lever is in PARK (P). • The ignition key should come out only in LOCK. Contact your Saturn retailer if service is required.
Page 400 With the engine running, shift to PARK (P). Then release the parking brake followed by the regular brake. Contact your Saturn retailer if service is required. Underbody Flushing Service At least every spring, use plain water to ﬂush any corrosive materials from the underbody.
Page 401: Recommended Fluids And Lubricants
(GM Part No. U.S. 12346241, Cylinders in Canada 10953474). Hood Latch Lubriplate Lubricant Aerosol Assembly, (Saturn Part No. 21038869 or Secondary GM Part No. U.S. 12346293, Latch, Pivots, in Canada 992723) or lubricant Spring Anchor, meeting requirements of NLGI #2, and Release Category LB or GC-LB.
Page 402: Normal Maintenance Replacement Parts
Passenger Compartment Air Filter Element Spark Plugs 2.4L L4 Wiper Blades Driver’s Side – 24 inches (60.0 cm) Passenger’s Side – 19 inches (47.5 cm) Rear – 11.0 inches (28.0 cm) Saturn Part Number ACDelco 22676970 12605566 15822812 1258004 22703508...
Page 403: Engine Drive Belt Routing
Engine Drive Belt Routing The engine drive belt on this hybrid vehicle is under a higher tension than the engine drive belt on a non-hybrid vehicle and requires the use of a special kind of tool. See your retailer for service.
Page 404: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 390. Any additional information from Owner Checks and Services on page 397 can be added on the following record pages.
Page 405 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
Page 406 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
Page 407: Customer Assistance Information
Customer Assistance Information Reporting Safety Defects ... 422 Reporting Safety Defects to the United States Government ... 422 Reporting Safety Defects to the Canadian Government ... 422 Reporting Safety Defects to Saturn ... 423 Service Publications Ordering Information ... 423...
Page 408: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your retailer and to Saturn. Together we are committed to providing our customers with unparalleled service, before, during and after the purchase of a Saturn vehicle, for total customer satisfaction.
Page 409 Saturn vehicle. However, if you continue to remain unsatisﬁed after following the procedure outlined in Steps One and Two, Saturn and its retailers offer the additional assistance of a neutral party through our voluntary participation in a mediation/arbitration program called Better Business Bureau (BBB) Auto Line.
Page 410 For further information concerning eligibility in the Canadian Motor Vehicle Arbitration Plan (CAMVAP), call toll-free 1-800-207-0685. Alternatively, you may call the Saturn Customer Communication Centre, 1-800-263-1999, or you may write to: Mediation/Arbitration Program c/o Customer Communication Centre...
Page 411: Online Owner Center
Online Owner Center Online Owner Center (United States only) The Owner Center is a resource for your Saturn ownership needs. Speciﬁc vehicle information can be found in one place. The Online Owner Center allows you to: • Get e-mail service reminders.
Page 412: Customer Assistance For Text Telephone (Tty) Users
Canada may dial 1-800-263-3830. Customer Assistance Offices Saturn encourages customers to call the toll-free number for assistance. If a customer wishes to write to Saturn, the letter should be addressed to: Saturn Customer Assistance Center 100 Saturn Parkway Mail Code 371-999-S24...
Page 413: Gm Mobility Reimbursement Program
For vehicles purchased in Canada call 1-800-268-6800. Service available 24 hours a day, 365 days a year As the proud owner of a new Saturn vehicle, you are automatically enrolled in the Saturn Roadside Assistance Program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road.
Page 414 10 miles. • Emergency Tow From a Public Roadway or Highway: Tow to the nearest Saturn retailer for warranty service or in the event of a vehicle-disabling accident. Winch-out assistance provided when the vehicle is mired in sand, mud, or snow.
Page 415 $100 upon submission of the original receipt to Roadside Assistance. In many instances, mechanical failures are covered under Saturn’s Bumper-to-Bumper warranty for U.S. customers, and the duration of the Base Warranty Coverage for Canadian customers of the New Vehicle Limited Warranty.
Page 416 While we hope you never have the occasion to use our service, it is added security while traveling for you and your family. Remember we are only a phone call away. Saturn Roadside Assistance: 1-800-553-6000 ; text telephone (TTY) users, call 1-800-833-6000. Canadian customers call 1-800-268-6800.
Page 417: Vehicle Data Collection And Event Data Recorders
Vehicle Data Collection and Event Data Recorders Your vehicle, like other modern motor vehicles, has a number of sophisticated computer systems that monitor and control several aspects of the vehicle’s performance. Your vehicle uses on-board vehicle computers to monitor emission control components to optimize fuel economy, to monitor conditions for airbag deployment and, if the vehicle has the Anti-lock Brake System (ABS), to provide anti-lock...
Page 418: Collision Damage Repair
In addition, once GM collects or receives data, GM may: • use the data for GM research needs, • make it available for research where appropriate conﬁdentiality is to be maintained and need is shown, or • share summary data which is not tied to a speciﬁc vehicle with non-GM organizations for research purposes.
Page 419: Repair Facility
Repair Facility GM also recommends that you choose a collision repair facility that meets your needs before you ever need collision repairs. Your Saturn retailer may have a collision repair center with GM-trained technicians and state of the art equipment, or...
Page 420: If An Accident Occurs
If an Accident Occurs Here is what to do if you are involved in an accident. • Try to relax and then check to make sure you are all right. If you are uninjured, make sure that no one else in your vehicle, or the other vehicle, is injured.
Page 421: Managing The Vehicle Damage Repair Process
• Choose a reputable collision repair facility for your vehicle. Whether you select a Saturn retailer or a private collision repair facility to ﬁx the damage, make sure you are comfortable with them. Remember, you will have to feel comfortable with their work for a long time.
Page 422: Reporting Safety Defects
National Highway Traffic Safety Administration (NHTSA), in addition to notifying Saturn Corporation. If NHTSA receives similar complaints, it may open an investigation, and if it ﬁnds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
Page 423: Reporting Safety Defects To Saturn
Reporting Safety Defects to Saturn In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you will notify us. U.S. customers can call the Saturn Customer Assistance Center at 1-800-553-6000, or write: Saturn Corporation 100 Saturn Parkway...
Page 424: Owner Publications
Gross Vehicle Weight Rating (GVWR) less than 10,000 pounds (4 536 kg). Copies of individual bulletins are also at your participating Saturn retailer. You can ask to see them. In Canada, information relating to product service bulletins can be obtained by contacting your Saturn retailer.
Page 425 Accessories and Modiﬁcations ... 287 Accessory Power Outlet(s) ... 154 Adding Equipment to Your Airbag-Equipped Vehicle ... 93 Additives, Fuel ... 290 Add-On Electrical Equipment ... 380 Air Cleaner/Filter, Engine ... 302 Air Conditioning ... 156 Airbag Passenger Status Indicator ... 166 Readiness Light ...
Page 426 Audio System(s) (cont.) Radio with CD ... 188, 195 Radio with CD and DVD ... 205 Setting the Time ... 186 Understanding Radio Reception ... 228 XM™ Satellite Radio Antenna System ... 229 Auto Stop Mode ... 181 Automatic Headlamp System ... 153 Automatic Transaxle Fluid ...
Page 427 Cargo Area ... 135 Cargo Tie Downs ... 137 CD, MP3 ... 205 Center Console Storage Area ... 135 Center High-Mounted Stoplamp (CHMSL) ... 335 Chains, Tire ... 356 Charge/Assist Gage ... 182 Check Engine Light ... 173 Checking Things Under the Hood ... 294 Chemical Paint Spotting ...
Page 428 Telephone (TTY) Users ... 412 Customer Assistance Offices ... 412 Customer Satisfaction Procedure ... 408 GM Mobility Reimbursement Program ... 413 Reporting Safety Defects to Saturn ... 423 Reporting Safety Defects to the Canadian Government ... 422 Reporting Safety Defects to the United States Government ...
Page 429 Electrical System Add-On Equipment ... 380 Fuses and Circuit Breakers ... 380 Instrument Panel Fuse Block ... 381 Power Windows and Other Power Options ... 380 Underhood Fuse Block ... 382 Windshield Wiper Fuses ... 380 Engine Air Cleaner/Filter ... 302 Battery ...
Page 430 Fuel (cont.) Gage ... 180 Gasoline Octane ... 289 Gasoline Speciﬁcations ... 289 Low Warning Light ... 181 Fuel Economy Light ... 183 Fuses Fuses and Circuit Breakers ... 380 Instrument Panel Fuse Block ... 381 Underhood Fuse Block ... 382 Windshield Wiper ...
Page 431 Horn ... 144 How to Use This Manual ... 4 How to Wear Safety Belts Properly ... 26 Ignition Positions ... 111 Infants and Young Children, Restraints ... 47 Inﬂation - Tire Pressure ... 345 Inﬂator Kit, Tire ... 358 Instrument Panel Overview ...
Page 432 Light (cont.) Low Fuel Warning ... 181 Low Traction ... 171 Malfunction Indicator ... 173 Oil Pressure ... 176 Passenger Airbag Status Indicator ... 166 Passenger Safety Belt Reminder ... 164 Reduced Engine Power ... 178 Safety Belt Reminder ... 164 Security ...
Page 433 Map Lamps ... 154 Mirrors Automatic Dimming Rearview with ® OnStar , Compass and Temperature Display ... 127 Outside Convex Mirror ... 130 Outside Power Mirrors ... 130 MP3 ... 205 MyGMLink.com ... 411 New Vehicle Break-In ... 111 Normal Maintenance Replacement Parts ... 402 Odometer ...
Page 434 Remote Keyless Entry (RKE) System, Operation ... 100 Replacement Bulbs ... 337 Reporting Safety Defects Canadian Government ... 422 Saturn ... 423 United States Government ... 422 Restraint System Check Checking the Restraint Systems ... 94 Replacing Restraint System Parts After a Crash ...
Page 435 Rocking Your Vehicle to Get it Out ... 262 Routing, Engine Drive Belt ... 403 Running the Engine While Parked ... 126 Safety Belt Passenger Reminder Light ... 164 Pretensioners ... 43 Reminder Light ... 164 Safety Belts Care of ... 373 Driver Position ...
Page 436 Servicing Your Airbag-Equipped Vehicle ... 92 Sheet Metal Damage ... 377 Shifting Into Park (P) ... 122 Shifting Out of Park (P) ... 123 Shoulder Belt Height Adjuster ... 35 Signals, Turn and Lane-Change ... 145 Speciﬁcations, Capacities ... 387 Speedometer ...
Page 437 Tires (cont.) Wheel Alignment and Tire Balance ... 353 Wheel Replacement ... 353 When It Is Time for New Tires ... 349 Towing Recreational Vehicle ... 270 Towing a Trailer ... 274 Your Vehicle ... 270 Traction Control System (TCS) ... 240 Control System Warning Light ...
Page 438 Where to Put the Restraint ... 56 Windows ... 107 Power ... 108 Windshield Washer ... 147 Washer Fluid ... 317 Wiper Blade Replacement ... 338 Wiper Blades, Cleaning ... 375 Wiper Fuses ... 380 Wipers ... 146 Windshield, Rear Washer/Wiper ... 148 Winter Driving ...
