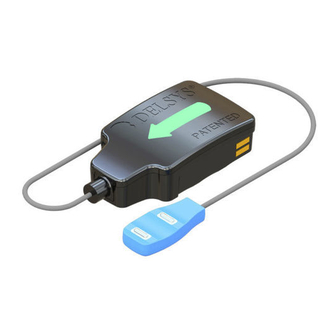

Delsys Trigno User Manual

Wireless biofeedback system
Hide thumbs Also See for Trigno:
Table of Contents

Advertisement

Quick Links

Trigno
Wireless
TM
Biofeedback System
User's Guide
PM-W0X
Copyright © 2018 by Delsys Incorporated
MAN-XXX-1-0
11/28/2018

Advertisement

Table of Contents
loading

Related Manuals for Delsys Trigno

Summary of Contents for Delsys Trigno

  • Page 1 Trigno Wireless Biofeedback System User’s Guide PM-W0X Copyright © 2018 by Delsys Incorporated MAN-XXX-1-0 11/28/2018...
  • Page 2 This page intentionally blank...

  • Page 3: Table Of Contents

    Sensor LED Feedback States .................... 11 Base Station Features ................13 Base Station LED Feedback States..................14 Getting Started with the Trigno System ........... 15 Powering the Base Station ..................15 Charging the Sensors ..................... 15 Turning the Sensor ON ..................16 Turning the Sensors OFF..................
  • Page 4 Using the Base Station Trigger Functions .............. 26 Maintenance and Care ................28 Trigno Sensors ....................... 28 Trigno Base Station....................28 Reference Specifications ................29 Appendix I ....................30 Mains Isolation ...................... 30...

  • Page 5: Important Information

    Trigno™ Wireless Biofeedback System Important Information Intended Use The Trigno Wireless Biofeedback System is a battery-powered biofeedback device that enables researchers and clinicians to acquire EMG and related signals from subjects for biofeedback and research purposes. They are intended for relaxation training and muscle reeducation. Interpretation of the EMG and supporting signals by a qualified individual is required.

  • Page 6: Warnings And Precautions

    Connect only to Delsys-approved devices. Connecting a patient to high-frequency surgical equipment while using Delsys EMG systems may result in burns at the site of the EMG sensor contacts Immediately discontinue device use if skin irritation or discomfort occurs.

  • Page 7: Device Information

    Trigno™ Wireless Biofeedback System Device Information Complies with Requirements put forth by the Medical Device Directive 93/42/EEC. Class I device, Annex VII. Type BF device (IEC 60601-1) Isolated device, (Class II, IEC 60601-1) Type BF Equipment. Date of Manufacturing (appears on device) Manufacturer: Delsys Inc.

  • Page 8: Windows Pc Requirements

    Connect the equipment into outlet on a separate circuit. Pursuant to FCC 15.21 of the FCC rules, changes not expressly approved by Delsys Inc. could void the User’s authority to operate the equipment. Windows PC Requirements  EMGworks 4.4 or later ...

  • Page 9: Trigno System Overview

    Wireless Biofeedback System is a device designed to make EMG (electromyographic) and biofeedback signal detection reliable and easy. The system transmits signals from the Trigno Galileo sensors to a receiving base station using a time-synchronized wireless protocol which minimizes data latency across sensors.

  • Page 10: Onboard Emg Sensor

    Data from each sensor and from each channel within a sensor are time synchronized over the Trigno wireless communication protocol so no time skew between data exists. A maximum of 4 Trigno Galileo sensors can stream data to a host base station at one time. These features are available only when communicating with the PC-connected Base Station;...

  • Page 11: Internal Magnetic Switch

    Trigno™ Wireless Biofeedback System Internal Magnetic Switch The Trigno Galileo sensors are equipped with an internal magnetic switch which is used to turn the sensors “on” and to perform RF pairing operations. To activate the internal magnetic switch, the sensor must be placed on the magnet lock label located on the Base Station charging cradle.
  • Page 12 A magnetic field will turn the sensor on within 6 seconds, otherwise the arrow fades to dark and sensor turns off. 3) Charging: Sensor Charging in the Trigno Base Station is denoted by continuous amber LED arrow illumination 4) Charge Complete: Once the internal sensor battery has been fully recharged, the LED arrow illuminates to continuous green.

  • Page 13: Base Station Features

    • Medical Grade Universal Power Supply. Figure 1: Trigno System Base Station for sensor recharging and communication. Recharging Cradle: The Trigno Base Station is equipped with 16 charge pockets which can accommodate Trigno sensors for charging. The pockets are keyed so that sensors can only be inserted in one orientation.

  • Page 14: Base Station Led Feedback States

    3 party equipment. The Trigger Module is required for making device connections. Base Station LED Feedback States Trigno Base Stations are equipped with 2 LEDs, indicating power on/off and communication function as described in the table below: State Color...

  • Page 15: Getting Started With The Trigno System

    Trigno Systems are equipped with a universal medical power supply and are provided with interchangeable country-specific plug adapters. Connect the Trigno power supply to the circular DC jack located on the side of the Base Station. Energize the power supply by connecting it to a Mains outlet or to an isolation transformer.

  • Page 16: Turning The Sensor On

    Turning the Sensor ON Trigno Galileo sensors are automatically turned on when they are removed from a powered charging dock. The sensors must be docked for a minimum of 3 seconds in the charge cradle, however, for the self-powering scheme to initiate upon undocking.

  • Page 17: Turning The Sensors Off

    Trigno™ Wireless Biofeedback System Figure 4: To turn sensors on: a) dock for 3 seconds or more, b) remove from cradle, c) tap sensor on magnet within 6 seconds to (d) complete power-up sequence. Turning the Sensors OFF There are 3 mechanisms that will turn the sensors off:...

  • Page 18: Startup Scan Mode

    Trigno™ Wireless Biofeedback System Startup Scan Mode Once the sensors turn on and complete the activation process, the LED will alternate between amber and cyan, indicating that the sensor is looking for a connection to the host. The host can either be a PC-connected base station or a Bluetooth enabled Android device.

  • Page 19: Acquiring Data With The System

    Microsoft Windows Operating Systems can be downloaded from the Delsys website (www.delsys.com) or installed following the information included with the system. Acquiring data with a PC requires the Trigno Base Station to be connected via the USB port. The Trigno Base Station uses a custom RF protocol to guarantee high data bandwidth across 16 sensors with no inter-sensor latency.

  • Page 20: Configuring The Trigno Sensors

    Trigno™ Wireless Biofeedback System Configuring the Trigno Sensors Once paired to the system, EMG data and IMU data from sensor can be configured in the following ways: Electromyographic (EMG) Sensing Ranges Input Range 11 mV Bandwidth 20-450 Hz Inertial Measurement Unit (IMU) Ranges Accelerometer* ±2 g...

  • Page 21: Using The Wireless Emg Sensors

    Using the Wireless EMG Sensors Orienting the EMG Sensors on the Skin Trigno EMG Sensors employ 4 silver bar contacts for detecting the EMG signal at the skin surface. For maximum signal amplitude, it is important to orient these bars perpendicular to the muscle fiber direction. The top of the sensor is shaped with an arrow to aid in the determination of this orientation.
  • Page 22 Trigno™ Wireless Biofeedback System Adhesive Sensor Interfaces are for single use only. Discard after using. Reseal storage bag to maintain freshness. Immediately discontinue use if skin irritation or discomfort occurs. Patients with sensitive skin may experience temporary redness and irritation.

  • Page 23: Using The Analog Outputs (If Equipped)

    Trigno™ Wireless Biofeedback System Using the Analog Outputs (if Equipped) The Trigno System provides simultaneous analog signal reconstruction of data being detected by all active sensors. These signals are made available on the 68-pin connectors located on the Base Station and range cover the +/-5V range.
  • Page 24 Trigno™ Wireless Biofeedback System Figure 8: Pinouts of the analog output connectors - 24 -...

  • Page 25: Configuration Options For Trigno System

    This field indicates the number of sensors supported by this base. Launch Test Panel Places the Trigno Base Station in a test mode to assist with verification of analog output signal connections. Each of the 64 analog output channels is configured to produce a unique sinusoid which can be verified by properly sampling these channels with secondary acquisition system.

  • Page 26: Trigno System Settings

    Using the Base Station Trigger Functions The Base Station supports 4 key triggering functions through the Trigno Trigger Module (SP-XXX) which is connected to the base station via the Trigger Port indicated in the figure below.
  • Page 27 Trigno™ Wireless Biofeedback System Figure 11: Trigger Module Connector on Base Station. Triggers must be armed through software options as indicated in the example screenshot below. Figure 12: Arming the start and stop triggers in software for external start/stop control of data acquisition.

  • Page 28: Maintenance And Care

    Trigno Base Station The Trigno System is designed to provide years of reliable service when proper care is followed. While the Base Station enclosure is made of durable plastic, the following points should be kept in mind during its use and handling: ...

  • Page 29: Reference Specifications

    Trigno™ Wireless Biofeedback System Reference Specifications RF Frequency Band 2400-2483 MHz (ISM band) Sensor Dimension 27 x 37 x 13 mm (excluding leads) Mass 14 g Temperature Range 5 - 45 degrees Celsius Transmission Range 40 meters EMG Signal Input Range 11mV r.t.i.

  • Page 30: Mains Isolation

    Devices requires that the PC operating the software be isolated as well. This stems from the basic requirement to have all patients electrically isolated from equipment within their reach, and since the PC running the Trigno Software is conceivably within their reach, it too must be isolated.
  • Page 31 This page intentionally blank...
