Belt Transmitter - Robotronics Toby Tire Robot Operating Manual

How to Operate the Operator's Transmitter
1. Open the battery door.
2. Use a 9 Volt alkaline battery and insert it according to the diagram inside the battery
compartment.
3. Place the headset on your head and adjust the microphone to approximately 1 inch from
your mouth.
4. Plug the round connector from the headset into the top of the transmitter.
5. Move slide switches to the "ON" position.
6. On the UB-10 there is a volume adjust on the unit.
Function of the LED
When turning on the power switch, with a fresh alkaline 9-Volt, the battery light will blink on
momentarily and go out. This indicates that it is powering up and that the battery is good.
Because the light is a low battery indicator, when the light is on constant, this indicates the
battery is too low-below 7 Volts. Replace with a new alkaline battery.
Tip: The operator's voice units both have metal clips that contact the posts of the 9-
volt battery. These must be bent out from time to time to keep this contact good.

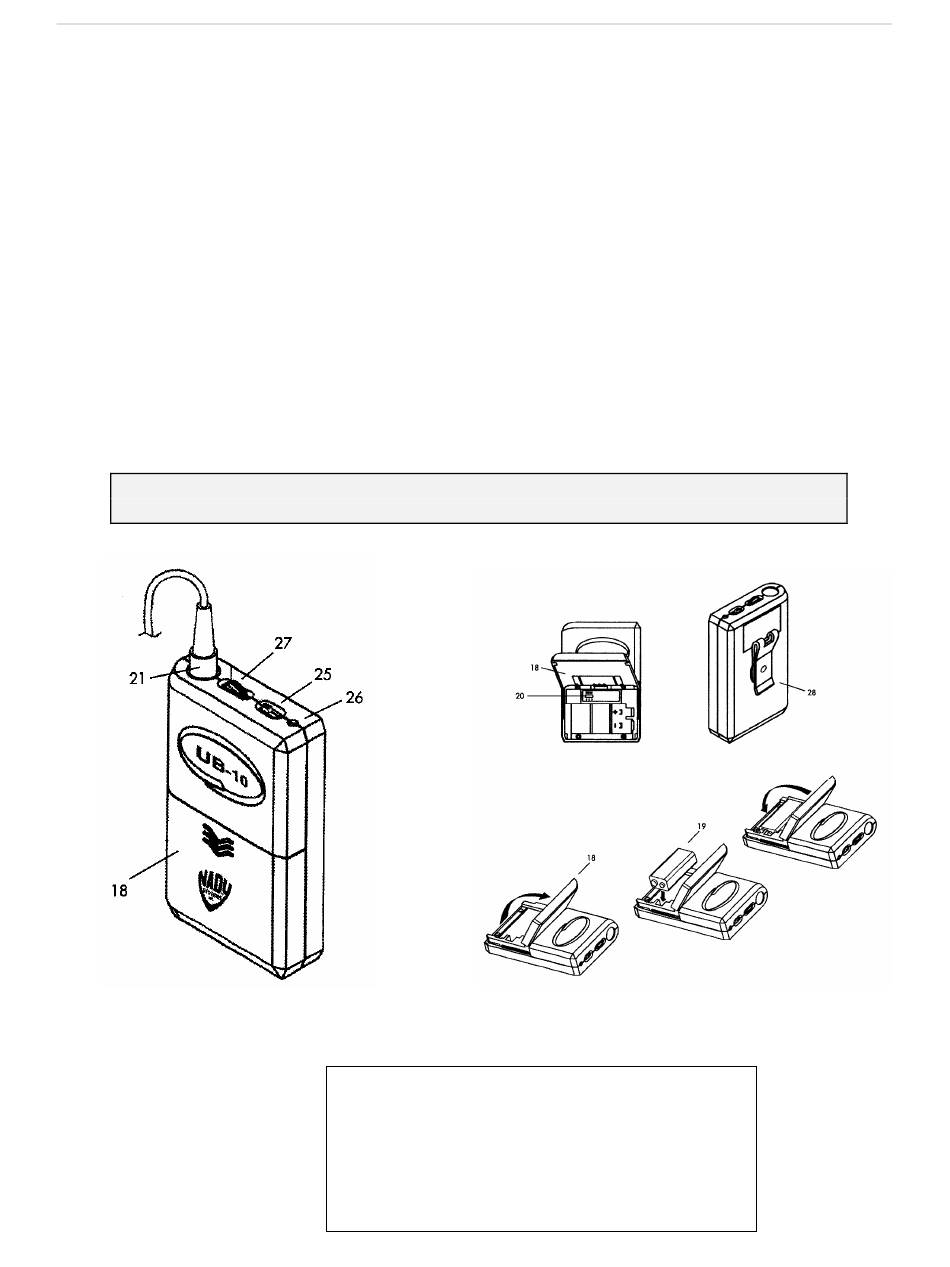

18. Battery Compartment
19. 9 V Alkaline Battery
20. Input Selector Switch ( Leave On 3 Lavalier)
21. 3.5 mm jack
25. Off/Standby/On switch
26. Battery Indicator LED
27. Volume- Input Level Control
28. Belt Clip
Voice System
