Thermor PS200 Operating Instructions

PS200 Thermometer Operating Instructions
This professional food safety thermometer uses infrared technology to offer the convenience of
instant non-contact surface scanning. It can also take any "K" type probe (not included) for critical
internal temperatures. Included are 5 colour faceplates to indicate different departments and avoid
cross contamination.
CAUTION
1. WHEN DEVICE IS IN USE, DO NOT LOOK DIRECTLY INTO THE LASER BEAM PERMANENT EYE
DAMAGE MAY RESULT.
2. USE EXTREME CAUTION WHEN OPERATING THE LASER.
3. NEVER POINT THE DEVICE TOWARDS ANYONE'S EYES.
4. KEEP OUT OF REACH OF CHILDREN.
( )

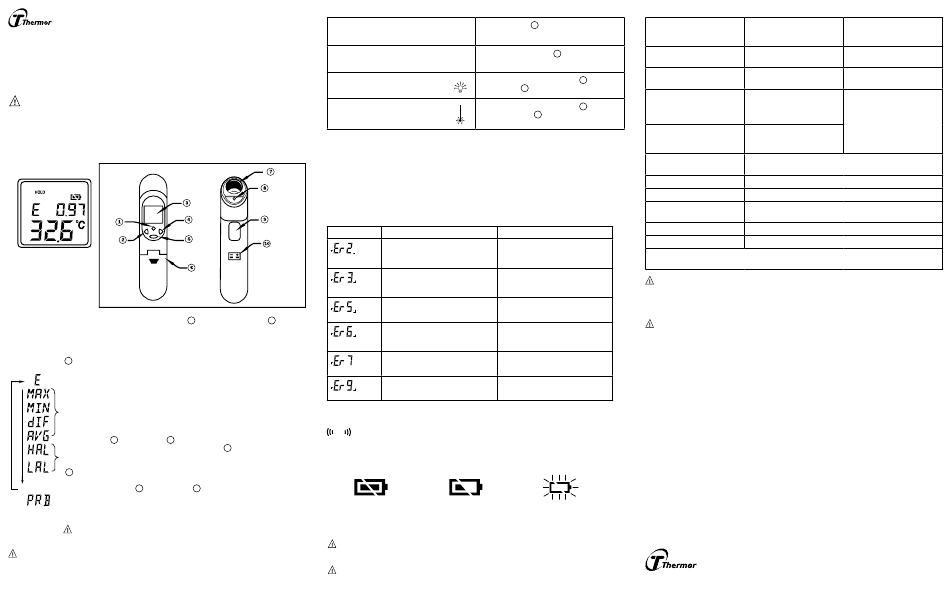

Default Screen
Emissivity
Key
Up Key
Mode Key
Down Key
Battery Cover
Simply aim the thermometer at the target with the infrared lens (
the surface temperature.
Distance: 12:1, please make sure the target area is within the field of view.
FUNCTIONS
Press <Mode> key ( ) for scrolling through the display functions as follows:
5
Shows the emissivity data. (The default emissivity is 0.97.)
Maximum Temperature (MAX), Minimum
between MAX and MIN (DIF) and Average (AVG) modes. During the measurement,
the mode reading will be displayed beside the mode icon.
Press <Up> key ( 4 ) or <Down> key ( 2 ) to change the temperature setting of the High
Alarm (HAL) or Low Alarm (LAL), then press <Meas.> key (
you have set the LAL to < 27.1˚C and the current temperature reading is 27°C, the LOW icon
will flash and you will hear a beep. Connect the thermocouple to the Thermocouple Socket
( 10 ) and put the probe in/on the target, the thermometer will display the temperature
automatically. To see the minimum or maximum data during the probe measurement,
hold down the <Up> key ( 4 ) or <Down> key (
After measuring high temperatures, the probe may be hot. Avoid touching the
probe before it cools.
The thermometer will automatically shut off if left idle for more than 60 seconds, unless in <PROBE
(PRB)> mode. (In PRB mode, it will shut off if left idle for more than 12 minutes.)
ADDITIONAL FUNCTIONS
Lock Mode
Continuous temperature monitoring for up to
60 mins.
Switching from °C to °F
Backlight
Laser
STORAGE & CLEANING
The thermometer
(-4˚ to 149˚F).
The infrared lens is the most delicate part of the thermometer. The lens should be kept clean at all
times, care should be taken when cleaning the lens using only a soft cloth or cotton swab with water or
Infrared Lens
Isopropyl alcohol. Allow the lens to fully dry before using the thermometer. Do not submerge any part of
the thermometer.
Laser Key
LCD
LCD ERROR MESSAGES
The thermometer incorporates visual diagnostic messages as follows:
Meas. Key
ERROR
Thermocouple
Socket
7 ) and press <Meas.> Key ( 9 ) to display
Temperature (MIN), Difference
Note:
'Hi' or 'Low' is displayed when the temperature being measured is outside of the settings of HAL
HI
and LAL.
LOW
8 ) to confirm. For example: if
BATTERIES
The thermometer incorporates visual low battery indication as follows:
'Battery OK'
2 ).
measurements are
possible
When the 'Low Battery' icon indicates the batteries are low, the batteries should be replaced
immediately with 2 x AAA, 1.5V batteries. Please note: It is important to turn the instrument off
before replacing the batteries otherwise the thermometer may malfunction.
Dispose of used batteries promptly and keep away from children.
Press <Up> key ( 4 ) to turn the Lock Mode on
and off.
Press the <Down> key ( 2 ) to toggle between
°C and °F.
Hold the <Measure> (Meas.) key (
the <Up> key ( 4 ).
Hold the <Measure> (Meas.) key (
the <Down> Key ( 2 ) to turn the laser on and
off.
should be stored at room temperature between
CAUSE SOLUTION
Exposure to rapid changes in the Allow the thermometer to stabilize
ambient temperature in working/room temperature for at
least 30 minutes
Ambient temperature has exceeded Allow the thermometer to stabilize
the operating range in working/room temperature for at
least 30 minutes
Memory loss, may be damaged by Return to retailer for a replacement
electromagnetic force
Calculation error, may be the Reinstall the battery
result of an electronic circuit reset
problem
Electronic circuit is out of order Reinstall the battery
Memory loss, may be the result of a Return to retailer for a replacement
power glitch
'Battery Low' 'Battery Exhausted'
battery needs to be measurements are
replaced, measurements not possible
are still possible
SPECIFICATION
Item Non-contact Infrared Scan
function
Measurement Range - 60°C to + 500˚C
(-76°F to + 932˚F)
Operating Range 0°C to + 50˚C
9 ) and press
(32°F to + 122˚F)
Accuracy ±1.0˚C (1.8˚F)
(Tobj=15~35°C, Tamb=25°C)
9 ) and press
Accuracy ±2% of reading or 2˚C (4˚F)
(Tobj=-33~500°C, whichever is greater
Tamb=23±3°C)
–20˚ to 65˚C
Resolution 0.1˚C/0.1˚F
(-9.9~199.9°C)
Response Time (90%) 1 sec
Distance: Spot 12:1
Battery Life Typ.180, min 140 hours continuous use (Alkaline, without Laser
and Back Light.)
Dimensions 175.2 x 39.0 x 71.9mm
Weight 179 grams including batteries (AAA x 2pcs)
Note: Under the electromagnetic field of 3V/m from 200 to 600 MHz, the maximum error is 10˚C
(18˚F).
Caution:
The measuring range is for thermometer only. User should choose proper probe types for different kinds
of applications. Please make sure the target to be measured will not exceed the temperature range of
the probe to avoid permanent damage of the thermocouple probe.
EMC/RFI
Readings may be affected if the unit is operated within radio frequency electromagnetic field strength
of approximately 3 volts per meter, but the performance of the instrument will not be permanently
affected.
Two Year Warranty:
If this product proves to be defective in material or workmanship within two years of purchase, please
return it to the address below. It will be repaired or replaced without charge upon receipt of the unit prepaid
with $5.00 to cover handling, packaging and return postage. Please include your full name, address,
daytime phone number or email address.
16975 Leslie Street
Newmarket, ON L3Y 9A1
www.thermor-ins.com
Thermocouple Probe Scan
function for
(K type; probe not included.)
- 64°C to + 1400˚C
(-83.2°F to + 1999˚F)
+/-1% of reading or 1˚C (1.8˚F)
whichever is greater (Test
under Tamb=23±6°C)
