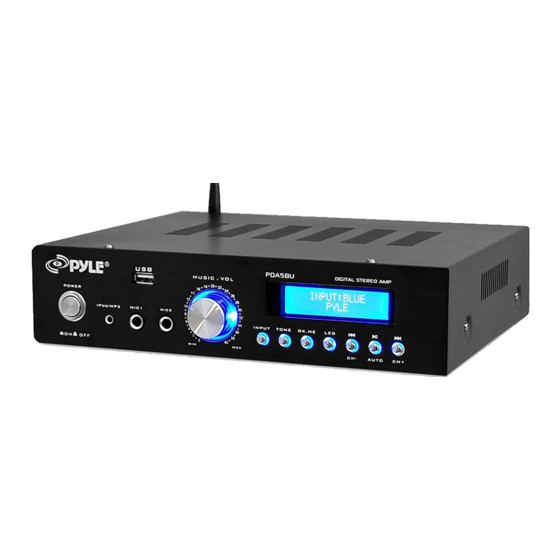

Pyle PDA5BU User Manual

Pyle PDA5BU User Manual

Stereo digital technology power amplifier

Advertisement

SPECIFICATION

• RATED OUTPUT POWER
MAX OUTPUT POWER (4 ohm/P.M.P.O.)
• RATED INPUT LEVEL / IMPEDANCE
Audio Input
Microphone Input
• TONE CONTROL
BASS f = 100Hz
TREBLE f =10kHz
• SEPARATION
Master Channel
• FREQUENCY RESPONSE
Master Channel f=20Hz -20kHz
• SIGNAL TO NOISE
Master Channel
• SPEAKER SYSTEM
Master Channel
• INPUT POWER
• POWER WATTAGE
• DIMENSION
• N.W
• GW
• ACCESSORIES
Operation Instructions
* Result of spot check for reference only.
* Designs and speci cations are subJect to change without notice.
* Caution:please use 4
80WX2
350mv/47k
8mv/600
±8db
±8db
45db
2db
71db
4
AC~11OV-220
150W
10.6" x8.7" x 2.8"
5.5 lbs
6.6 lbs.
1pcs
speakers.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDA5BU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pyle PDA5BU

  • Page 1 SPECIFICATION • RATED OUTPUT POWER MAX OUTPUT POWER (4 ohm/P.M.P.O.) 80WX2 • RATED INPUT LEVEL / IMPEDANCE Audio Input 350mv/47k Microphone Input 8mv/600 • TONE CONTROL BASS f = 100Hz ±8db TREBLE f =10kHz ±8db • SEPARATION Master Channel 45db •...
  • Page 2 Please take the time to follow the instructions in this owner’s guide TROUBLESHOOTING carefully. It will help you set up and operate your system properly and If you experience any of the following di culties while using the unit, use enjoy its advanced features.
  • Page 3 PRODUCT FUNCTION PRODUCT FUNCTION 1. POWER • Multifunctional Colour Screen Display Press "POWER" key, turn ON or OFF "power" supply • Digital Karaoke System Caution: Make sure the master volume is set to low Device supply is turned on, when turning on the AV ampli er •...
  • Page 4 CONTROLS & FUNCTIONS REMOTE CONTROL FUNCTIONS FRONT PANEL REMOTE 1. POWER ON/OFF KEY 8. MIC FUNCTION MENU KEY 9. LED SWITCH KEY 2. IPOD/MP3 SIGNAL INPUT 10. BLUETOOTH/USB/RADIO 3. MIC INPUT JACK (MIC1,2) PREV KEY 4. USB SIGNAL INPUT 11. BLUETOOTH/USB/ PLAY KEY 5.
