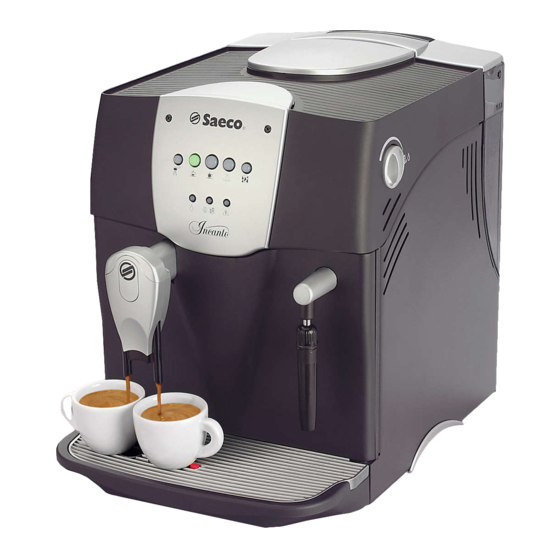

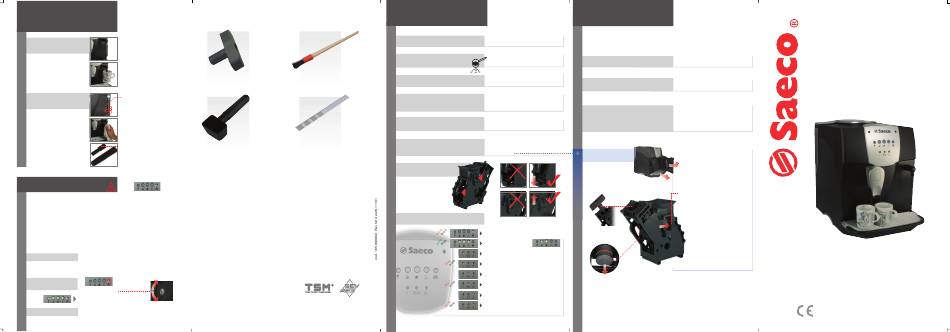

Saeco SUP 021 Operating Instructions

PANNARELLO
(optional)
Use the frothing nozzle like the steam
1
Using
nozzle to make wonderfully hot and
creamy Cappuccinos
Proceed as with preparation «STEAM/
CAPPUCINO», immerse nozzle approx.
3-4 cm/1-1.5" in the milk
1. Loosen the cap, remove nozzle
2
Cleaning
After preparation
2. Clean with damp cloth
3. Disassemble nozzle
4. Place nozzle parts under running
water and remove milk residue.
Dry separate parts, reassemble,
and mount on machine
Every 3-4 months or
if lamp
DESCALE
is lit
(automatic)
- To descale, make sure that the power cord is plugged in
and the machine switched on.
- Use a non-toxic, harmless, commercial decalcifying
agent.
- NEVER use VINEGAR (possible damage to device!)
- When the machine has cooled down, note manufacturer's instructions!
- If the machine is turned off during the descaling procedure, it will continue
again where it left off when the machine is turned on again.
- Throughout the whole descaling process, the machine automatically stops,
at intervals, the distribution of the descaling agent.
1 1. Place large receptacle under hot water/ steam nozzle
Preparation
2. Fill decalcification solution according to manufacturer's
instructions in the water tank
2 close
Descale 3. Press for 5 seconds
Duration: approx. 45 min.
4. Open turning knob
...blink...blink...
as soon as
5. Close turning knob
open
3 6. Rinse water tank + fill
Rinse
7. Open turning knob and draw off tank contents
8. Close turning knob
6
Supplied accessories
Brewing unit key for Cleaning brush
dismantling/ assembly
Coffee scoop Test strip for water
hardness
Technical data
- Nominal voltage see type plate on the machine
- Nominal output see type plate on the machine
- Power see type plate on the machine
- Frame metal - plastic
- Dimensions (L x W x D) approx. 27.5 x 35 x 42 cm / 11 x 14 x 17"
- Weight (net) approx. 10 kg / 22 lbs
- Length of power cord 1.2 m / 1.30 yards
- Place for extra cord yes
- Control panel on the front
- Water tank removable
- Capacity water tank approx. 1.8 l / 60 oz
bean container approx. 180 g / 60 oz beans
- Heating unit aluminum
- Pump pressure approx. 15 bar
- Safety devices pressure-sensitive safety release valve
for heating and safety thermostat
TSM SUCCESS MANUAL® - safe to use - easy to
understand due to TSM® - Total Security Management
and ergonomic communication®
This TSM SUCCESS MANUAL® has been examined by SEV for conformity with the safety-relevant standards, and has
been analysed by an application-oriented risk analysis for the completeness and correctness of the instructions for a safe
use of the appliance. We have thereby assumed use based on common-sense.
7
TROUBLESHOOTING
No indication
- Switch on mains switch
- Check plug and power connection
No power to the machine
Only water instead of coffee comes
when «Powder coffee» is selected - Fill up a measure of powder coffee
- Pre-heat cups
Coffee is not hot enough
- Possibly clean brewing unit
- Descale if necessary
No hot water/ steam
- Clean nozzle with needle
(when the machine is switched
Hot water/ steam nozzle blocked off and nozzle is closed)
Heating time too long
Not enough water
- Descale machine
1. Close service door
Brewing unit cannot be removed
2. Switch on machine
3. Brewing unit is unlocked
4. Continue with
1.
Brewing unit cannot
be inserted
2
Restore brewing unit
to original position
(see illustrations -->)
1
2.
Preparation does not start
Display:
Descale: see instructions «Descale»
Too hot: draw of hot
water until ...
Refill with fresh water
Ventilate machine: see instructions «Ventilate»
Refill with beans
Empty coffee dregs drawer
(Operate only when the machine is ON)
Correctly insert brewing unit, dip tray, and
dregs drawer. Close service door
Grinding unit blocked. The motor of the
brewing unit is blocked
-> Contact a service technician
8
CLEAN
use a mild, non-scouring cleaning agent
-Clean the machine only after disconnecting plug from mains power socket
-Never use an ordinary or a microwave oven to dry the machine after rinsing
Frame
Rub with a soft, damp cloth
Coffee dregs drawer
Drip tray
Rinse under running water
Water tank Rinse under running water
Remove the filter that is in the water tank
and rinse thoroughly. Replace by turning
and lightly pressing into place
Brewing unit 1. Open service door.
remove drip tray/
dregs drawer
Clean weekly.
Never wash the brewing
unit in the dishtwasher
2.1 Loosen filter with the key ... 2. Press PUSH position and withdraw the
brewing unit.
If necessary, unscrew upper
filter of the brewing unit
Clean everything under warm
running water and let it dry well.
Clean service area
3. Put brewing unit together
and slide back in. While inserting,
2.2 ... and remove do not press on PUSH!
4. Insert drip tray / dregs drawer,
then close service door
9
T Y P E S U P 0 2 1
T Y P E S U P 0 2 1 Y
Operating instructions
Please read these TSM® operating instructions before operating the device. In order to
obtain drinks of good quality and to avoid damage or injury, follow the instructions
precisely. Ensure that these instructions are given to any other users of the device and
that they are kept in a safe place so that they can be referred to at any time. The device
has been conscientiously checked for safety and correct operation. It left the factory in
fault-free working order.
Read carefully the enclosed safety instructions before initial operation
