MegaLine
Connect45
®

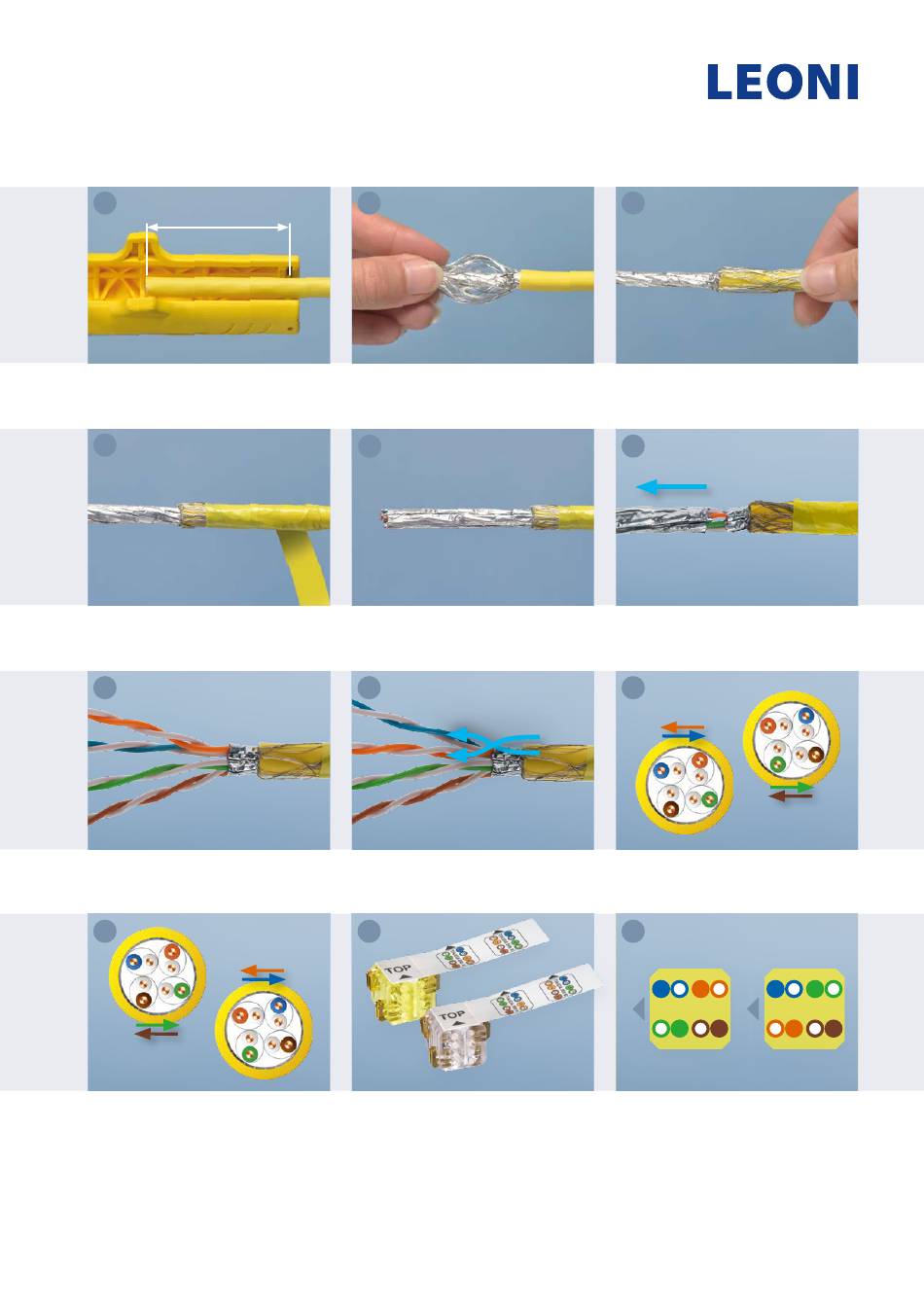

Montageanleitung / Installation instruction
1
40 mm Länge / length
Kabelmantel ca. 40 mm absetzen.

Strip the outer sheath approx. 40 mm.

4
Schirmgeflecht mit Isolierband fixieren.

Fix the copper braid with tape.

7
Bündelverseilung aufdrehen.

Untwist the pairs.

10
Kabelende 2
cable end 2
Kabelende 1
cable end 1
Auskreuzen der Kabelenden (TIA/EIA 568 B).

Cross cable ends (TIA/EIA 568 B).

2
Schirmgeflecht zurückschieben.

Push back the copper braid.

5
Bündelverseilung aufdrehen.
Untwist the pairs.
8
Aderpaare kreuzen (s. Abb. 9–12).
Cross the pairs (s. fig. 9–12).
11
Connect45-Kabelstecker für AWG24–22 (gelb)
oder AWG27–26 (weiß).
Connect45 cable plug for AWG24–22 (yellow)
or AWG27–26 (white).
3
Schirmgeflecht über den Kabelmantel ziehen.

Pull back the copper braid.

6
Folienschirm bis auf 5 mm entfernen.

Strip the foils down to 5 mm.

9
Kabelende 1
cable end 1
Kabelende 2
cable end 2
Auskreuzen der Kabelenden (TIA/EIA 568 A).

Cross cable ends (TIA/EIA 568 A).

12
Version
Version
TIA/EIA 568 A
TIA/EIA 568 B
4
5
6
3
4
1
2
7
8
1
Kabelstecker
Cable plug
5
6
3
2
7
8
