Page 1: User Manual

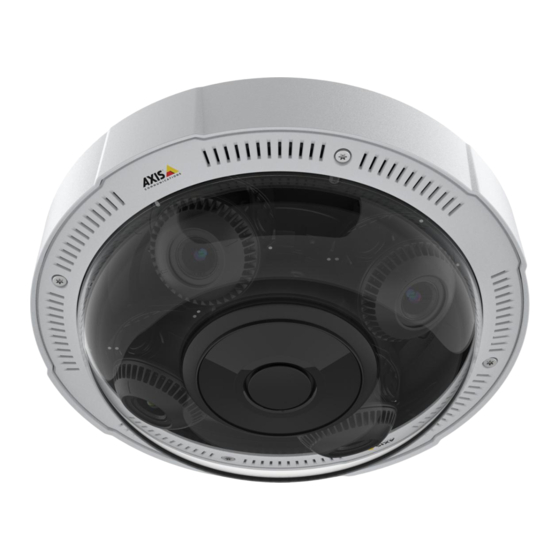

AXIS P37–PLE Network Cameras AXIS P3717–PLE Network Camera AXIS P3719–PLE Network Camera User Manual... -
Page 2: Table Of Contents
AXIS P37–PLE Network Cameras Table of Contents Product overview ......... . . -
Page 3: Product Overview
AXIS P37–PLE Network Cameras Product overview Product overview Mounting bracket Camera unit Dome cover IR illumination Network connector (PoE) SD card slots Control button Status LED indicator Restart button... -
Page 4: Find The Device On The Network
Find the device on the network Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support For more information about how to find and assign IP addresses, see the document How to assign an IP address and access your device on the device page at axis.com... -
Page 5: Setup
AXIS P37–PLE Network Cameras Setup Setup Product webpage overview Live view control bar Live view Product name Controls Video control bar Settings toggle... - Page 6 AXIS P37–PLE Network Cameras Setup Settings tabs About the product's built-in help You can access the built-in help from the product’s webpage. The help provides more detailed information on the product’s features and their settings.
-
Page 7: Image Quality
AXIS P37–PLE Network Cameras Setup Image quality About remote focus and zoom The remote focus and zoom functionality allows you to make focus and zoom adjustments to your camera from a computer. It is a convenient way to ensure that the scene’s focus, viewing angle and resolution are optimized without having to visit the camera’s installation location. - Page 8 AXIS P37–PLE Network Cameras Setup 5. Adjust LED intensity. How to benefit from IR light in low-light conditions using night mode Your camera uses visible light to deliver color images during the day. As light diminishes, you can set the camera to automatically shift to night mode.
-
Page 9: Privacy Masks
Use corridor format to better utilize the full field of view in a long and narrow area, for example a staircase, hallway, road, or tunnel. 1. Depending on your product, turn the camera or the 3-axis lens in the camera 90° or 270°. -
Page 10: Overlays
This example explains how to display the text “Motion detected” when the camera detects motion: Make sure the AXIS Video Motion Detection application is running: 1. Go to Settings > Apps > AXIS Video Motion Detection. 2. Start the application if it is not already running. -
Page 11: Streaming And Storage
H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. Installing additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to the MPEG-4 standard. -
Page 12: Events
This example explains how to set up the camera to start recording to the SD card five seconds before it detects motion and to stop one minute after. Make sure the AXIS Video Motion Detection application is running: 1. Go to Settings > Apps > AXIS Video Motion Detection. 2. Start the application if it is not already running. -
Page 13: Applications
Applications About applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications To find the user manuals for Axis applications, go to axis.com Note •... -
Page 14: Troubleshooting
AXIS P37–PLE Network Cameras Troubleshooting Troubleshooting If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support How to reset to factory default settings Important Reset to factory default should be used with caution. A reset to factory default resets all settings, including the IP address, to the factory default values. -
Page 15: Technical Issues, Clues And Solutions
Axis product. Check all cabling and reinstall the product. Possible IP address conflict The static IP address in the Axis product is used before the DHCP server sets a dynamic address. with another device on the... -
Page 16: Performance Considerations
Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. -
Page 17: Specifications
AXIS P37–PLE Network Cameras Specifications Specifications To find the latest version of the product’s datasheet, go to the product page at axis.com and locate Support & Documentation. LED indicators Status LED Indication Unlit Connection and normal operation. Green Shows steady green for 10 seconds for normal operation after startup completed. -
Page 18: Connectors
AXIS P37–PLE Network Cameras Specifications Restart button Press the restart button to restart the product. Connectors Network connector RJ45 with High Power over Ethernet (High PoE). - Page 19 User Manual Ver. M2.1 AXIS P37–PLE Network Cameras Date: November 2018 © Axis Communications AB, 2018 Part No. T10127371...
