    2 • vacon (Software ALFIFF28) Version 2.03 or higher NXL Lift Application INDEX Document code: ud00973C Date 30.5.2006 Introduction ........................3 Control I/O ......................... 4 Lift Application – Parameter lists ..................5 Monitoring values (Control keypad: menu M1)................5 Motor Parameters (Control keypad: Menu P2 P2.1).............

  • Page 3: Introduction

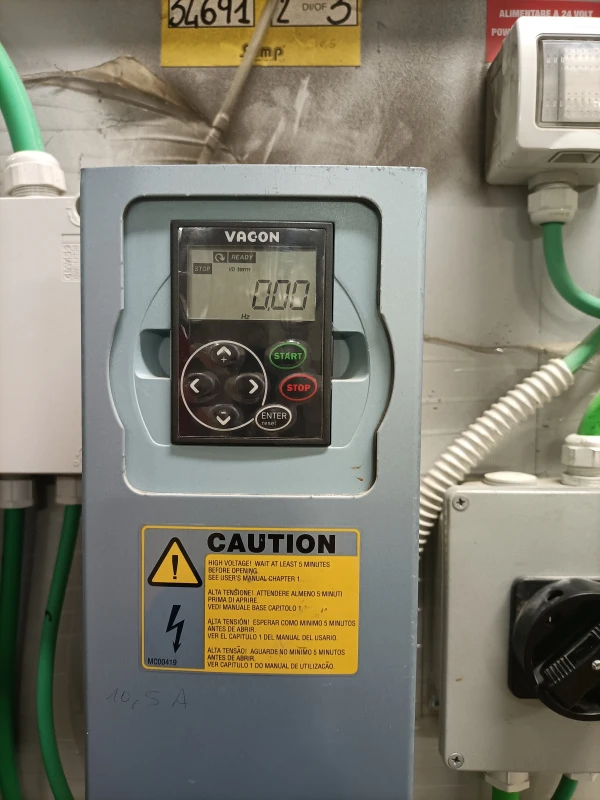

    The brake can be set in various ways to meet the different requirements of lift motors and lift control logic. The used hardware can be any Vacon NXL frequency converter. NXL supports only open loop operation. Evacuation is not supported by NXL.

  • Page 4: Control I/O

    4 • vacon Control I/O CONTROL I/O NXL internal I/O board Terminal Signal Description +10V Reference output Voltage for potentiometer, etc. AI1+ Analogue input, voltage range Voltage input DIN4 0—10V DC. Used as digital input DIN4 AI1- I/O Ground Ground for reference and controls...

  • Page 5: Lift Application - Parameter Lists

    Monitoring values (Control keypad: menu M1) The monitoring values are the actual values of parameters and signals as well as statuses and measurements. Monitoring values cannot be edited. See Vacon NXL User’s Manual, Chapter 7.4.1 for more information. Code Parameter...

  • Page 6: Motor Parameters (Control Keypad: Menu P2 P2.1)

    6 • vacon Lift Application – Parameter lists Motor Parameters (Control keypad: Menu P2 P2.1) Code Parameter Unit Default Cust Note NXL2:230V Nominal voltage of P2.1.1 NXL5:400V the motor Nominal frequency Check the rating plate of P2.1.2 0,00 320,00 50,00...

  • Page 7: Mechanical Brake Control Parameters (Control Keypad: Menu M2 P2.3)

    0=DC brake is off at start P2.3.3.3 Stop DC-brake time 600,00 1,00 1717 0=DC brake is off at stop Stop DC-brake P2.3.3.4 0,10 10,00 3,00 frequency Table 3-5. DC brake control parameters G2.3.3 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...

  • Page 8: Drive Control (Control Keypad: Menu M2 P2.4)

    8 • vacon Lift Application – Parameter lists Drive Control (Control keypad: Menu M2 P2.4) Code Parameter Unit Default Cust Note 0=Disabled 1=Used in Run state P2.4.1 Brake chopper 2=Used in Run state 3=Ready 0=Coasting P2.4.2 Stop Function 1=Ramping 2=Stop type by Freq. Limit P2.4.3...

  • Page 9: Input Signals (Control Keypad: Menu P2 P2.6)

    As parameter 2.6.2 P2.6.4 DIN5 (AI2)Function 1500 As parameter 2.6.2 P2.6.5 DIE1 Function As parameter 2.6.2 P2.6.6 DIE2 Function As parameter 2.6.2 P2.6.7 DIE3 Function As parameter 2.6.2 Table 3-8. Input signals P2.6 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...

  • Page 10: Output Signals (Control Keypad: Menu P2 P2.7)

    10 • vacon Lift Application – Parameter lists Output signals (Control keypad: Menu P2 P2.7) Code Parameter Unit Default Cust Note 0=Not used 1=Ready 2=Run 3=Fault 4=Fault inverted 5=FC overheat warning 6=Ext. fault or warning 7=Not Used Relay output 1 P2.7.1...

  • Page 11: Protections (Control Keypad: Menu P2 P2.8)

    As par. 2.7.1 thermistor fault P2.8.15 Response to As par. 2.7.1 fieldbus fault P2.8.16 Response to slot As par. 2.7.1 fault P2.8.17 Min. Current Limit P 2.1.4 1760 Table 3-10. Protections, P2.8 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...

  • Page 12: Autorestart Parameters (Control Keypad: Menu P2 P2.9)

    Expander boards (Control keypad: Menu E7) The E7 menu shows the expander boards attached to the control board and board-related information. For more information, see Chapter 7.4.7 in the Vacon NXL User’s Manual. Tel. +358 (0)201 2121 • Fax +358 (0)201 212 205...

  • Page 13: Description Of Parameters

    This parameter determines the maximum motor current from the frequency converter. To avoid motor overload, set this parameter according to the rated current of the motor. The current limit is equal to the rated converter current (I ) by default. 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...

  • Page 14: Speed Control

    14 • vacon description of parameters SPEED CONTROL 2.2.1 Nominal Linear Speed Nominal linear speed corresponds to the lift speed at nominal frequency of the motor (parameter 2.1.2) Speed parameters in group 2.2.3 are entered in linear magnitudes. 2.2.2 Speed reference selection Defines which frequency reference source is selected when controlled from the I/O control place.
  • Page 15 2.2.3.1 Levelling Speed 2.2.3.2 Nominal Speed 2.2.3.3 Limited Speed 2.2.3.4 Inspection Speed 2.2.3.5 Speed reference 4 2.2.3.6 Speed reference 5 2.2.3.7 Speed reference 6 2.2.3.8 Speed reference 7 2.2.3.9 Override Speed 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...
  • Page 16 16 • vacon description of parameters Speed Curve 1 parameters (M2 -> G2.2.4) Speed curve 1 is used as the default values for acceleration and deceleration and jerks. 2.2.4.1 Acceleration time 1 2.2.4.2 Deceleration time 1 Acceleration and deceleration of the lift car are presented in [m/s2]. Acceleration and deceleration curves are affected by the jerk time settings, too.
  • Page 17 Acceleration increase jerk 2. See Figure 1. Jerks related to speed and acceleration. 2.2.5.5 Acc dec jerk 2 Acceleration decrease jerk 2. 2.2.5.6 Dec inc jerk 2 Deceleration increase jerk 2. 2.2.5.7 Dec dec jerk 2 Deceleration decrease jerk 2. 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...

  • Page 18: Mechanical Brake Control

    18 • vacon description of parameters MECHANICAL BRAKE CONTROL The mechanical brake control parameters affect the mechanical brake control, the smooth start and stop function and the safety functions. The mechanical brake can be set to release on current, on torque or on frequency.
  • Page 19 So if closing signal is active the mechanical brake will be closed. The brake will be closed immediately in case of fault or when the motor is stopped. 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...
  • Page 20 20 • vacon description of parameters In normal operation the brake will be closed when frequency falls below the Frequency close limit (P2.3.2.1) AND when the Run Request signal is switched OFF. If the Frequency close limit signal is not needed for the closing logic it can be set to zero. After the conditions are true there is a brake close delay (P2.3.2.2) after which the brake will be closed.
  • Page 21 2.3.2.2 Closing delay The brake closing is delayed with defined time. If set to zero there is no delay between the brake closing condition and the actual brake closing. 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...
  • Page 22 22 • vacon description of parameters DC Brake Parameters (M2 -> G2.3.3) 2.3.3.1 DC-brake current Defines the current injected into the motor during DC-braking. 2.3.3.2 DC-braking time at start DC-brake is activated when the start command is given. This parameter defines the time before the brake is released.
  • Page 23 (see Figure 5). 2.3.3.4 DC-braking frequency at stop The output frequency which the DC-braking is applied. See Figure 5 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...

  • Page 24: Drive Control

    24 • vacon description of parameters DRIVE CONTROL 2.4.1 Brake chopper 0 = No brake chopper used 1 = Brake chopper in use when running 2 = Brake chopper in use when running 3 = Used drive is ready When the frequency converter is decelerating the motor, the inertia of the motor and the load are fed into an external brake resistor.

  • Page 25: Motor Control

    Squared U/f ratio can be used in applications where torque demand of the load is proportional to the square of the speed, e.g in centrifugal fans and pumps. 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...
  • Page 26 26 • vacon description of parameters U [V ] D e fault: N om in al F ield w ea ken ing par.2.5.5 voltage of the m otor p oint L in e a r S q u a re d...
  • Page 27 Note: Over-/undervoltage trips may occur when controllers are switched out of operation. 0 Controller switched off Controller switched on 2.5.12. Measured RS voltage drop Measured Voltage drop at stator resistance between two phases of the motor with nominal current of motor. 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...

  • Page 28: Input Signals

    28 • vacon description of parameters INPUT SIGNALS 2.6.1 Start/Stop logic selection 0 DIN1: closed contact = start forward (rising edge pulse is required) DIN2: closed contact = start reverse (rising edge pulse is required) DIN1 DIN2 Figure 8. Start forward/Start reverse If both DIN switches are ON at the same time the second input is ignored.
  • Page 29 Function selection for Expander board digital input DIE2. Selections are the same as for Parameter 2.6.2 2.6.7 Expander board DIE3 function Function selection for Expander board digital input DIE3. Selections are the same as for Parameter 2.6.2 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...

  • Page 30: Output Signals

    30 • vacon description of parameters OUTPUT SIGNALS 2.7.1 Relay output 1 function 2.7.2 Digital output 2 (Analogue output 1) function 2.7.3 Expander board relay output 1 function 2.7.4 Expander board digital output 1 function Setting value Signal content 0 = Not used...
  • Page 31 Figure 11. Analogue output invert 2.7.8 Analogue output minimum Sets the signal minimum to either 0 mA or 4 mA (living zero). Note the difference in the analogue output scaling in parameter 2.7.9. 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...
  • Page 32 32 • vacon description of parameters 2.7.9 Analogue output scale Scaling factor for the analogue output. Signal Max. value of the signal Analogue output current P a r . 2 . 7 . 8 = Output frequency 100% x f P a r .

  • Page 33: Protections

    2 = Fault, stop mode after fault according to parameter 2.4.2. 3 = Fault, stop mode after fault always by coasting For the undervoltage limits see Vacon NXL User’s Manual. Table 4-3. Note: This protection can not be inactivated. 2.8.3 Output phase supervision...
  • Page 34 Parameters 2.8.5—2.8.8, Motor thermal protection: General The motor thermal protection is to protect the motor from overheating. The Vacon drive is capable of supplying higher than nominal current to the motor. If the load requires this high current there is a risk that the motor will be thermally overloaded. This is the case especially at low frequencies.
  • Page 35 See also Figure 10. Note: If the nominal speed (par. 2.1.3) or the nominal current (par. 2.1.4) of the motor are changed this parameter is automatically set to the default value (45). 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...
  • Page 36 36 • vacon description of parameters 2.8.9 Motor thermal protection: Motor duty cycle Defines how much of the nominal motor load is applied. The value can be set to 0%…100%. M o t o r t emp e r a t u r e...
  • Page 37 Figure17. Stall time count 2.8.13 Maximum stall frequency The frequency can be set between 1-f (par. 2.1.2). For a stall state to occur, the output frequency must have remained below this limit. 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...
  • Page 38 38 • vacon description of parameters Parameters 2.8.14-2.8.17, other protections: 2.8.14 Response to thermistor fault 0 = No response 1 = Warning 2 = Fault, stop mode after fault according to parameter 2.4.2. 3 = Fault, stop mode after fault always by coasting 2.8.15...

  • Page 39: Auto Restart Parameters

    If a single fault remains during the trial time, a fault state is true. 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...

  • Page 40: 2.10 Keypad Control Parameters

    Stop button activated If you wish to make the Stop button a "hotspot" which always stops the drive regardless of the selected control place, give this parameter the value 1 (default). See Vacon NXL User's Manual, Chapter 7.4.3. See also parameter 3.1.

  • Page 41: Control Signals In Lift Application

    DIN# is Programmable input. Function for input can be selected. NOTE! Same function can be programmed for several inputs. This feature must be used very carefully. Figure 19. Control signal logic in the Lift Application 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...

  • Page 42: Fault Tracing

    42 • vacon fault tracing FAULT TRACING When a fault is detected by the frequency converter control electronics, the drive is stopped and the symbol F together with the ordinal number of the fault and the fault code appear on the Reset button display.
  • Page 43 Vacon distributor. Slot fault Defective option board or slot Check board and slot. Contact the nearest Vacon distributor. Minimum Motor Current is less than set limit of Check motor cables Current P2.8.17 24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com...
  • Page 44 Vaasa Helsinki Rotatek Finland Oy Vacon Oyj (Headquarters and Production) Vacon Oyj Laserkatu 6, 53850 Lappeenranta Runsorintie 7, 65380 Vaasa Äyritie 12, 01510 Vantaa tel. +358 (0)5 6243 870 firstname.lastname@vacon.com tel. +358 (0)201 212 600 fax: +358 (0)5 6243 871 tel.
