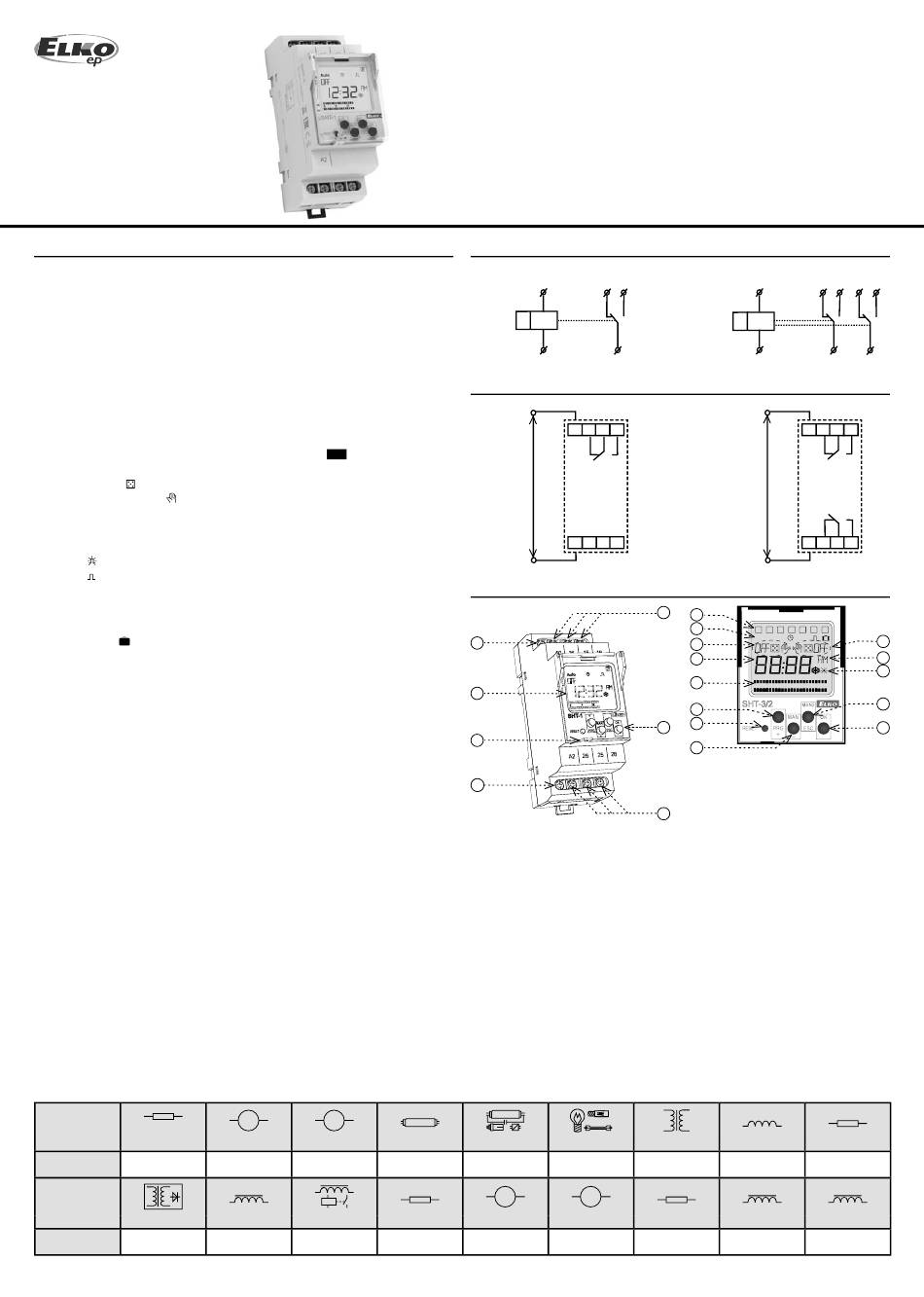

Characteristics
- Serves for controlling of various types of appliances in dependance on real time
(automation-switching of heating, pumps, ventilation etc.). Appliances can be op-
erated in concrete periodic time cycles or according a pre-set program (depends
on type, see the chart Versions of time switches).
- SHT-1, SHT-3: 1-channel version.
- SHT-1/2, SHT-3/2: 2-channel version (to each channel can be assigned an individual
program).
- Possibility to control two independent circuits.
- By SHT-3, SHT-3/2 is not possible to integrate daily and night mode on one channel.
By SHT-3/2 is possible to set a diff erent mode on each channel.
- Setting of switching by:
- program (PROG) - switching according programs set in
repeat every minute or every hour.
- random (AUTO ) - random switching in 10-120 min interval.
- permanently manualy .
- Switching modes (OUT):
- OUT ON - normal - 2 positions in memory (close /open), shortest time of closing
is 1 min.
- OUT ON
- cyclic - 2 positions in memory (pulse/delay), range 1-99s.
- OUT ON
- pulse - 1 position in memory, range 1-99s.
- OUT OFF - turn off the switching mode.
- Set time of pulse/delay is on one channel the same for all programs (it is not pos-
sible to set more pulses with diff erent durations on one channel).
- "Holiday mode " - possibility to choose the period, when the device will be not
switching according a standard program and will be blocked for the pre-set time.
- 100 memory positions (by SHT-1/2 and SHT-3/2 are those 100 positions common
for both channels).
- Programming of device can be realize even under voltage and also even in back-up
mode.
- Output relays operates only under voltage.
- Automatic change-over between summer/winter time (setting is for time zone
GTM+1:00).
- Back-lighted LCD display.
- Easy and quick setting by 4 control buttons.
- Sealable transparent cover of the front panel.
- Time switch is back-up with in-built lithium element, which saves data during volt-
age failure. Back-up time reserve - up to 3 years.
- Supply voltage: AC 230V or AC/DC 12-240V.
- 2-Module, DIN rail mounting, saddle terminals.
- Device is delivered with pre-programmed actual time, which is permanently dis-
played also in back-up mode.
cos φ ≥ 0.95
Type of load
AC1
Mat. contacts AgSnO ,
2
contact 16A
250V / 16A
Type of load
AC13
Mat. contacts AgSnO ,
2
contact 16A
x
SET 1
. Possibility to set the
M M
AC2 AC3 uncompensated
250V / 5A 250V / 3A 230V / 3A (690VA)
K
AC14 AC15
250V / 6A 250V / 6A 24V / 10A
SHT-1, SHT-1/2,
SHT-3, SHT-3/2

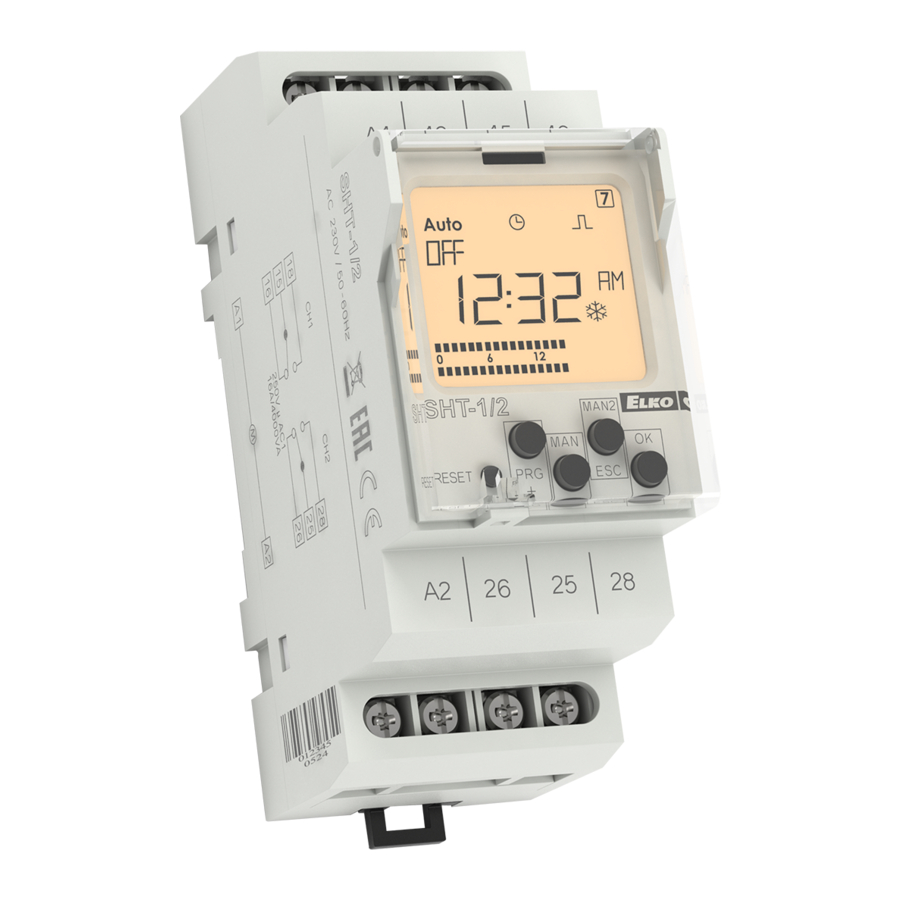

Digital time switch clock
Symbol
SHT-1
A1
SHT-3
A2
Connection
SHT-1
SHT-3
A1 16 15 18
Un
A2
Description
1
2
3
4
1. Supply voltage terminal (A1)
2. Display with back-light
3. Place for seal
4. Supply voltage terminal (A2)
5. Output - channel 1 (16-15-18)
6. Control buttons
7. Output - channel 2 (26-25-28)
8. Indicates the day in the week
9. Operating modes indication
10. Indication (1st channel)
11. Indication of time/date/setting menu
12. Bargraf
13. Control button PRG / +
14. Reset
AC5a
AC5a
compensated AC5b
230V / 3A (690VA)
to max. input C=14uF
1000W
M
DC3
DC1 DC5
24V / 3A
24V / 2A
1/4
SHT-1/2
16 18 A1
SHT-3/2
15 A2
SHT-1/2
SHT-3/2
Un
5
8
9
1
Auto
10
11
12
0
13
14
6
15
7
15. Control button MAN1 / -
16. Indication (2nd channel)
17. Indicates 12 / 24 mode
18. Indicates summer / winter mode
19. Control button MAN2 / ESC
20. Control button OK
CONTROL OF A DISPLAY WITH BACKLIGHT
Display is illuminated with a back-light for
10 s from last button press.
Permanent on / off is activated by
synchronic press of buttons MAN, ESC, OK.
After permanent on/off activation, display
will fl ash shortly.
HAL.230V
AC6a AC7b
x 250V / 3A
M
DC12 DC13
24V / 6A 24V / 2A
EN
16 18 26 28
15 25
A1 16 15 18
A2 26 25 28
2 3 4 5 6 7
Prog Man
16
17
18
6 12 18 24
19
20
AC12
x
DC14
x
