HELVAR Digidim 311 Manual page 2

Technical Data
Connections
External power / DALI:
Cable rating:
Power
DALI supply input:
DALI consumption:
Sensors
Presence detector:
Infrared receiver:
Mechanical data
Mounting hole diameter: 68 mm
Bezel diameter:
Material (casing):
Finish / Colour:
Weight:
IP code:
Operating conditions
Ambient temperature:
Relative humidity:
Storage temperature:
Conformity and standards
EMC emission:
EMC immunity:
Safety:
Environment:
Version information
Software version:
Hardware version:
Helvar 311 Ceiling PIR Detector: Datasheet
Removable connector block;
Wire size: 0.5 mm² – 1.5 mm²
solid or stranded
All cables must be mains rated.
Max. length: 300 m @ 1.5 mm²
13 V to 22.5 V
15 mA
PIR: Passive infrared presence
detector
For remote control commands.
Note: Adjust sensitivity using
Designer or Toolbox (not by
remote control unit).
76 mm
Flame-retardant ABS
Matt / White RAL 9003
58 g
311: IP40
311P*: IP55
311M*: IP55
* Only when the supplied
gasket is used and the unit is
mounted onto Helvar's SBB-P
back box or flush in a ceiling.
311 & 311P: 0 °C to +35 °C
311M: –30 °C to +35 °C
Note: The temperature difference
between the detection target and
the background must be at least
4 °C.
Max. 90 %, noncondensing
311 & 311P: –10 °C to +70 °C
311M: –30 °C to +70 °C
EN 61000–6–1
EN 61000–6–3
EN 60730–1
Complies with WEEE and RoHS
directives.
6.08
Rev. 2
Connections
DALI+
DALI–

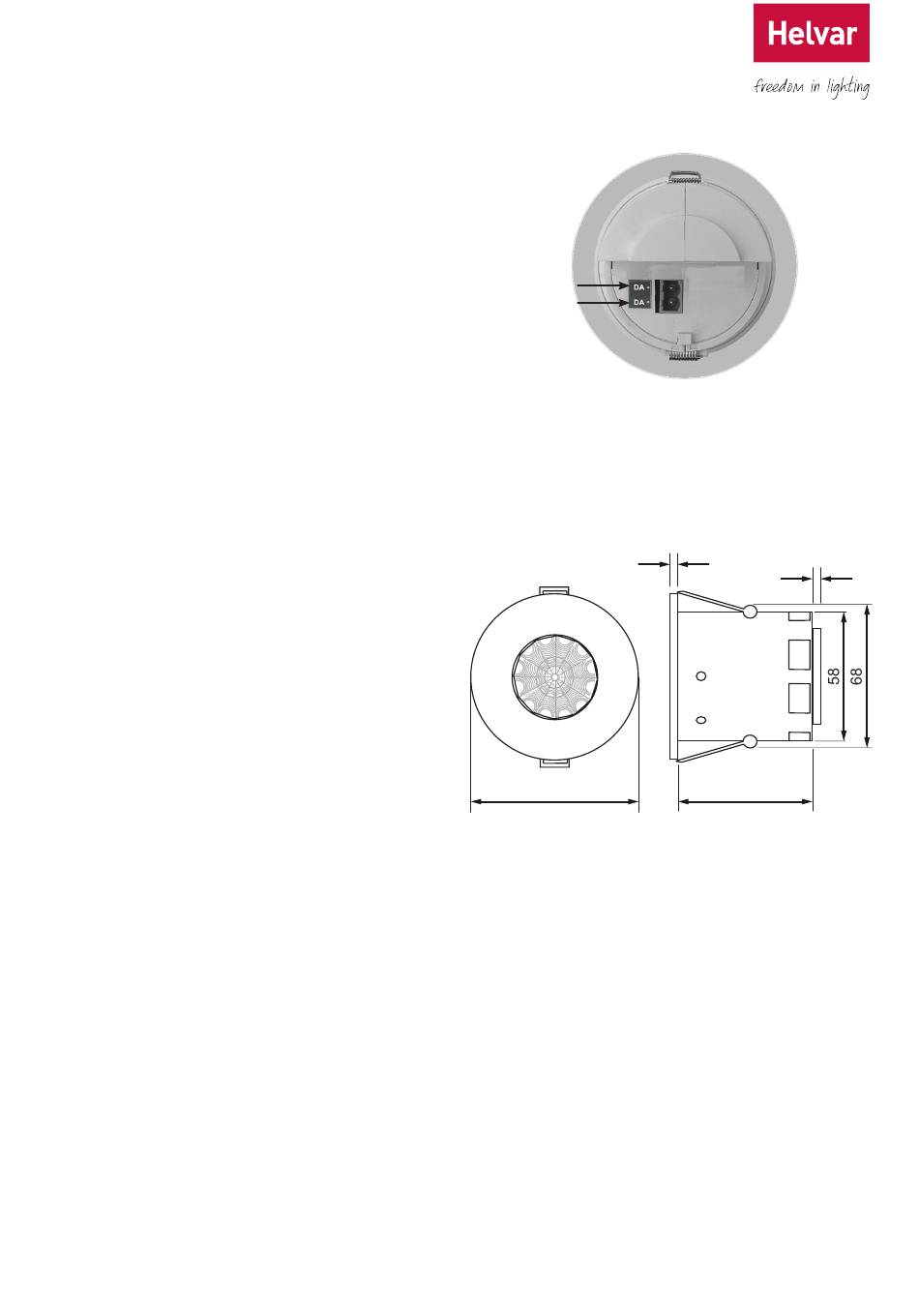

Dimensions (mm)
Ø 76
3.7
3.6
61
Doc. D004970, issue 6,
2016-01-18
2
