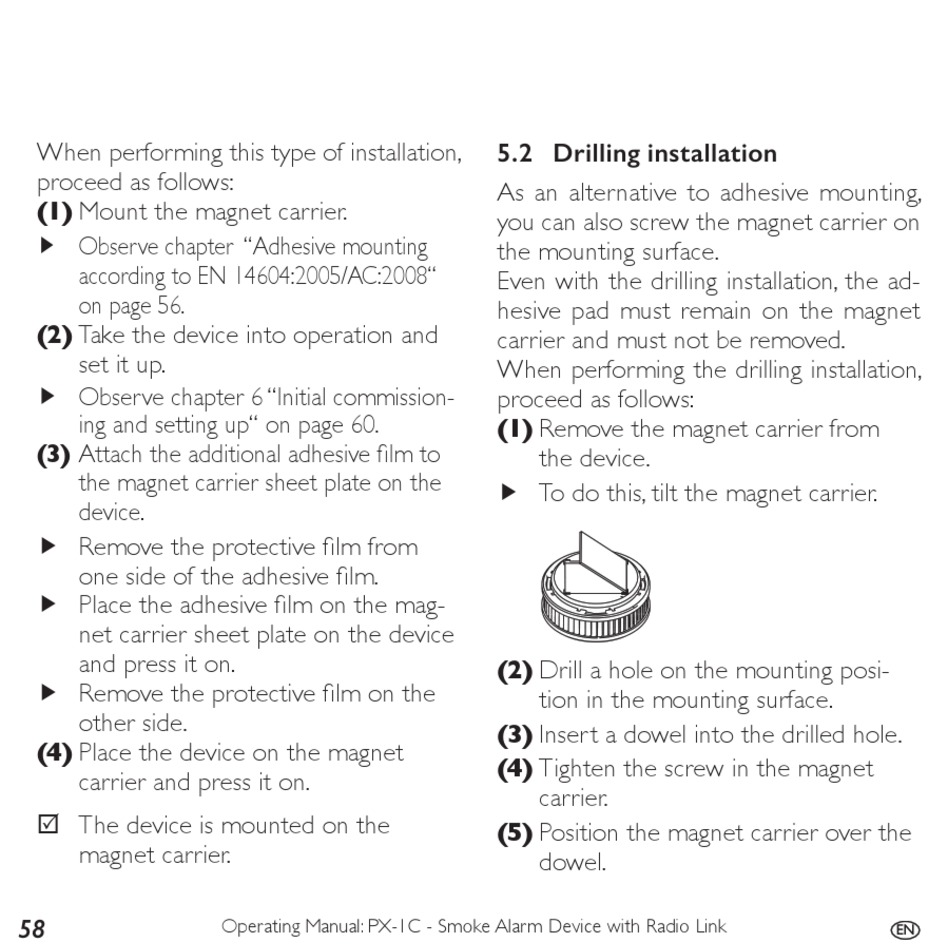

pyrexx PX-1C Operating Manual page 58

When performing this type of installation,
proceed as follows:
(1) Mount the magnet carrier.
f Observe chapter "Adhesive mounting
according to EN 14604:2005/AC:2008"
on page 56.
(2) Take the device into operation and
set it up.
f Observe chapter 6 "Initial commission-
ing and setting up" on page 60.
(3) Attach the additional adhesive film to
the magnet carrier sheet plate on the
device.
f Remove the protective film from
one side of the adhesive film.
f Place the adhesive film on the mag-
net carrier sheet plate on the device
and press it on.
f Remove the protective film on the
other side.
(4) Place the device on the magnet
carrier and press it on.
5 The device is mounted on the
magnet carrier.
58
Operating Manual: PX-1C - Smoke Alarm Device with Radio Link
5.2 Drilling installation
As an alternative to adhesive mounting,
you can also screw the magnet carrier on
the mounting surface.
Even with the drilling installation, the ad-
hesive pad must remain on the magnet
carrier and must not be removed.
When performing the drilling installation,
proceed as follows:
(1) Remove the magnet carrier from
the device.
f To do this, tilt the magnet carrier.
(2) Drill a hole on the mounting posi-
tion in the mounting surface.
(3) Insert a dowel into the drilled hole.
(4) Tighten the screw in the magnet
carrier.
(5) Position the magnet carrier over the
dowel.
