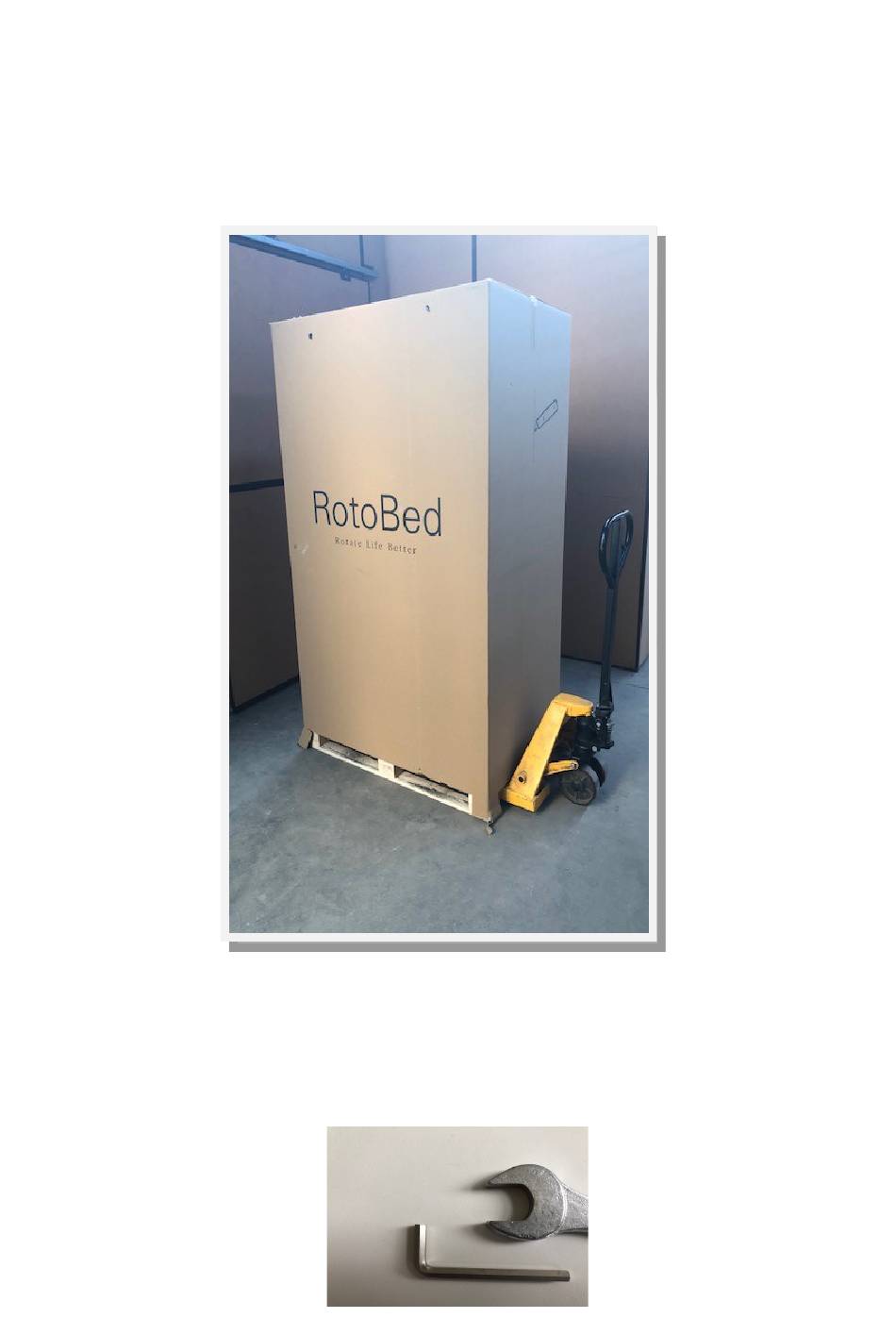

- Page 1 Manual How to assemble the RotoBed® Tool No. 16 No. 5...
- Page 2 Remove mattress, siderails and other loose parts Untighten screw and release brakes Remove support-piece...
- Page 3 Take apart headboards and assemble them. Now you can easily roll them into the bedroom. Remove the bolt on the metal plate A), and loosen the 4 screws on the frame B). Make sure that the bedframe does not tilt. Remove the bedframe from the pallet as shown on the pictures, now two people can carry the bedframe into the bedroom.
- Page 4 (15-20 cm high) Block/support Prepare 4 blocks/support for the frame in the Bedroom. Place the bedframe carefully on top of the 4 Blocks (in each corner) Push together bedframe (backrest-end) and headboard (with two tubes C)). Now push together bedframe and footboard. Tighten all the 16 screws at the underside of the bedframe.
- Page 5 Connect the cables in both ends, and place the O-ring D). Connect the remotecontrol E), it can be connectet on both sides of the bed. Before use, reset the motors (please see User manual chapter 13.) Place the velcro on the bedframe and put on the cover. Insert the support for the footmatress in the holder and tighten the screws from the inside (adjust the bed in the height to get access) Place the 3 lower buttons in the grooves at the bottom of the bed.
