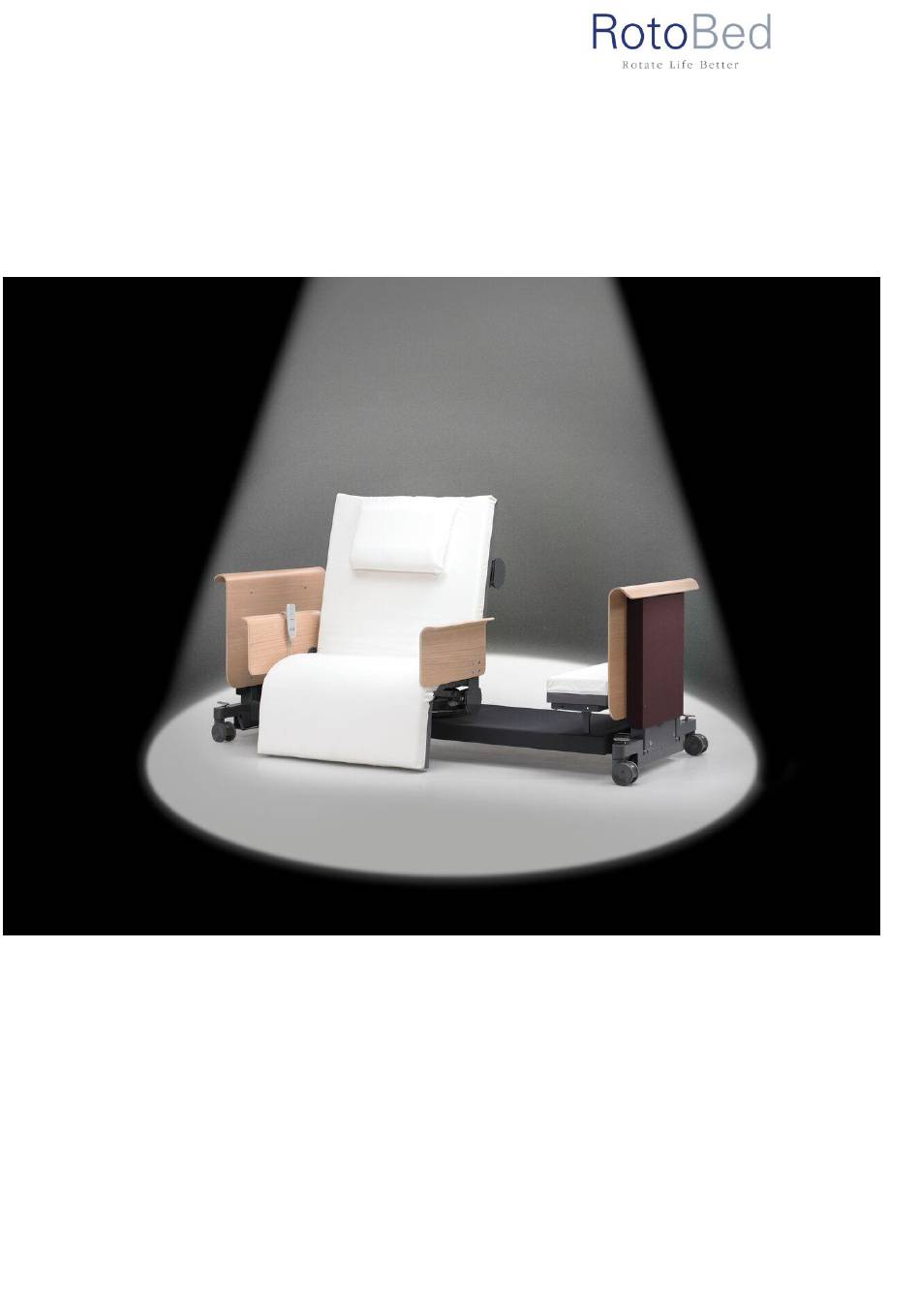

- Page 1 User Manual ®F...
-
Page 2: Table Of Contents
Content Introduction and general information……………………………………………… What RotoBed®Free can do for you………………………………………………….. Before commissioning………………………..………………………………………. Reception……………………………………………………………………………..2.2. Placement……………………………………………………………………..…………. Commissioning…………..………..…………………………………………….……… Mounting of the mattress……………………………………………………….………. Mounting of the side rails.………………………………………………………..…..Remote control…………………………………………………………………………… Operating RotoBed®Free……………………………………………………………….. Important documents………………………………………...………………………….. Intended use……………………..………..……………………………………………... Purposes and standards………………………………………………………………..Limitations……………………………….…………………………………………..…..Maximum load……..……………………………………………………………. …...……... -
Page 3: Introduction And General Information

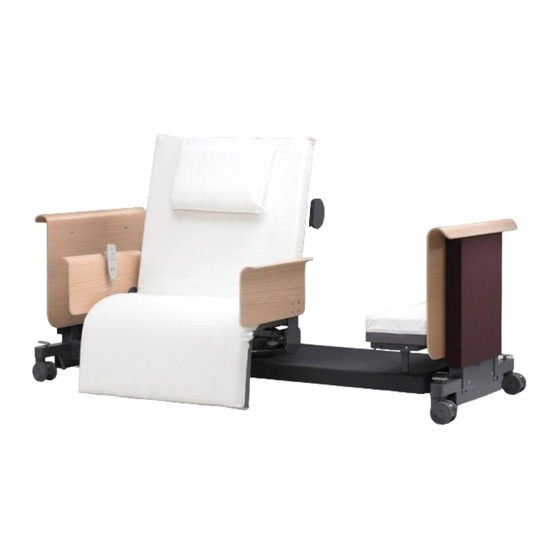

Thank you for choosing to buy a RotoBed®Free. RotoBed®Free is a high quality product that will serve you as an aid for many years to come with proper use and maintenance. To get the most out of your bed, please read this manual carefully. -
Page 4: Before Commissioning
Provide sufficient distance to wall / furniture, taking into account the movements of the bed. Place the bed near a wall outlet to prevent free cables / fall risk. If a lifting pole is mounted on the bed, ensure sufficient free ceiling height with the bed in the highest position. -
Page 5: Commissioning
3. Commissioning Mounting of the mattress A RotoBed®Free bed comes with a mattress consisting of a main part and a foot part. The main mattress has 5 buttons on the back. First place the three lower buttons in the grooves at the bottom of the bed. -
Page 6: Remote Control
SLEEPING POSITION CHAIR POSITION RotoBed®Free can be programmed to turn either right or left. Therefore, the remote control can also be connected to both the right and left sides of the bed. Optional remote control can be purchased as desired. When... -
Page 7: Operating Rotobed®Free
Individual storing of bed height Entry Get seated as close to the backrest as possible for the best comfort. Hold down the Sleeping Position key until the bed is rotated and horizontal. Now, RotoBed®Free works as an ordinary care bed. - Page 8 Exit: Hold down the Chair Position key until the bed stops in an exit position. To facilitate exit you can, by means of the remote control, move the backrest the last bit forward and raise the bed a little in height. Individual storing of bed height: The standard height is 32 cm above the floor.
-
Page 9: Important Documents
The guide is intended for users, staff and relatives. It is recommended that the guide is available at the bed in daily use. Video material Video instructions for service and assembly can be found on www.rotobed.com/downloads. -
Page 10: Intended Use
Purposes and standards RotoBed®Free is designed to help users with physical and / or psychological constraints. RotoBed®Free facilitates entry and exit for the user and reduces the workload for assistants in connection with care and transfer. RotoBed®Free is used in care centers, home care and private homes. -
Page 11: Maximum Load
Be aware that the bedding does not get caught in the moving parts of the bed while adjusting the bed's positions. The connecting cable must be free of the rotation mechanism and height adjustment and capable of moving while adjusting the bed positions. ... -
Page 12: General Instructions
The castors must be locked unless the bed is to be moved. This is to prevent the bed from moving during exit and entry. Avoid free wiring on the floor. You can stumble on these and thus disconnect the power without intention. ... -
Page 13: Childen
Children RotoBed® wishes to draw users attention to the potential dangers of children who play in and around the bed. Children are naturally curious. They find beds with moving parts exciting, but due to the powerful engines, the bed is absolutely not suitable as a toy. In case of improper use there is a risk of getting squeezed. -
Page 14: Fall Risk
Fall risk The bed should only be raised in height when this has a purpose, such as care. In addition, the bed should be set in comfortable exit height. For physically restless users, it is recommended to keep the bed in the lowest position (32 cm). ... -
Page 15: Use Of Accessories
Use of accessories RotoBed®Free and accessories are nationally assessed and approved according to EN60601-2-52 standard. The standard contains essential requirements for the combination of bed and accessories such as mattress, bed rails, lifting pole etc. It is the responsibility of the staff to ensure that bed and accessories are assembled and used according to the manufacturer's regulations. -
Page 16: Lifting Pole
Lifting pole A RotoBed® can be delivered with a lifting pole which can be mounted freely on the right or left side of the bed's head. The lifting pole's grip is provided with a roller belt so that the height can be adjusted to the individual user. -
Page 17: Electricity Safety
Make sure that the remote control and its cord do not get caught between the moving parts of the bed while in use. Avoid free wiring on the floor. You may stumble into them and / or drive them over. Before use and service / maintenance, check all electrical wiring, power supply and connection for cracks or other visible damage. -
Page 18: Cleaning
Make sure all the bed's parts are dry before putting the mattress back onto the bed. Disinfection A RotoBed® care bed must be disinfected regularly and ideally for each new user to prevent disease infection. The bed is classified IPX6W and can be cleaned in a washing system or it can be cleaned manually according to the following requirements: ... -
Page 19: Cleaning In Washing System
The electrical parts of the bed and mechanical functions must be tested before using the bed again. The supplied standard castor for a RotoBed® care bed has not been tested for cleaning in washing systems. Unless the castors are removed before washing, shorter lifespan should be calculated. -
Page 20: Service And Maintenance
RotoBed® care beds do not require much maintenance, but it will minimize any problems to keep the bed clean and follow the instructions for use and cleaning. Daily use will cause natural wear on the engines, so we recommend an annual service inspection. This can be purchased and will extend the warranty period. - Page 21 Move the backrest to an upright position. Make sure to fix it before you start removing bolts, otherwise it will fall down. 1) Remove the upper clips 2) Remove the bolt 3) Apply grease (see below right) 4) Insert the bolt and clips again 5) Follow the same procedure with the bolt at the other end of the motor.
-
Page 22: Warranty
Now follow the same procedure as for lubricating the backrest: 1) Remove the upper clips. 2) Remove the bolt. 3) Apply grease. 4) Reinsert bolt and clips. 5) Follow the same procedure with the bolt at the other end of the motor. Gas spring: Remove the bolt and nuts. - Page 23 RotoBed®Free is a high quality product which is to ensure many years of trouble-free use. If the bed is purchased as new, there is a three-year guarantee on the bed. This warranty covers spare parts and repair of defects in the product during this period, unless otherwise stated in the sales agreement.
-
Page 24: Life Expectancy
This must be done by staff who are competent and trained in evaluating equipment according to the current version of the standard EN 60601-2-52. Knowing the bed's features and safety rules is a prerequisite. 10. Disposal RotoBed® focuses on recycling and environmentally sound production. -
Page 25: Technical Info
The bed can be divided into waste fractions metal, plastic, electronics and cables. When disposing the bed can be divided into the following material groups: PRODUCT MATERIAL HANDLING RotoBed®Free care bed Electronics Electronics waste Wires and cables Electronics waste Metal... -
Page 26: Troubleshooting
Height of patient surface, min/max From floor to patient surface 32-82 cm BED (outer measure) Length 228 cm Width 96 cm Free space over floor 15 cm CASTOR SYSTEM Braking system Works in pairs Castor type 4 Tente Linea double castors Castor diameter 100 mm 12. -
Page 27: Reset Motors
The bed does not respond to the remote control. The remote control is not Plug the remote control into connected to the bed. the control box. Is defect Replace remote control and associated cable. The remote is connected, but the bed does not respond. -
Page 28: Accessories
If the need for reset is frequent, the bed should be serviced. Accessories RotoBed® offers a vast variety of accessories for RotoBed®Free. A large part of these hig quality accessories are specially designed for RotoBed® in order to ease the user’s everyday life even more. - Page 29 Recommended user weight: 120 – 190 kg. A slide sheet designed for people with difficulty turning over in bed. Can be RotoBed®RotoSlide used in combination with RotoBed® RotoSlide 2way in connection with transfers. Sliding sheet facilitating sideways transfers in the bed. Slides in two RotoBed®RotoSlide 2-way...
-
Page 30: Type Plate And Symbols
RotoBed®Underbed Light Underbed Light is mounted on the bed. When RotoBed®Home rotates, a soft light under the bed will turn on – as well as any lamp you choose in the room. When the bed is rotated back, RotoBed®Light Package lights go out. -
Page 31: Declaration Of Conformity & Test Report
CE approval Directive User Manual 93/42 / EEC medical devices Be aware, take care. Serial number See accompanying documentation. Type of BF equipment Maximum user weight (EN-60601-1) Class l equipment Rated load For indoor use Manufacturing Date Manufacturer IPX6W Water rating (Washable) - Page 33 RotoBed manual ENG vers. 2.0. 02.2020...
