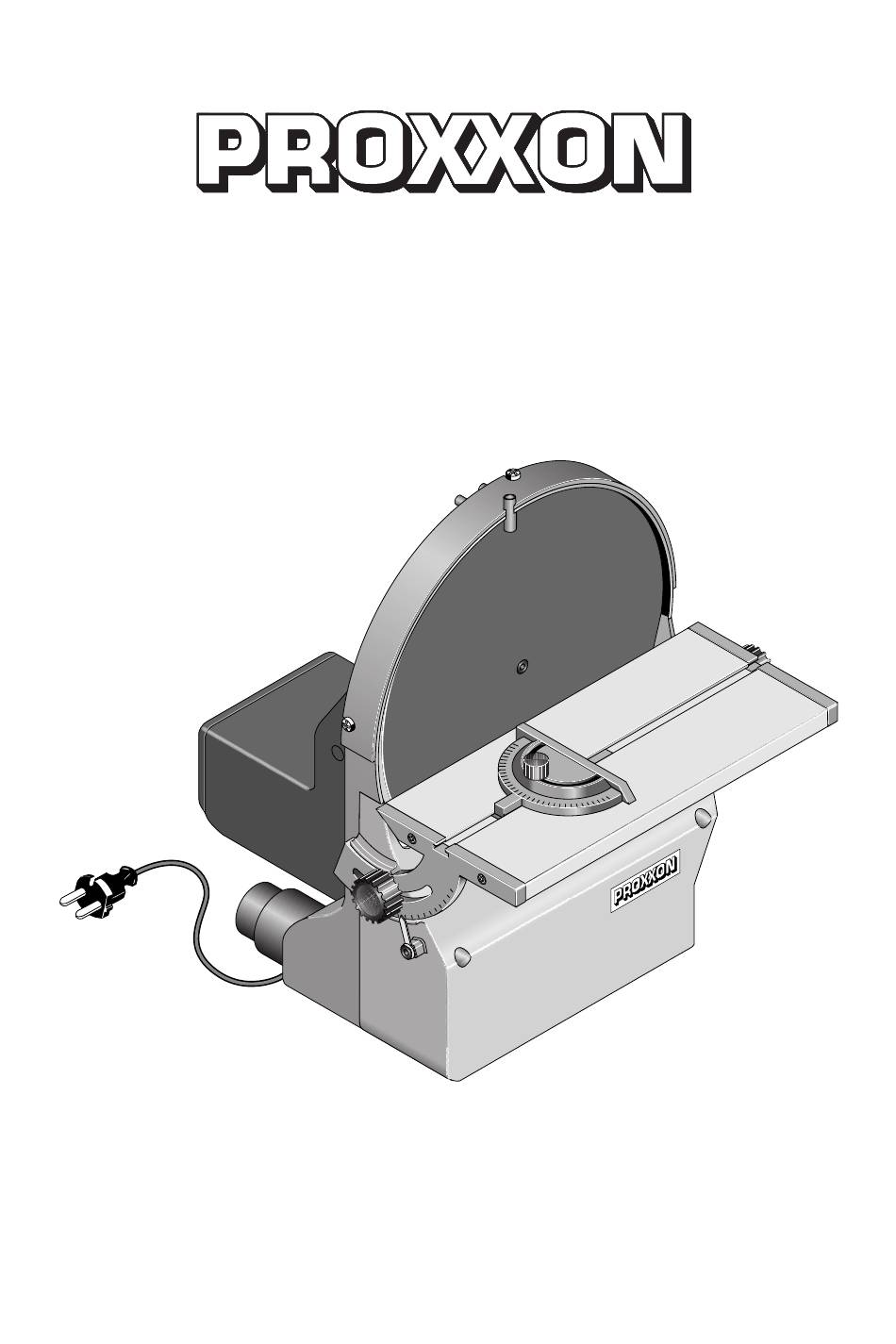

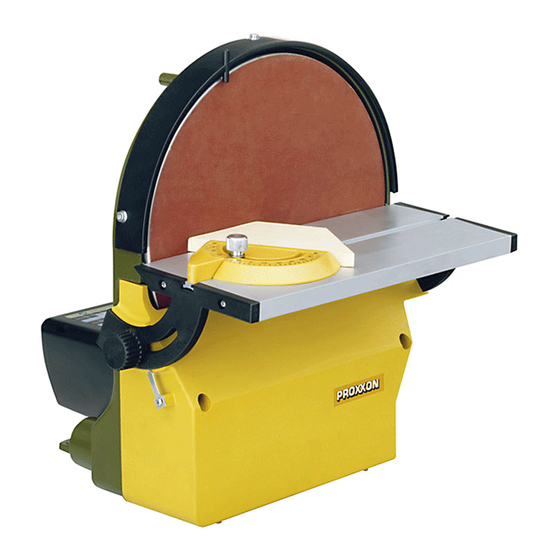

- Page 1 TSG 250/E M A N U A L...
-
Page 2: Spare Parts List
Spare Parts List P R OXXON T S G 250/E ET-Nr.: Description 28060 - 03 Sanding disc 28060 - 08 Indicator 28060 - 09 Motor 28060 - 10 Splash guard 28060 - 11 Ball bearing 28060 - 12 Spacer 28060 - 14 Strain relief 28060 - 16 Fastening screw... - Page 3 13 15 13 15 Fig. 1 10 12 11 10 12 11 Fig. 2 Fig. 3 - 4 -...
- Page 4 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 - 5 -...
- Page 5 Thank you for choosing the disc sander TSG 250/E. You now have a precision instrument for PROXXON will not be liable for the safe function sanding long edges, end sections, radii, mitres, of the device for: or accurate flat surfaces at right angles and many •...
- Page 6 3 Scope of delivery: These values also allow a preliminary evaluation of the loads caused by vibration and noise emis- 1 pc. Disc sander TSG 250/E sions. 1 pc. Angle stop 1 pc. Rubber connecting piece for vacuum...
- Page 7 Risk of injuries! 2. Swivel sanding table 2 to the required angle Your TSG 250/E is normally operated with the position and check the set value on angle scale attached sanding table (as in delivery condition).
- Page 8 7.1 Notes on sanding speed Using the Proxxon CW-matic vacuum cleaner omits that annoying manual activation and deac- The sanding speed of your TSG 250/E is infinitely tivation. The CW-matic is equipped with an auto- adjustable from approx. 250 - 750 m/min. This...
- Page 9 Article number 28 976, 320 grit, Contents: 5 grit each; these are easily obtainable spare parts. pieces The sanding disc of your TSG 250/E is covered with an adhesive silicone film: This material ensures the completely uncompli- 9 Care and maintenance...
- Page 10 11 CE Declaration of Conformity Name and address: PROXXON S.A. 6-10, Härebierg L-6868 Wecker Product Disc sander TSG 250/E designation Article No.: 28060 In sole responsibility, we declare that this product conforms to the following directives and normative documents: EU-EMC...
- Page 11 - 79 -...
- Page 12 Service note All PROXXON products are thoroughly inspected after production. Should a defect occur nevertheless, please contact the dealer from whom you purchased the product. Only the dealer is responsible for handling all legal warranty claims which refer exclusively to material and manufacturer error.
