Page 1: Operating Instructions

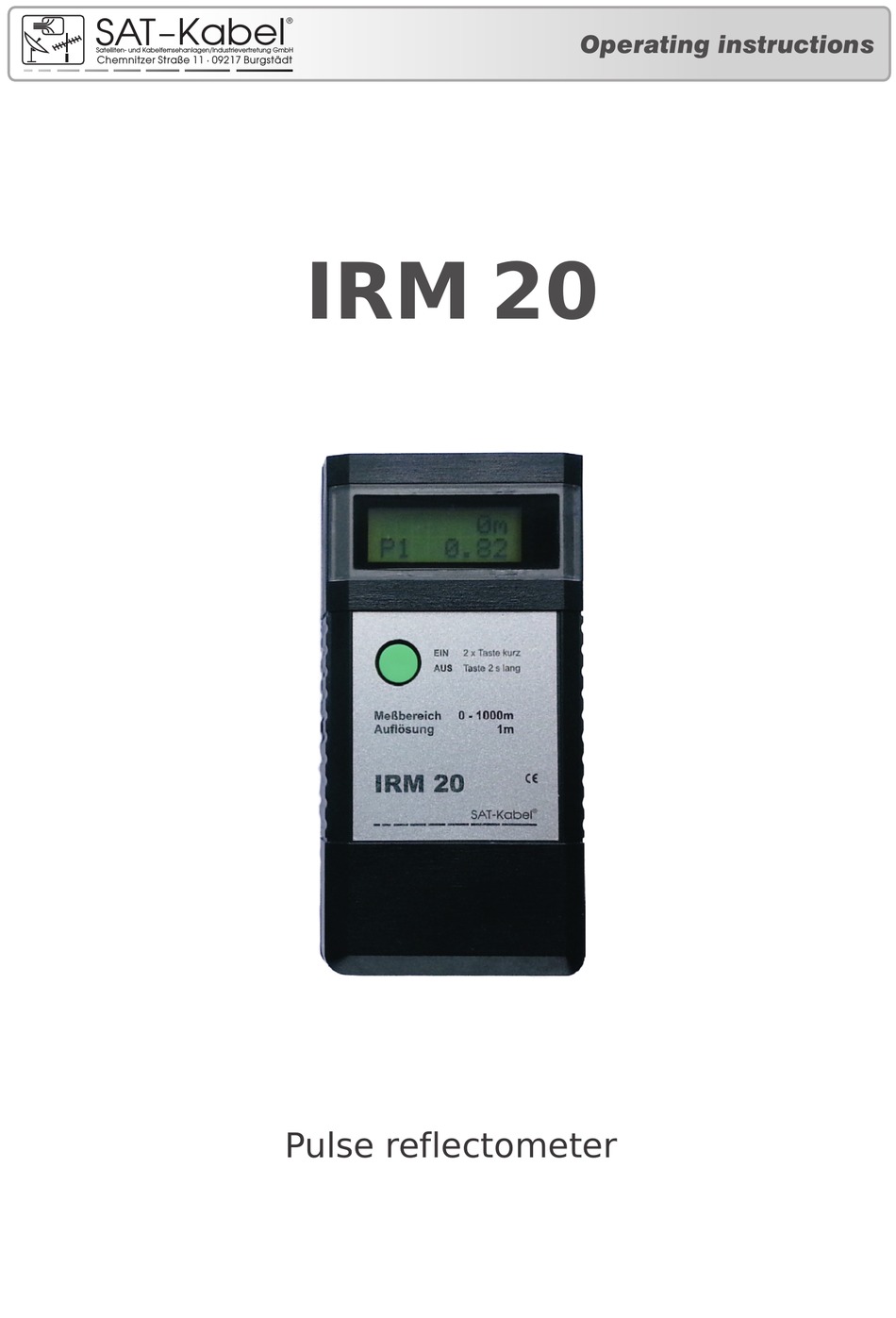

SAT Kabel ® Operating instructions Satelliten- und Kabelfernsehanlagen/Industrievertretung GmbH Chemnitzer Straße 11 09217 Burgstädt IRM 20 Pulse reflectometer... - Page 2 ®. We thank you for buying of a product of the company SAT-Kabel This operating instructions shall help you to understand the functions of the instrument and to ease its use. If you have questions about this instrument or suggestions for further improvements, please get in touch with us.
- Page 3 The working temperature range is 0 °C until +40 °C avoid strains from impacts or drop downs the surface of the housing can be cleaned with a dry, soft and lintfree cloth. Do not use any aggressive solvents! ©2017 SAT-Kabel GmbH...
- Page 4 The cable to be measured must be connected only after selecting the required shortening factor. Then read the length of the cable in the display. If there is a short circuit in the cable, the cable length appears >>K<< in the display. ©2017 SAT-Kabel GmbH...
- Page 5 5 seconds … MEMORY ENTRY P0 … P9 Press the Key briefly 1| MEMORY ENTRY ON/OFF 2| VELOCITY FACTOR (two decimal places 0,xx) Press the key briefly Long press the key and change values ongoing and move the cursor ©2017 SAT-Kabel GmbH...
- Page 6 ±1 % ±2 m Measuring connection 4 mm banana jack, 75 ohms Output pulse 4 V Rechteck, 30 kHz Display LCD, 2×8 Zeichen, illuminated Casing dimensions 120 mm × 60 mm × 25 mm Weight 110 g ©2017 SAT-Kabel GmbH...
- Page 7 This guarantee is valid for new instruments purchased in Germany. New instruments and their components, which are defective because of production faults and/or material faults, are repaired from SAT-Kabel®. For wear parts, like accumulators, keyboards, housings, bags, connecting cables this guarantee is valid for 6 month from the purchasing date.
- Page 8 Telefon: +49 (0)3724 6665-0 Telefax: +49 (0)3724 6665-44 info@sat-kabel.de • www.sat-kabel.de Irrtümer sowie Änderungen im Zuge technischer Weiterentwicklung vorbehalten! ©2017-04-07 SAT-Kabel®...
