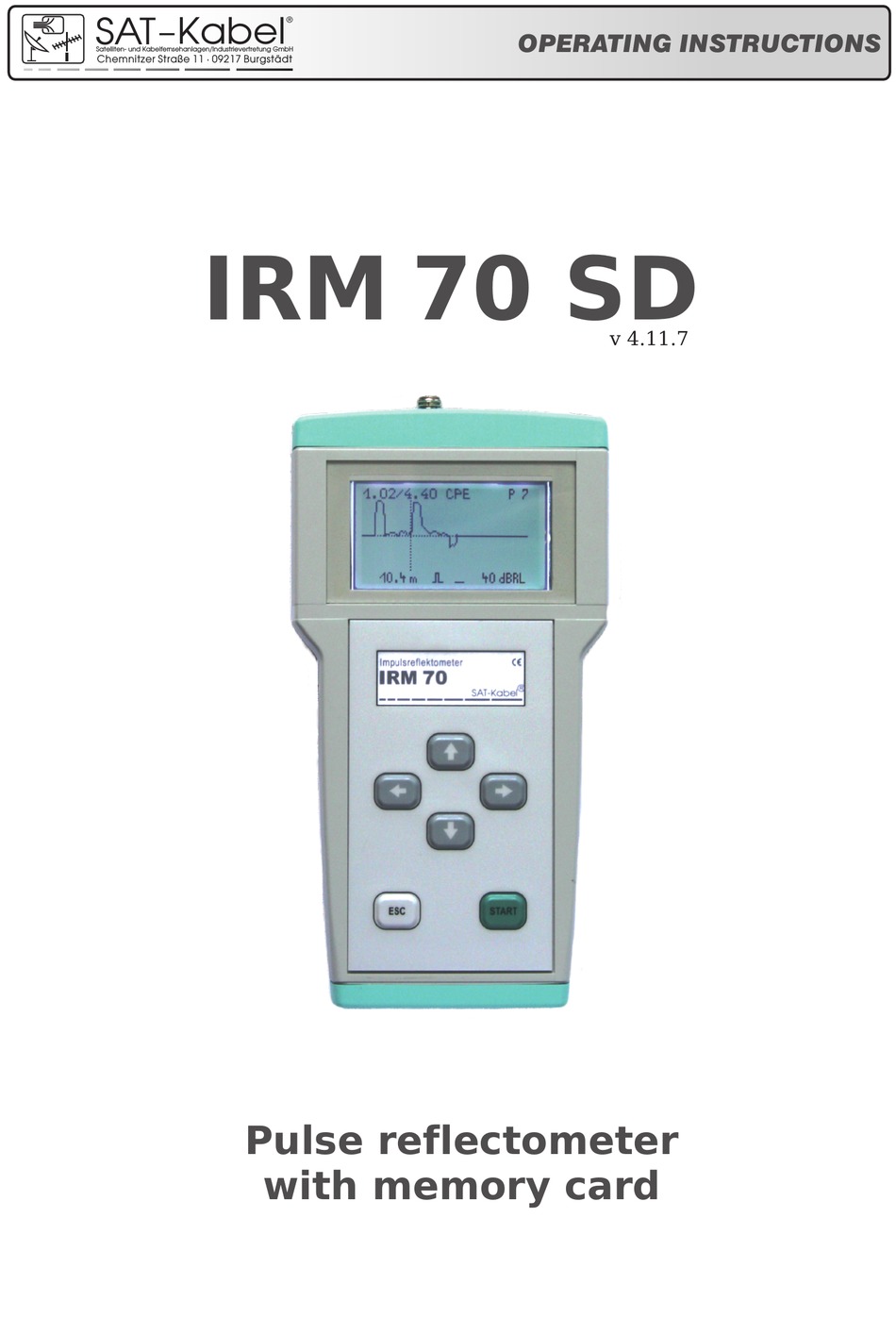

- Page 1 SAT Kabel ® OPERATING INSTRUCTIONS Satelliten- und Kabelfernsehanlagen/Industrievertretung GmbH Chemnitzer Straße 11 09217 Burgstädt IRM 70 SD v 4.11.7 Pulse reflectometer with memory card...
- Page 2 ®. We thank you for buying of a product of the company SAT-Kabel This operating instructions shall help you to understand the functions of the instrument and to ease its use. If you have questions about this instrument or suggestions for further improvements, please get in touch with us.
-
Page 3: Table Of Contents
7.2.3 Vertical resolution Settings Change the language Change display color Save the settings Change of the cable characteristic values Technical data Save measurments to SD card 10.1 Data storage Operating Scheme 12/13 Stored cable data Cleaning Guarantee ©2017 SAT-Kabel GmbH... -
Page 4: General
(11...24 V) and charging control is shown on the display. After about 1 minute the backlight switches off. When battery is fully charged, it switches on again. An informational message appears in the display that the charging process has finished. ©2017 SAT-Kabel GmbH... -
Page 5: Important Notes
START Push once more button START. Now select with buttons DOWN and UP to the desired cable type. 7.1.2 Switch on without cable selection START Propagation factor and cable loss must be yet adjusted manually to measure. ©2017 SAT-Kabel GmbH... -
Page 6: Advanced Operating Functions
0 to 36 dB. The gain »V« is starting from the length display to select by shortly pressing the button ESC. With the buttons LEFT and RIGHT the gain can be stepwise changed. Set it back by a short push on button ESC. ©2017 SAT-Kabel GmbH... -
Page 7: Parameter Of Length Measurement Adjust
7.2.3 Vertical resolution / fullscreen By briefly pressing the button UP or DOWN the display is toggled between fullscreen and the view with measurement parameters. The set gain value is retained. ©2017 SAT-Kabel GmbH... -
Page 8: Settings
WITHOUT CABLE-TYPE – manual defined cable parameters (resolution, impulse, filter etc.) are loaded every time the device switched on For manual saving press and hold the START button until the save symbol is shown in the upper right of the display. ©2014 SAT-Kabel GmbH... -
Page 9: Change Of The Cable Characteristic Values
– propagation factor – 0.83 here 5.7 dB – cable attenuation at 100 m at 50 MHz DO NOT FORGET to save the settings before exit by press and hold the START button until the save symbol appears. store ©2014 SAT-Kabel GmbH... -
Page 10: Technical Data
10.1 data storage A SD card have to be inserted! 1. Switch on the device - switch on with cable selection, see section 7.1.1 page 5 - switch on without cable selection, see section 7.1.2 page 5 ©2017 SAT-Kabel GmbH... -
Page 11: Data Storage
For processing the measurement data on the SD card a PC software is used. This can be downloaded in the current version on our website http://www.sat-kabel.de/support-software.php The Java Runtime Environment (JRE) needs to be installed (at least in Version 1.5.0). This can be found at http://www.java.com for free download. ©2017 SAT-Kabel GmbH... -
Page 12: Operating Scheme
Measuring curve Cursor Gain V: 0/4/8/…/36 START Resolution 0,1/0,2/…/4 m START Pulse width 2/20/100 ns START Filter (on/off) In all measurement menus vertical resolution high / normal – 64 dB dynamics – high vertical resolution Resolution 0,1/0,2/…/4 m ©2017 SAT-Kabel GmbH... - Page 13 Measuring without return loss – cable data adjustable START Switch off: >2 s Store values: >2 s Cursor START Gain V: 0/4/8/…36 START Resolution 0,1/0,2/…/4 m START Pulse width 2/20/100 ns START Filter (on/off) START Storage place for propagations factor START Propagations factor 0,25…0,999 ©2017 SAT-Kabel GmbH...
-
Page 14: Stored Cable Data
Stored cable data (State 01/2012) ©2017 SAT-Kabel GmbH... -
Page 15: Cleaning
This guarantee is valid for new instruments purchased in Germany. New instruments and their components, which are defective because of production faults and/or material faults, are repaired from SAT-Kabel®. For wear parts, like accumulators, keyboards, housings, bags, connecting cables this guarantee is valid for 6 month from the purchasing date. - Page 16 ® SAT-Kabel Satelliten- und Kabelfernsehanlagen/Industrievertretung GmbH Telephone: +49 3724 6665-0 Telefax: +49 3724 6665-44 info@sat-kabel.de • www.sat-kabel.de Errors, technical amendmends and developments are subject to change without notice! ©2017 SAT-Kabel®...
