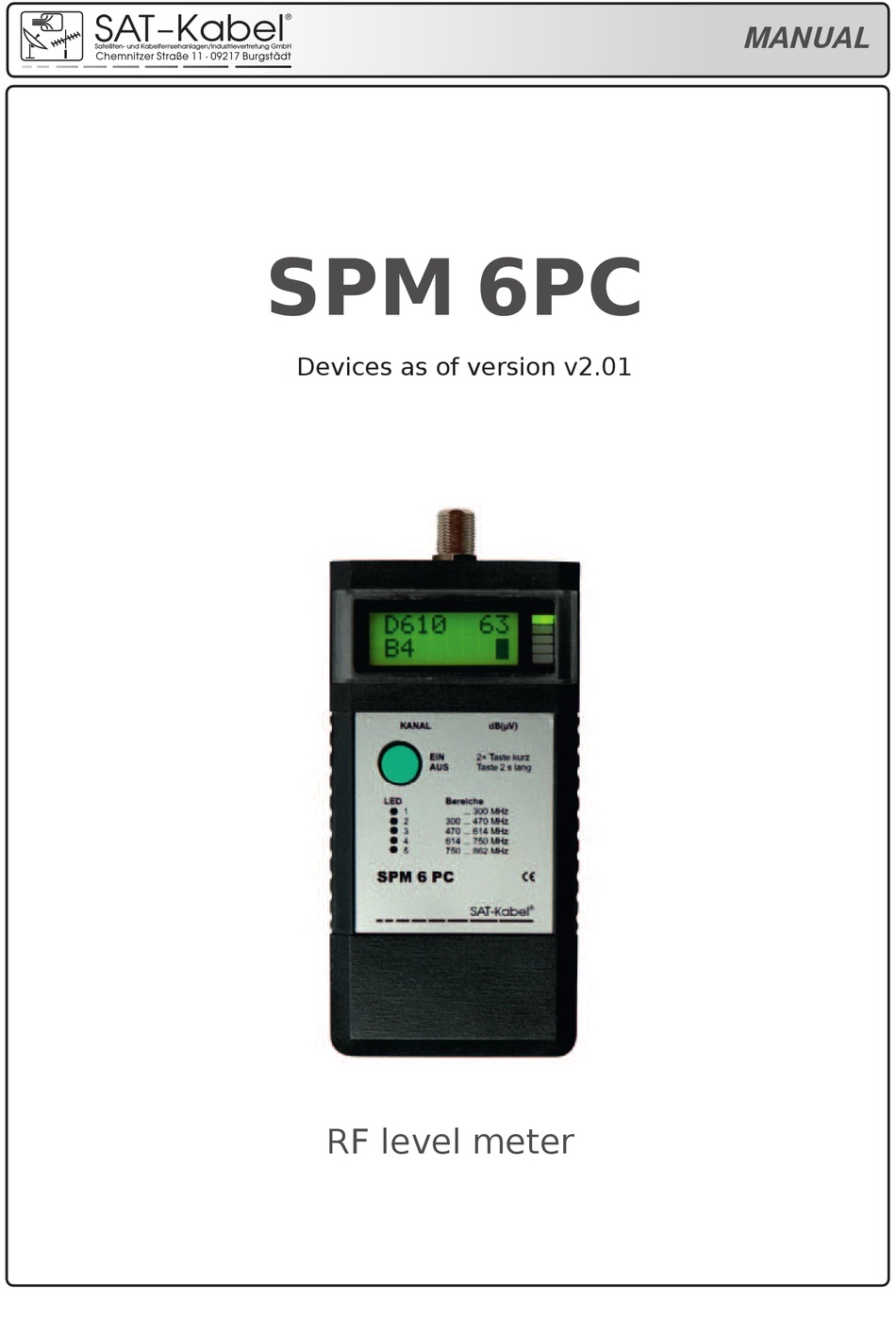

- Page 1 SAT Kabel ® MANUAL Satelliten- und Kabelfernsehanlagen/Industrievertretung GmbH Chemnitzer Straße 11 . 09217 Burgstädt SPM 6PC Devices as of version v2.01 RF level meter...
- Page 2 Thank you for purchasing a product of the Company SAT-Kabel. This manual is intended to provice you with the functions of the device If you have questions about the device, or have suggestions for further improvements, please let us know.
-
Page 3: Table Of Contents
Single channel display and evaluation............6 Channel labels .., ................7 Single channel selection and manual reading of level values....7 Switch off the device..................8 Charge device....................8 Technical data and equipment ..............8 Functional diagram..................9 Cleaning and care ..................11 Warranty......................11 ©2013 SAT-Kabel GmbH... -
Page 4: General
On the free F-cable connector of the enclosed adapter (F-female to IEC female) is then screwed firmly with his F-connector. Then the level meter is connected with the screwed cable connection by plugging the IEC socket on the TV socket on the junction box. ©2013 SAT-Kabel GmbH... -
Page 5: Switch On The Device
(TAD) associated with "SCAN" continually held an evaluation. The evaluation result for each frequency range is shown (yellow / green red /) by the corresponding LED. The display for the entire sub-region varies on the worst level value in the reference channels concerned. ©2013 SAT-Kabel GmbH... -
Page 6: Scan With Bar Display
57 ... 59 78 ... 80 60 ... 77 DVB-C 64 QAM <47 >73 47 ... 49 68 ... 73 50 ... 67 DVB-C 256 QAM <53 >79 53 ... 55 74 ... 79 56 ... 73 ©2013 SAT-Kabel GmbH... -
Page 7: Channel Labels
"SCAN". Next Turn briefly Briefly press the button. next channel The key for longer than 1 second. There will be a Zurück zum Modus change in the mode "SCAN" (LED-evaluation). >1 s SCAN schalten ©2013 SAT-Kabel GmbH... -
Page 8: Switch Off The Device
LCD 2× 8 signs, 5 mm heigh, illuminated power supply NiMH-Akku 6 V, rated capacity 300 mAh current draw ca. 60 mA in LED operationca. 90 mA with illuminateddDisplay dimensions 120 mm × 60 mm × 25 mm weight 130 g includubg accumulator ©2013 SAT-Kabel GmbH... -
Page 9: Functional Diagram
11. Functional diagram briefly current device software changes in the course of further developments automatically after 1 s briefly briefly briefly briefly briefly briefly briefly ©2013 SAT-Kabel GmbH... - Page 10 ©2013 SAT-Kabel GmbH...
-
Page 11: Cleaning And Care
New devices and their components exhibiting defects within 24 months of purchase due to manufacturing defects and / or material defects will be repaired by SAT-Kabel ®. For wear parts, such as batteries, keypads, housings, bags, power cable, warranty for 6 months from the purchase applies. - Page 12 Telefon: +49 (0)3724 6665-0 Telefax: +49 (0)3724 6665-44 info@sat-kabel.de • www.sat-kabel.de Omissions and changes to technical improvements without notice! ©2013-07-29 SAT-Kabel®...
