OPERATING INSTRUCTION
AMS-FS433
Radio set 433 MHz for AMS-SD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMS-FS433 and is the answer not in the manual?

Questions and answers

Related Manuals for SAT-Kabel AMS-FS433

Summary of Contents for SAT-Kabel AMS-FS433

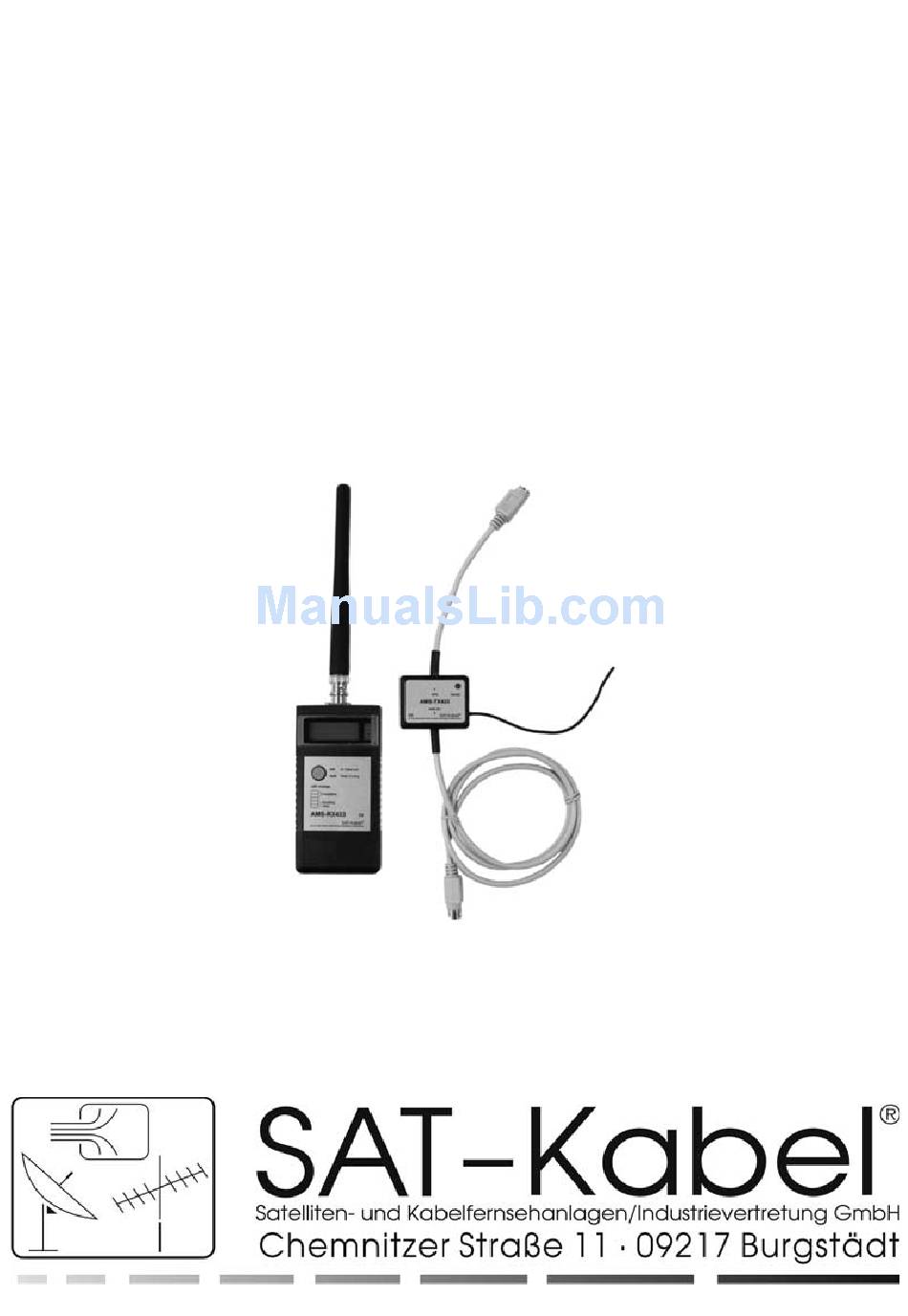

  • Page 1 OPERATING INSTRUCTION AMS-FS433 Radio set 433 MHz for AMS-SD...

  • Page 3: Table Of Contents

    Content General .......................4 Scope of delivery ..................4 Functional requirements ................4 Measuring setup ..................Operation....................5 AMS-TX433 ....................5 AMS-RX433 ....................5 5.2.1 Switching on and off ...................5 5.2.2 LED display ....................6 5.2.3 Display readout...................6 5.2.4 Battery charge ....................7 AMS-RX433 to AMS-TX433 teach ..............8 Troubleshooting ..................8 Technical data ....................9 Cleaning and maintenance .................9...

  • Page 4: General

    1. General The radio set AMS-FS433 , consisting of AMS-TX433 (transmitter) and AMS-RX433 (receiver with display), is an optional accessory for the AMS-SD . It serves the measured value transmission from the AMS-SD in a vehicle to service employees for finding RF- leakages in a cable CATV network.

  • Page 5: Measuring Setup

    4. Measuring setup ANT-Duo Set ual band antenna with magnetic foot GPS- receiver AMS-TX433 VT 87/301 car connecting cable SD card AMS-SD Fig. a: AMS-TX433 (transmitter) Fig. b: AMS-RX433 between AMS-SD and (receiver with display) GPS receiver in the car at service technician 5.

  • Page 6: Led Display

    By further pressing the button now, the display readout display change over briefly will be changed over. By a long press of the button (about 3 s) the device will switch off switch off at any time. If 5 minutes no data are received, the device switches automatically switch off off automatically.

  • Page 7: Battery Charge

    Mode 2 F1: 12.3 Line 1: measuring frequency 1, level in dB(µV) SAT□□□□□ Line 2: up to 8 letters of the detecting code Mode 3 (shown only if two measuring frequencies are measured) F2: 23.5 Line 1: measuring frequency 2, level in dB(µV) S87□□□□□...

  • Page 8: Ams-Rx433 To Ams-Tx433 Teach

    5.3 AMS RX433 teach to AMS-TX433 Each AMS-TX433 transmitter has its own signature to build a couple connection between AMS-RX433 AMS-TX433 . Thus, the operation of several AMS radio sets in the surrounding area is possible. To establish the connection, the AMS-RX433 must be taught once to the transmitter.

  • Page 9: Technical Data

    6. Technial data transmitter sending frequency 433.5 MHz antenna throw antenna 17 cm connection PS/2 plug and PS/2 socket power supply over AMS-SD receiver receiving frequency 433.5 MHz antenna 17 cm plug-on antenna with BNC connector power supply NiMH accumulator 6 V, capacity 300 mAh power consumption max.

  • Page 10: Guarantee

    • This guarantee is valid for new instruments purchased in Germany. • New instruments and their components, which are defective because of production faults and/or material faults, are repaired or are replaced from SAT-Kabel® against a corresponding instrument. • For wear parts, like accumulators, keyboards, housings, bags, connecting cables this guarantee is valid for 6 month from the purchasing date.
  • Page 12 ® SAT-Kabel Satelliten- und Kabelfernsehanlagen/Industrievertretung GmbH Telephone: +49 3724 6665-0 Telefax: +49 3724 6665-44 info@sat-kabel.de • www.sat-kabel.de Errors, technical amendmends and developments are subject to change without notice! © 2010 SAT-Kabel®...
