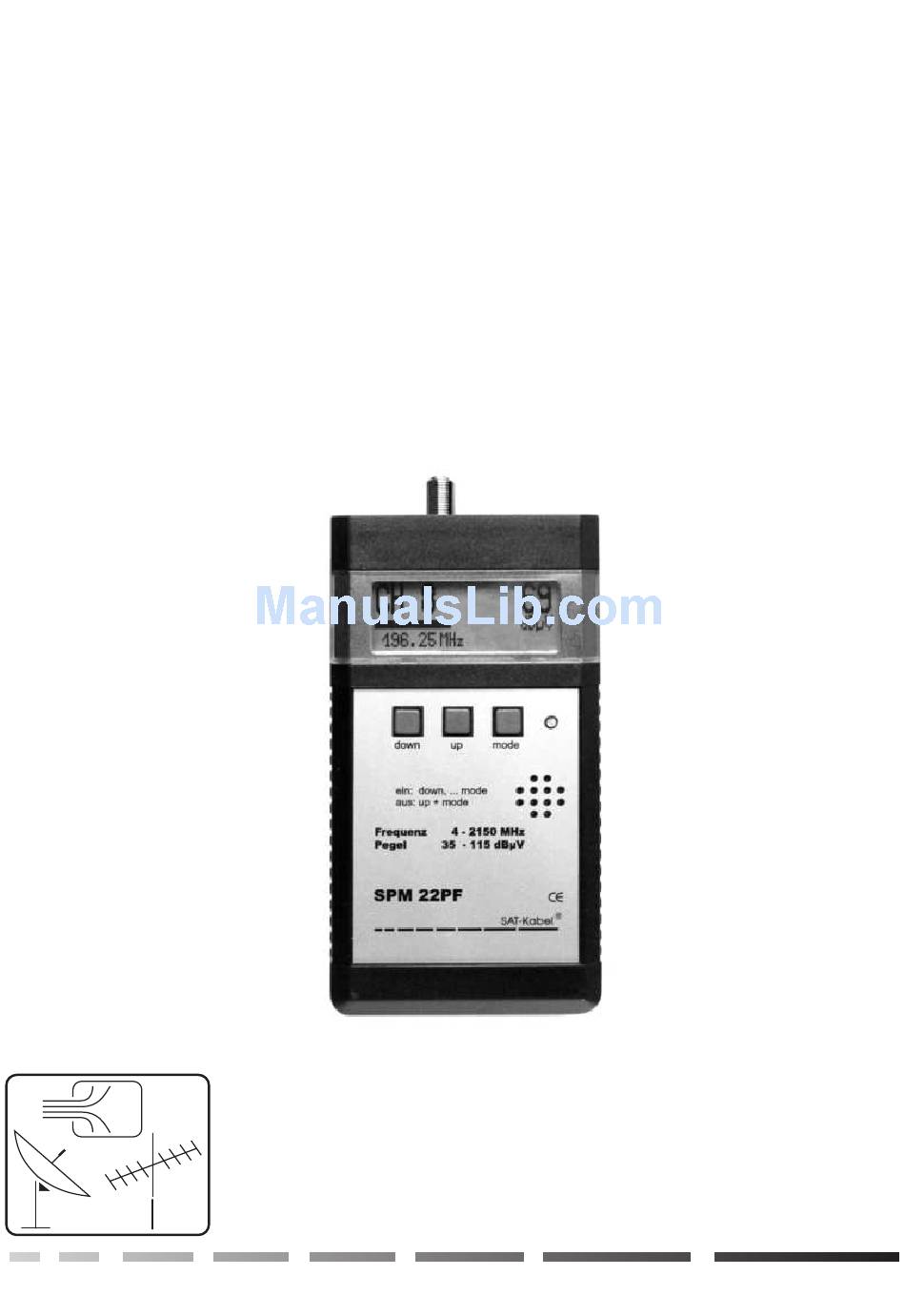

Page 1: Operating Instructions

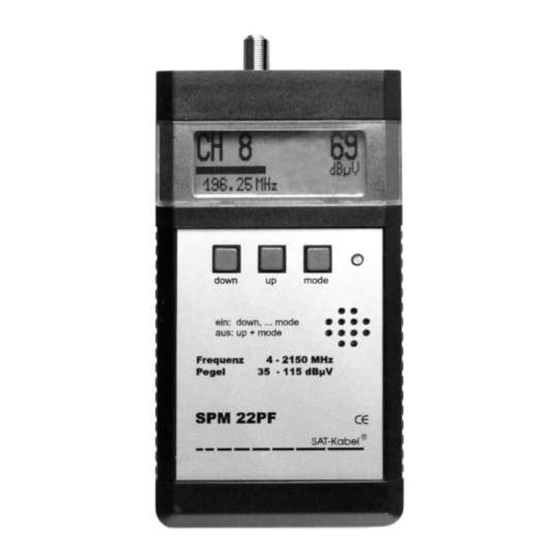

OPERATING INSTRUCTIONS SPM 22 PF From V41.83 Signal level measuring instrument with field strength measurement ® SAT Kabel Satelliten- und Kabelfernsehanlagen/Industrievertretung GmbH Chemnitzer Straße 11 . 09217 Burgstädt... - Page 2 ®. We thank you for buying of a product of the company SAT-Kabel This operating instructions shall help you to understand the functions of the instrument and to ease its use. If you have questions about this instrument or suggestions for further improvements, please get in touch with us.
- Page 3 (here keys 1 and 3 – reserved for storage) Speaker = push shortly the single key (here key 3) = Push shortly one of the two keys SPM 22 PF (here key 2 or 1 – one step forward /back) Technical data, features Frequency range 4–2150 MHz;...
- Page 4 Operating functions standard Function operated from: Switch on Push the key »down« after that key »up« or key »mode« shortly (according of the desired mode) Switch off Push the keys »up« and »mode« simultaneously and shortly Cursor move key »down« shortly –...
- Page 5 Store switch on measuring range The measuring range, which shall be available after switch on, can be defined by storage. For it the wanted measuring range has to activate: SCAN - 3-KANAL - BK - SAT - DVB-T - WLAN Push now the keys »down«...
- Page 6 Operating scheme SPM 22 PF After switch on of the instrument a menu point from the highest row will be displayed. SCAN 3-KANAL Scan Storage place Channel/5-1205*/945-2145* P0–P9 *) MHz Cursor Scan storage place two additional menu channel/10MHz/10MHz on the scan ranges 5–1205 MHz / 945–2145 MHz...
- Page 7 V41.83 ® ©SAT-Kabel signs and symbols see p. 8 Automatic mode Level dropouts scan CATV channel 10MHz raster Scan SAT frequency channel 10MHz raster SAT frequency scan Cursor Zoom 12MHz CATV frequency Cursor Cursor 50kHz raster 10MHz raster...
- Page 8 Operating scheme SPM 22 PF continuation ® ©SAT-Kabel DVB-T WLAN DVB-T scan WLAN scan Cursor Cursor channel raster 1MHz raster Zoom Single frequency scan channel Signs and symbols: Scan = Do not push the key! channel = Push key long (>0,5 s)
- Page 9 DVB-T Here is measured the special frequency range only. This range contains menus for channel raster and frequency spectrum. As accessories there are several antennas and a preamplifier. WLAN This is also a special frequency range (2.4–2.5 GHz). For measurements are to use the pre-plug amplifier VUW 2,45 and a special antenna.
- Page 10 3-channel store change (P0…P9) The instrument is switched off! Push the keys »down« und »up« simultaneously until the 3- 3-channel store channel store appears. program place P0…P9 DVB-T, WLAN NOTE: In case of an incorrect input switch off the instrument with the keys »up«...
- Page 11 This guarantee is valid for new instruments purchased in Germany. New instruments and their components, which are defective because of production faults and/or material faults, are repaired from SAT-Kabel®. For wear parts, like accumulators, keyboards, housings, bags, connecting cables this guarantee is valid for 6 month from the purchasing date.
- Page 12 ® SAT-Kabel Satelliten- und Kabelfernsehanlagen/Industrievertretung GmbH Telephone: +49 3724 6665-0 Telefax: +49 3724 6665-44 E-Mail: info@sat-kabel.de Internet: www.sat-kabel.de Errors, technical amendmends and developments are subject to change without notice! © 2010 SAT-KABEL®...
