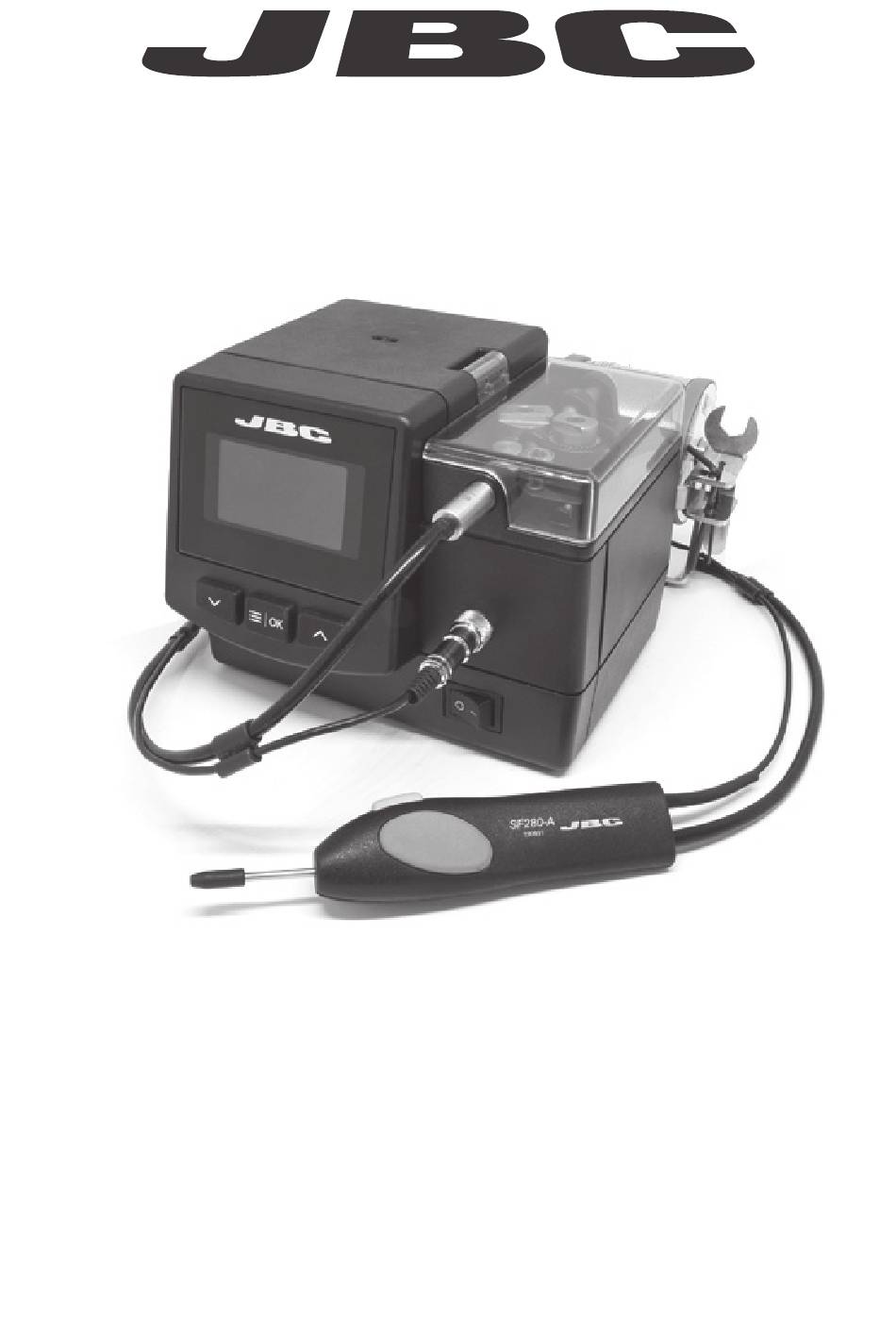

- Page 1 Automatic Solder Feeder Ref. SF-110VB/SF-210VB...
-
Page 2: Packing List
Packing List The following items should be included: SF Control Unit ..... 1 unit Solder Feed Guide Set ......1 unit Ref. SF-1B (100-120V) Handle ......1 unit Ref. GSF10V-B SF-2B (230V) Ref. SF280-A Reel support ....1 unit Spanner ......1 unit Allen key Ø... - Page 3 w w w.jbctools.com Features Control Unit Solder Feed Handle Ref. SF280-A Control Screen Main Switch Tin wire inlet USB-B connector RJ12 connection for Station RJ12 connection for Robot System Power Socket Fuse...
-
Page 4: Tool Assembly
Tool assembly Connect the tool to the control unit. 1. Push the guide tube to the end and tighten the screw. 2. Connect the jack. insert to the end Load the solder wire 1. Put the reel into its support. 2. - Page 5 w w w.jbctools.com Changing the wheels and the blade For this operation, disconnect the unit. 1. Use the allen key and the spanner to loosen 2. Replace the guide wheel and the blade for the screws. the new ones. Guide wheel Blade clamp...
-
Page 6: Control Process
Control Process Work Screen Choose between continuous, discontinuous and program mode: Continuous Mode Discontinuous Mode Program 35 STEP1 STEP2 STEP3 Length Speed Speed Length Speed 20.0 40.0 20.0 mm/s m m / s mm/s 4 0 % 4 0 % S u p p l i e d : 2 . -
Page 7: Screen Menu
w w w.jbctools.com Control Process Screen Menu Original PIN: 0105 S t a t i o n S e t t i n g s Length units* 2 Beep 3 P I N 4 Change PIN 5 Station Locket 6 Robot Mode B a c k M a i n M e n u Reset settings... - Page 8 Accesories Different guide sets are available depending on the solder wire used: Solder Wire Ø (mm) With Solder Wire Perforation Solder Wire Ø (mm) Without Solder Wire Perforation 0.5-0.6 GSF05D-B GSF08V-B 0.7-0.8 GSF08D-B GSF10V-B 0.9-1.0 GSF10D-B GSF15V-B GSF15D-B 1.2-1.5 Solder Feed Handle Stand Ref.
-
Page 9: Maintenance
If necessary use a tool to lever it off. and return it to the station. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 10 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Make sure that it is properly grounded before use.
- Page 11 w w w.jbctools.com 有害物质含量表 产品中有害物质的名称及含量 有害物质 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(VI)) (PBB) (PBDE) 烙铁头 手柄 电源线 主机 电源插座 保险丝 主开关 电位连接 变压器 线路板 O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。...
-
Page 12: Exploded View
Exploded View... - Page 13 w w w.jbctools.com...
- Page 14 Notes...
- Page 15 w w w.jbctools.com...
-
Page 16: Specifications
Specifications SF-110VB 100-120V 50/60Hz. Input fuse: 0.2A. SF-210VB 230V 50/60Hz. Input fuse: 0.125A. - Net Weight: 1,9 Kg (4.2 lb) - Dimensions: 150 x 120 x 115 mm (5.9 x 4.8 x 4.6 in) - Spool capacity up to 1 kg (2.2 Ib) - Solder diameter Ø0,5-1,5 mm (Ø0.02-0.059 in)
