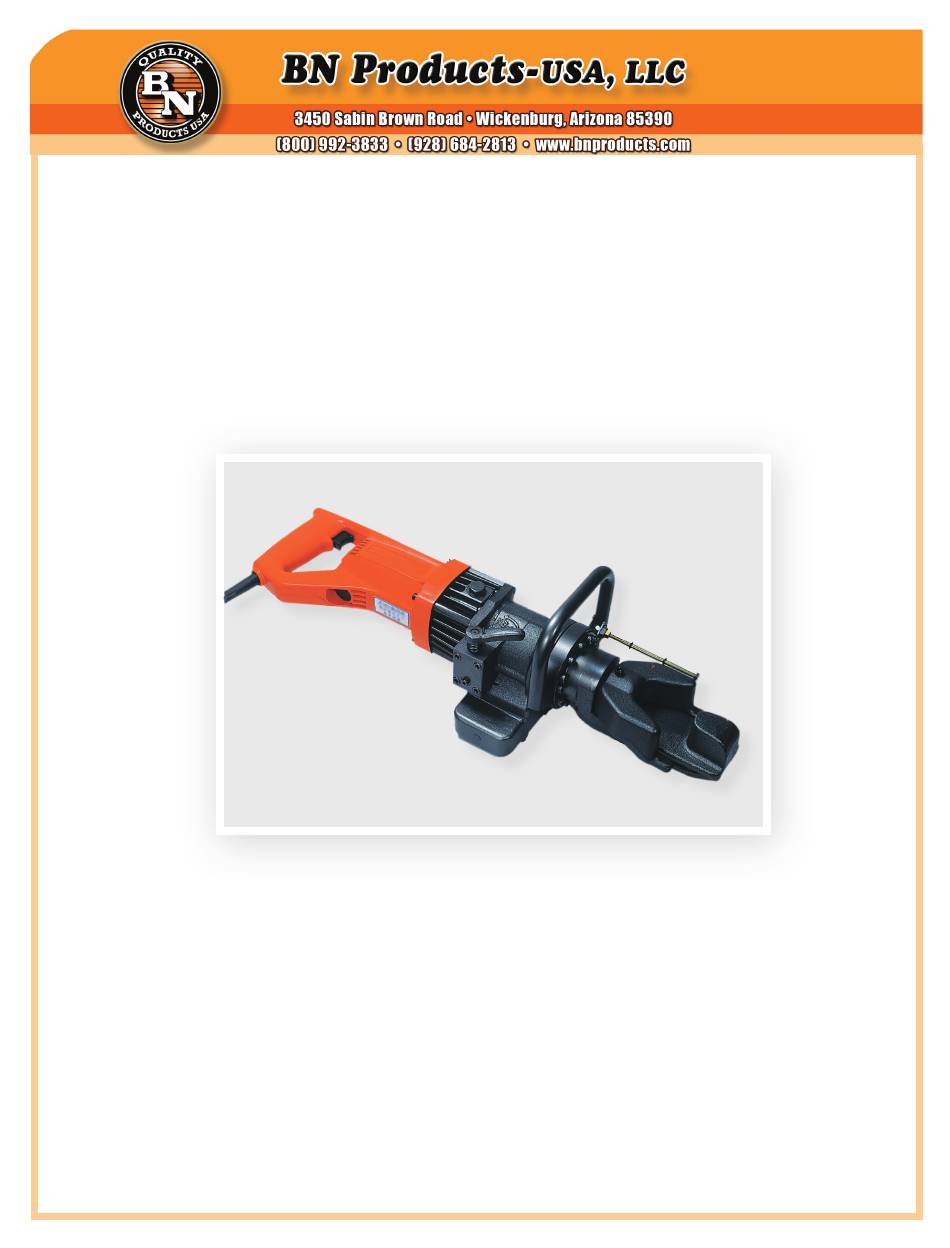

HB-16W Power Rebar Bender
Handling Instructions
Prior to use, please read these instructions carefully.
Important: To reduce rebar breakage,
bend the rebar in increments by throttling the
on/off trigger switch. Bending rebar in smaller
stages allows for stress relief in the metal,
reducing breakage.
Page: 1
HB-16W Handling Instructions
Advertisement
Table of Contents
Related Manuals for BN Products HB-16W
Summary of Contents for BN Products HB-16W
-
Page 1: Handling Instructions
HB-16W Power Rebar Bender Handling Instructions Prior to use, please read these instructions carefully. Important: To reduce rebar breakage, bend the rebar in increments by throttling the on/off trigger switch. Bending rebar in smaller stages allows for stress relief in the metal, reducing breakage. -
Page 2: Important Safety Precautions
• The machine will only operate on the voltage for which it is designed (with a toler- ance of 10%). 115 Volt, 50/60 Hz, 10 amps, 1050 watts • To avoid electrical shock, do not handle with wet hands or use in a damp place. Page: 2 HB-16W Handling Instructions... -
Page 3: General Safety Rules
Keep cord away from heat, oil sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. • When operating a power tool outdoors, use an extension cord suitable to outdoor use. Use a cord suitable for outdoor use reduces the risk of electric shock. Page: 3 HB-16W Handling Instructions... -
Page 4: Personal Safety
• If devices are provided for the connection of dust extraction and collection facilities, en- sure these are connected and properly used. Use of these devices can reduce dust-related hazards. Power tool use and care • Do not exceed the maximum number of bars that can be bent and or cut at one time. Refer to additional information contained in these instructions. • When positioning the bar between the bending rollers or cutting blocks, make sure to lay it flat on the machine surface. Refer to additional information contained in these in- structions. Page: 4 HB-16W Handling Instructions... - Page 5 Check moving parts for alignment and binding as well as for breakage and improper mounting. Damaged parts should be repaired or replaced by an authorized service facility. Page: 5 HB-16W Handling Instructions...
- Page 6 Operating the HB-16W Rebar Bender Insert rebar(s) in between the pivot shoe and housing so that the rebar is at right angles to the pivot shoe/hous- ing. Throttle the on/off switch until the re- bar has reached your required angle.
- Page 7 HB-16W Rebar Bender Maintenance OIL CHECK: The HB-16W is hydraulically operated. It is therefore necessary to check the oil level at fre- quent intervals, preferably every day. If oil level is too low, power will drop and the piston will not move properly.
- Page 8 (9) bending rollers in steel carrying cases, a tool kit, a comes standard with a hands-free foot pedal control bender cover, and a standard foot pedal control switch switch and a complete bending radius roller set. for hands-free bending. Page: 8 HB-16W Handling Instructions...
- Page 9 HB-16W Rebar Bender Parts Manual HB-16W Parts Manual...
- Page 10 3P1031 SEAL PACKING 7N0005 NUT M5 1DBR29481 HANDLE 1C1318 SEAL PACKING 7SS06012 SET SCREW M6×12 1HB16051 ADJUST ROD 7B06120 SET BAR M6×120 1DBR2939 SPRING GUIDE 70RP5 O RING P5 1DBR2945 O RING P7 7UN0006 U NUT M6 HB-16W Parts Manual...
- Page 11 BALL BEARING 698 7WNS04020 TAPPING SCREW 4×20 4V0001X CORD ARMER 1C1325 BEARING GUIDE 1C13401 NEEDLE BEARING 4V0001V CORD SET 7SS04005 SET SCREW 4×5 1C1325 BEARING GUIDE 1C1326 SNAP RING HR27 4V0001H MOTOR HOUSING 1C1615 PUMP CASE PACKING HB-16W Parts Manual...
- Page 12 HB-16W Parts Manual...
