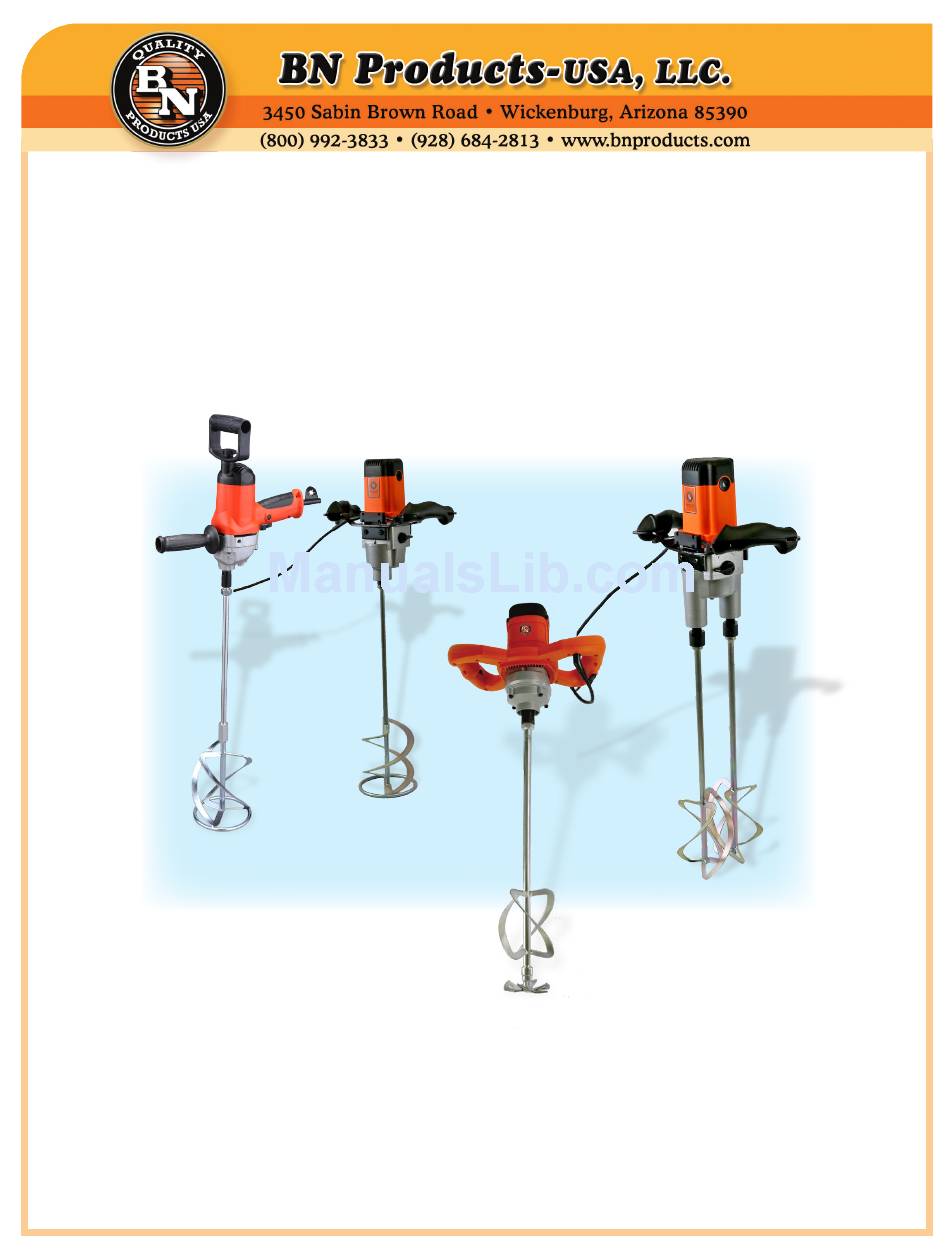

- Page 1 ~ Product Manual ~ BN Professional Material Mixers BNR6169 BNR6402K BNR6400 BNR7000 Page 1 BN Products - USA Mixer Manual 2017.indd • May 31, 2017...
-
Page 2: Product Description
Always check ito see if voltage corresponds with the manu- grounded power tools. Unmodified plugs and match- facturer’s requirements ing outlets will reduce risk of electric shock. Page 2 BN Products - USA Mixer Manual 2017.indd • May 31, 2017... -
Page 3: Specifications
Carrying power tools with your finger on the switch or tools are dangerous in the hands of untrained users. energizing power tools that have the switch on invites Page 3 BN Products - USA Mixer Manual 2017.indd • May 31, 2017... -
Page 4: Starting The Mixer
Have your power tool serviced by a qualified repair person using only Identical replacement parts. This will ensure that The BNR6169 comes with a two part mixing paddle. First the safety of the power tool is maintained. screw mixer shaft (6a) together with mixer paddle (6b). -
Page 5: Care And Maintenance
Attention! Changing the brushes should be done by a quali- workshop or by the manufacturer. fied electrician. MAINTENANCE There are no parts fitted inside the unit that require main- tenance. Page 5 BN Products - USA Mixer Manual 2017.indd • May 31, 2017... - Page 6 BNR6169 Material Mixer PARTS LIST (BNR6169) Part DESCRIPTION BNR6169-01 Output shaft BNR6169-02 Semi-circular key 3×3.7×10 BNR6169-03 Screw ST 4.8×48 BNR6169-04 Gear housing BNR6169-05 Bearing 6002 BNR6169-06 Collar 32 BNR6169-07 Collar 15 BNR6169-08 Gear for output shaft BNR6169-09 Bearing hk1010 BNR6169-10...
- Page 7 BNR7000P-37 BEARING COVER BNR7000P-17 SCREW BNR7000P-38 BEARING BNR7000P-18 SPEED REGULATION BNR7000P-39 BEARING BUSHING BOARD BNR7000P-40 SCREW BNR7000P-19 HANDLE B BNR7000P-41 NEEDLE BEARING BNR7000P-20 SCREW BNR7000P-21 CABLE STRAIN Page 7 BN Products - USA Mixer Manual 2017.indd • May 31, 2017...
- Page 8 BNR6400 Material Mixer BNR6400 Material Mixer Page 8 BN Products - USA Mixer Manual 2017.indd • May 31, 2017...
- Page 9 CLAMP BNR6400-29 BEARING 6001 2RS BNR6400-61 CONSTANT POWER BNR6400-30 ARMATURE ASSEM- BOARD BNR6400-62 CIRCUIT BOARD BNR6402K-35 M INSULATION GAS- SEATS BNR6400-63 REAR COVER BNR6400-31 BEARING 608 Z Page 9 BN Products - USA Mixer Manual 2017.indd • May 31, 2017...
- Page 10 BNR6402K Material Mixer Page 10 BN Products - USA Mixer Manual 2017.indd • May 31, 2017...
- Page 11 BRUSH HOLDER BNR6402K-35 M INSULATION GASKET BNR6402K-70 SCREW M5X25 BNR6402K-36 BEARING 608 Z BNR6400-62 CIRCUIT BOARD SEATS BNR6402K-37 PIN 4*14 BNR6400-63 REAR COVER BNR6402K-38 SAFETY RING Ø9 Page 11 BN Products - USA Mixer Manual 2017.indd • May 31, 2017...
- Page 12 Diameter: 100 mm (3.875”) • Overall length: 60 cm (24”) • Designed for paints, lacquers, glazings, primers, and paste, best for small volumes of low viscosity materials • Recommended to use on BNR6169. • Material Flow: Top to Bottom • Connection: M14 x 2 male threads BNR007-140 Diameter: 140mm (5-1/2”) •...
