Heat Pump Product Manual

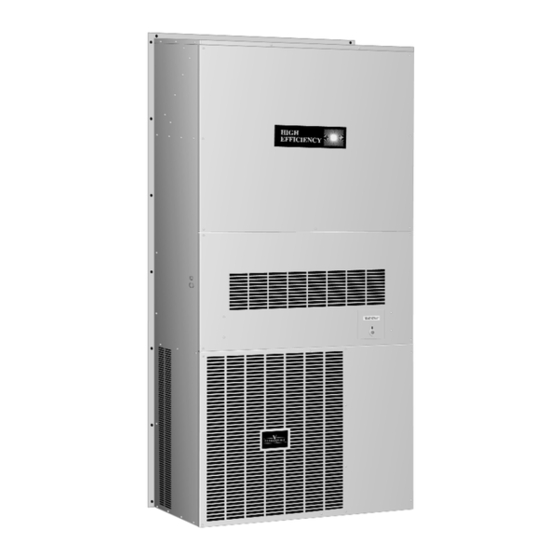

Vertical Wall-Mount Heat Pumps
Installation & Operation Manual
TH Series 10 EER Vertical Wall-Mount Heat Pumps
MODELS:
TH36-42-48-60
IMPORTANT
This manual may include information for options and features which may not be
included on the unit being installed. Refer to the unit data label or Model Identification
to determine which features and options this unit is equipped with.
INSTALLER: Affix the instructions on the inside of the building adjacent to the thermostat.
END USER: Retain this manual for future reference.
Manufactured By:
A Division of the AIRXCEL
Commercial/Industrial Group
®
P.O. Box 400 • Cordele, Georgia 31010 • 156 Seedling Drive • Cordele, Georgia 31015
(229) 273-3636 • Fax (229) 273-5154
E-mail: eubanksales@airxcel.com • Internet: www.EubankWallmount.com
The most current version of this manual can be found at www.EubankWallmount.com.
Eubank TH Series Heat Pump I&O Manual 09/2018 Rev.10
1
Eubank TH Series Heat Pump I&O Manual
Part #03698
09/2018 Rev. 10
Advertisement
Related Manuals for Eubank TH Series
Summary of Contents for Eubank TH Series
- Page 1 (229) 273-3636 • Fax (229) 273-5154 E-mail: eubanksales@airxcel.com • Internet: www.EubankWallmount.com The most current version of this manual can be found at www.EubankWallmount.com. Eubank TH Series Heat Pump I&O Manual 09/2018 Rev.10 Eubank TH Series Heat Pump I&O Manual Part #03698...
-
Page 2: How To Use This Manual
For information on the efficiency, cooling and heating performance, please refer to the TH Series Product Data Sheets. The most current version of all literature can be found on our website at www.EubankWallMount.com. -
Page 3: Inspection And Unpacking
National Board of Fire Underwriters. DIRECTED TOWARD LIVE ELECTRICAL CONNECTIONS OR In all cases, the equipment MUST be installed in accordance POWER SOURCE. with the installation instructions described in this manual. Eubank TH Series Heat Pump I&O Manual 09/2018 Rev. 10... - Page 4 INSTALLATION (C: UNIT PREPARATION) TO CLEAN FRESH AIR INTAKE FILTER: A. Follow steps A and B at left 1. TH Series model units have top rain flashing built onto “TO CHANGE SYSTEM FILTER”. the unit. The bottom-mounting flange for all models is B.
- Page 5 See Figure 1 for reference. energized). The second stage is auxiliary resistance heat (W is energized). TH Series units are equipped with an emergency heat lock-out relay. This will disable the compressor when the E terminal is energized. Do not install a jumper between the W and E terminals;...
- Page 6 Low-voltage terminal R is connected to Y and G, at the unit TH Series units may be equipped with a high-pressure switch. low-voltage terminal board. This switch is wired through a lockout relay to lock out the The system reversing valve is not powered during the heating system if the high side pressure exceeds 650 psi.
-
Page 7: Exploded Parts Drawing
EXPLODED PARTS DRAWING - 36/42/48/60 Eubank TH Series Heat Pump I&O Manual 09/2018 Rev. 10... - Page 8 DISCONNECT ACCESS DOOR LATCH HV36-60 T36-0011B MIDDLE FRONT PANEL (no fresh air) HV36 T36-0011EB MIDDLE FRONT PANEL (economizer f/a) HV36 T36-0011FB MIDDLE FRONT PANEL (barometric f/a) HV36 Marvair Classic AVHA I&O Manual 06/2018 Rev.1 Eubank TH Series Heat Pump I&O Manual 09/2018 Rev. 10...
- Page 9 OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL 710835 RETURN FILTER GRILL OPTIONAL OPTIONAL OPTIONAL 710840 RETURN FILTER GRILL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL Marvair Classic AVHA I&O Manual 06/2018 Rev.1 Eubank TH Series Heat Pump I&O Manual 09/2018 Rev. 10...
- Page 10 TH SERIES HEAT PUMP ELECTRICAL DATA Summary Electrical Ratings (Wire and Circuit Breaker Sizing) TH Series Heat Pumps with Ventilation Configurations: Manual Damper, up to 15% Outside Air (“N”) Economizer, up to 100% Outside Air with Pressure Relief (“C”) Motorized Damper, up to 450 CFM of Outside Air with Pressure Relief (“B”) Manual Damper, up to 450 CFM of Outside Air (“Y”)
- Page 11 Figure 3: Typical Wiring Diagram, TH36-60 208-230V, 1Ø w/Barometric Damper & No Heat Eubank TH Series Heat Pump I&O Manual 09/2018 Rev. 10...
- Page 12 Figure 4: Typical Wiring Diagram, TH36-60 208-230V, 1Ø w/Motorized Damper & No Heat Eubank TH Series Heat Pump I&O Manual 09/2018 Rev. 10...
- Page 13 Figure 5: Typical Wiring Diagram, TH36-60 208-230V, 1Ø w/Economizer & No Heat Eubank TH Series Heat Pump I&O Manual 09/2018 Rev. 10...
- Page 14 Figure 6: Typical Wiring Diagram, TH36-60 208-230V, 3Ø w/Barometric Damper & No Heat Eubank TH Series Heat Pump I&O Manual 09/2018 Rev. 10...
- Page 15 Figure 7: Typical Wiring Diagram, TH36-60 208-230V, 3Ø w/Motorized Damper & No Heat Eubank TH Series Heat Pump I&O Manual 09/2018 Rev. 10...
- Page 16 Figure 8: Typical Wiring Diagram, TH36-60 208-230V, 3Ø w/Economizer & No Heat Eubank TH Series Heat Pump I&O Manual 09/2018 Rev. 10...
- Page 17 Figure 9: Typical Wiring Diagram, TH36-60 460V, 3Ø w/Barometric Damper & No Heat Eubank TH Series Heat Pump I&O Manual 09/2018 Rev. 10...
- Page 18 Figure 10: Typical Wiring Diagram, TH36-60 460V, 3Ø w/Motorized Damper & No Heat Eubank TH Series Heat Pump I&O Manual 09/2018 Rev. 10...
- Page 19 Figure 11: Typical Wiring Diagram, TH36-60 460V, 3Ø w/Economizer & No Heat Eubank TH Series Heat Pump I&O Manual 09/2018 Rev. 10...
- Page 20 FAN PURGE FAN SPEED MINUTES SECONDS FAN PURGE FAN SPEED MINUTES SECONDS Figure 13: Typical Wiring Diagram, TH36-60 208-230V, 1Ø 10kW Heater Circuit Marvair Eubank TH Series Heat Pump I&O Manual Crispaire Division of AIRXCEL, Inc. Cordele, GA 09/2018 Rev. 10...
- Page 21 3PH 6 KW HEATER 1 SHOT LIMIT SWITCHES FAN PURGE FAN SPEED MINUTES SECONDS Figure 15: Typical Wiring Diagram, TH36-60 208-230V, 3Ø 6kW Heater Circuit Marvair Eubank TH Series Heat Pump I&O Manual 09/2018 Rev. 10 Division of AIRXCEL, Inc. Cordele, GA...
- Page 22 Division of AIRXCEL, Inc. Cordele, GA 1 SHOT LIMIT SWITCHES FAN PURGE FAN SPEED MINUTES SECONDS Figure 17: Typical Wiring Diagram, TH36-60 208-230V, 3Ø 15kW Heater Circuit Eubank TH Series Heat Pump I&O Manual Marvair 09/2018 Rev. 10 Division of AIRXCEL, Inc. Cordele, GA...
- Page 23 Division of AIRXCEL, Inc. Cordele, GA 1 SHOT LIMIT SWITCHES FAN PURGE FAN SPEED MINUTES SECONDS Figure 19: Typical Wiring Diagram, TH36-60 460V, 3Ø 15kW Heater Circuit Eubank TH Series Heat Pump I&O Manual Marvair 09/2018 Rev. 10 Division of AIRXCEL, Inc. Cordele, GA...
- Page 24 9 1/8 (232) 9 7/8 (251) 36 3/8 (924) 39 3/8 (1,000) 2 1/8 (54) 6 1/2 (165) 2 (51) 2 (51) 48 1/4 (1,226) 56 (1,422) 50 (1,270) 57 7/8 (1,470) Eubank TH Series Heat Pump I&O Manual 09/2018 Rev. 10...
- Page 25 C = Low Ambient Kit 06 = 6 kw P = 2” Pleated MERV 8 Filter 09 = 9 kW R = Dehumidification 10 = 10 kW 15 = 15 kW Eubank TH Series Heat Pump I&O Manual 09/2018 Rev. 10...
