Installation

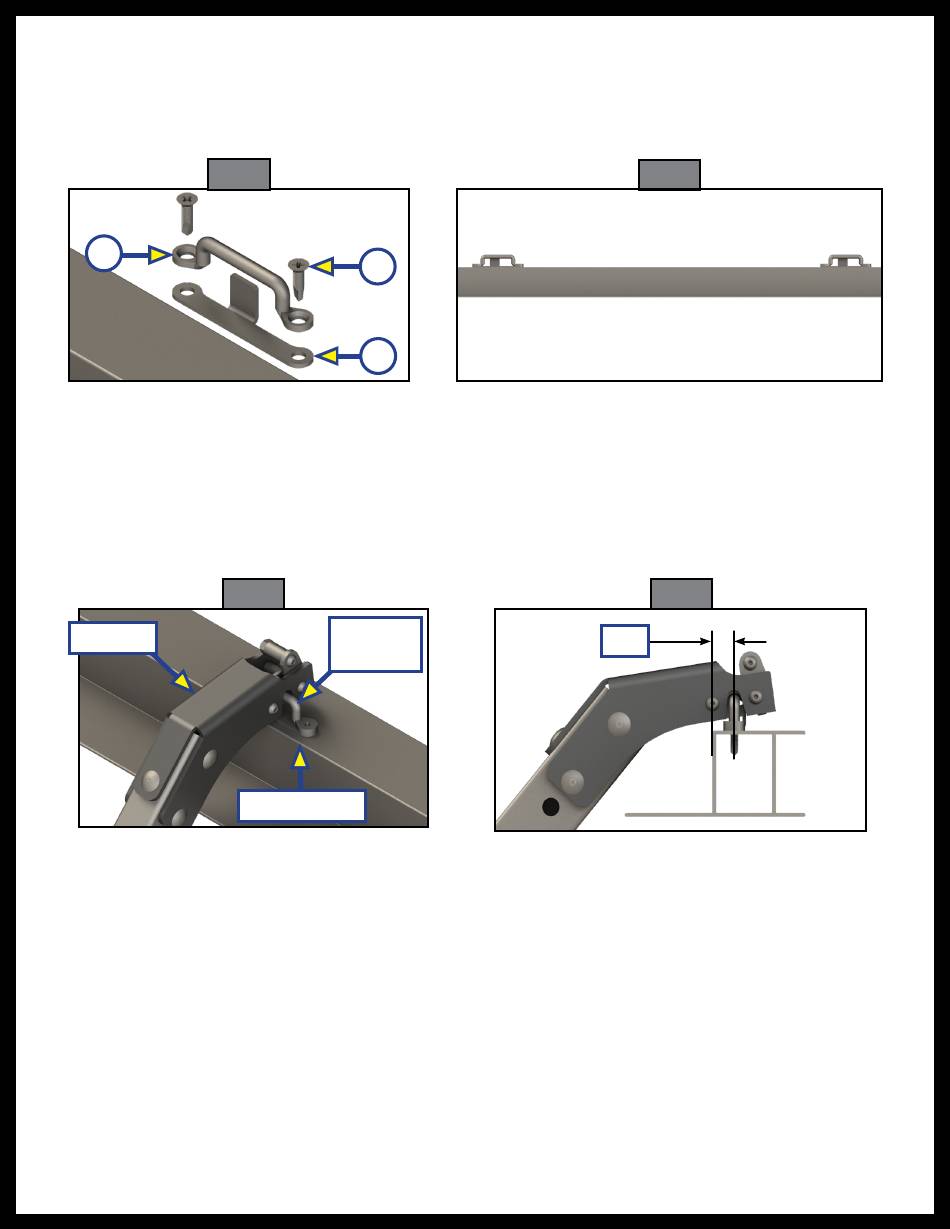

The Victory Step has latching mechanisms that attach onto two footman loops that are installed to the
aluminum frame of the ramp door. There is an angle bracket (Fig. 1A) under each footman loop (Fig. 1B) to
keep the Victory Step from shifting when latched. The angle brackets are offset, leaving more space on the right
side of each footman loop (Fig. 2) to accommodate the latching mechanisms.
B
To install the footman loop and angle brackets:
1. Place the Victory Step in the desired location in patio opening, making sure there is enough space to
accommodate the installation of footman loops and the handrail, if equipped.
2.
Attach a footman loop to each of the latching mechanisms on the step (Fig. 3) and position the step in
the desired mounting location according to the 1/2" offset shown in Figure 4.
3.
Without releasing the footman loops from the latching mechanisms on the step, position an angle
bracket (Fig. 1A) underneath each footman loop and line up both holes.
4. Mark the holes in the footman loop. Repeat for the other side.
Housing
5. Fasten footman loops and angle brackets to the trailer with the supplied screws (Fig. 1C), making sure
the angle bracket tabs are behind the footman loops.
