Carefree TRAVEL'R Owner's Manual

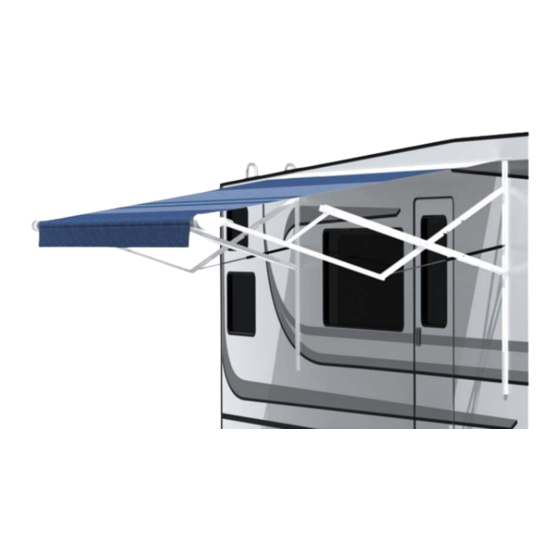

12v motorized awning with direct response
Hide thumbs Also See for TRAVEL'R:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
RV
Before operating the awning, carefully review the Owner's Manual.
The manual contains important safety information, detailed operating
instructions, common maintenance procedures and other useful
information.
The Adjustable Pitch Travel'r with Direct Response is only offered through select OEMs.
T
C
ABLE OF
Introduction ........................................................................................................... 2
Operation ............................................................................................................... 4
Power Switch ....................................................................................... 4
Patio Switch ......................................................................................... 4
Motion Switch ...................................................................................... 4
Testing the Direct Response System ............................................................ 5
Using the Key FOB Remote Control .............................................................. 5
Key FOB Batteries ............................................................................... 5
Programming the Remote Receiver .............................................................. 6
Operational Notes: .............................................................................. 6
LED's ............................................................................................................. 7
Adjusting the Pitch ......................................................................................... 8
Emergency Operation ................................................................................... 9
Common Operational Questions ................................................................. 10
Awning Care ........................................................................................................ 11
Fabric Care .................................................................................................. 11
Arm Care ..................................................................................................... 11
Carefree Major Product Limited Warranty ......................................................... 12
ONTENTS
O
'
WNER
S
12V M
OTORIZED
D
WITH
IRECT
M
ANUAL
T
'
RAVEL
R
A
WNING
TM
R
ESPONSE



















Advertisement

Table of Contents
loading

Related Manuals for Carefree TRAVEL'R

Summary of Contents for Carefree TRAVEL'R

  • Page 1: Table Of Contents

    Before operating the awning, carefully review the Owner's Manual. The manual contains important safety information, detailed operating instructions, common maintenance procedures and other useful information. The Adjustable Pitch Travel'r with Direct Response is only offered through select OEMs. ABLE OF ONTENTS  ...

  • Page 2: Introduction

    100% satisfaction. If you have any questions or concerns about this order, please do not hesitate to contact us. Check with your dealer to discover the products that can make your life more Carefree. RODUCT ESCRIPTION The Travel'r series of awnings provides motorized awning comfort with Carefree's standards for looks, strength and dependability.
  • Page 3 RAVEL ATIO WNING ERVICE AND UPPORT www.carefreeofcolorado.com/eclipse customerservice@carefreeofcolorado.com Carefree of Colorado 2145 W. 6 Ave. Broomfield, CO 80020 Warnings and Cautions This is the safety alert symbol. It is used to alert individuals to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible personal injury or death.

  • Page 4: Operation

    Carefree of Colorado PERATION The Direct Response system uses 3 switches at the control panel: Power Switch; Patio Switch and Motion Sensitivity Switch. OWER WITCH ON ... Press the power switch to ON. OWER When power is on, the Direct Response system is active and the manual controls are active.

  • Page 5: Testing The Direct Response System

    Gently move the roller tube up and down in a vertical motion. If the awning retracts, the system is working properly. If the awning does not retract, contact an authorized Carefree dealer for repairs. Operate the awning with the Patio switch until the system is repaired.

  • Page 6: Programming The Remote Receiver

    Carefree of Colorado ROGRAMMING THE EMOTE ECEIVER When adding or replacing a remote control, it is necessary to program the transmitter and receiver. Stop Indicator Program Light Button DR020 Power to the control box must be on. Press and release the “Press to Learn Transmitter” button on the bottom of the receiver box.

  • Page 7: Led's

    RAVEL ATIO WNING LED’ White (monotone) LEDs are a popular option providing lighting beneath the awning. Factory installed LEDs are located on the roller tube or can be mounted at the awning rail. To operate the White LED lights, you must have the LED power switch ON.

  • Page 8: Adjusting The Pitch

    DJUSTING THE ITCH The Travel'r arms have 6 pitch adjustment settings from minimum pitch to maximum pitch. The awning can be extended and retracted in any of these positions without having to reset the pitch between uses. See the Warnings about unequal pitch settings.

  • Page 9: Emergency Operation

    ATIO WNING MERGENCY PERATION If the original power source fails or is unavailable, the Travel'r has emergency override connections (12V). The override can be used with a 10V-14V power source, such as a cordless drill battery or car battery. WARNING...

  • Page 10: Common Operational Questions

    RV manufacturers may install their own lockout design. Refer to the RV literature for 12V power used for accessories. If the awning does not operate, contact your Carefree Service Center. Visit our web site www.carefreeofcolorado.com for a listing of dealers and service centers.

  • Page 11: Awning Care

    RAVEL ATIO WNING WNING Maintaining a Carefree Awning is easy. Just follow these basic steps:  Always operate the awning according to the instructions.  Periodically check that the fasteners are tight. Tighten if necessary.  Keep the awning fabric and arms clean.

  • Page 12: Carefree Major Product Limited Warranty

    Carefree’s obligation under this warranty is limited to the repair or replacement, at Carefree’s option, of any defective component with new or factory refurbished components.
