Typical characteristics – properties of the functions

Structure

10  Product description
Rev. 00 12/17

Reasonably foreseeable misuse

–
Use of enameled powder
–
Use with insufficient compressed air quality
–
Use of moist powder
–
Incorrectly assembled individual parts
The OptiFlow Injector is a plug-in type and permits easy handling and
quick cleaning. All connections are plug-in types and not interchangeable.
The injector can be disassembled without special tools.
The injector is supplied with a PTFE / ETFE cartridge as standard.

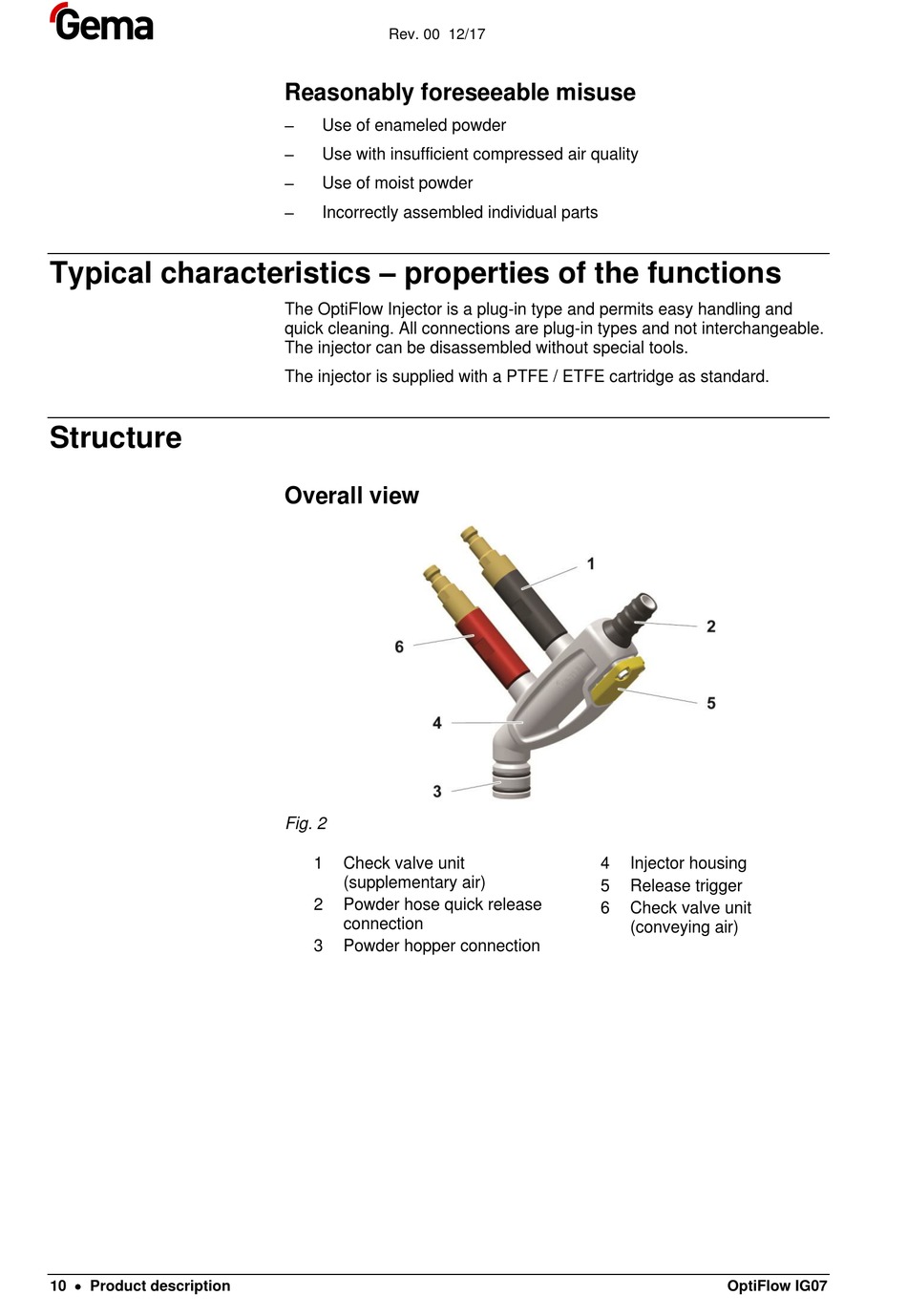

Overall view

Fig. 2
1 Check valve unit
(supplementary air)
2 Powder hose quick release
connection
3 Powder hopper connection
4 Injector housing
5 Release trigger
6 Check valve unit
(conveying air)
