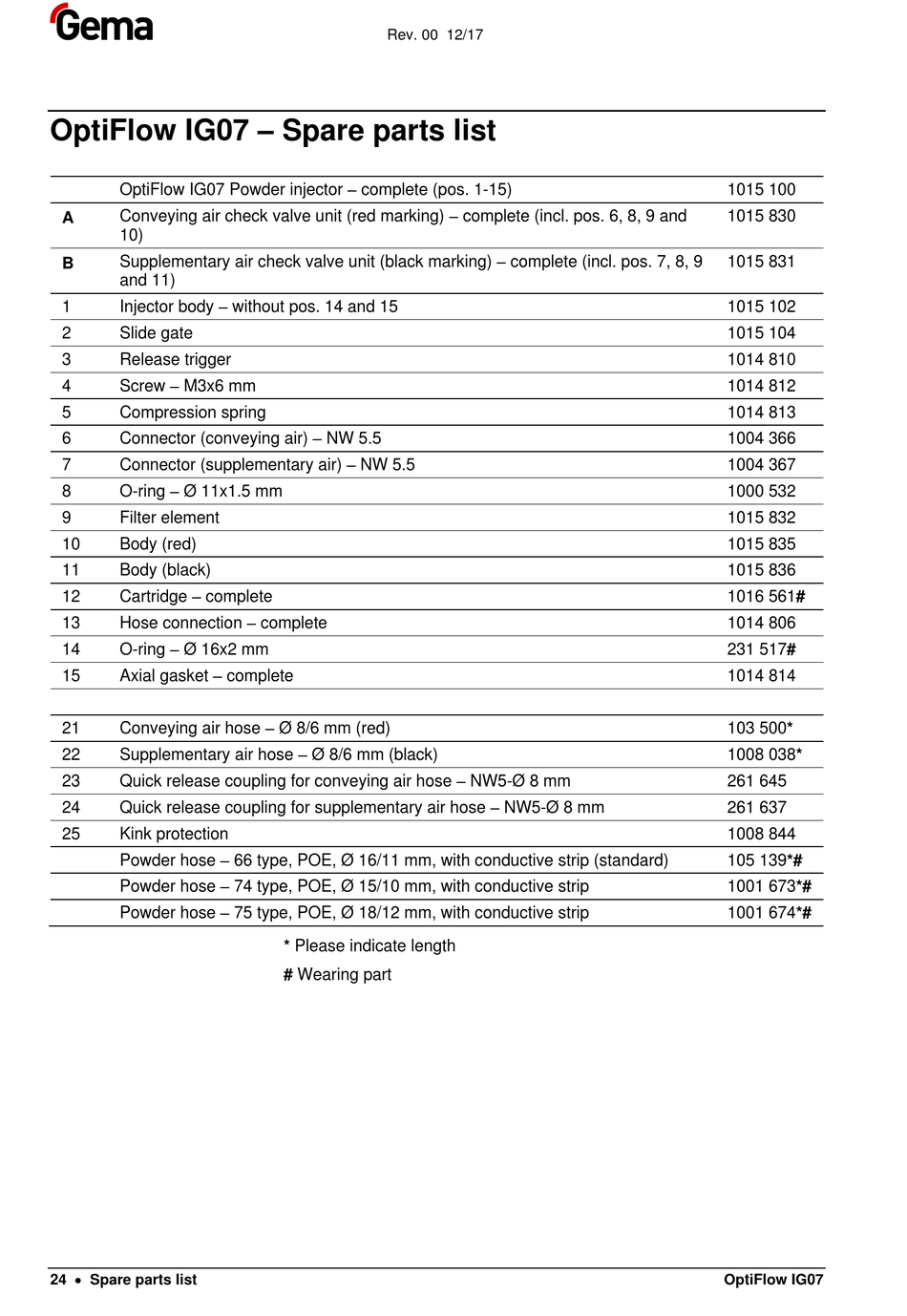

OptiFlow IG07 – Spare parts list
OptiFlow IG07 Powder injector – complete (pos. 1-15)
Conveying air check valve unit (red marking) – complete (incl. pos. 6, 8, 9 and
A
10)
Supplementary air check valve unit (black marking) – complete (incl. pos. 7, 8, 9
B
and 11)
Injector body – without pos. 14 and 15
1
2 Slide gate
3 Release trigger
Screw – M3x6 mm
4
5 Compression spring
Connector (conveying air) – NW 5.5
6
Connector (supplementary air) – NW 5.5
7
O-ring – Ø 11x1.5 mm
8
9 Filter element
10 Body (red)
11 Body (black)
Cartridge – complete
12
Hose connection – complete
13
O-ring – Ø 16x2 mm
14
Axial gasket – complete
15
Conveying air hose – Ø 8/6 mm (red)
21
Supplementary air hose – Ø 8/6 mm (black)
22
Quick release coupling for conveying air hose – NW5-Ø 8 mm
23
Quick release coupling for supplementary air hose – NW5-Ø 8 mm
24
25 Kink protection
Powder hose – 66 type, POE, Ø 16/11 mm, with conductive strip (standard)
Powder hose – 74 type, POE, Ø 15/10 mm, with conductive strip
Powder hose – 75 type, POE, Ø 18/12 mm, with conductive strip
24  Spare parts list
Rev. 00 12/17
* Please indicate length
# Wearing part
1015 100
1015 830
1015 831
1015 102
1015 104
1014 810
1014 812
1014 813
1004 366
1004 367
1000 532
1015 832
1015 835
1015 836
1016 561#
1014 806
231 517#
1014 814
103 500*
1008 038*
261 645
261 637
1008 844
105 139*#
1001 673*#
1001 674*#
OptiFlow IG07
