22 Khz Mode; Motor Control; Diseqc Control; Setup - emitor DIGISAT PRO Manual

22 kHz Mode

The DIGISAT PRO has a built-in 22 kHz tone generator which can be activated by this function. This allows
you check switches and LNBs. The option is ON/OFF and toggle (between ON/OFF) mode.

Motor control

This menu allows you to drive the motor east and west to the position you want. Here you can also set the
east/west limits, as well as clear the east/west limits. There is also a function that allows you to calibrate the
motor.

DiSEqC Control

The DiSEqC modes are:
•
Toneburst
•
Position + Option - Position 1,2,3,4 (OFF/OFF, OFF/ON, ON/OFF, ON/ON)
• Switch 1-4

Setup

Setup takes you to a list of options as follows:
Atten ON/OFF; this attenuates (reduces) both signal meter readings to lower numbers. Handy if the bar graphs
is maxed out. Note that "ATT" text is now shown on the display. To turn off this feature, go back to ATTEN in
the setup menu and press the red button.
Switch mode; the DIGISAT PRO can also perform as a 2-way switch, the options are as follow:
•
TB – Toneburst- (miniDiSEqC) switch
•
POS - DiSEqC "position" switch
•
OPT - DiSEqC "option" switch
•
SW1 - DiSEqC "switch 1" switch
•
SW2 - DiSEqC "switch 2" switch
•
14/18V – 14/18 volt switch
•
22 kHz - 22 kHz switch

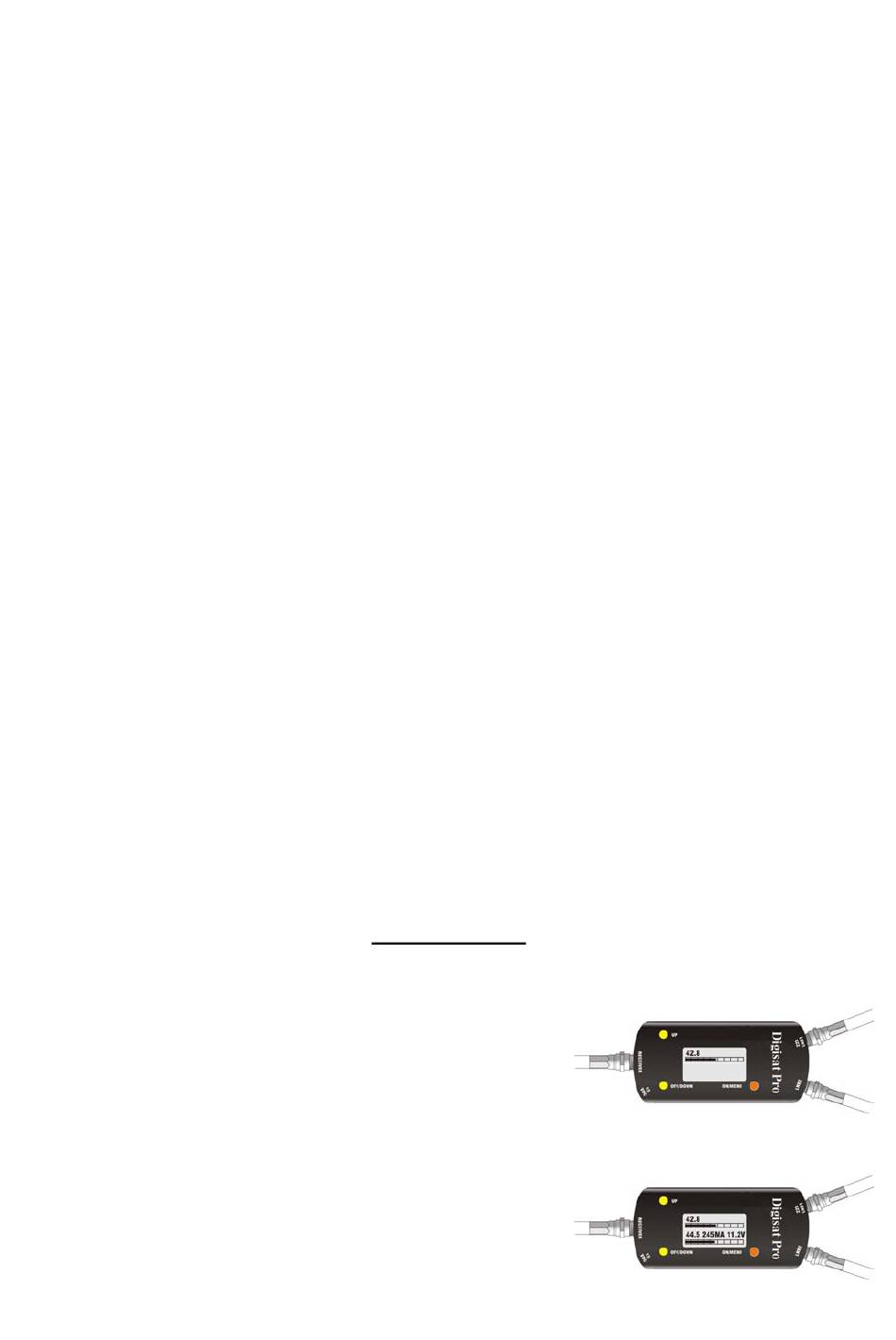

If you want to check the video with the DIGISAT PRO connected,
press "UP" button to select the LNB you would like to view. This
illustration indicates that we have selected LNB1. The video data will
now pass smoothly from LNB1 through the DIGISAT PRO and can be
interpreted by the satellite receiver.
Note that you must select only one LNB to receive video signals for a
viewable picture. The DIGISAT PRO is effectively dividing its
attention to both ports LNB1 and LNB2 when both graphs are
presented. This is perfect for dish alignment but interrupts the data
stream to the receiver and it will present no video in this mode.
- A or B ( ON or OFF)
-Switch 1-4 ON or OFF

Receiver Video
