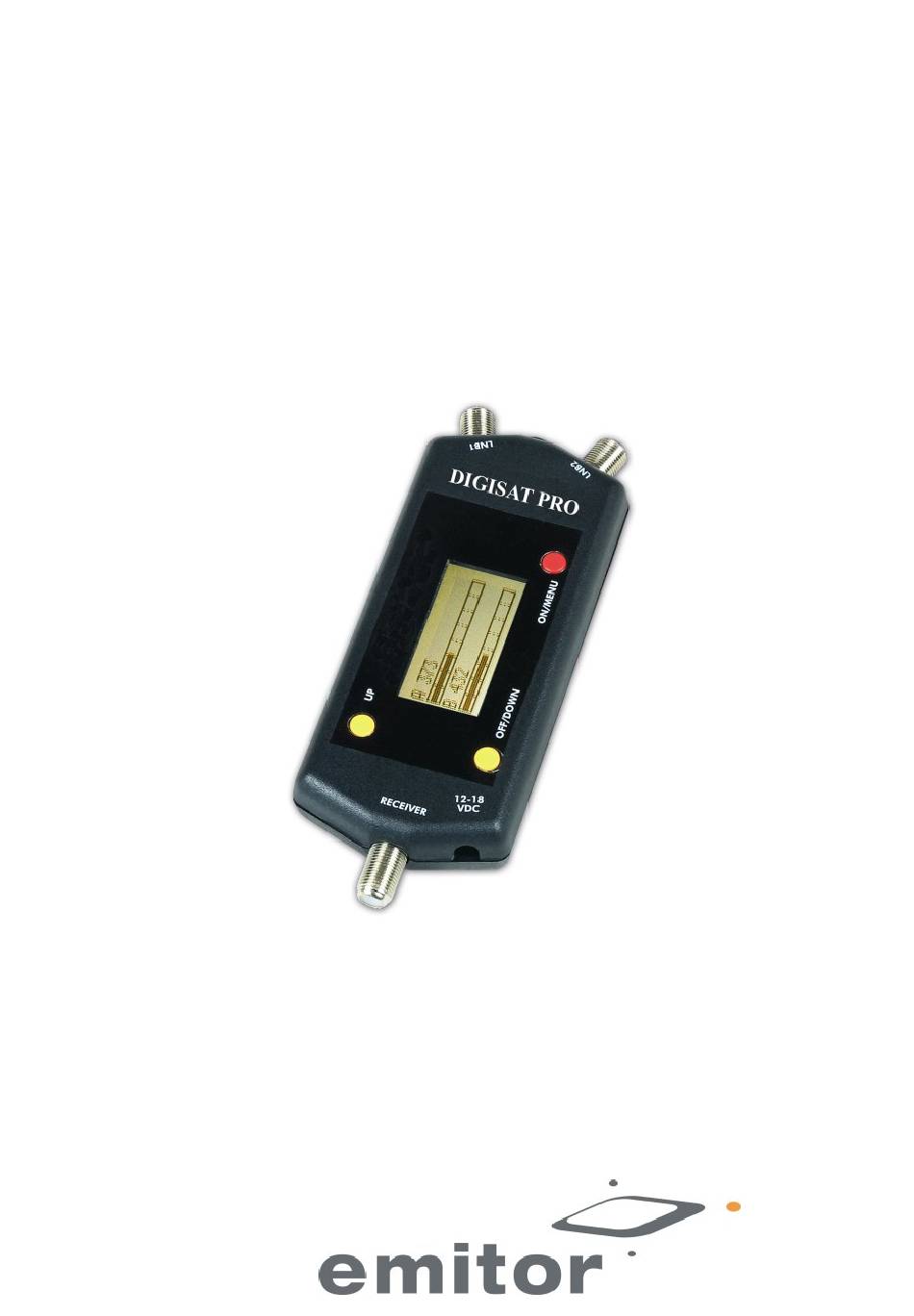

- Page 1 DIGISAT PRO Manual English Version: 2.00...

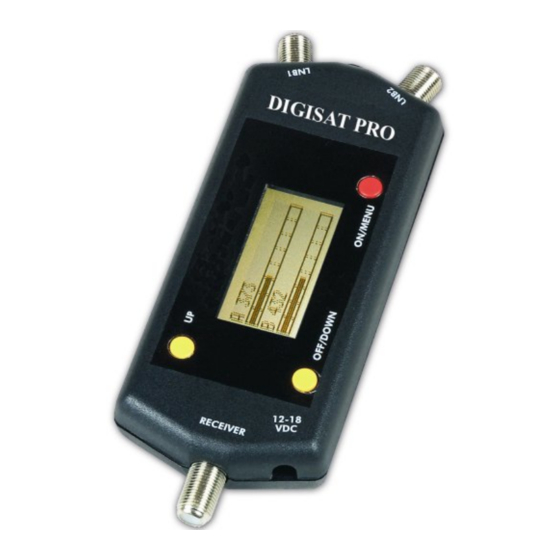

- Page 2 Connections Single or Dual LNB connections: You can connect the DIGISAT PRO to a single or a dual LNB and read the satellite strength on either the top or the bottom bar depending on which connection is attached. Single LNB connection...
-
Page 3: The Menu
Signal view This is the screen you will see when you first turn on the DIGISAT PRO. These bars indicate the general signal strength, voltage and current draw in mA of all connected devices. If desired, you can look at only one LNB by pressing “UP”... - Page 4 22 kHz Mode The DIGISAT PRO has a built-in 22 kHz tone generator which can be activated by this function. This allows you check switches and LNBs. The option is ON/OFF and toggle (between ON/OFF) mode. Motor control This menu allows you to drive the motor east and west to the position you want. Here you can also set the east/west limits, as well as clear the east/west limits.
- Page 5 F.A.Q Be aware of the fact that the DIGISAT PRO is an aid to aligning the antenna, it does not identify which satellite you are looking at. It still takes basic knowledge of satellite elevation and azimuth to track and identify the correct satellites.
- Page 6 The DIGISAT PRO is designed to align satellite antennas. It will not aid in the alignment of off-air antennas. The DIGISAT PRO is warranted for two full years against manufacturing defects. We will ask for proof of purchase so keep your receipt.
