An audible tone is available if you would prefer listening to the DIGISAT PRO rather than trying to watch the
digital reading or the bar graph. The audible tone is selectable and applies to only one LNB connection at the
time.
•

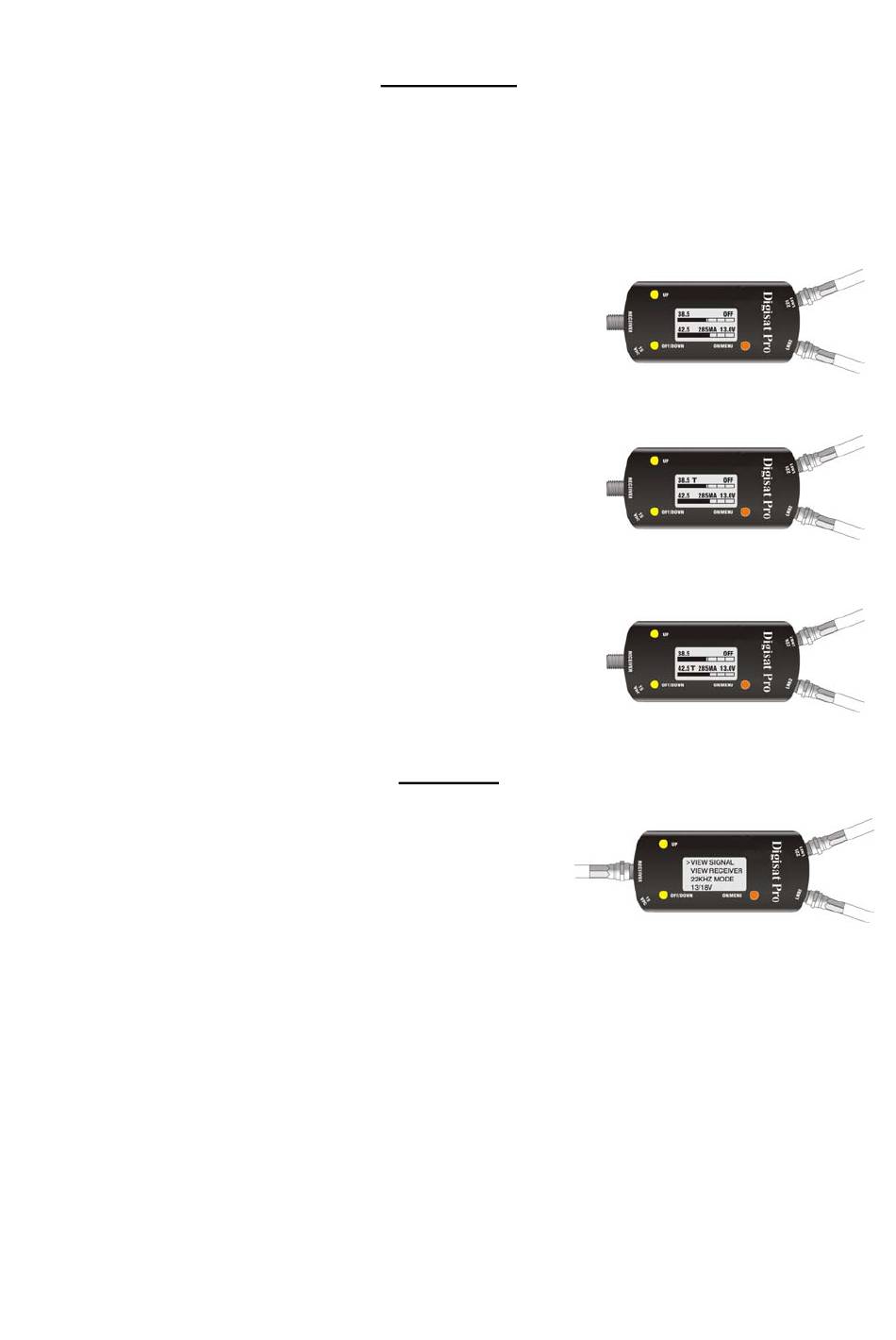

To use the tone capability, start from the default signal sensing mode
(right)
•
Press the "ON/OFF" button once. The tone will begin and the letter
"T" will appear above the top bar graph. This indicates that the tone
applies to the top LNB 1 reading.
•
To apply the tone to the bottom LNB 2, press the "ON/OFF" button
once more. The "T" will appear above the bottom bar graph and the
tone will apply to that LNB. To cancel the tone, press the "ON/OFF"
button one more time.
The DIGISAT PRO can provide much more information about your
satellite system. To access the expanded menu area, press the
"ON/MENU" button. The screen illustrated (right) will appear and
provide a very detailed range of tests and adjustments. The menu map
as well as details about what each function con do for you are listed in
this manual. Press the "UP" or "DOWN" button to scroll the
arrowhead pointer up and down through the menu.

Signal view

This is the screen you will see when you first turn on the DIGISAT PRO. These bars indicate the general signal
strength, voltage and current draw in mA of all connected devices. If desired, you can look at only one LNB by
pressing "UP" button. Press the "UP" button again to look at only the second LNB, one more press of the "UP"
button takes you back to both LNBs.

Receiver view

Displays the voltage provided by the satellite receiver or battery. Indicates the total current draw in mA of all
connected components. Also indicates if a 22 kHz tone is being sent from the receiver. These readings verify the
receivers operations. Also, using the receiver for power, you can measure voltage at the receiver and at the end
of the coax, this will help calculate the voltage loss through the coax cable.
