Chapter 5: Standard RLL Instructions
CTRRDER Example

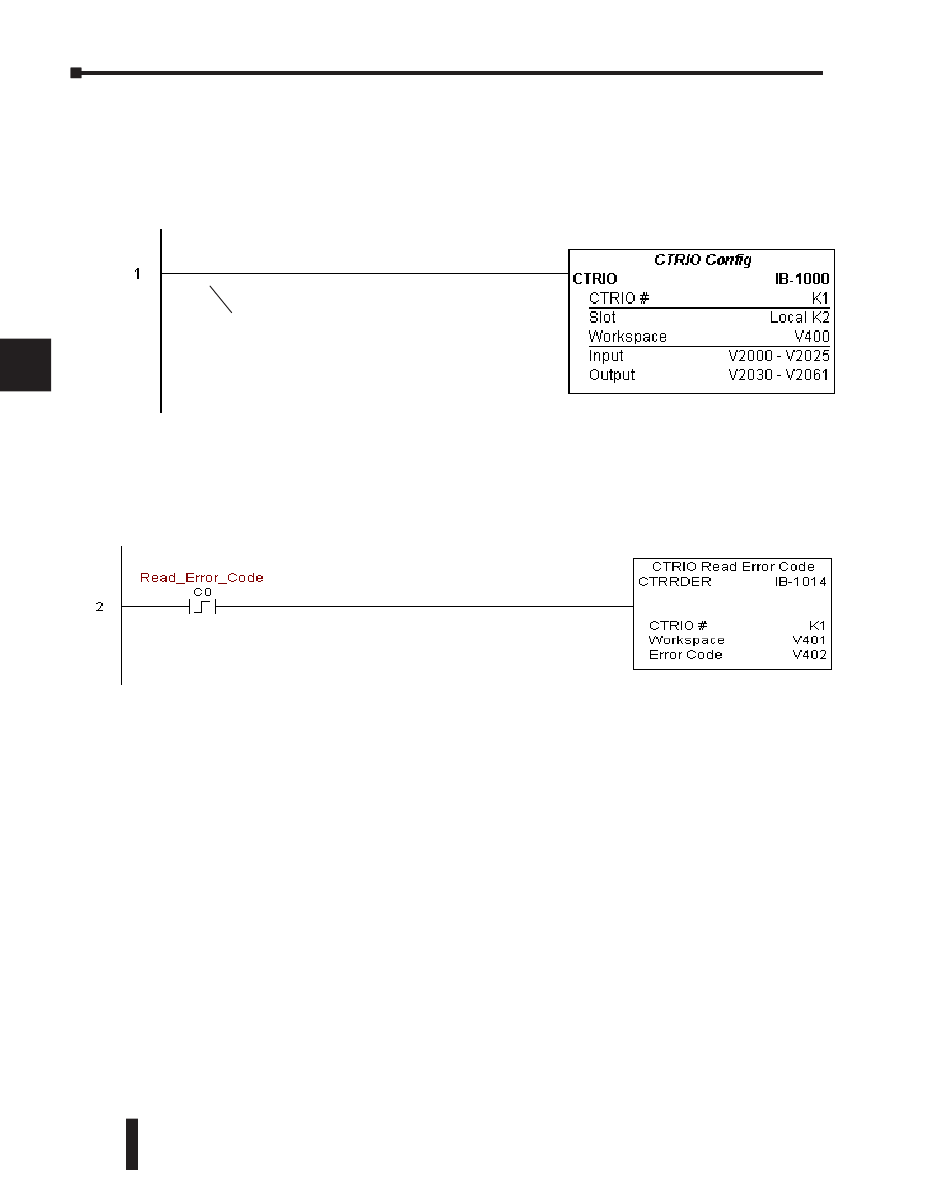

Rung 1: This sets up the CTRIO card in slot 2 of the local base. Each CTRIO in the system
1
will need a separate CTRIO I-box before any CTRxxxx I-boxes can be used for them. The
CTRIO has been configured to use V2000 through V2025 for its input data, and V2030
2
through V2061 for its output data.
3
4
Permissive contacts or input logic cannot
5
6
Rung 2: This CTRIO Read Error Code IBox will read the Extended Error information from
7
CTRIO #1. This example program requires that you load CTRRDER_IBox.cwb into your
Hx-CTRIO(2) module.
8
9
10
11
12
13
14
A
B
C
D
5-360
DL06 Micro PLC User Manual, 3rd Edition, Rev. E
be used with this instruction
