7. Cabling Requirements

4
9
4
9
Control
box
Control
box
Mains
Mains
isolator
isolator
switch
switch
2
2 3
3
1
1
6
6
10
10
Legend
1. 90V - 240V AC Mains cable via Mains isolator
or low-voltage 16V AC battery charger supply
2. Intercom cable (n1 + 6 core) to house.
3. Master Motor (MTR M) or Slave Motor (MTR S) cable.
(Minimum, 2 core 1.5mm
4. Optional radio receiver cable (3 core 0,5mm
5. Optional Pedestrian Keyswitch (2 core 0,5mm
(3 core 0,5mm
2
6. Optional, but recommended infrared Safety Beams (3 core 0,5mm
or 4 core 0.5mm
7. Optional intercom cable (n2+2 core 0,5mm
8. Optional electric lock (2 core 0.5mm
9. Optional Pillar Light cable (3 core, size according to power regulations).
10. Optional ground loop for free-exit (1 core 0.5mm
1. Mains isolator supplied with V-Series wall box
2. Increase cable thickness if Pillar Lights are to be installed
3. Screened cable is always recommended to provide better protection against lightning - earth one end of screening
4. Please use V-Series cabling. Order reference: CABLEVEC68
5. For optimum range an external receiver can be mounted on the wall
6. Consult manufacturer of loop detector for specific details
• All cables must be routed in conduit unless underground cable is
being used
• Mains isolator must be less than one metre from the operator
• Safety Beams are always recommended, i5 or Photon
www.CentSys.com
5
5
7
7
+ 4 core 0,22mm
2
multi-stranded).
for CE compliance).
2
8
8
6
6

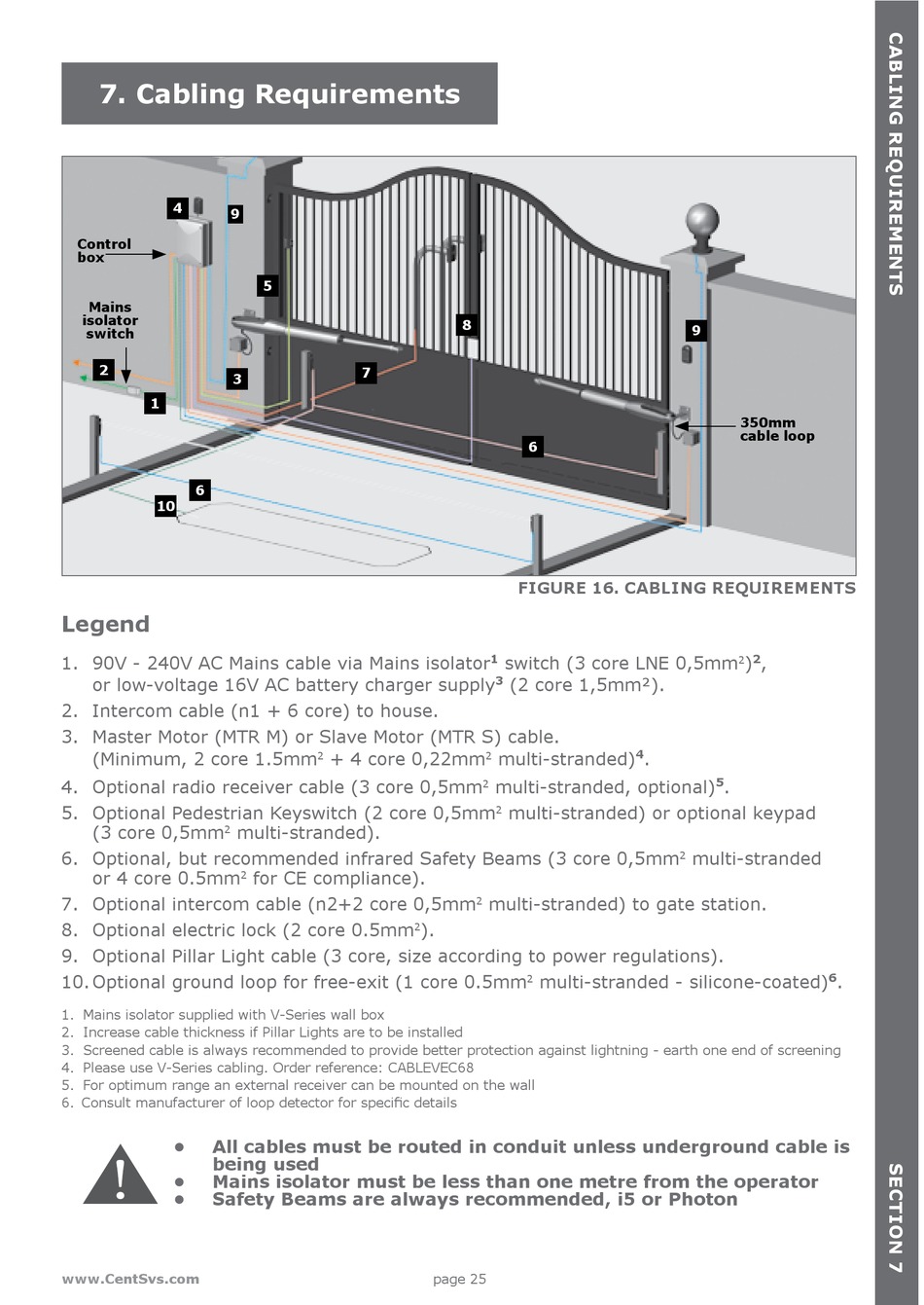

FIGURE 16. CABLING REQUIREMENTS
